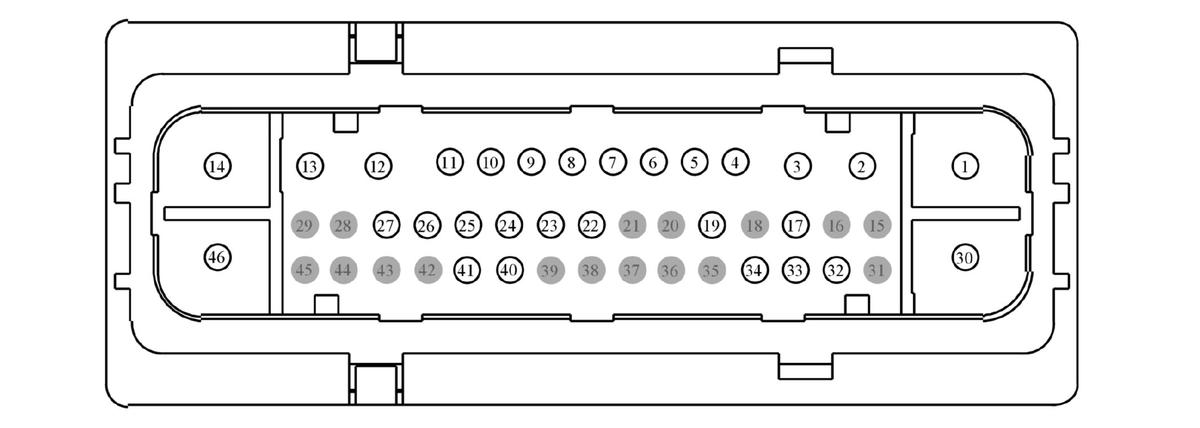

Connector End View C135 - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C135	ANTI-LOCK BRAKE SYSTEM (ABS) MODULE	BK	14290	part# N/A	See Below

Pin: 22 - CCB25(BN)-CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6, Gauge 0.5

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1C1T-14474-AA	KU2Z-14474-AA	6.30
F8VB-14474-AA	EU2Z-14474-AB	2.80
CU5T-14474-EB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD192 (BK-VT)	6	GROUND - FENDER FRONT LEFT # 5TH POINT	1C1T-14474-AA
1	GD124 (BK-VT)	6	GROUND - FENDER FRONT RIGHT # 2ND POINT	1C1T-14474-AA
2	CCB16 (WH-VT)	2.5	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+)	F8VB-14474-AA
3	CCB17 (BU-GN)	2.5	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)	F8VB-14474-AA
4	CCA06 (WH)	0.5	SENSOR - ACTIVE WHEEL SPEED RIGHT REAR	CU5T-14474-EB
5	RCA20 (BN)	0.5	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR	CU5T-14474-EB
6	CCA03 (GN)	0.5	SENSOR - ACTIVE WHEEL SPEED LEFT FRONT	CU5T-14474-EB
7	RCA17 (YE)	0.5	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT	CU5T-14474-EB
8	CCA04 (YE)	0.5	SENSOR - ACTIVE WHEEL SPEED LEFT REAR	CU5T-14474-EB
9	RCA18 (BN-GN)	0.5	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR	CU5T-14474-EB
10	CCA05 (GY-BU)	0.5	SENSOR - ACTIVE WHEEL SPEED RIGHT FRONT	CU5T-14474-EB
11	RCA19 (GN-WH)	0.5	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT	CU5T-14474-EB
12	CCB19 (GN-BN)	2.5	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-)	F8VB-14474-AA
13	CCB18 (YE-GY)	2.5	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+)	F8VB-14474-AA
14	SBB28 (GN-RD)	6	FUSE - 28 OR CIRCUIT BREAKER	1C1T-14474-AA
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CMC19 (GY-VT)	0.5	SWITCH - LOW LEVEL BRAKE FLUID	CU5T-14474-EB
18	*	*	Not Used	N/A
19	RMC19 (YE-GY)	0.5	SWITCH - LOW LEVEL BRAKE FLUID (CONTINUITY CHECK)	CU5T-14474-EB
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	CCB25 (BN)	0.5	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6	CU5T-14474-EB
23	CCB24 (WH-OG)	0.5	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5	CU5T-14474-EB
24	CCB23 (VT-GN)	0.5	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4	CU5T-14474-EB
25	CCB22 (WH-BN)	0.5	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3	CU5T-14474-EB
26	CCB21 (GN-VT)	0.5	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2	CU5T-14474-EB
27	CCB20 (BU-WH)	0.5	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1	CU5T-14474-EB
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	GD121 (BK)	6	GROUND - FENDER FRONT LEFT # 2ND POINT	1C1T-14474-AA
30	GD125 (BK)	6	GROUND - FENDER FRONT RIGHT # 3RD POINT	1C1T-14474-AA
31	*	*	Not Used	N/A
32	VDB50 (BU-OG)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD LOW	CU5T-14474-EB
33	VDB49 (YE-OG)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD HIGH	CU5T-14474-EB
34	CES09 (VT-OG)	0.5	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +	CU5T-14474-EB
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	CCB08 (VT-WH)	0.5	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	CU5T-14474-EB
41	CBB23 (BN-YE)	0.5	FUSE - 23 OR CIRCUIT BREAKER	CU5T-14474-EB
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	SBB29 (GY-RD)	6	FUSE - 29 OR CIRCUIT BREAKER	1C1T-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1603

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-NA

Gauge:

12 14 20

Pin material:

Tin

Cavities:

46

Vehicle Uses:

• Module - Anti-Lock Brake System
