Battery Disconnect and Connect

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Disconnect

Disconnecting the battery ground cable to interrupt power to the vehicle's electrical system only

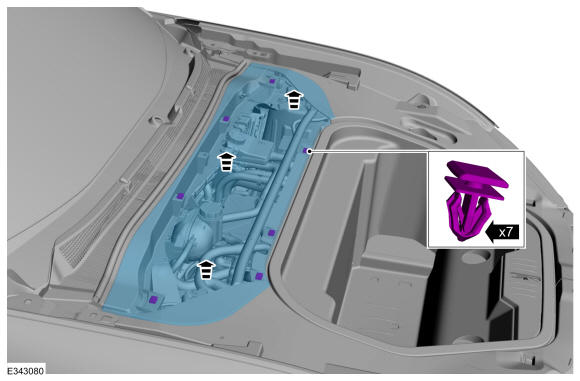

1. Release the trim pins and remove the cargo cover.

   Courtesy of FORD MOTOR COMPANY

2. De-energize the high voltage battery. Refer to: High Voltage System De-energizing .

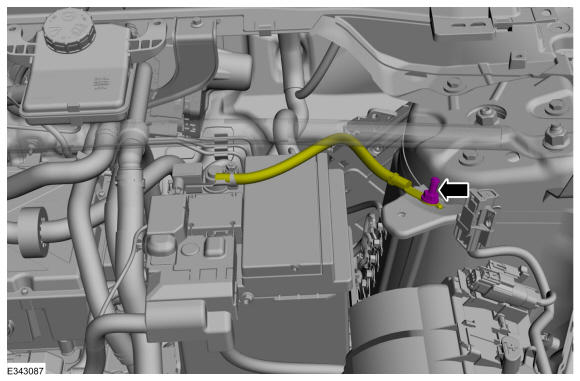

3. Remove the stud and position the negative battery cable aside.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

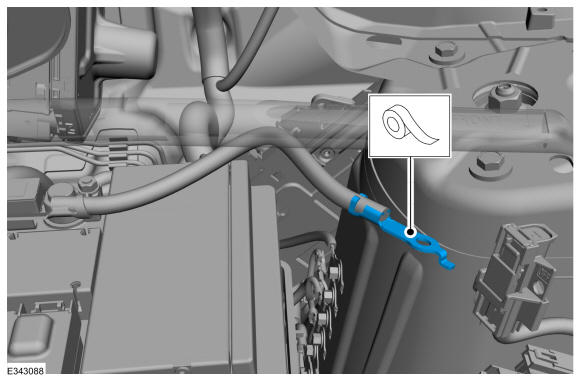

4. Insulate the cable terminal end with the tape.

   Courtesy of FORD MOTOR COMPANY

   Disconnecting the battery cables

5. De-energize the high voltage battery. Refer to: High Voltage System De-energizing .
6. Remove the underhood storage compartment. Refer to: Underhood Storage Compartment .

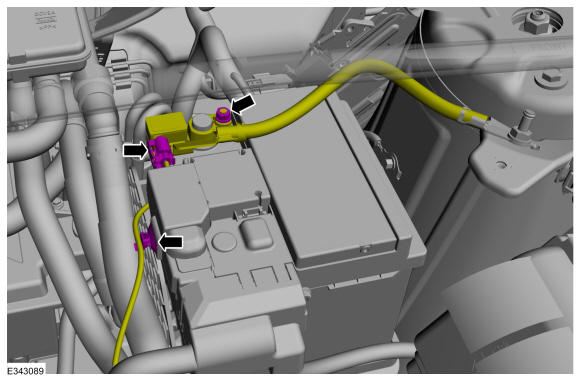

7. • Disconnect and position the electrical connector aside.
   • Loosen, but do not remove the nut. Position the negative battery cable aside.

     Torque: 48 lb.in (5.4 Nm)

   Courtesy of FORD MOTOR COMPANY

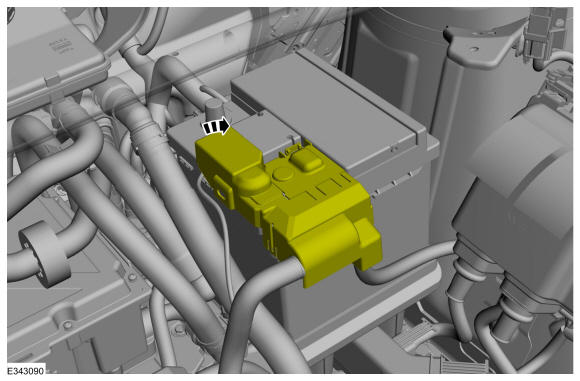

8. Position the positive battery cable terminal cover aside.

   Courtesy of FORD MOTOR COMPANY

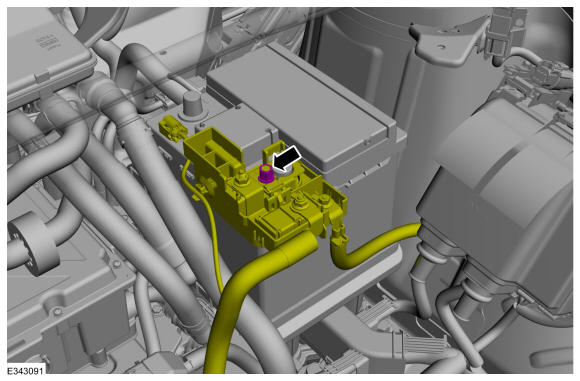

9. Loosen, but do not remove the positive battery cable terminal nut.

   Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

1. To install, reverse the removal procedure.
