Remote Brake Fluid Reservoir: Removal

NOTE: Removal steps in this procedure may contain installation details.

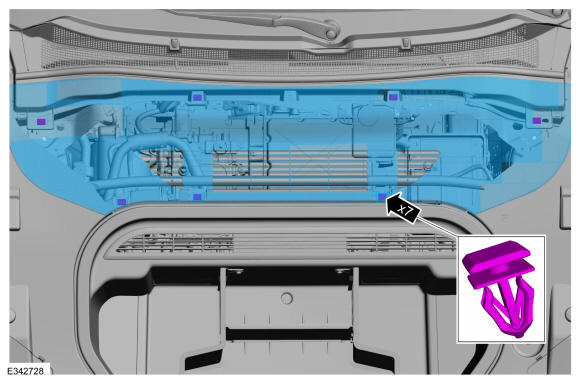

Release the push pins and remove the front cargo cover.

Courtesy of FORD MOTOR COMPANY

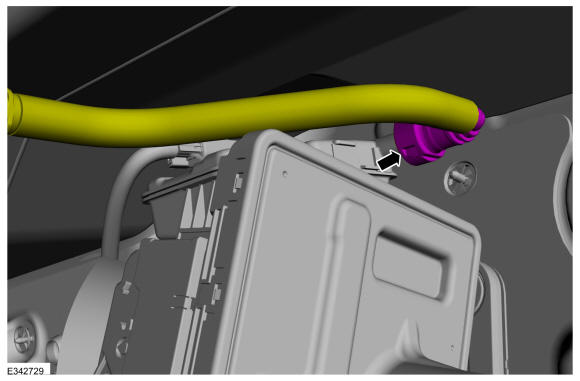

Disconnect the reservoir hose from the EBB and collect the brake fluid in the container.

Courtesy of FORD MOTOR COMPANY

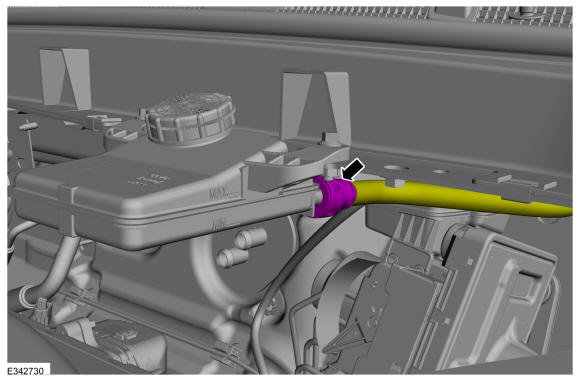

Disconnect the hose from the brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY

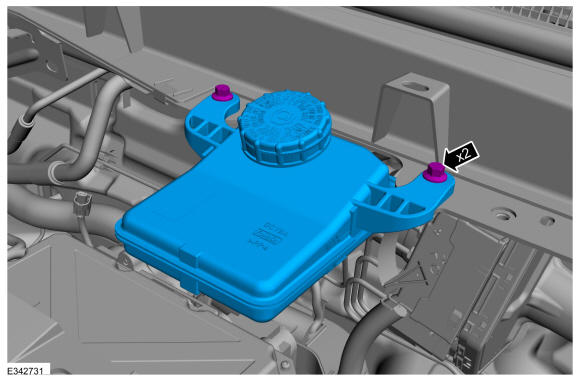

Remove the bolts and the brake fluid reservoir.
Torque: 17 lb.in (1.9 Nm)

Courtesy of FORD MOTOR COMPANY
