Brake Fluid Reservoir: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the EBB. Refer to: Electric Brake Booster (EBB) .

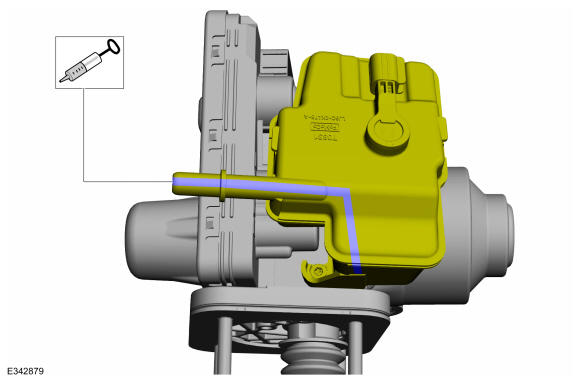

- Siphon the brake fluid from reservoir using a tube and syringe.

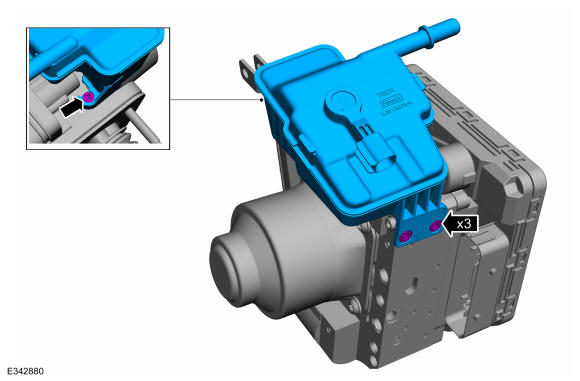

- Remove the screws and the brake fluid reservoir.
Torque: 32 lb.in (3.6 Nm)

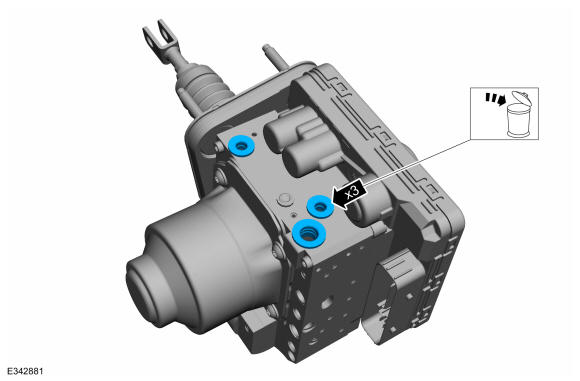

- Brake fluid reservoir mounting screws and the sealings plugs are supplied with the brake fluid reservoir kit.
Ensure that old brake fluid reservoir sealing washers are removed before installing new reservoir with new washers.
