Instrument Panel Cluster (IPC): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LHD shown below, RHD similar.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.

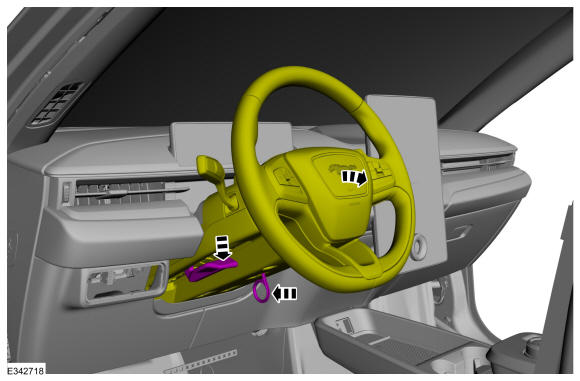

Position the steering wheel to the full downward and outward position.

Courtesy of FORD MOTOR COMPANY
Remove the information and entertainment display unit. Refer to: Center Display Screen .

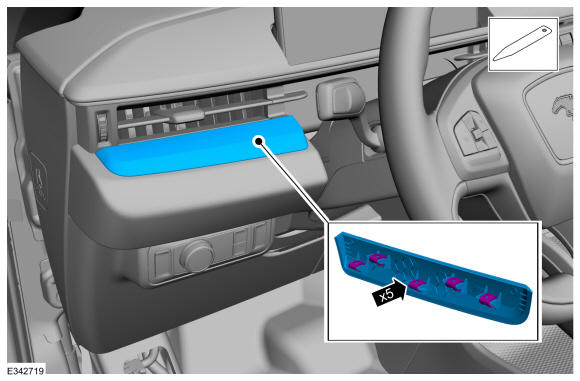

Release the clips and remove the instrument panel speaker grille moulding. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

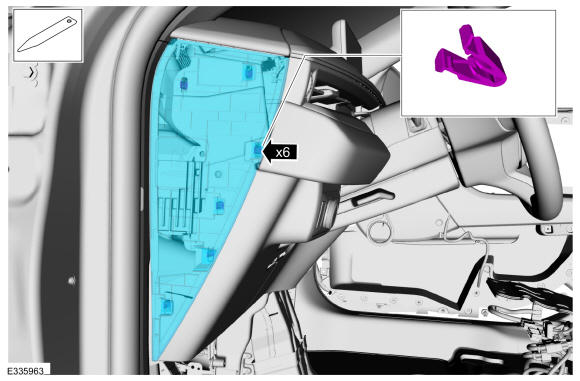

Release the clips and remove the instrument panel LH trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

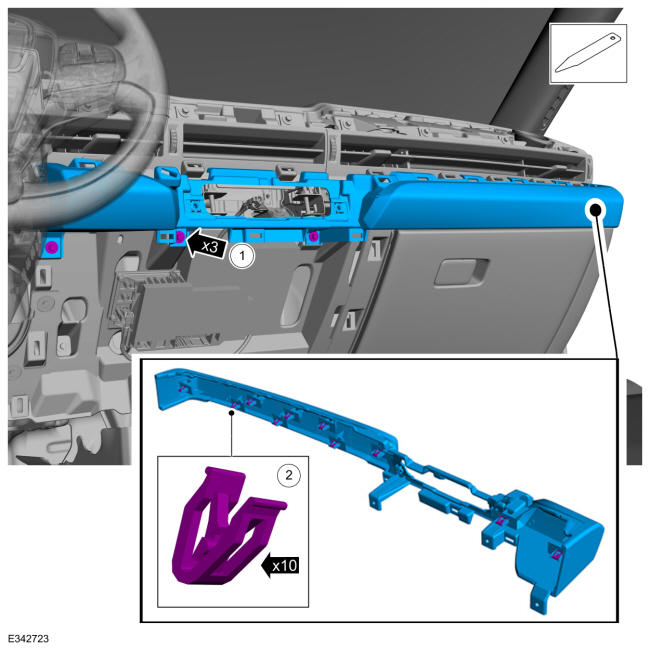

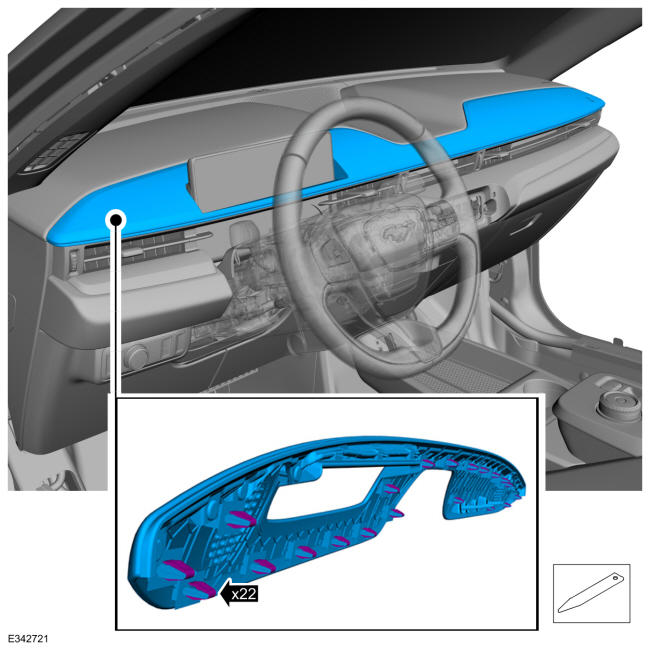

Release the clips and the LH instrument panel upper finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

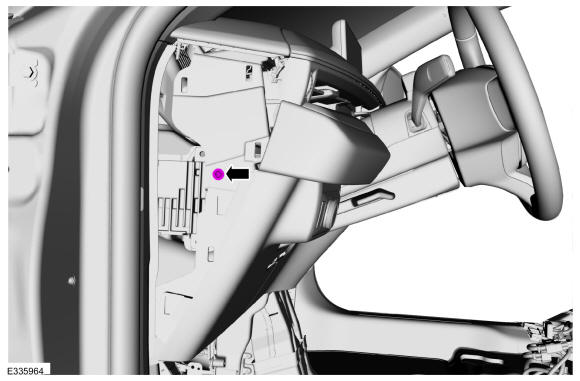

Remove the screw.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

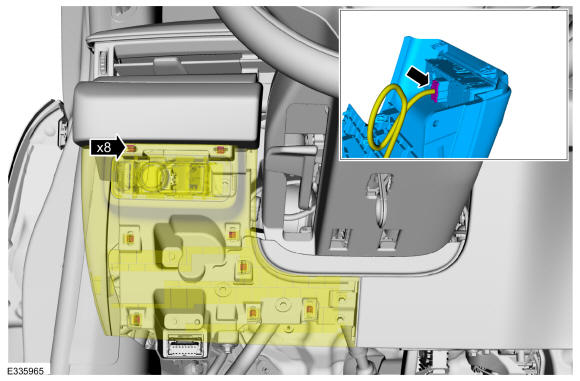

Release the clips and remove the LH instrument panel lower closeout panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

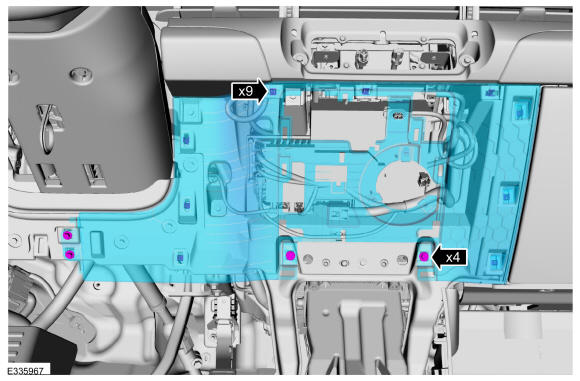

Remove the bolts, release the clips and remove the instrument panel LH closure board panel. Use the General Equipment: Interior Trim Remover
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

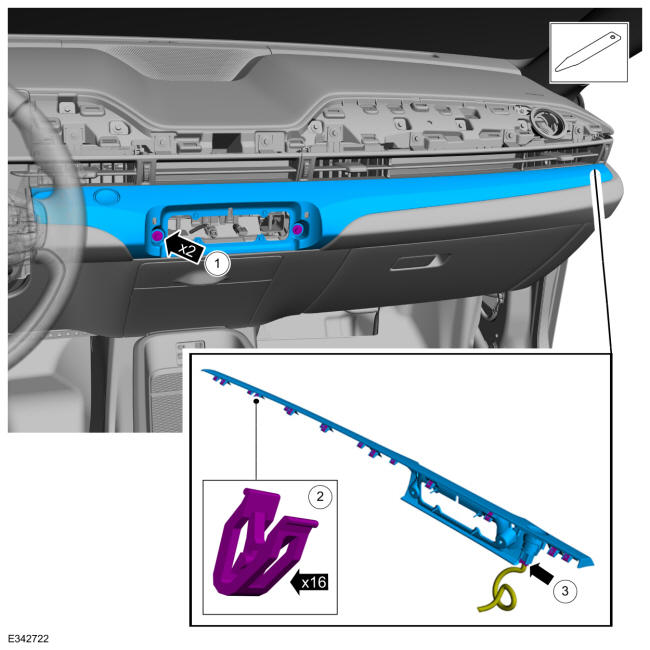

1. Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
2. Release the clips. Use the General Equipment: Interior Trim Remover
3. Disconnect the electrical connector and remove the instrument panel trim.
Courtesy of FORD MOTOR COMPANY

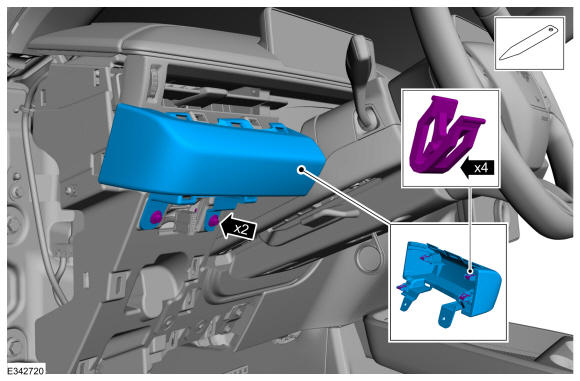

Release the clips, position and remove the lower center instrument panel trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

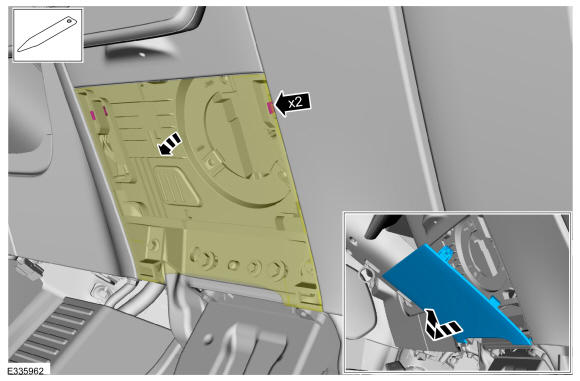

Remove the bolts, release the clips and remove the RH lower instrument panel close out panel.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
1. Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
2. Release the clips and remove the instrument panel closure board trim. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

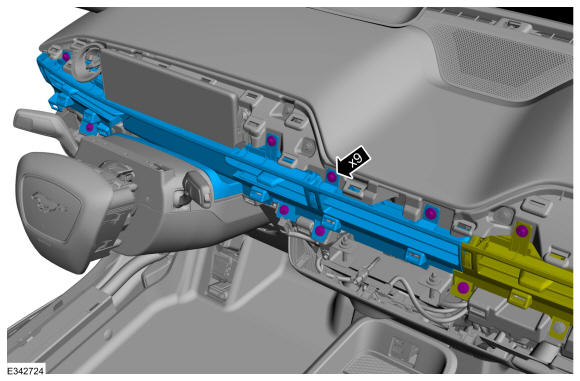

Remove the bolts and the IPC bezel.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

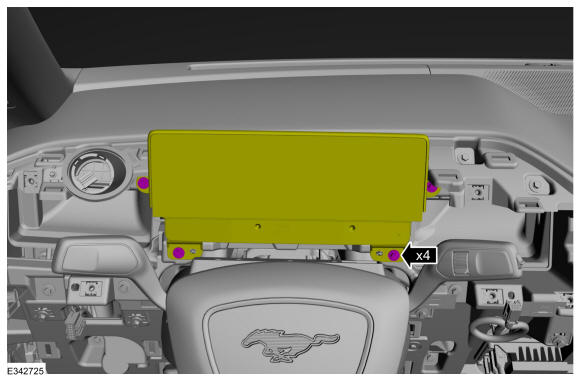

Remove the bolts and the IPC.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

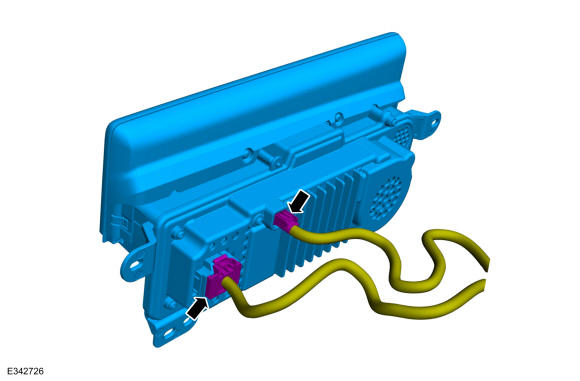

Disconnect the electrical connector and remove the IPC.
