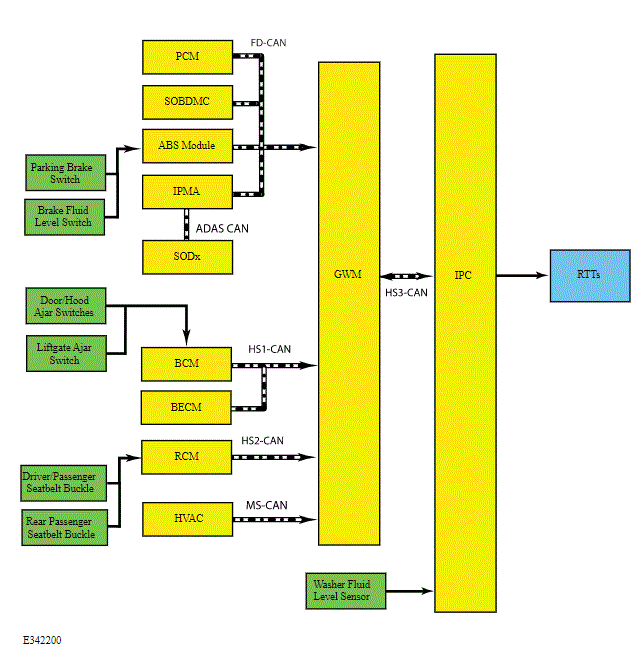

System Diagram - RTT Indicators
RTT Indicators

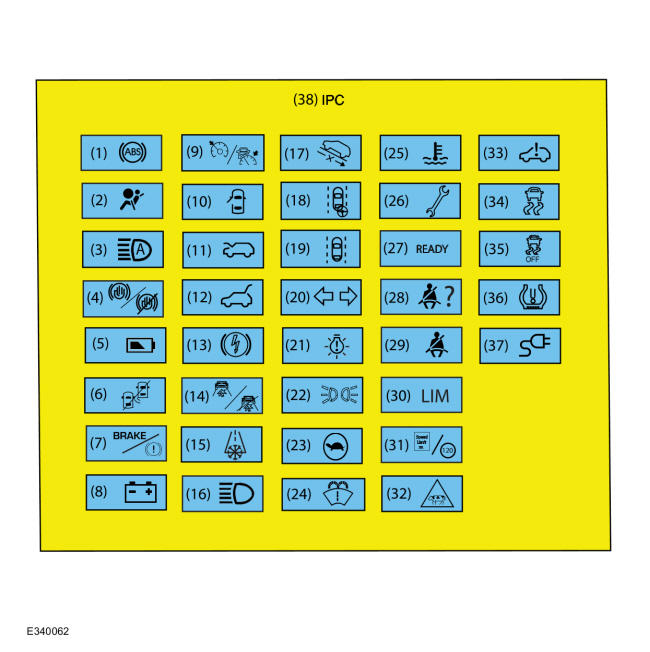

Reconfigurable Telltales (RTTs)
| Item | Description |
|---|---|
| 1 | ABS |
| 2 | Airbag |
| 3 | Auto high beam |
| 4 | Auto hold |
| 5 | Battery charge |
| 6 | BLIS off |
| 7 | Brake warning |
| 8 | Charging system |
| 9 | Cruise control/adaptive cruise control |
| 10 | Driver door ajar |
| 11 | Hood compartment ajar |
| 12 | Liftgate ajar |
| 13 | Electric park brake |
| 14 | Forward collision system warning |
| 15 | Frost warning |
| 16 | High beams |
| 17 | Hill start assist |
| 18 | Lane centering aid |
| 19 | Lane keeping system |
| 20 | LH/ RH turn indicator |
| 21 | LED low beam malfunction |
| 22 | Lights on |
| 23 | Limited/severely limited performance warning |
| 24 | Low washer fluid |
| 25 | Motor over-temperature warning |
| 26 | Powertrain malfunction (wrench) |
| 27 | Ready to drive |
| 28 | Rear seatbelt monitor |
| 29 | Seatbelt/Belt-Minder |
| 30 | Speed limiter (except North America) |
| 31 | Speed sign recognition |
| 32 | Local hazard information (except North America) |
| 33 | System failure warning |
| 34 | Stability-traction control (sliding car icon) |
| 35 | Stability-traction control disabled (sliding car OFF icon) |
| 36 | TPMS |
| 37 | Vehicle plugged in (charging cable connected) |
| 38 | IPC |
