Parking Aid - Component Location

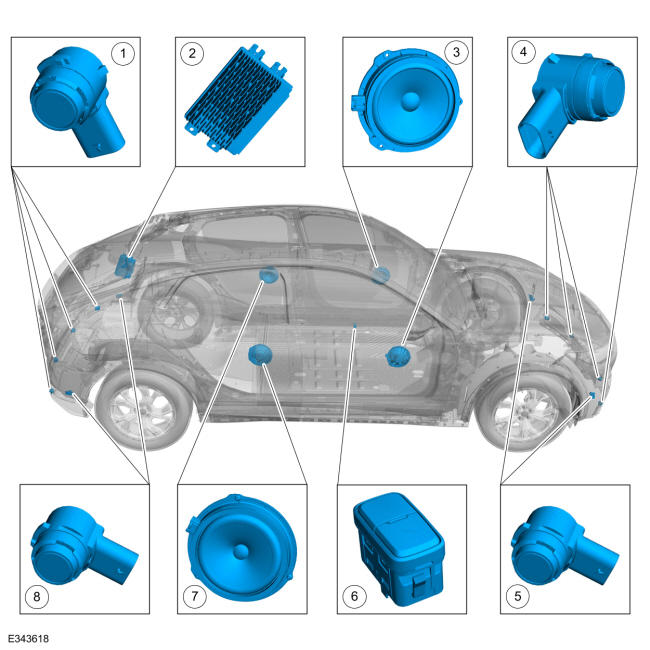

Component Location, Parking Aid - Audible without 360 Degree View Camera
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Rear parking aid sensors |
| 2 |
IPMA |
| 3 |
Front door speakers |
| 4 |
Front parking aid sensors |
| 5 |
Front active park assist sensors |
| 6 |
Active park assist switch |
| 7 |
Rear door speakers |
| 8 |
Rear side sensors |
