Exhaust Manifold LH: Installation

To install, reverse the removal procedure.
Clean all exhaust connections before reassembly.
1. Position the exhaust manifold onto the engine and finger-tight the nuts.
2. Tighten the nuts in the sequence shown.
  Torque: Stage 1: 18 lb.ft (24 Nm) Stage 2: 24 lb.ft (32 Nm)

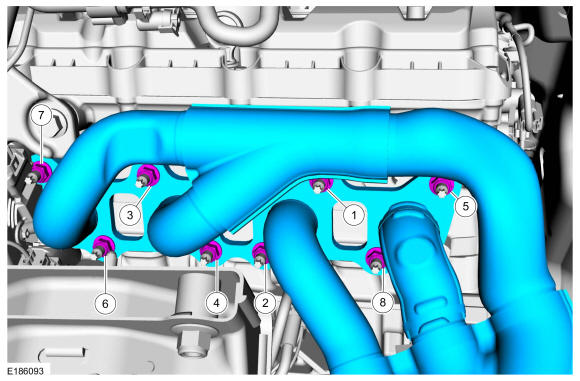

Fig 1: Exhaust Manifold (LH) Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
