Fuel Pump and Sender Unit: Installation

  1. NOTE: Make sure to install a new Fuel Pump and Sender Unit O-ring seal.

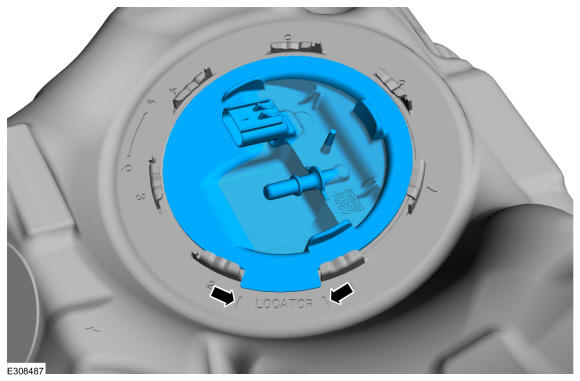

  2. NOTE: Make sure the alignment tabs on the Fuel Pump and Sender Unit and the fuel tank meet prior to tightening the Fuel Pump and Sender Unit lock ring.
    GFD604261Courtesy of FORD MOTOR COMPANY
  3. To install, reverse the removal procedure.
