Fuel Level Sender: Removal
NOTE:
Removal steps in this procedure may contain installation details.

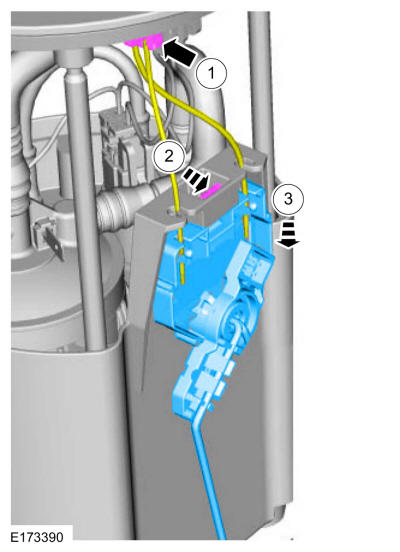

- Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump (FP) Assembly .
-
- Disconnect the electrical connector.
- Release the locking tab.
- Remove the Fuel Level Sender.
