Oil Pump: Removal
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
- Remove the timing chains. Refer to: Timing Chain
- Remove the oil pan. Refer to: Oil Pan
- Remove the crankshaft sprocket.

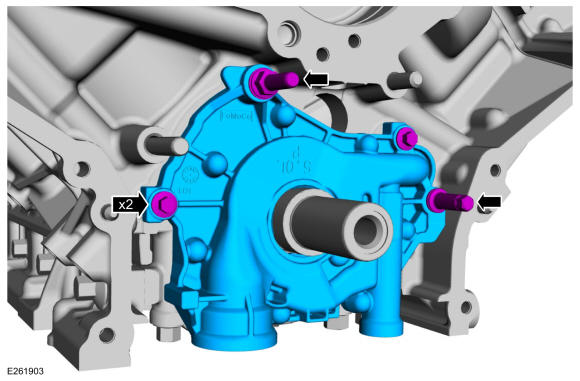

- Remove the bolts, stud bolts and the oil pump.
