Oil Pump: Installation
- Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
-
NOTE: Oil pump must be held against the cylinder block until all bolts are tightened.
- Rotate the inner rotor of the oil pump assembly to align the flats on the crankshaft and slip the oil pump over the crankshaft until seated against the block.

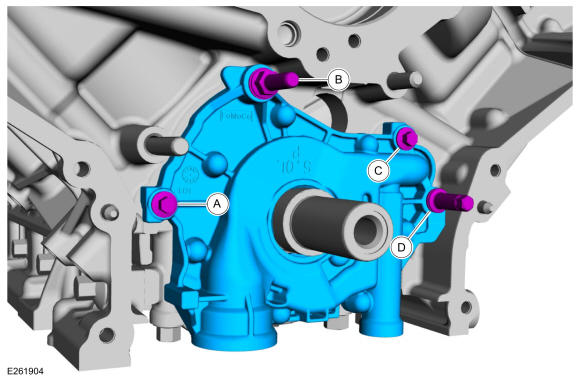

- Rotate the oil pump until the bolt holes are aligned to the block and install the fasteners hand tight.
Torque: Stage 1: A: 89 lb.in (10 Nm) Stage 2: B: 18 lb.ft (25 Nm) Stage 3: C: 89 lb.in (10 Nm) Stage 4: D: 177 lb.in (20 Nm) Stage 5: A: 45 deg. Stage 6: B: 75 deg. Stage 7: C: 45 deg. Stage 8: D: 60 deg.
- Install the crankshaft sprocket.
- Install the oil pan. Refer to: Oil Pan
- Install the timing chains. Refer to: Timing Chain
