Oil Pan: Removal

All vehicles

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release
  3. Disconnect the battery ground and positive cables. Refer to: Battery Disconnect and Connect
  4. NOTE: Make sure to minimize damage to sealer foam and avoid pulling apart dash seal brackets from retainer pins. Excessive damage may allow engine noise, fumes, air or water to enter the passenger compartment.

    1. Remove the steering column dash seal nuts.
    2. Loosen the dash seal.
    3. Hand start the dash seal nuts.

    GFD599636Courtesy of FORD MOTOR COMPANY
  5. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD600557Courtesy of FORD MOTOR COMPANY
  6. Remove the retainers and the radiator top shield.
    GFD600436Courtesy of FORD MOTOR COMPANY
  7. Install clips to support the cooling module.
    GFD600558Courtesy of FORD MOTOR COMPANY
  8. Remove the oil level indicator.
    GFD600559Courtesy of FORD MOTOR COMPANY
  9. Remove the following items:

    1. Refer to: Intake Manifold
    2. Refer to: Air Cleaner

  10. Remove the LH engine mount nut.
    GFD600443Courtesy of FORD MOTOR COMPANY
  11. Remove the RH engine mount nut.
    GFD600444Courtesy of FORD MOTOR COMPANY
  12. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

    Install the special tools and raise the engine 50 mm (2 inch). Install Special Service Tool: 303-639 Support Bracket, Engine., 303-F070 Support Bar, Engine.

    GFD600445Courtesy of FORD MOTOR COMPANY
  13. Remove the front wheels and tires. Refer to: Wheel and Tire

    GT

  14. Remove the fasteners and the underbody shield.
    GFD600546Courtesy of FORD MOTOR COMPANY
  15. Remove the bolts and the subframe bracket and underbody shield assembly.
    GFD599642Courtesy of FORD MOTOR COMPANY

    Mach 1

  16. Remove the pin type retainers.
    GFD600550Courtesy of FORD MOTOR COMPANY
  17. Remove the pin type retainers.
    GFD600560Courtesy of FORD MOTOR COMPANY
    1. Remove the bolts.
    2. Remove the pin type retainer and the underbody shield.
    GFD600561Courtesy of FORD MOTOR COMPANY
  19. Detach the oil cooler tube pin type retainer from the subframe.
    GFD600562Courtesy of FORD MOTOR COMPANY
  20. Remove the bolts and disconnect the oil cooler hoses.
    GFD600563Courtesy of FORD MOTOR COMPANY

    All vehicles

  21. NOTE: The drain plug should be removed and installed by hand, do not use tools.

    1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

    GFD600391Courtesy of FORD MOTOR COMPANY
  22. NOTE: GT vehicle shown, Mach 1 similar.

    Remove and discard the engine oil filter.

    GFD600388Courtesy of FORD MOTOR COMPANY
  23. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

    Detach the steering column lower shaft from the lower coupling.

    1. Remove and discard the steering column shaft bolt.
    2. Pull apart the steering column shaft from the coupling.
    3. Secure the lower shaft to the frame rail to avoid damage to the shaft.

    GFD599643Courtesy of FORD MOTOR COMPANY
  24. Detach the wiring harness retainers from the oil pan.
    GFD600564Courtesy of FORD MOTOR COMPANY
    1. Remove the nut and the wiring harness bracket.
    2. Detach the wiring harness retainers from the oil pan.
    GFD600565Courtesy of FORD MOTOR COMPANY
  26. Unlatch the retainer and position the coolant hose aside.
    GFD600566Courtesy of FORD MOTOR COMPANY
    1. If equipped, detach the wiring harness retainer from the stud bolt.
    2. Detach the wiring harness retainer from the stud bolt.
    GFD600567Courtesy of FORD MOTOR COMPANY
  28. Detach the wiring harness pin-type retainers.
    GFD599989Courtesy of FORD MOTOR COMPANY
  29. Detach the brake tube retainers from the subframe.
    GFD599990Courtesy of FORD MOTOR COMPANY
  30. Remove the bolts from the support bar on the front of the subframe.
    GFD599991Courtesy of FORD MOTOR COMPANY
  31. If equipped, remove the RH and LH front height sensors. Refer to: Front Suspension Height Sensor
  32. Remove the fasteners and the RH deflector shield.
    GFD599997Courtesy of FORD MOTOR COMPANY
  33. Using an adjustable stand, support the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD600568Courtesy of FORD MOTOR COMPANY

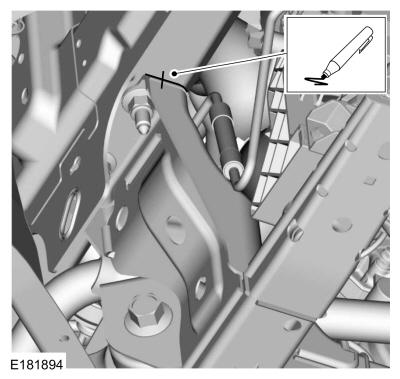

  34. Mark the position of the front subframe for reference during installation.
    GFD599999Courtesy of FORD MOTOR COMPANY

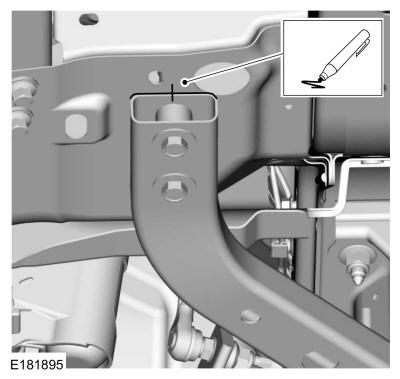

  35. Mark the position of the rear subframe for reference during installation.
    GFD600000Courtesy of FORD MOTOR COMPANY

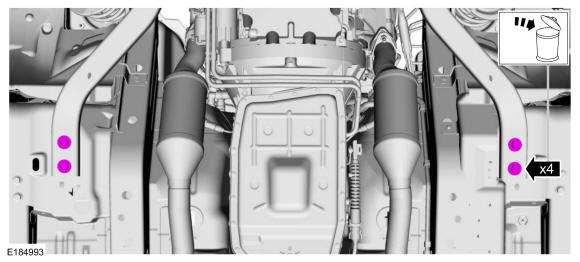

  36. Remove and discard the rear subframe bolts.
    GFD600569Courtesy of FORD MOTOR COMPANY

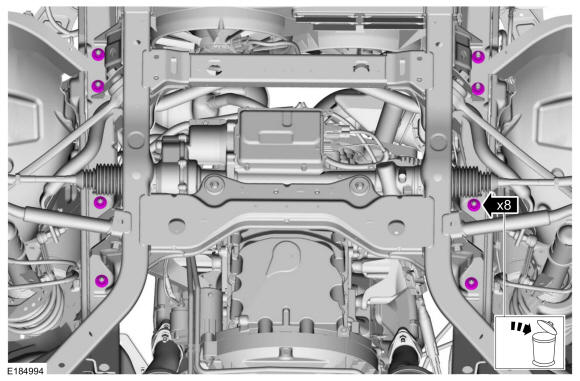

  37. Remove and discard the front subframe nuts.
    GFD600570Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

  38. Remove the transmission cooling tube nut and bracket from the flexplate inspection cover stud bolt.
    GFD600460Courtesy of FORD MOTOR COMPANY
  39. Remove the transmission cooling tube bracket nut and position the bracket and tubes aside.
    GFD600461Courtesy of FORD MOTOR COMPANY

    All vehicles

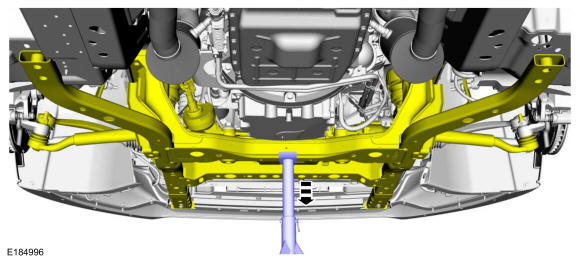

  40. Using an adjustable stand, lower the subframe 102 mm (4.0 in). Use the General Equipment: Vehicle/Axle Stands
    GFD600571Courtesy of FORD MOTOR COMPANY

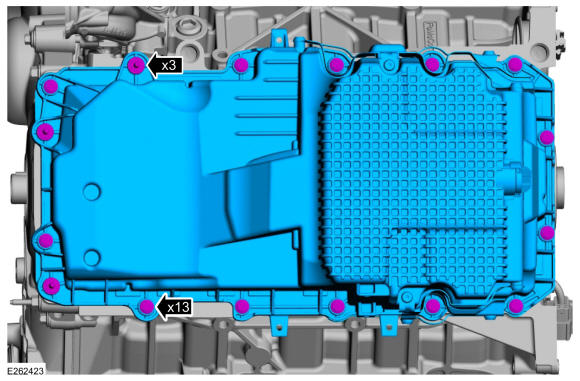

  41. Remove the bolts, stud bolts and the oil pan.
    GFD600572Courtesy of FORD MOTOR COMPANY
  42. Remove and discard the oil pan gasket.
    GFD600573Courtesy of FORD MOTOR COMPANY
  43. Remove and discard the oil pump pickup seal.
    GFD600574Courtesy of FORD MOTOR COMPANY
  44. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD600575Courtesy of FORD MOTOR COMPANY

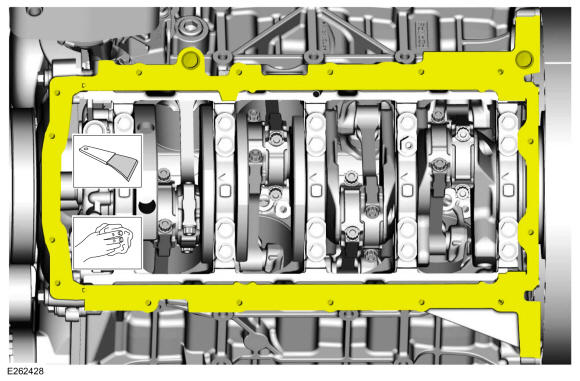

  45. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation
