Oil Cooler: Removal

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

    GT

  2. Remove the fasteners and the underbody shield.
    GFD600546Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the subframe bracket and underbody shield assembly.
    GFD599642Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the engine oil filter.
    GFD600388Courtesy of FORD MOTOR COMPANY
    • Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers

    • Disconnect the coolant hoses.

    GFD600547Courtesy of FORD MOTOR COMPANY
  6. Remove the retainer and the oil cooler.
    GFD600548Courtesy of FORD MOTOR COMPANY

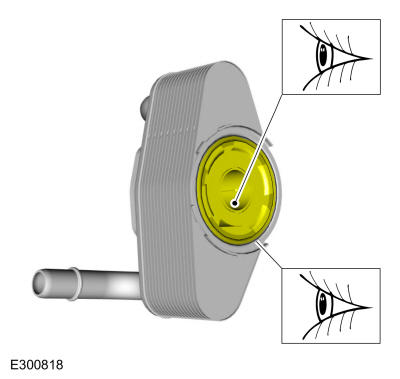

  7. NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE SYSTEM - GENERAL INFORMATION

    • Inspect the oil cooler.

    • Inspect the seal. If the seal is damaged discard the oil cooler.

    GFD600549Courtesy of FORD MOTOR COMPANY

    Mach 1

  8. Remove the LH front wheel and tire. Refer to: Wheel and Tire
  9. Remove the pin type retainers.
    GFD600550Courtesy of FORD MOTOR COMPANY
  10. Remove the pin type retainers.
    GFD600498Courtesy of FORD MOTOR COMPANY
    1. Remove the bolts.
    2. Remove the pin type retainer and the underbody shield.
    GFD600551Courtesy of FORD MOTOR COMPANY
  12. Remove the pin type retainers and position the fender shield aside.
    GFD600552Courtesy of FORD MOTOR COMPANY
    1. Remove the fasteners and the bracket.
    2. Remove the pin type retainer and the air duct.
    GFD600553Courtesy of FORD MOTOR COMPANY
  14. Remove the retaining clips and disconnect the oil cooler tubes.
    GFD600554Courtesy of FORD MOTOR COMPANY
  15. Remove the fasteners and the oil cooler.
    GFD600555Courtesy of FORD MOTOR COMPANY

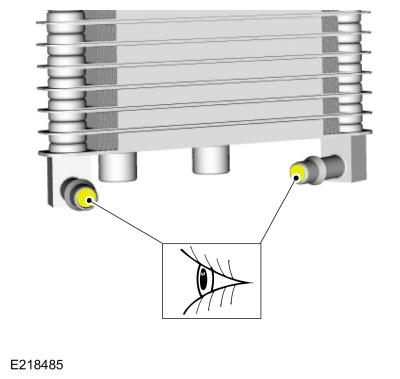

  16. NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE SYSTEM - GENERAL INFORMATION

    Inspect the oil cooler.

GFD600556Courtesy of FORD MOTOR COMPANY
