Hydraulic Lash Adjuster: Installation

  1. NOTE: Lubricate the hydraulic lash adjuster with clean engine oil prior to installation.

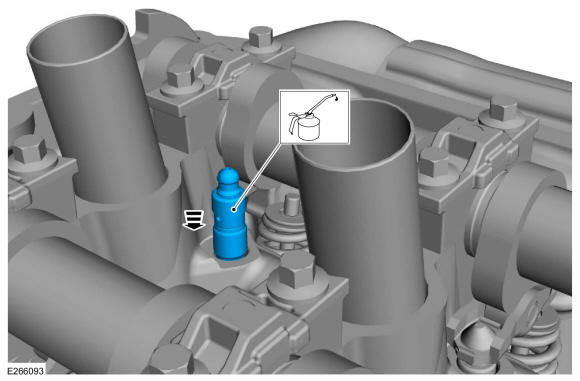

    Install the hydraulic lash adjuster.

    GFD600524Courtesy of FORD MOTOR COMPANY
  2. Install the rocker arm. Refer to: Rocker Arm
  3. Road test the vehicle.
