Engine Front Cover: Removal

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release
  3. Disconnect the battery ground and positive cables. Refer to: Battery Disconnect and Connect
  4. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
  5. Remove the following items:

    1. Refer to: Degas Bottle
    2. Refer to: Air Cleaner Outlet Pipe
    3. Refer to: Air Cleaner
    4. Refer to: Crankshaft Front Seal
    5. Refer to: Valve Cover RH
    6. Refer to: Valve Cover LH

  6. Disconnect the upper radiator hose from the radiator assembly.
    GFD600475Courtesy of FORD MOTOR COMPANY
  7. Disconnect the lower radiator hose from the thermostat housing assembly.
    GFD600476Courtesy of FORD MOTOR COMPANY
    1. Disconnect the heater hose.
    2. Release the clamp and remove the degas bottle coolant hose.
    3. Remove the thermostat housing bolts.
    4. Release the clamp and remove the upper radiator hose T-connector/thermostat housing assembly.
    GFD600477Courtesy of FORD MOTOR COMPANY

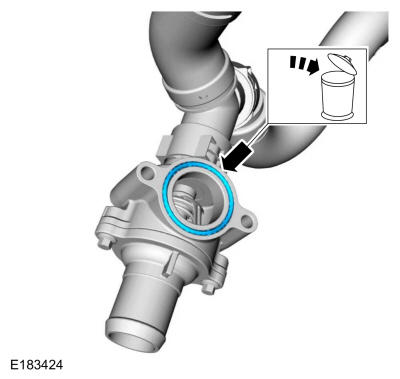

  9. Remove and discard the thermostat housing O-ring seal.
    GFD600478Courtesy of FORD MOTOR COMPANY
    1. Remove the bolts and the coolant pump pulley.
    2. Remove the bolt and the accessory drive belt tensioner.
    3. Remove the fasteners and position the generator aside.
    GFD600479Courtesy of FORD MOTOR COMPANY
  11. Remove the bolts and the coolant pump.
    GFD600480Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the coolant pump O-ring seal.
    GFD600481Courtesy of FORD MOTOR COMPANY
  13. NOTE: GT vehicles are equipped with a subframe bracket and underbody shield assembly.

    If equipped, remove the bolts and the subframe bracket and underbody shield assembly.

    GFD599642Courtesy of FORD MOTOR COMPANY
  14. Remove the nut and position the wiring harness bracket aside.
    GFD600482Courtesy of FORD MOTOR COMPANY

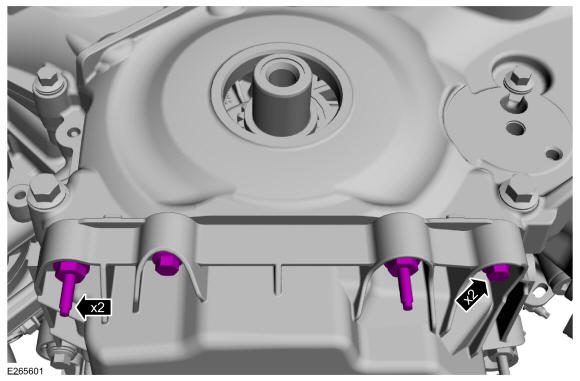

  15. Remove the bolts and stud bolts.
    GFD600483Courtesy of FORD MOTOR COMPANY

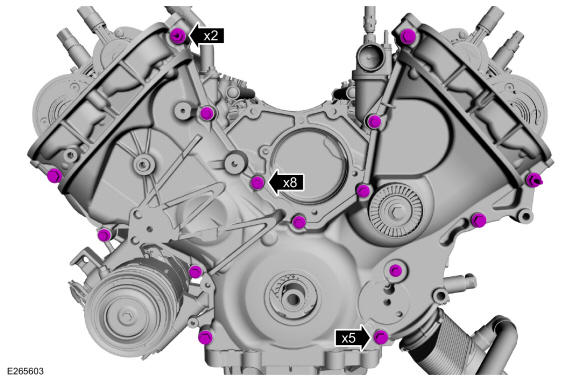

  16. Remove the bolts and stud bolts.
    GFD600484Courtesy of FORD MOTOR COMPANY

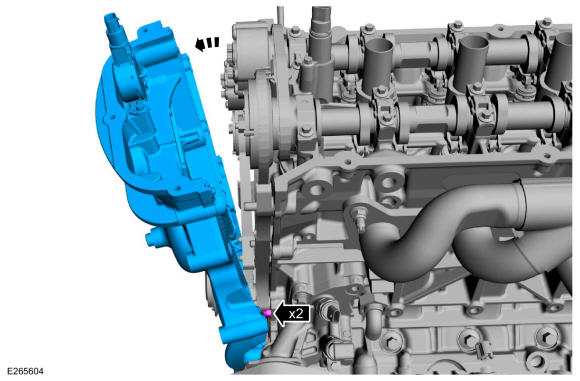

  17. Remove the engine front cover from the front cover-to-cylinder block dowels.
    GFD600485Courtesy of FORD MOTOR COMPANY
  18. Remove and discard the gaskets.
    GFD600486Courtesy of FORD MOTOR COMPANY
  19. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation
GFD600487Courtesy of FORD MOTOR COMPANY
