Cylinder Head RH: Installation

All Vehicles

1. Install the new cylinder head gasket.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.
   1. Install the cylinder head and the new bolts.

      Torque: Stage 1: Bolts 1-10 in sequence: 18 lb.ft (25 Nm) Stage 2: Bolts 1-10 in sequence: 55 lb.ft (75 Nm) Stage 3: Bolt 1: Loosen: 180 deg. Stage 4: Bolt 1: 37 lb.ft (50 Nm) Stage 5: Bolt 1: 240 deg.

   2. Perform stages 3, 4 and 5 on bolts 2 through 10 (complete all three stages to each bolt before moving on to the next bolt in sequence).
   Fig 1: Cylinder Head (LH) Bolts Tightening Sequence

   Courtesy of FORD MOTOR COMPANY
3. Install the insulators.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (50 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

   Torque: Stage 1: Tighten the high-pressure fuel tube flare nuts to : 71 lb.in (8 Nm) Stage 2: Tighten the high-pressure fuel tube flare nuts to : 89 lb.in (10 Nm) Stage 3: Tighten the high-pressure fuel tube flare nuts an additional : 25 deg.

   Courtesy of FORD MOTOR COMPANY

5. 1. Connect the fuel rail electrical connector.
   2. Connect the CHT sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

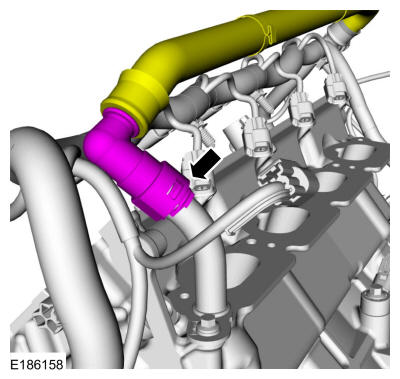

6. Connect the heater hose.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

   Install the special tools and raise the engine 25 mm (1 inch). Install Special Service Tool: 303-639 Support Bracket, Engine., 303-F070 Support Bar, Engine.

   Courtesy of FORD MOTOR COMPANY

8. Remove the bolts, the stud bolts and the RH engine mount bracket.

   Courtesy of FORD MOTOR COMPANY

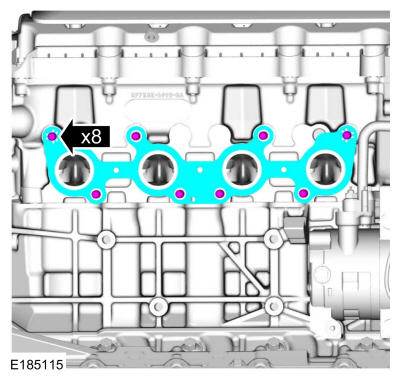

9. Install new studs and new gasket.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install the exhaust manifold.
    • Install the new nuts.

      Torque: Stage 1: 18 lb.ft (24 Nm) Stage 2: 24 lb.ft (32 Nm)

    Fig 2: Exhaust Manifold RH Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
11. Install the RH engine mount bracket, bolts and stud bolts.

    Torque: 46 lb.ft (62.5 Nm)

    Courtesy of FORD MOTOR COMPANY

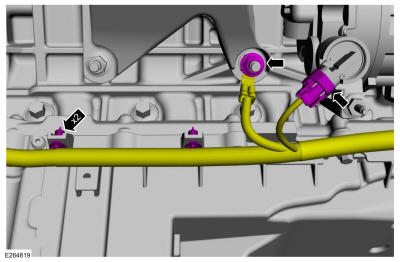

12. • Install the ground strap and nut onto the RH engine mount bracket stud bolt.

      Torque: 35 lb.ft (48 Nm)

    • Attach the wiring harness retainers to the oil pan.
    • Connect the A/C compressor electrical connector.

    Courtesy of FORD MOTOR COMPANY

13. • Using the special tools, lower the engine onto the engine mounts.
    • Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

14. Install the RH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Install the LH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

16. Install the transmission cooling tube bracket and nut.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Install the transmission cooling tube bracket and nut.

    Torque: 124 lb.in (14 Nm)

    Courtesy of FORD MOTOR COMPANY

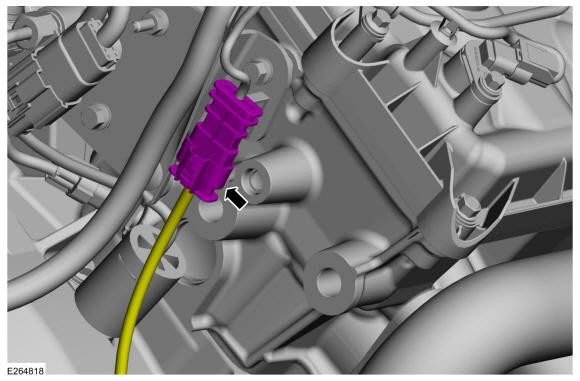

18. Disconnect the HO2S electrical connector.

    Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82

19. 1. Connect the HO2S electrical connector.
    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

    All Vehicles

20. NOTE: The drain plug should be removed and installed by hand, do not use tools.
    1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

       Turn the oil drain plug by hand clockwise 120 degrees.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: GT vehicle shown, Mach 1 similar.

    Remove and discard the engine oil filter.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: GT vehicle shown, Mach 1 similar.
    NOTE: Do not lubricate the O-ring seal.

    Install a new oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

    Courtesy of FORD MOTOR COMPANY

23. Install the following items:
    1. Starter. Refer to: Starter Motor
    2. Battery tray. Refer to: Battery Tray
    3. Evaporator outlet line. Refer to: Evaporator Outlet Line - 5.0L 32V Ti-VCT
    4. A/C compressor inlet line. Refer to: Air Conditioning (A/C) Compressor Inlet Line - 5.0L 32V Ti-VCT
    5. RH catalytic converter. Refer to: Catalytic Converter RH
    6. RH camshafts. Refer to: Camshaft RH

24. Install the radiator top shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

25. Fill the engine with clean engine oil. Refer to: Specifications
26. Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect
27. Pressurize the fuel system. Refer to: Fuel System Pressure Release
28. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
29. Recharge the A/C system.
30. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
31. Road test the vehicle.
