Cylinder Head LH: Installation

All vehicles

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.
1. Install the cylinder head and the new bolts.
  Torque: Stage 1: Bolts 1-10 in sequence: 18 lb.ft (25 Nm) Stage 2: Bolts 1-10 in sequence: 55 lb.ft (75 Nm) Stage 3: Bolt 1: Loosen: 180 deg. Stage 4: Bolt 1: 37 lb.ft (50 Nm) Stage 5: Bolt 1: 240 deg.
2. Perform stages 3, 4 and 5 on bolts 2 through 10 (complete all three stages to each bolt before moving on to the next bolt in sequence).
Fig 1: Cylinder Head LH Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

Install the special tools and raise the engine 25 mm (1 inch). Install Special Service Tool: 303-639 Support Bracket, Engine., 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Remove the bolts, the stud bolt and the LH engine mount bracket.

Courtesy of FORD MOTOR COMPANY

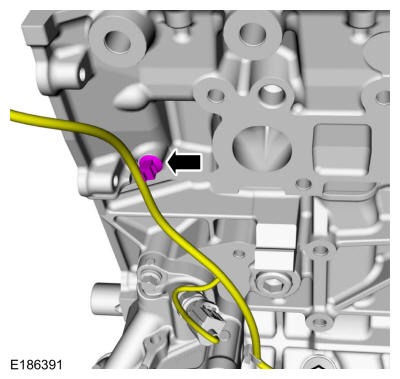

Attach the wiring harness retainer to the cylinder head.

Courtesy of FORD MOTOR COMPANY
Install new studs and new gasket.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH catalytic converter.
- Install the new nuts.
  Torque: Stage 1: 18 lb.ft (24 Nm) Stage 2: 24 lb.ft (32 Nm)
Fig 2: Catalytic Converter Tightening Sequence (LH) - 5.0L
Courtesy of FORD MOTOR COMPANY
Install the LH engine mount bracket, bolts and stud bolt.
Torque: 46 lb.ft (62.5 Nm)

Courtesy of FORD MOTOR COMPANY
- Using the special tools, lower the engine onto the engine mounts.
- Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-639 Support Bracket, Engine.
Courtesy of FORD MOTOR COMPANY
Install the RH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the insulators.

Courtesy of FORD MOTOR COMPANY
NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (50 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

Torque: Stage 1: Tighten the high-pressure fuel tube flare nuts to : 71 lb.in (8 Nm) Stage 2: Tighten the high-pressure fuel tube flare nuts to : 89 lb.in (10 Nm) Stage 3: Tighten the high-pressure fuel tube flare nuts an additional : 25 deg.

Courtesy of FORD MOTOR COMPANY
1. Install the ground wire and the bolt.
  Torque: 106 lb.in (12 Nm)
2. Install the capacitor and the bolt.
  Torque: 89 lb.in (10 Nm)
3. Connect the fuel sensor electrical connector.
4. Connect the fuel rail electrical connector.
Courtesy of FORD MOTOR COMPANY

10-Speed Automatic Transmission - 10R80
1. Connect the HO2S electrical connector.
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
1. Connect the HO2S electrical connector.
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82
1. Connect the 2 wiring harness electrical connectors.
2. Attach the wiring harness retainer.
3. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

All vehicles
WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
1. Connect the steering column shaft to the steering gear universal joint.
2. Install the new steering column shaft bolt.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check
NOTE: The drain plug should be removed and installed by hand, do not use tools.
1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
2. Pull the oil drain plug out of the oil pan.
3. After the oil has drained, push the oil drain plug into the oil pan.
4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

  Turn the oil drain plug by hand clockwise 120 degrees.
Courtesy of FORD MOTOR COMPANY
NOTE: GT vehicle shown, Mach 1 similar.

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: GT vehicle shown, Mach 1 similar.

NOTE: Do not lubricate the O-ring seal.

Install a new oil filter.

Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Muffler inlet pipe. Refer to: Muffler Inlet Pipe
2. LH camshafts. Refer to: Camshaft LH
Install the radiator top shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Remove the holding device.

Courtesy of FORD MOTOR COMPANY
1. Position the steering column dash seal.
2. Tighten the steering column dash seal nuts.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications
Connect the battery positive and ground cables. Refer to: Battery Disconnect and Connect
Pressurize the fuel system. Refer to: Fuel System Pressure Release
Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
Road test the vehicle.
