Crankshaft Pulley: Removal

  1. Remove the following items:

    1. Refer to: Cooling Fan Motor and Shroud
    2. Refer to: Accessory Drive Belt
    3. Refer to: Air Conditioning (A/C) Compressor Belt

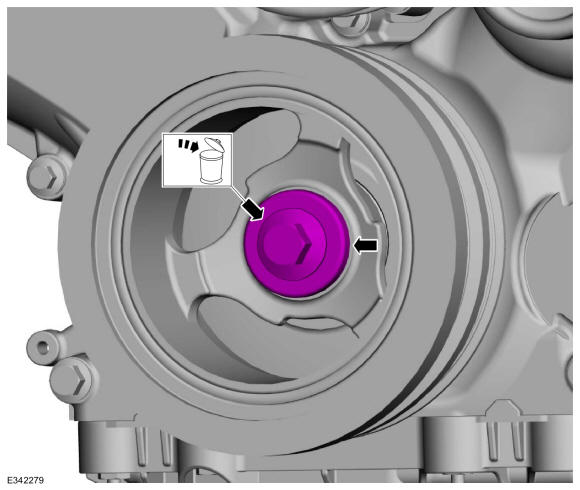

  2. NOTE: If necessary, retain the original bolt for to perform the crankshaft front seal procedure.

    Remove and discard the crankshaft damper pulley bolt. The washer will be reused.

    GFD600688Courtesy of FORD MOTOR COMPANY
  3. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

    Using a universal puller, remove the crankshaft damper pulley. Use the General Equipment: Puller

GFD600689Courtesy of FORD MOTOR COMPANY
