Engine - 5.0L 32V Ti-VCT (359KW/486PS) (WU)/5.0L Ti-VCT V8 (343KW/466PS) (MF): Installation: Engine

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-103 (T74P-6375-A)Holding Tool, FlywheelT74P-77000-A | TKIT-2009TC-F
Courtesy of FORD MOTOR COMPANY	303-F047Lifting Bracket, Engine
Courtesy of FORD MOTOR COMPANY	303-F070Support Bar, Engine | TKIT-1999A-F/LT | TKIT-1999A-FM/FLM
Magnetic Socket
Floor Crane
Clutch Alignment Tool
Trolley Jack
Wooden Block

Materials

All vehicles

1. NOTE: Engine equipped with manual transmission shown, automatic transmission engine similar.

   Install the engine-to-transmission spacer plate and the crankshaft sensor ring.

   Courtesy of FORD MOTOR COMPANY

   6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82

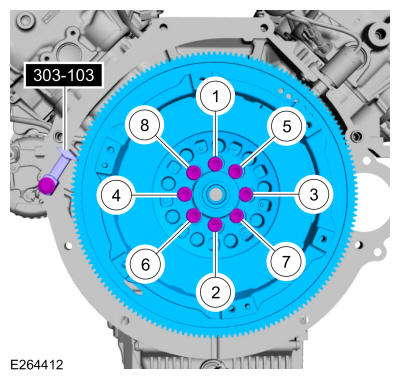

2. Install the flywheel and the bolts. Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

   Torque: Stage 1: 28 lb.ft (38 Nm) Stage 2: 90 deg.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: If installing a new pressure plate and/or flywheel, align the paint dot on the pressure plate as close as possible to the paint dot on the flywheel or a clutch system vibration can occur.
   NOTE: If installing the original pressure plate, align it using the index-marks made during removal or a clutch system vibration can occur.

   Using a clutch aligner, position the clutch disc on the flywheel. If installing the original pressure plate, align the pressure plate to the flywheel using the index-marks made during removal. If installing a new pressure plate, align the pressure plate to the flywheel using the paint dots. Install new pressure plate bolts by turning the bolts 1 turn at a time in a star pattern until the clutch is fully secured. Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel. Use the General Equipment: Clutch Alignment Tool

   Torque: 26 lb.ft (35 Nm)

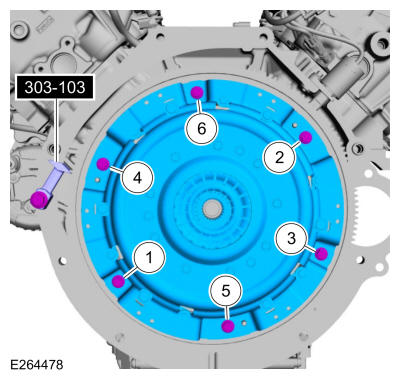

   Fig 1: Pressure Plate Tightening Sequence - 5.0L

   Courtesy of FORD MOTOR COMPANY

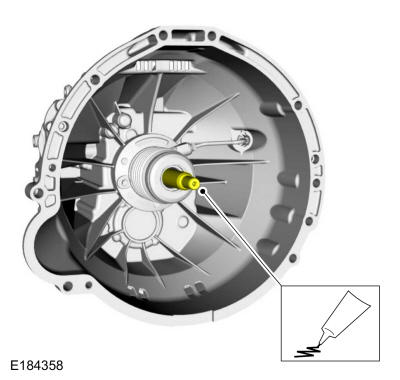

4. Lubricate the input shaft with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

   10-Speed Automatic Transmission - 10R80

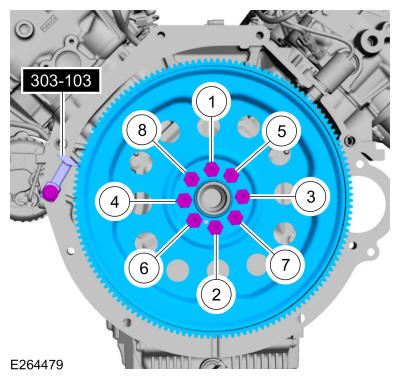

5. Install the flexplate and the bolts. Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

   Torque: Stage 1: 43 lb.ft (58 Nm) Stage 2: 45 deg.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Prior to installation of the engine, the torque converter pilot hub must be lubricated with multi-purpose grease or damage to the torque converter or the engine crankshaft can occur.

   Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

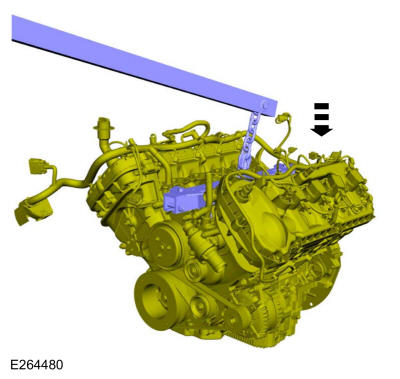

7. With the aid of an assistant, use the Floor Crane to install the engine into the vehicle. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

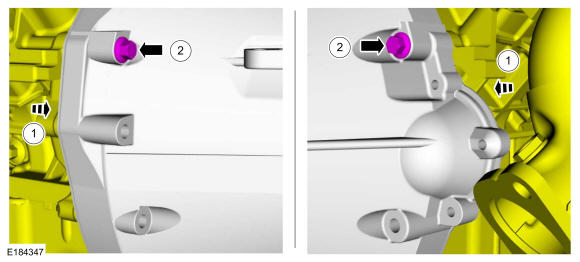

8. 1. Align the engine to the transmission.
   2. Draw the engine and transmission together using the bolts.

      Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

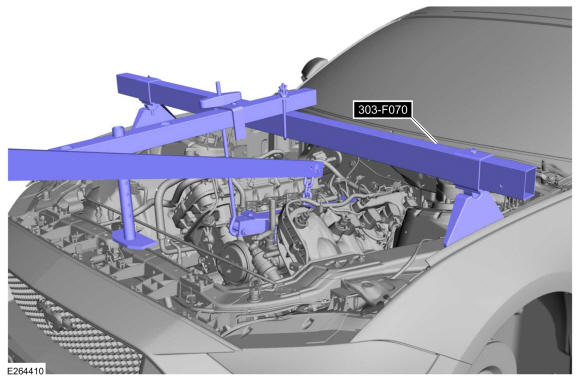

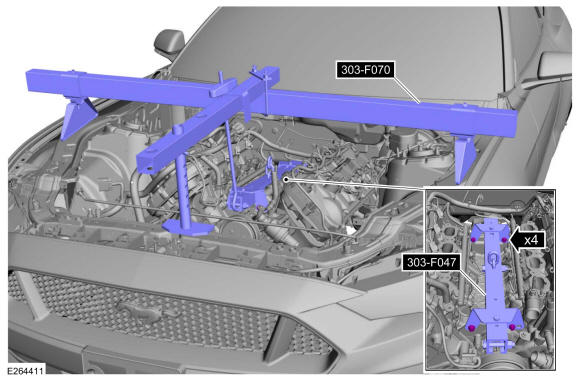

9. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.
   1. Install the special tools. Install Special Service Tool: 303-F070 Support Bar, Engine.
   2. Once the engine is supported by the Engine Support Bar, remove the Floor Crane. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

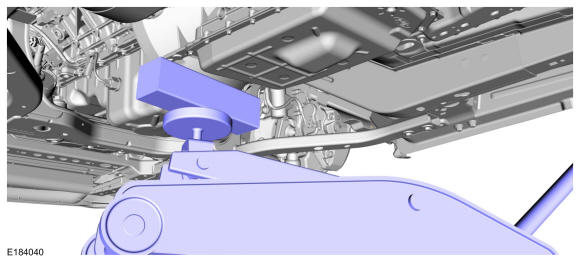

10. Remove the jack and wooden block. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack

    Courtesy of FORD MOTOR COMPANY

11. Install LH transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

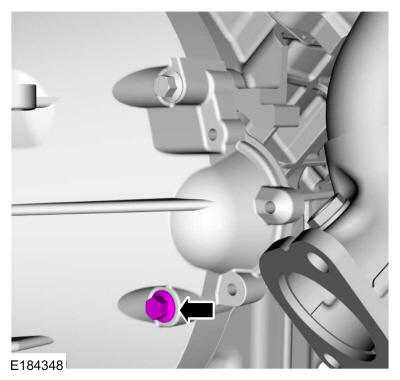

12. Install the RH transmission-to-engine bolt.

    Courtesy of FORD MOTOR COMPANY

13. Install new studs and new gasket.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

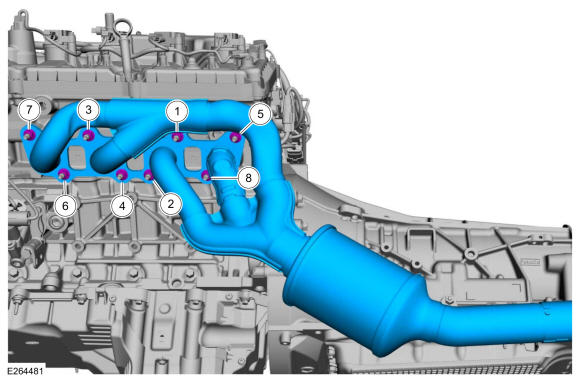

14. Install the LH catalytic converter.
    • Install the new nuts.

      Torque: Stage 1: 18 lb.ft (24 Nm) Stage 2: 24 lb.ft (32 Nm)

    Courtesy of FORD MOTOR COMPANY

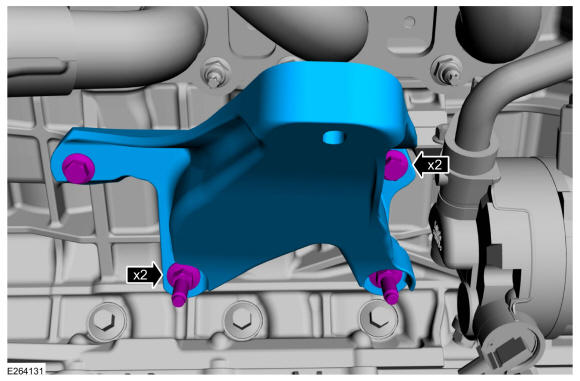

15. Install the LH engine mount bracket, bolts and stud bolt.

    Torque: 46 lb.ft (62.5 Nm)

    Courtesy of FORD MOTOR COMPANY

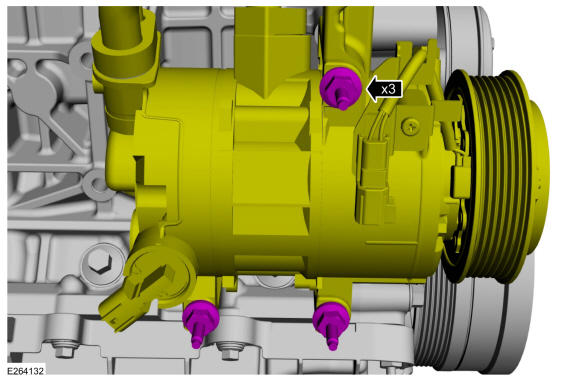

16. Install the A/C compressor and the stud bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Install the RH engine mount bracket, bolts and stud bolts.

    Torque: 46 lb.ft (62.5 Nm)

    Courtesy of FORD MOTOR COMPANY

18. 1. Connect the A/C compressor electrical connectors.
    2. Attach the wiring harness retainer.
    3. Install the ground strap and nut onto the RH engine mount bracket stud bolt.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Lower the engine onto the engine mounts and remove the special tools Install Special Service Tool: 303-F070 Support Bar, Engine. Use Special Service Tool: 303-F047 Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

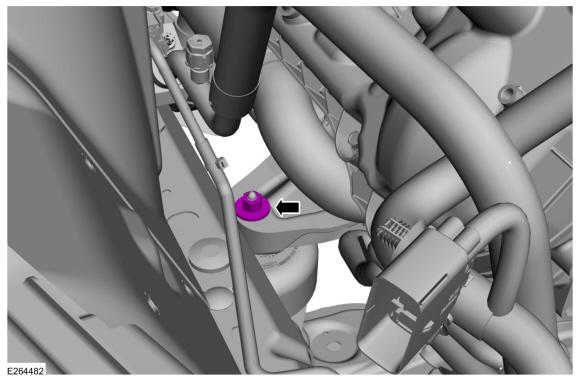

20. Install the RH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Install the LH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Install the top transmission-to-engine bolt and stud bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

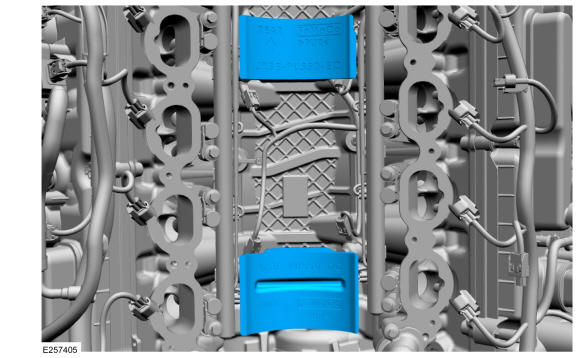

23. Install the insulators.

    Courtesy of FORD MOTOR COMPANY

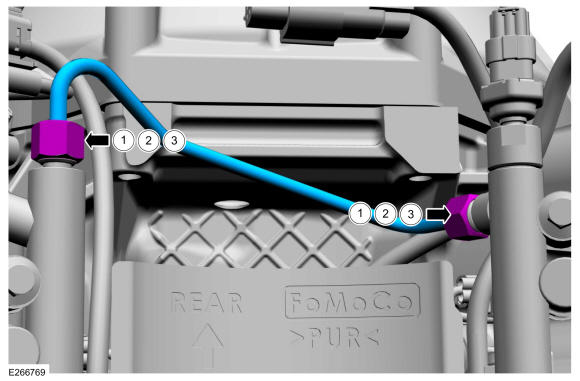

24. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (50 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

    Torque: Stage 1: Tighten the high-pressure fuel tube flare nuts to : 71 lb.in (8 Nm) Stage 2: Tighten the high-pressure fuel tube flare nuts to : 89 lb.in (10 Nm) Stage 3: Tighten the high-pressure fuel tube flare nuts an additional : 25 deg.

    Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

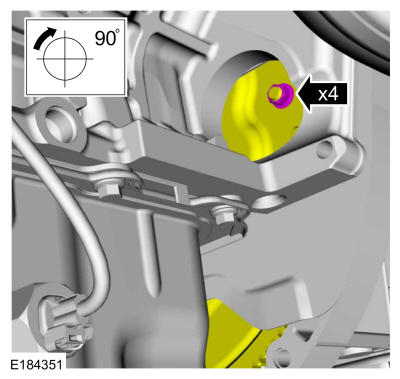

25. NOTE: Only rotate the crankshaft in a clockwise direction.

    Install the new torque converter nuts. Use the General Equipment: Magnetic Socket

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Install the rubber access plug.

    Courtesy of FORD MOTOR COMPANY

27. Install the stud bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

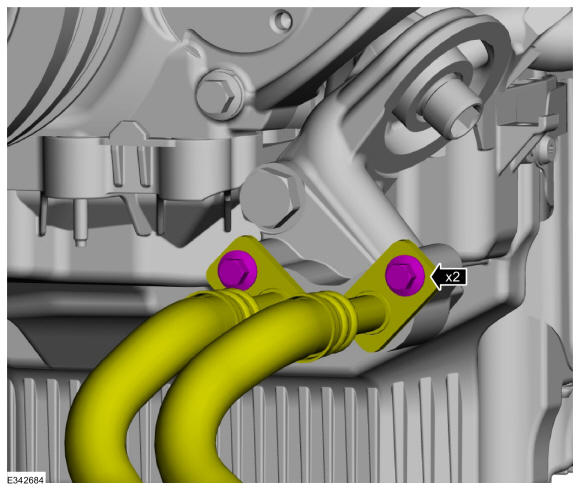

28. Install the transmission cooling tube bracket and nut.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

29. Install the transmission cooling tube bracket and nut.

    Torque: 124 lb.in (14 Nm)

    Courtesy of FORD MOTOR COMPANY

30. 1. Connect the HO2S electrical connector.
    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

31. 1. Connect the HO2S electrical connector.
    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

32. 1. Attach the wiring harness retainers.
    2. Connect the HO2S electrical connector.
    3. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - 3160/6-Speed Manual Transmission - MT82

33. Install the engine rear cover plate stud bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

34. 1. Connect the 2 wiring harness electrical connectors.
    2. Attach the wiring harness retainer.
    3. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

35. 1. Connect the HO2S electrical connector.
    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

36. WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    1. Connect the steering column shaft to the steering gear universal joint.
    2. Install the new steering column shaft bolt.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

37. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check

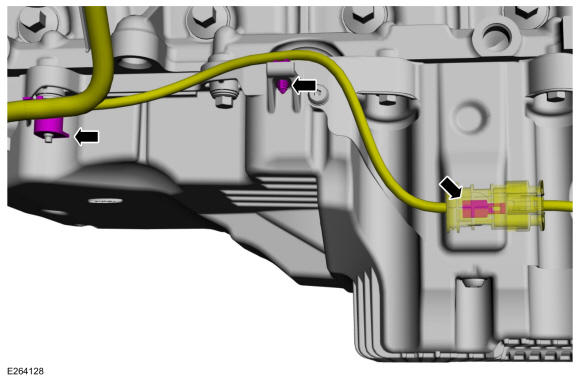

38. • Install the wiring harness bracket and the nut.

      Torque: 124 lb.in (14 Nm)

    • Attach the wiring harness retainers to the oil pan.

    Courtesy of FORD MOTOR COMPANY

39. Attach the wiring harness retainers to the oil pan.

    Courtesy of FORD MOTOR COMPANY

40. Install the following items:
    1. Refer to: Starter Motor
    2. RH catalytic converter. Refer to: Catalytic Converter RH

    GT

41. Install the engine oil cooler. Refer to: Oil Cooler

    Mach 1

42. Connect the oil cooler hoses and install the bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

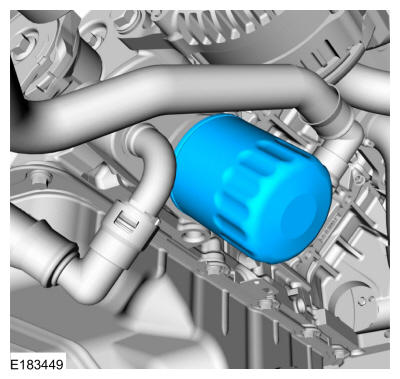

43. NOTE: GT vehicle shown, Mach 1 similar.
    NOTE: Do not lubricate the O-ring seal.

    Install a new oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

    Courtesy of FORD MOTOR COMPANY

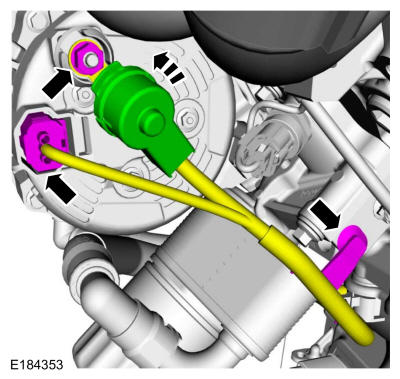

44. 1. Attach the wiring harness retainer.
    2. Connect the wiring harness electrical connector.
    3. Connect the B+ cable and install the nut.

       Torque: 159 lb.in (18 Nm)

    4. Position the cover.

    Courtesy of FORD MOTOR COMPANY

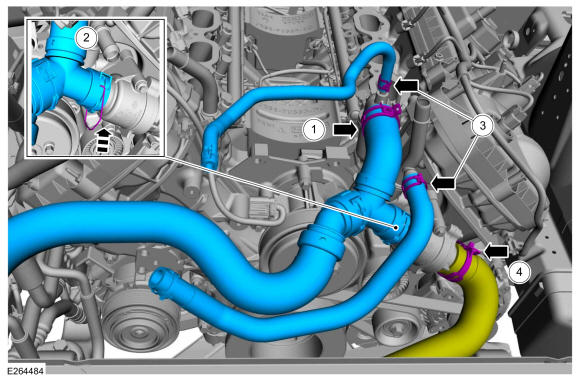

45. 1. Install the coolant bypass T assembly and the clamp.
    2. Slide the spring clip until it hits the stop on the hose fitting.
    3. Install the coolant hoses and clamps.
    4. Install the lower radiator hose and clamp.

    Courtesy of FORD MOTOR COMPANY

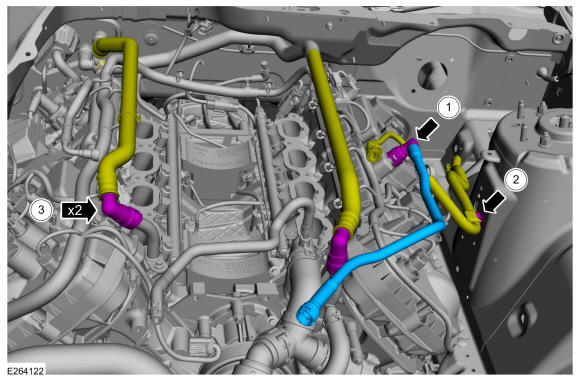

46. 1. Install the crankcase vent tube. Refer to: Quick Release Coupling
    2. Attach the fuel supply tube retainer.
    3. Connect the heater hoses.

    Courtesy of FORD MOTOR COMPANY

47. Connect the PCM electrical connector, the 16 pin electrical connector and attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

48. Install the battery heat shield and fasteners.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

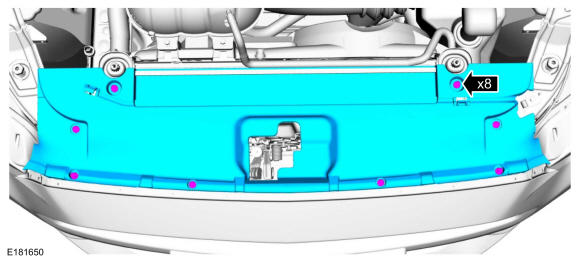

49. Install the radiator top shield and the fasteners.

    Courtesy of FORD MOTOR COMPANY

50. Install the engine ground wire and nut.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

51. Install the following items:
    1. Battery tray. Refer to: Battery Tray
    2. Intake manifold. Refer to: Intake Manifold
    3. A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt
    4. Cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud
    5. Air cleaner. Refer to: Air Cleaner
    6. NOTE: It is not necessary to separate the air cleaner outlet pipe and the air cleaner, the 2 components can be removed as an assembly.

       Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe

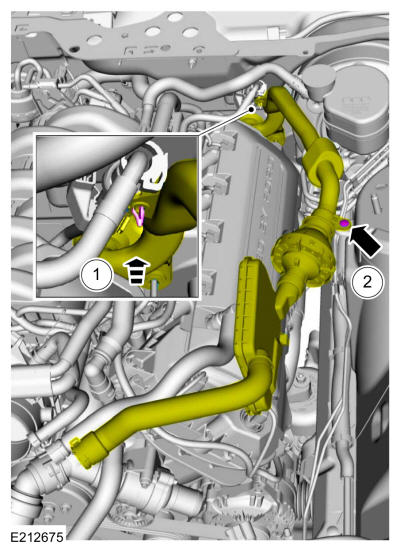

52. 1. Position the sound enhancement pipe onto the retainer.
    2. Install the pin-type retainer.

    Courtesy of FORD MOTOR COMPANY

53. Install the following items:
    1. Degas bottle. Refer to: Degas Bottle
    2. Hood. Refer to: Hood

54. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

55. 1. Position the steering column dash seal.
    2. Tighten the steering column dash seal nuts.

       Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

56. Fill the engine with clean engine oil. Refer to: Specifications
57. Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect
58. Pressurize the fuel system. Refer to: Fuel System Pressure Release
59. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
60. Start engine and check exhaust system for leaks.
61. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
62. Road test the vehicle.
