Engine Oil Draining and Filling

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Draining

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

   GT vehicles

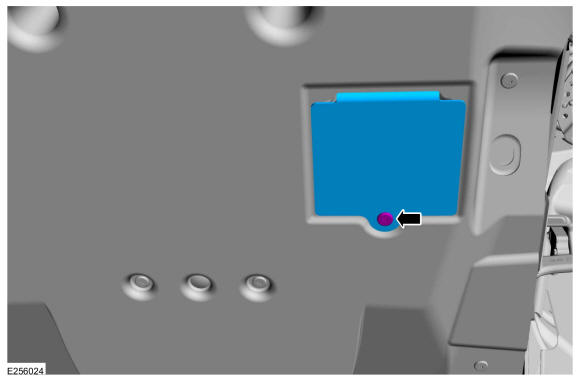

2. Remove the retainer and lower the access cover.

   Courtesy of FORD MOTOR COMPANY

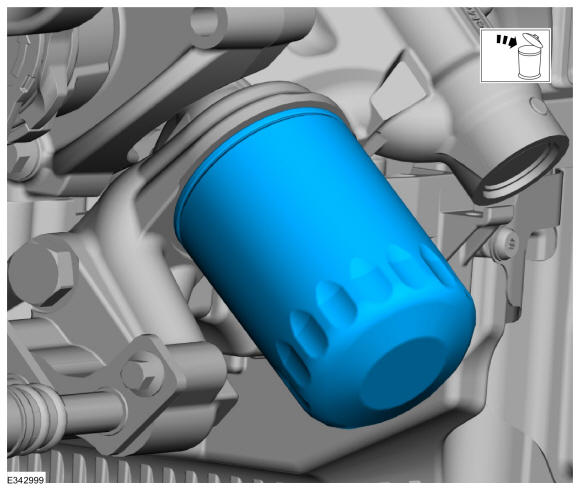

3. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

   Courtesy of FORD MOTOR COMPANY

   Mach 1 vehicles

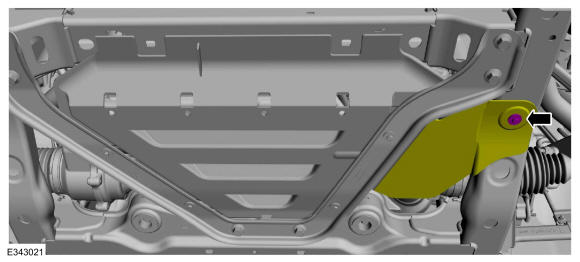

4. Remove the retainer and the access cover.

   Courtesy of FORD MOTOR COMPANY

5. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

   Courtesy of FORD MOTOR COMPANY

   All vehicles

6. NOTE: The drain plug should be removed and installed by hand, do not use tools.
   1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
   2. Pull the oil drain plug out of the oil pan.
   3. After the oil has drained, push the oil drain plug into the oil pan.
   4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

Courtesy of FORD MOTOR COMPANY

Filling

Mach 1 vehicles

1. NOTE: Do not lubricate the O-ring seal.

   Install a new oil filter.

   Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

2. Install the access cover and the retainer.

   Courtesy of FORD MOTOR COMPANY

   GT vehicles

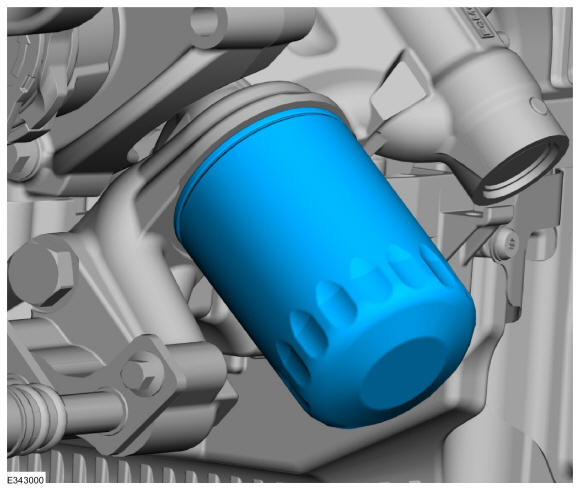

3. NOTE: Do not lubricate the O-ring seal.

   Install a new oil filter.

   Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

   Courtesy of FORD MOTOR COMPANY

4. Raise the access cover and install the retainer.

   Torque: 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

5. Fill the engine with clean engine oil. Refer to: the approrpiate specifications.
