Exploded View Of Engine Components

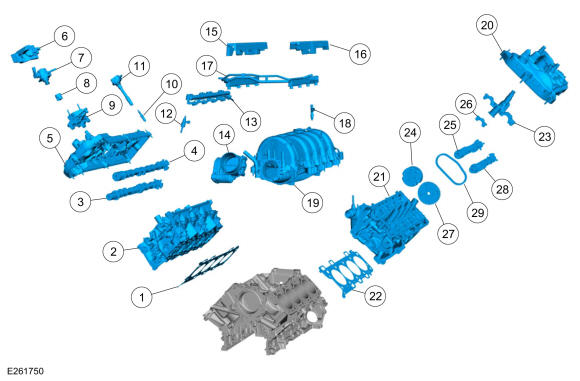

GT Engine -- Upper Components

GFD600382Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 6051 RH cylinder head gasket
2 6049 RH cylinder head
3 6A272 RH exhaust camshaft
4 6A270 RH intake camshaft
5 6582 RH valve cover
6 9U550 Insulator
7 9D376 High pressure fuel pump
8 9C587 Tappet
9 -- Camshaft bearing cap (part of 6049)
10 12405 Spark plug (8 required)
11 12029 Ignition coil on plug (8 required)
12 9G929 Fuel injector (Direct injection) (8 required)
13 9F797 Fuel rail (Direct injection) (2 required)
14 9F991 Throttle body
15 6P013 RH fuel injector insulator shield
16 6P013 LH fuel injector insulator shield
17 9F792 Fuel rail (PFI)
18 9F593 Fuel injector (PFI) (8 required)
19 9424 Intake manifold
20 6582 LH valve cover
21 6049 LH cylinder head
22 6051 LH cylinder head gasket
23 -- Camshaft bearing cap (part of 6049) (2 required)
24 6256 Intake camshaft Variable Camshaft Timing (VCT) (2 required)
25 6A271 LH intake camshaft
26 -- Camshaft bearing cap (part of 6049) (14 required)
27 6C525 Exhaust camshaft Variable Camshaft Timing (VCT) (2 required)
28 6A273 LH exhaust camshaft
29 6268 Secondary timing chain (2 required)

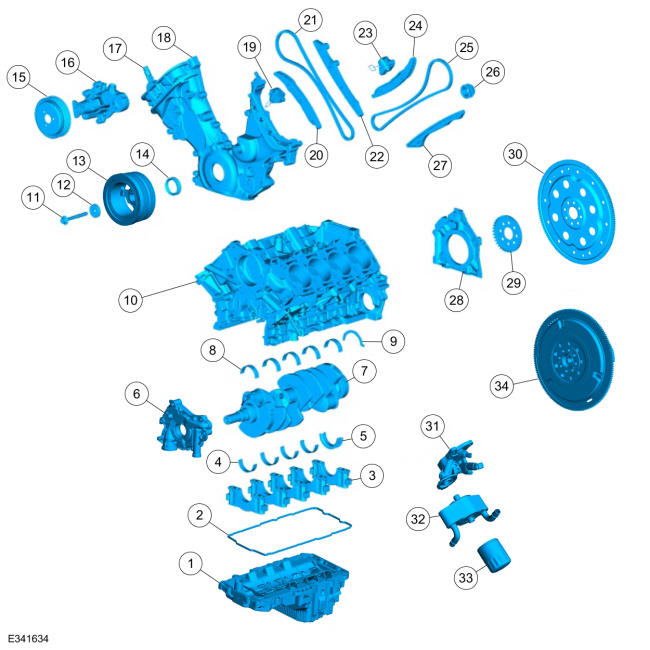

GT Engine -- Lower Components

GFD600383Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 6675 Oil pan
2 6C878 Oil pan gasket
3 -- Crankshaft main bearing cap (part of 6010) (5 required)
4 6A338 Crankshaft lower main bearing (4 required)
5 6A339 Crankshaft lower thrust main bearing
6 6600 Oil pump
7 6303 Crankshaft
8 6333 Crankshaft upper main bearing (5 required)
9 6A341 Thrust washer
10 6010 Cylinder block
11 6A340 Crankshaft pulley bolt
12 N807033 Crankshaft pulley washer
13 6316 Crankshaft pulley
14 6700 Crankshaft front oil seal
15 8509 Coolant pump pulley
16 8501 Coolant pump
17 6B297 Variable Camshaft Timing (VCT) variable force solenoid (2 required)
18 6019 Engine front cover
19 6L266 RH primary timing chain tensioner
20 6K255 RH timing chain tensioner arm
21 6268 RH primary timing chain
22 6M256 RH timing chain guide
23 6L266 LH primary timing chain tensioner
24 6K255 LH timing chain tensioner arm
25 6268 LH primary timing chain
26 6306 Crankshaft sprocket
27 6B274 LH timing chain guide
28 6K318 Crankshaft rear seal retainer plate
29 12A227 Crankshaft sensor ring
30 6375 Flexplate (automatic transmission)
31 6881 Oil filter adapter
32 6A642 Oil cooler
33 6731 Oil filter
34 6375 Flywheel (manual transmission)

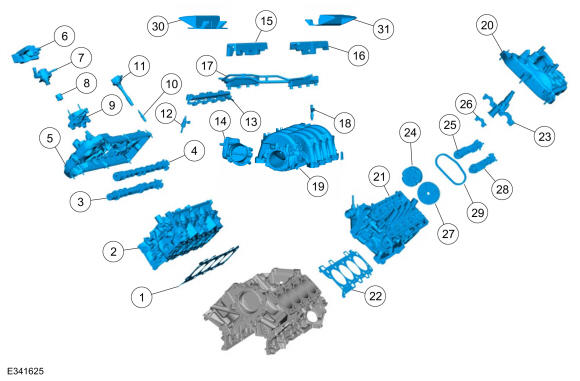

Mach 1 Engine -- Upper Components

GFD600384Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 6051 RH cylinder head gasket
2 6049 RH cylinder head
3 6A272 RH exhaust camshaft
4 6A270 RH intake camshaft
5 6582 RH valve cover
6 9U550 Insulator
7 9D376 High pressure fuel pump
8 9C587 Tappet
9 -- Camshaft bearing cap (part of 6049)
10 12405 Spark plug (8 required)
11 12029 Ignition coil on plug (8 required)
12 9G929 Fuel injector (Direct injection) (8 required)
13 9F797 Fuel rail (Direct injection) (2 required)
14 9F991 Throttle body
15 6P013 RH fuel injector insulator shield
16 6P013 LH fuel injector insulator shield
17 9F792 Fuel rail (PFI)
18 9F593 Fuel injector (PFI) (8 required)
19 9424 Intake manifold
20 6582 LH valve cover
21 6049 LH cylinder head
22 6051 LH cylinder head gasket
23 -- Camshaft bearing cap (part of 6049) (2 required)
24 6256 Intake camshaft Variable Camshaft Timing (VCT) (2 required)
25 6A271 LH intake camshaft
26 -- Camshaft bearing cap (part of 6049) (14 required)
27 6C525 Exhaust camshaft Variable Camshaft Timing (VCT) (2 required)
28 6A273 LH exhaust camshaft
29 6268 Secondary timing chain (2 required)
30 18D690 Heater hose support
31 18D691 Heater hose support

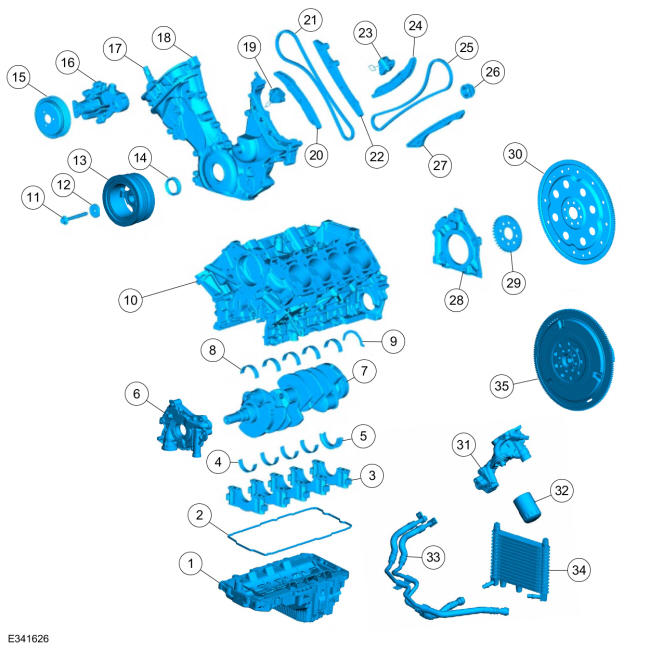

Mach 1 Engine -- Lower Components

GFD600385Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 6675 Oil pan
2 6C878 Oil pan gasket
3 -- Crankshaft main bearing cap (part of 6010) (5 required)
4 6A338 Crankshaft lower main bearing (4 required)
5 6A339 Crankshaft lower thrust main bearing
6 6600 Oil pump
7 6303 Crankshaft
8 6333 Crankshaft upper main bearing (5 required)
9 6A341 Thrust washer
10 6010 Cylinder block
11 6A340 Crankshaft pulley bolt
12 N807033 Crankshaft pulley washer
13 6316 Crankshaft pulley
14 6700 Crankshaft front oil seal
15 8509 Coolant pump pulley
16 8501 Coolant pump
17 6B297 Variable Camshaft Timing (VCT) variable force solenoid (2 required)
18 6019 Engine front cover
19 6L266 RH primary timing chain tensioner
20 6K255 RH timing chain tensioner arm
21 6268 RH primary timing chain
22 6M256 RH timing chain guide
23 6L266 LH primary timing chain tensioner
24 6K255 LH timing chain tensioner arm
25 6268 LH primary timing chain
26 6306 Crankshaft sprocket
27 6B274 LH timing chain guide
28 6K318 Crankshaft rear seal retainer plate
29 12A227 Crankshaft sensor ring
30 6375 Flexplate (automatic transmission)
31 6881 Oil filter adapter
32 6714 Oil filter
33 6K834 Oil cooler hoses
34 6A642 Oil cooler
35 6375 Flywheel (manual transmission)

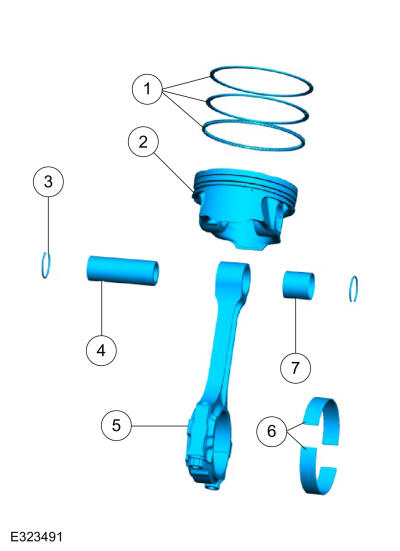

Piston Assembly

GFD600386Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 6148 Piston ring kit (8 required)
2 6108 Piston (8 required)
3 6140 Piston pin retainer (16 required)
4 6135 Piston pin (8 required)
5 6200 Connecting rod assembly (8 required)
6 6211 Connecting rod bearing (8 required)
7 6207 Connecting rod bushing (8 required)
