Engine - 5.0L 32V Ti-VCT (359KW/486PS) (WU)/5.0L Ti-VCT V8 (343KW/466PS) (MF): Assembly: Engine
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

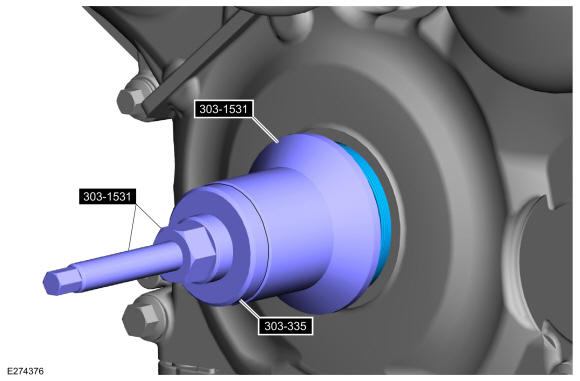

Special Tool(s) / General Equipment

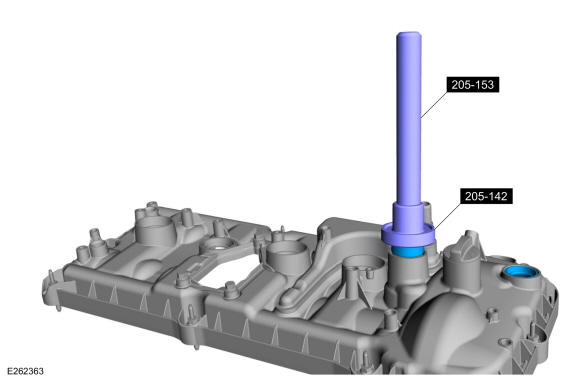

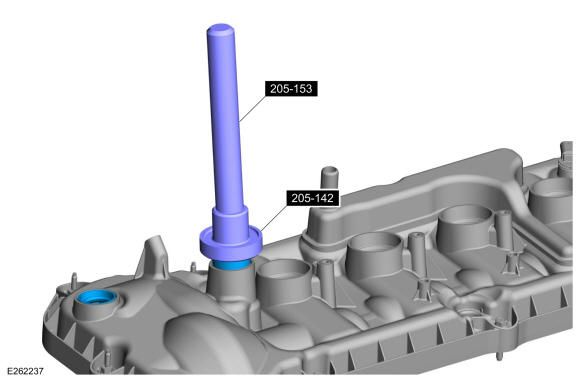

| 205-142 (T80T-4000-J)Installer, Differential Bearing Cone | |
|---|---|
| 205-153 (T80T-4000-W)Handle | |

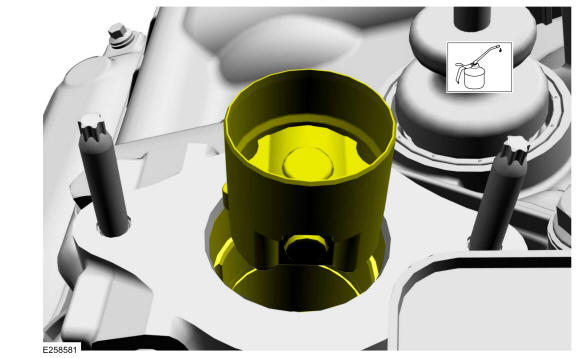

| 303-1247VCT Spark Plug Tube Seal Remover and Installer | TKIT-2006UF-FLM | TKIT-2006UF-ROW | |
| 303-1250Seal Installer, Rear Main | TKIT-2006UFFLM | |

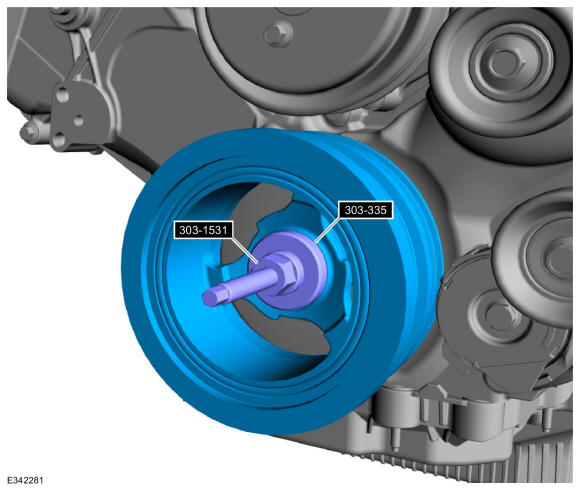

| 303-1531Installer, Front Crank Seal and Damper | |
| 303-335 (T88T-6701-A)Installer, Front Cover Oil Seal | TKIT-1988-FLM | TKIT-1988-F | |

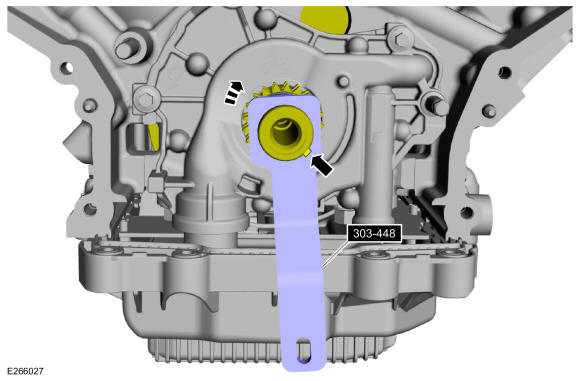

| 303-448 (T93P-6303-A)Holding Tool, Crankshaft | TKIT-1993-FLM | TKIT-1993-LM | |
| 303-F047Lifting Bracket, Engine | |
| Strap Wrench | |
| Floor Crane | |
| Mounting Stand | |
| Piston Ring Compressor |
Materials
| Name | Specification |
|---|---|
| Motorcraft® High Performance Engine RTV SiliconeTA-357 | WSE-M4G323-A6 |

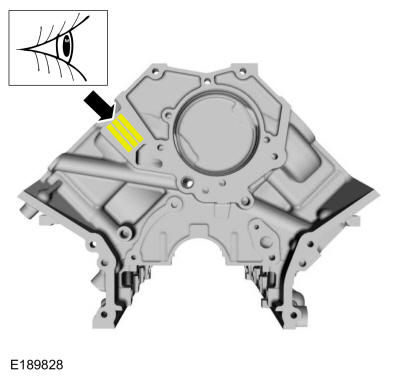

- Record the main bearing code found on the front of the engine block.

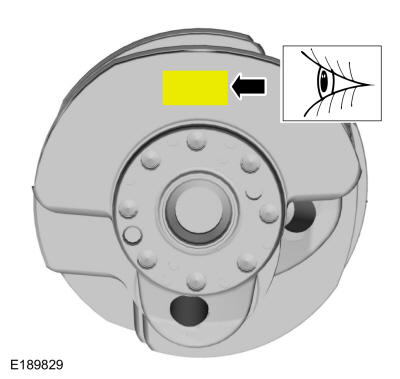

- Record the main bearing code found on the rear of the crankshaft.
-
NOTE: This chart is for selecting main bearings 1 and 5 only, the remaining bearings will be selected using a different chart in the next step.

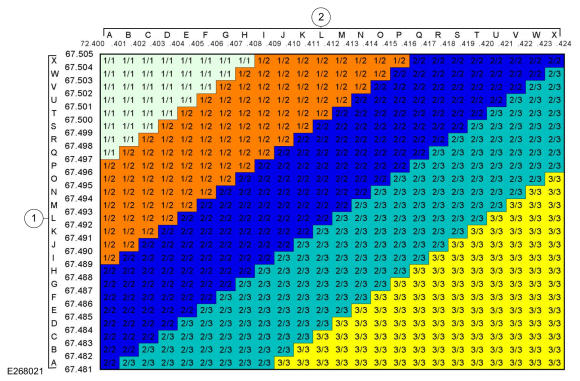

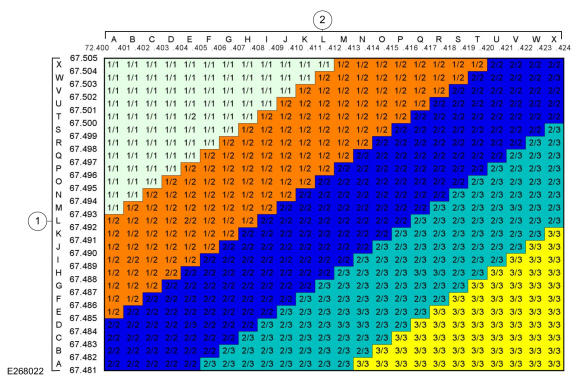

Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 1 and 5.
- Maximum crankshaft journal diameter
- Minimum block bore diameter
- Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
- Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade(s) for the No. 1 crankshaft main bearing.
- As an example, if the engine block code letter is "F" and the crankshaft code letter is "P", the correct bearing grade for this main bearing is a "1" for the upper bearing and a "2" for the lower bearing.
- Repeat the above steps using the fifth letter of the block and crankshaft codes to select the No. 5 bearing.
-
NOTE: This chart is for selecting main bearings 2, 3 and 4 only.
Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 2, 3 and 4.
- Maximum crankshaft journal diameter
- Minimum block bore diameter
- Read the second letter of the engine block main bearing code and the second letter of the crankshaft main bearing code.
- Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade(s) for the No. 2 crankshaft main bearing
- As an example, if the engine block code letter is "F" and the crankshaft code letter is "P", the correct bearing grade for this main bearing is a "1" for the upper bearing and a "2" for the lower bearing
- Repeat the above steps using the third and fourth letters of the block and crankshaft codes to select the No. 3 and No. 4 bearings.
- Install the piston cooling jets and bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.
- Install the crankshaft main bearings.
- Install the crankshaft upper main bearings into the cylinder block.
- Install the crankshaft lower main bearings and thrust bearing into the bearing caps.
- Make sure all oil passages are aligned.
- Lubricate all main bearings with clean engine oil.
-
NOTE: Lubricate the crankshaft bearing journals with clean engine oil.

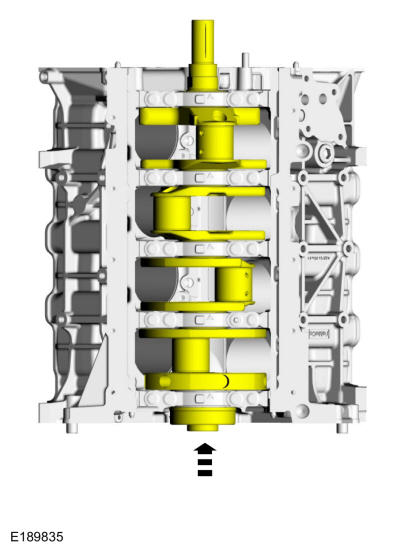

Install the crankshaft into the cylinder block.
-
NOTE: The oil groove on the thrust washer must face toward the rear of the engine (against the crankshaft thrust surface).NOTE: Lubricate the thrust washer with clean engine oil.
Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 5 main boss.
-
NOTE: Lubricate the fastener threads with clean engine oil.

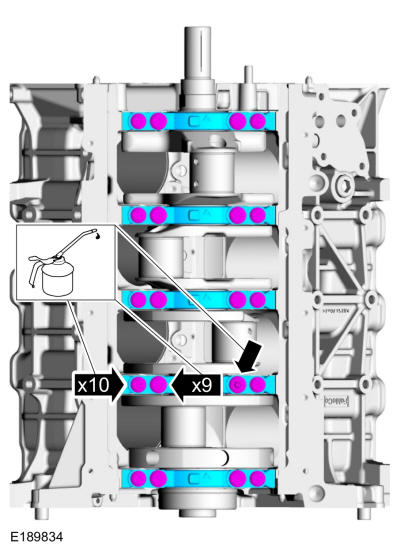

Install the main bearing caps and fasteners on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the cap fasteners.
- Push the crankshaft forward to seat the crankshaft thrust washer.

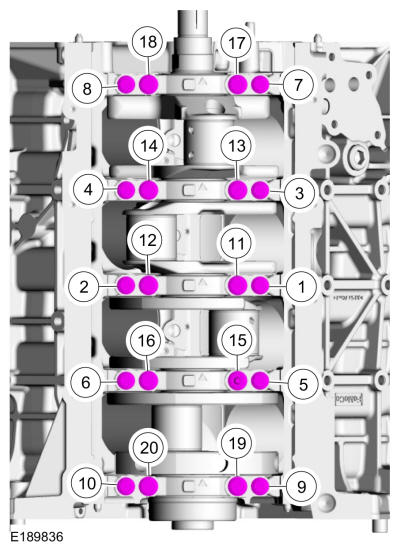

- Tighten the vertical main bearing cap fasteners.
Torque: Stage 1: 1 through 20: 177 lb.in (20 Nm) Stage 2: 1 through 10: 30 lb.ft (40 Nm) Stage 3: 11 through 20 : 48 lb.ft (65 Nm) Stage 4: 1 through 20: 90 deg.
- Install the cross-mounted main bearing cap fasteners.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 22 lb.ft (30 Nm) Stage 3: 60 deg.
-
- Check the crankshaft end play. Refer to: Specifications
- Check that crankshaft torque-to-turn does not exceed 6 Nm (53 lb-in).
- Check the piston-to-cylinder block and piston ring clearances. Refer to: Specifications
- Assemble the pistons and position the piston ring gaps. Refer to: Piston
- Lubricate with clean engine oil and install the connecting rod bearings.
-
NOTE: Do not allow the piston connecting rods to come in contact with the piston cooling jets or engine damage may occur.NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.NOTE: Lubricate the piston with clean engine oil.

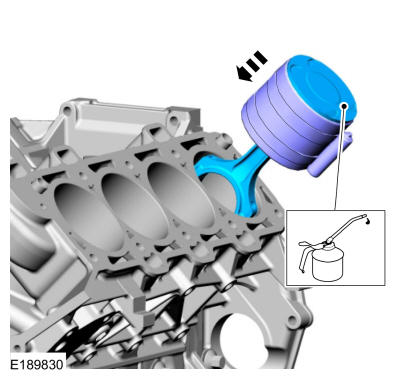

- Using a piston ring compressor, install the piston. Use the General Equipment: Piston Ring Compressor
-
NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.NOTE: The connecting rod caps are of the "cracked" design and must mate with the connecting rod ends. Excessive bearing clearance will result if not mated correctly.
Install the connecting rod cap and bearing.
- Install the new bolts hand tight.
- Repeat the previous 2 steps for each of the remaining pistons.

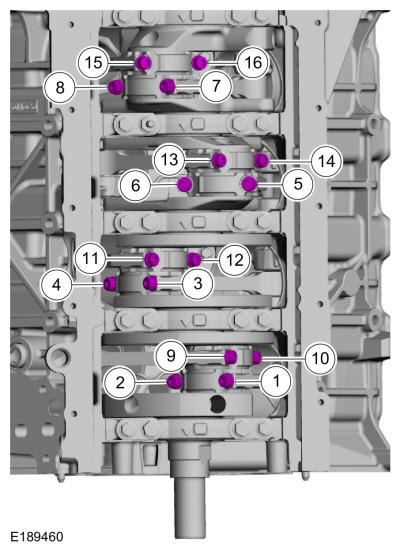

- Tighten the connecting rod bolts.
Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 28 lb.ft (38 Nm) Stage 3: 105 deg.

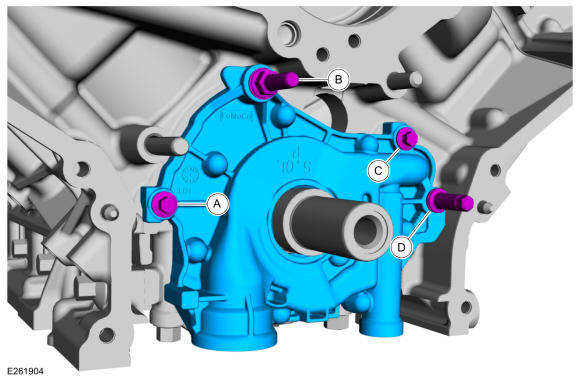

- Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
-
NOTE: Oil pump must be held against the cylinder block until all bolts are tightened.

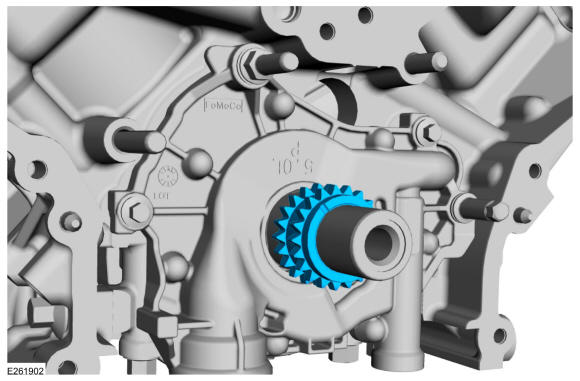

- Rotate the inner rotor of the oil pump assembly to align the flats on the crankshaft and slip the oil pump over the crankshaft until seated against the block.
- Rotate the oil pump until the bolt holes are aligned to the block and install the fasteners hand tight.
Torque: Stage 1: A: 89 lb.in (10 Nm) Stage 2: B: 18 lb.ft (25 Nm) Stage 3: C: 89 lb.in (10 Nm) Stage 4: D: 177 lb.in (20 Nm) Stage 5: A: 45 deg. Stage 6: B: 75 deg. Stage 7: C: 45 deg. Stage 8: D: 60 deg.
- Install the crankshaft sprocket.
-
NOTE: If the rear crankshaft seal retaining plate is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure may cause future oil leaks.

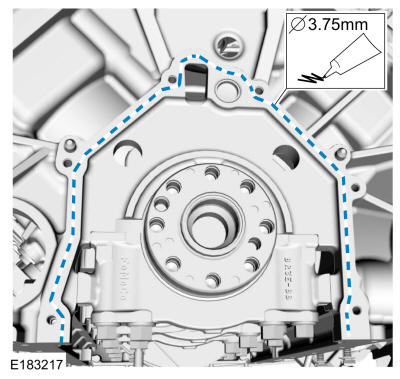

Apply a 3.75 mm (0.147 in) bead of silicone gasket and sealant to the rear crankshaft seal retainer mating surface on the engine block.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Install the crankshaft rear seal retainer plate and the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 30 deg.
-

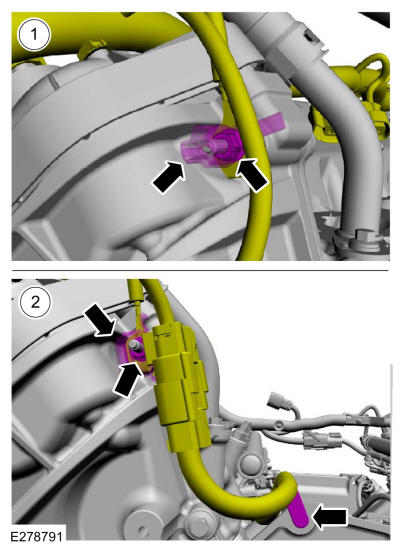

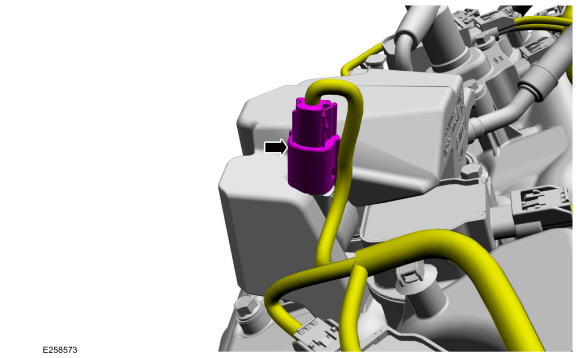

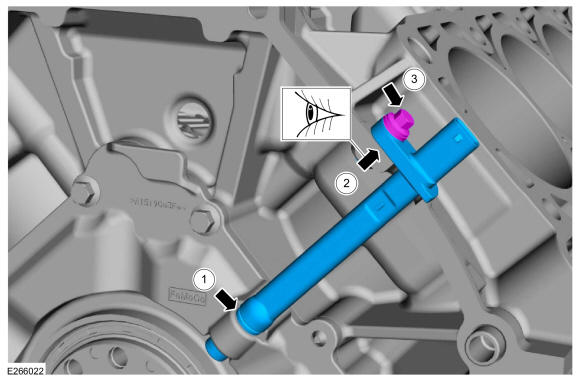

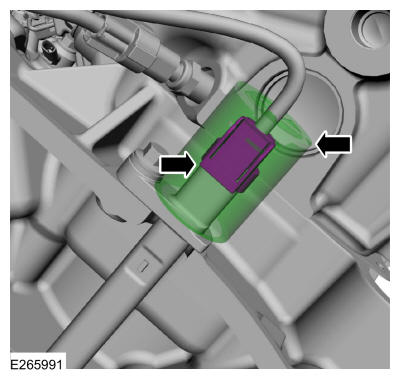

NOTE: The CKP sensor must be positioned into the crankshaft rear seal retainer plate and be flush against the boss on the engine block before the bolt is installed. If the CKP sensor is installed incorrectly, the CKP sensor can be damaged.
- Install the CKP sensor must be positioned into the crankshaft rear seal retainer plate.
- Make sure the CKP sensor is flush with the engine block boss.
- Install the bolt.
Torque: 89 lb.in (10 Nm)
- Install a new oil pan gasket.
- Install a new oil pump pickup seal and lubricate with clean engine oil.
-
NOTE: If the oil pan is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage. If this timing cannot be met, tighten fasteners 7, 8, 9 and 10 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer and final torque all of the fasteners within 1 hour of applying the sealer.

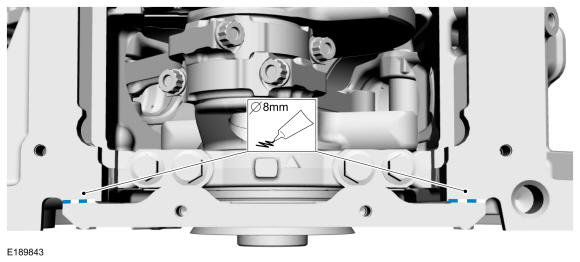

Apply an 8 mm (0.31 in) bead of silicone gasket and sealant to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
Torque: 18 lb.ft (25 Nm)

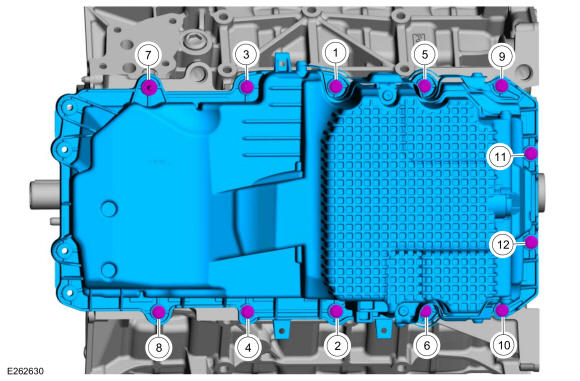

- Install the oil pan and the fasteners.
Torque: Stage 1: 18 lb.in (2 Nm) Stage 2: 89 lb.in (10 Nm) Stage 3: 45 deg.
- Install a new oil filter adapter gasket.
-

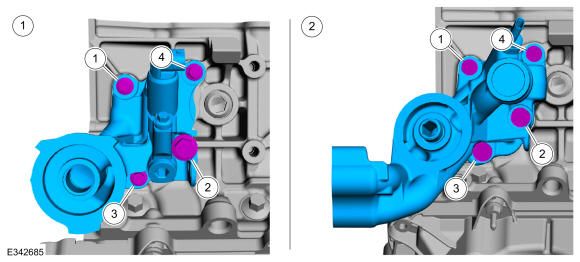

- GT engine: Install the oil filter adapter and the bolts.
Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 60 deg.
- Mach 1 engine: Install the oil filter adapter and the bolts.
Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 60 deg.
- GT engine: Install the oil filter adapter and the bolts.

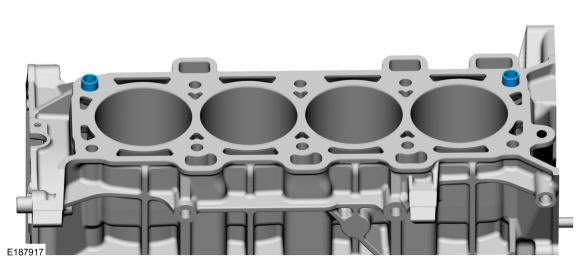

- Install the dowels on the LH bank of the cylinder block.

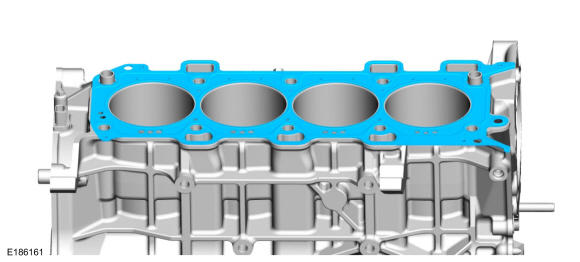

- Install a new LH cylinder head gasket.
-
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.
- Install the cylinder head and the new bolts.

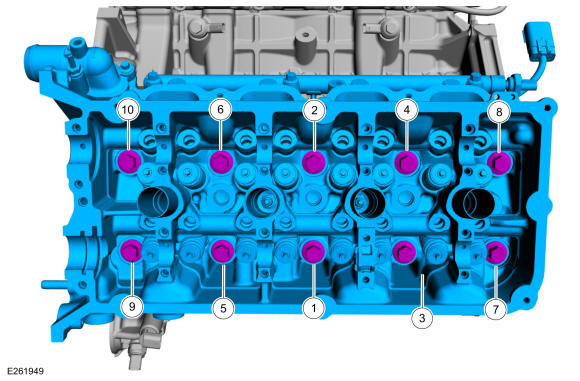

Torque: Stage 1: Bolts 1-10 in sequence: 18 lb.ft (25 Nm) Stage 2: Bolts 1-10 in sequence: 55 lb.ft (75 Nm) Stage 3: Bolt 1: Loosen: 180 deg. Stage 4: Bolt 1: 37 lb.ft (50 Nm) Stage 5: Bolt 1: 240 deg.
- Perform stages 3, 4 and 5 on bolts 2 through 10 (complete all three stages to each bolt before moving on to the next bolt in sequence).
- Install the cylinder head and the new bolts.

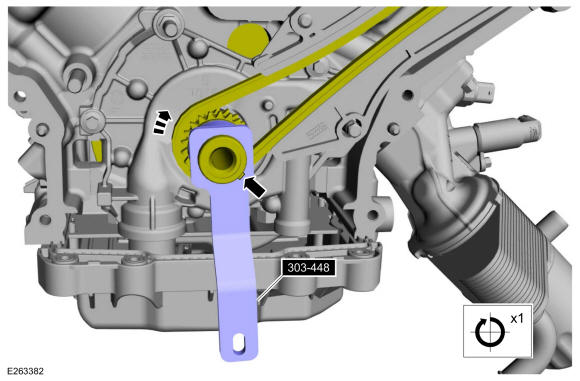

- Using the special tool, rotate the crankshaft clockwise until the keyway is at the 5 o'clock position. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.NOTE: The LH camshafts, VCT units and timing chains must be installed first. Only turn the crankshaft as instructed. Failure to do so may result in the camshafts installed out of phase and serious damage to the engine will result.
-
NOTE: If the components are to be reinstalled, they must be installed in their original locations.

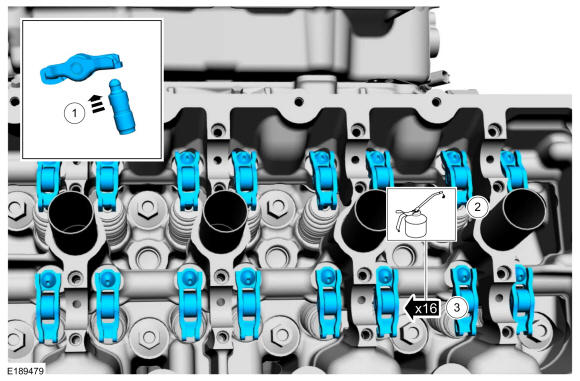

- Assemble the hydraulic lash adjusters onto the spring clips on the camshaft roller followers.
- Lubricate the camshaft roller follower and hydraulic lash adjuster assemblies with clean engine oil.
- Install the camshaft roller follower and hydraulic lash adjuster assemblies.
-
NOTE: Lubricate the camshafts with clean engine oil prior to installation.
Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

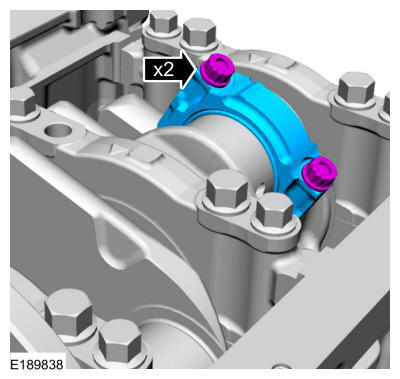

- Install the camshaft bearing caps and the bolts. Do not tighten at this time.

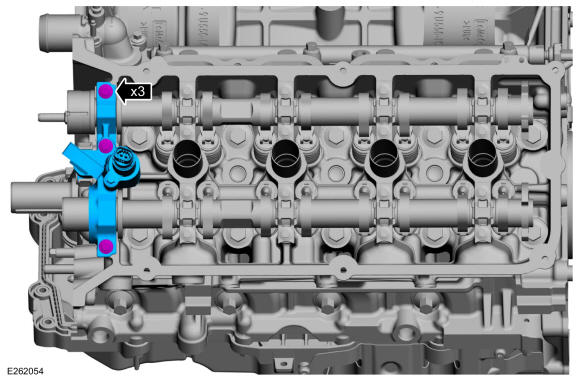

- Install the front camshaft bearing mega cap and the bolts. Do not tighten at this time.
- Tighten the bolts.
Torque: Stage 1: 53 lb.in (6 Nm) Stage 2: 45 deg.
- Install new VCT system oil filter into the camshaft.

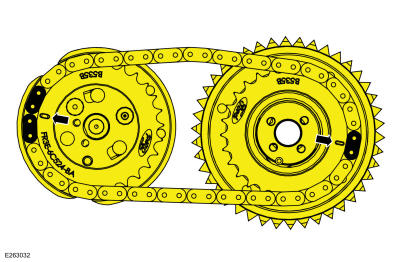

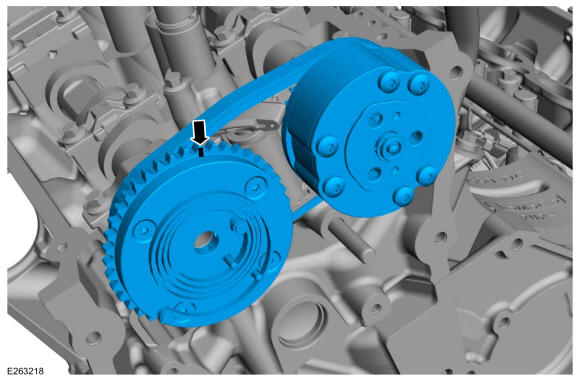

- Position the secondary timing chain onto the VCT assemblies. Align the colored links on the secondary timing chain with the timing marks on the VCT assemblies as shown in the illustration.
- The timing mark on the intake VCT assembly should align between the 2 consecutive colored links.
- The timing mark on the exhaust VCT assembly should align with the single colored link.
- Install the VCT assemblies and the secondary timing chain onto the camshafts with the timing mark in the position shown in graphic.
-
NOTE: It may be necessary to rotate the exhaust camshaft slightly (using a wrench on the flats of the camshaft) to seat the VCT assemblies onto the camshafts.
Rotate the secondary timing chain tensioner clockwise 45 degrees so the ramped area is facing forward and fully seat the VCT assemblies onto the camshafts.
- If the secondary timing chain is not centered over the tensioner, reposition the VCT assemblies until they are fully seated on the camshafts.
-
NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolts.
- Install the new intake VCT assembly bolts.
Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 90 deg.
- Install the new exhaust VCT assembly bolt.
Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: Loosen: 360 deg. Stage 3: 20 lb.ft (27 Nm) Stage 4: 150 deg.
- Install the new intake VCT assembly bolts.

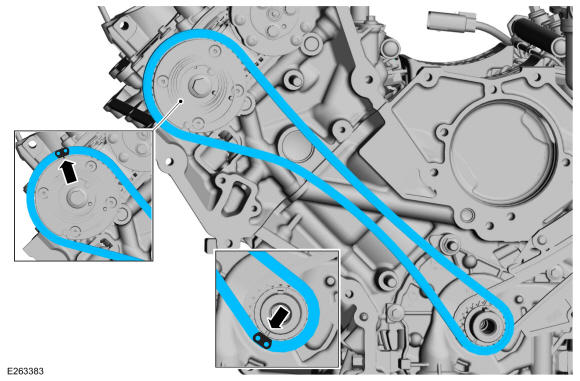

- Install the LH timing chain.
- Align the colored link on the timing chain with the timing mark on the LHVCT assembly.
- Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.
-
NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain guide. Return the crankshaft keyway to the 5 o'clock position after installing the LH timing chain guide.

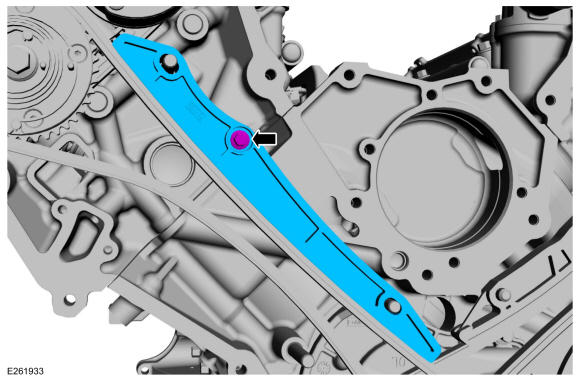

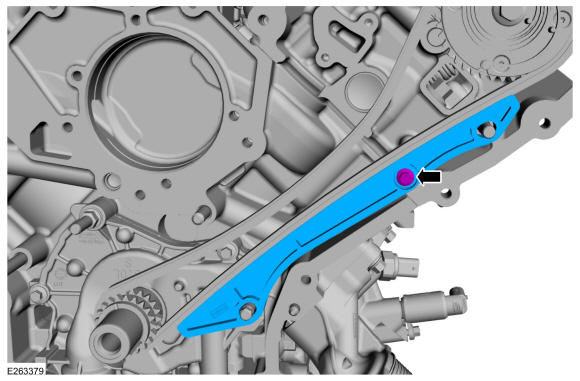

Install the LH timing chain guide and bolt.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 25 deg.
-
NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain arm. Return the crankshaft keyway to the 5 o'clock position after installing the LH timing chain arm.

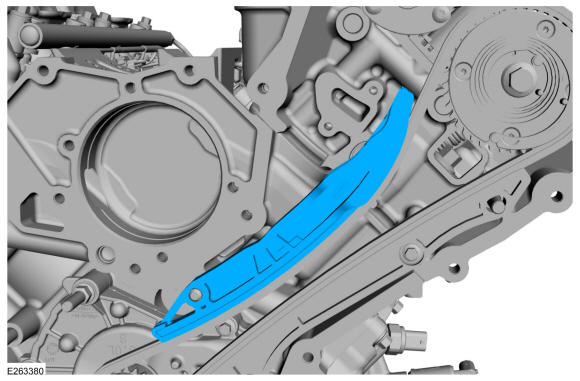

Install the LH timing chain tensioner arm.
-

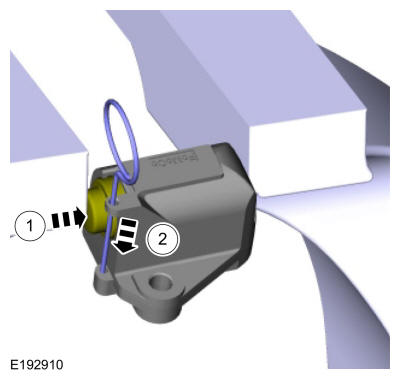

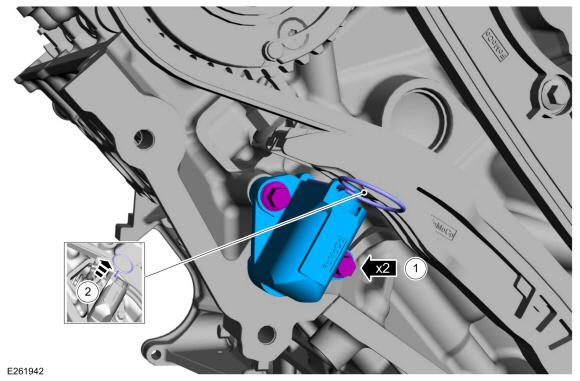

- Compress the primary timing chain tensioner plunger, using an edge of a vise.
- Install a suitable pin into the hole of the tensioner housing to hold the plunger in place during installation.
-
- Install the LH primary timing chain tensioner and bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 25 deg.
- Remove the holding pin from the tensioner.
- Install the LH primary timing chain tensioner and bolts.
- Using the special tool, rotate the crankshaft clockwise one complete revolution. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.
- Using the special tool, rotate the crankshaft clockwise until the keyway is at the 12 o'clock position. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.

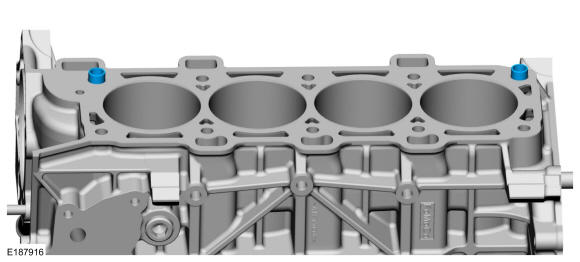

- Install the dowels on the RH bank of the cylinder block.
- Install the new cylinder head gasket.
-
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.
- Install the cylinder head and the new bolts.
Torque: Stage 1: Bolts 1-10 in sequence: 18 lb.ft (25 Nm) Stage 2: Bolts 1-10 in sequence: 55 lb.ft (75 Nm) Stage 3: Bolt 1: Loosen: 180 deg. Stage 4: Bolt 1: 37 lb.ft (50 Nm) Stage 5: Bolt 1: 240 deg.
- Perform stages 3, 4 and 5 on bolts 2 through 10 (complete all three stages to each bolt before moving on to the next bolt in sequence).
- Install the cylinder head and the new bolts.
-
NOTE: If the components are to be reinstalled, they must be installed in their original locations.
- Assemble the hydraulic lash adjusters onto the spring clips on the camshaft roller followers.
- Lubricate the camshaft roller follower and hydraulic lash adjuster assemblies with clean engine oil.
- Install the camshaft roller follower and hydraulic lash adjuster assemblies.
-
NOTE: Lubricate the camshafts with clean engine oil prior to installation.
Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.
- Install the camshaft bearing caps and the bolts. Do not tighten at this time.
- Install the front camshaft bearing mega cap and the bolts. Do not tighten at this time.
- Tighten the bolts in sequence.
Torque: Stage 1: Bolts 1-19: 53 lb.in (6 Nm) Stage 2: Bolts 1-2, 5-10, 13-19: 45 deg. Bolts 3-4, 11-12: 90 deg.
- Install a new VCT system oil filter into the camshaft.
- Position the secondary timing chain onto the VCT assemblies. Align the colored links on the secondary timing chain with the timing marks on the VCT assemblies as shown in the illustration.
- The timing mark on the intake VCT assembly should align between the 2 consecutive colored links.
- The timing mark on the exhaust VCT assembly should align with the single colored link.
- Install the VCT assemblies and the secondary timing chain onto the camshafts with the timing mark in the position shown in graphic.
-
NOTE: It may be necessary to rotate the exhaust camshaft slightly (using a wrench on the flats of the camshaft) to seat the VCT assemblies onto the camshafts.
Rotate the secondary timing chain tensioner counterclockwise 45 degrees so the ramped area is facing forward and fully seat the VCT assemblies onto the camshafts.
- If the secondary timing chain is not centered over the tensioner, reposition the VCT assemblies until they are fully seated on the camshafts.
-
NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolts.
- Install the new intake VCT assembly bolts.
Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 90 deg.
- Install the new exhaust VCT assembly bolt.
Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: Loosen: 360 deg. Stage 3: 20 lb.ft (27 Nm) Stage 4: 150 deg.
- Install the new intake VCT assembly bolts.

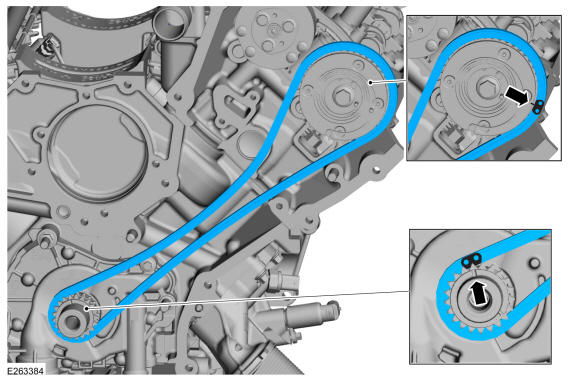

- Install the RH timing chain.
- Align the colored link on the timing chain with the timing mark on the RHVCT assembly.
- Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.
-
NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the RH timing chain guide. Return the crankshaft keyway to the 12 o'clock position after installing the RH timing chain guide.
Install the RH timing chain guide and bolt.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 25 deg.
-
NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the RH timing chain arm. Return the crankshaft keyway to the 12 o'clock position after installing the RH timing chain arm.
Install the RH timing chain tensioner arm.
-
- Compress the primary timing chain tensioner plunger, using an edge of a vise.
- Install a suitable pin into the hole of the tensioner housing to hold the plunger in place during installation.
-
- Install the RH primary timing chain tensioner and bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 25 deg.
- Remove the holding pin from the tensioner.
- Install the RH primary timing chain tensioner and bolts.
- Install new gaskets on the engine front cover.
-

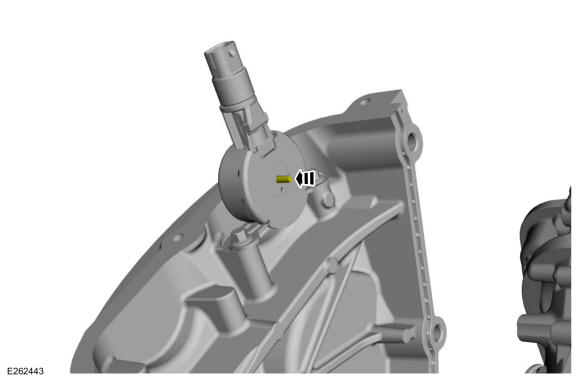

NOTE: The VCT variable force solenoid pins must be fully depressed to avoid interference with the VCT valve tips when installing the engine front cover. Failure to follow these instructions can result in damage to the engine.NOTE: RH shown, LH similar.

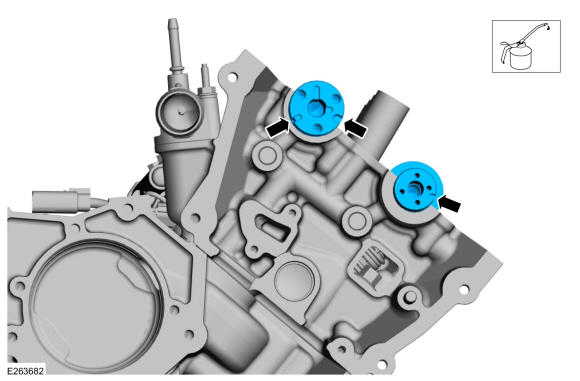

Fully depress the VCT variable force solenoid pins.
-
NOTE: The engine front cover must be installed and all fasteners final tightened within 5 minutes of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must then be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

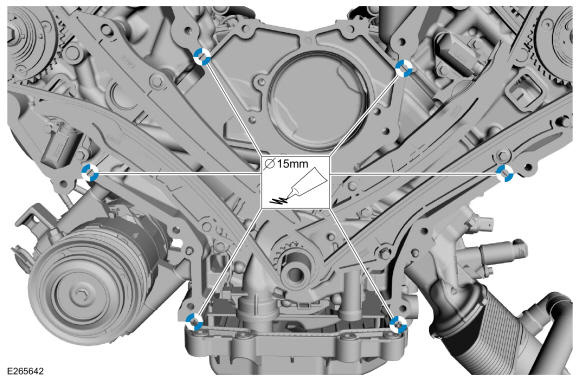

Apply a 15 mm (0.59 in) diameter drop of silicone gasket and sealant to the cylinder head-to-cylinder block joints and the oil pan-to-cylinder block joints.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
-
NOTE: Make sure that the engine front cover gaskets are in place on the engine front cover before installation.NOTE: Timing drive components removed from view for clarity.
Position the engine front cover onto the dowels.
-
NOTE: The engine front cover must be installed and all fasteners final tightened within 5 minutes of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must then be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

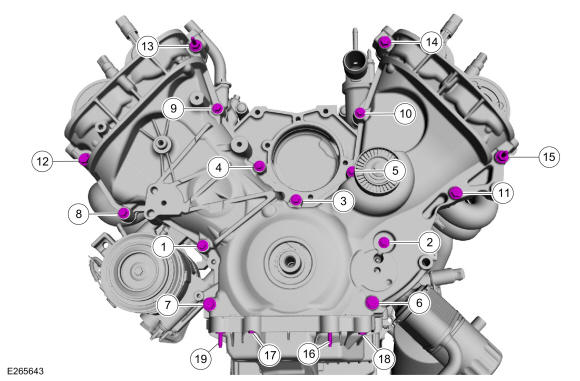

Install the bolts and stud bolts.
Torque: Stage 1: Fasteners 1-15 : 18 lb.ft (25 Nm) Stage 2: Fasteners 16-19 : 89 lb.in (10 Nm) Stage 3: Fasteners 1-15 : 60 deg. Stage 4: Fasteners 16-19 : 45 deg.

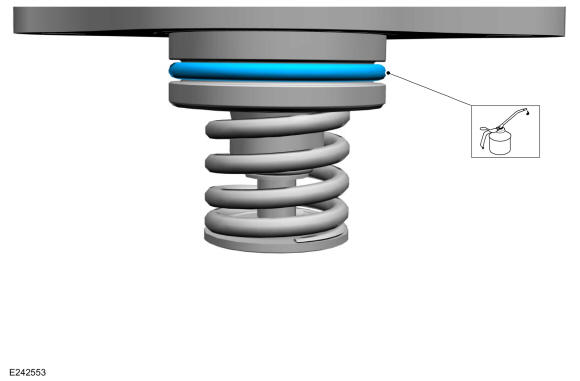

- Install a new coolant pump O-ring seal and lubricate with clean engine coolant.
- Install the coolant pump and bolts.
Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 60 deg.
-

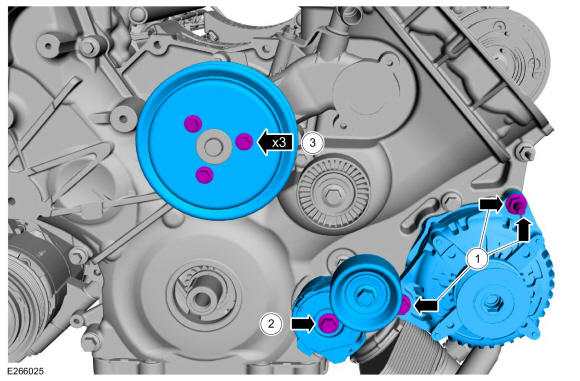

- Install the generator and the fasteners.
Torque: Stud: 71 lb.in (8 Nm) Bolt: 35 lb.ft (48 Nm) Nut: 35 lb.ft (48 Nm)
- Install the accessory drive belt tensioner and the bolt.
Torque: 35 lb.ft (48 Nm)
- Install the coolant pump pulley and the bolts.
Torque: 18 lb.ft (25 Nm)
- Install the generator and the fasteners.
- Lubricate the engine front cover bore and the crankshaft front oil seal inner lip with clean engine oil.
-
NOTE: Only the plate from 303-335 should be used.
Using the special tools, install the new crankshaft front oil seal. Use Special Service Tool: 303-1531 Installer, Front Crank Seal and Damper., 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal.
-
- Clean off any residual sealer from the Woodruff key slot and the Woodruff key on the crankshaft (not shown).
-
NOTE: If not secured within 5 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.
Apply silicone gasket and sealant to the Woodruff key slot in the crankshaft damper pulley.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

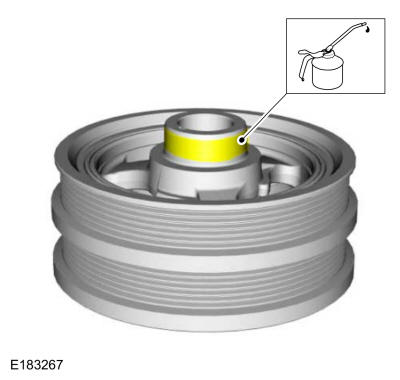

- Lubricate the crankshaft damper pulley sealing surface with clean engine oil prior to installation.
- Using the special tools, install the crankshaft damper pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1531 Installer, Front Crank Seal and Damper.

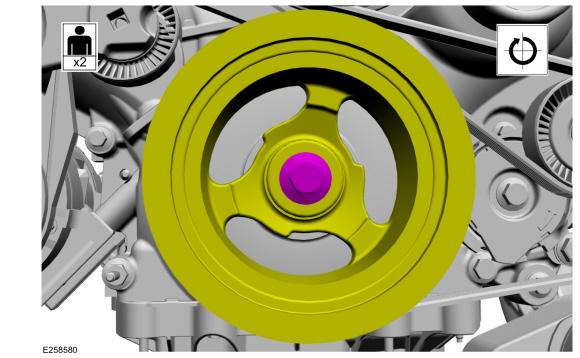

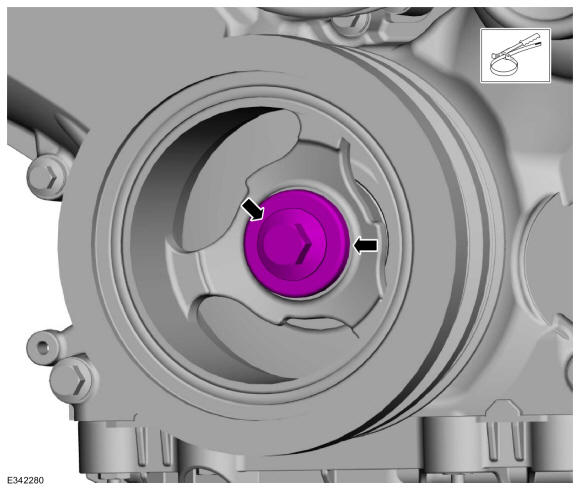

- Using the Strap Wrench, install a new crankshaft damper pulley bolt and the original washer. Use the General Equipment: Strap Wrench
Torque: Stage 1: 103 lb.ft (140 Nm) Stage 2: Loosen: 360 deg. Stage 3: 74 lb.ft (100 Nm) Stage 4: 90 deg.
- Install new studs and new gasket.
Torque: 159 lb.in (18 Nm)

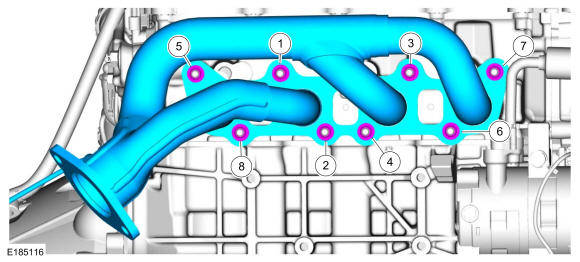

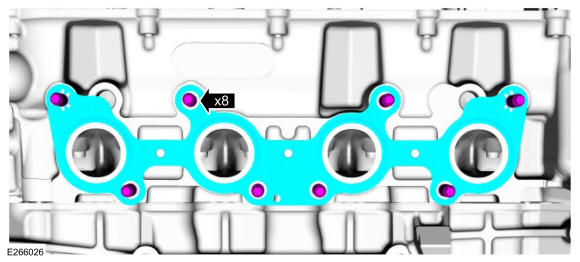

- Install the exhaust manifold.
- Install the new nuts.
Torque: Stage 1: 18 lb.ft (24 Nm) Stage 2: 24 lb.ft (32 Nm)
- Install the new nuts.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
Using the special tools, install new VCT variable force solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
- Install a new gasket.
-

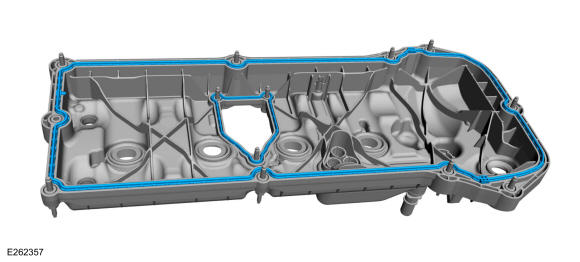

NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned.
Apply an 12 mm (0.47 in) bead of silicone gasket and sealant to the engine front cover-to-cylinder head joints.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

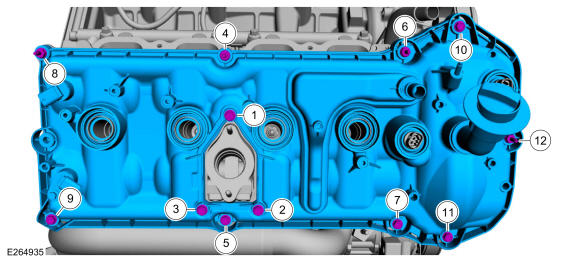

- Install the valve cover and tighten the bolts.
Torque: 89 lb.in (10 Nm)
-
- Push the oil level indicator tube into the engine.
- Rotate the oil level indicator tube clockwise.
- Verify the tab is locked in place.
- Install the oil level indicator.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
Using the special tools, install new VCT variable force solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
- Install new gaskets.
-
NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned.
Apply an 12 mm (0.47 in) bead of silicone gasket and sealant to the engine front cover-to-cylinder head joints.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Install the valve cover and tighten the bolts.
Torque: 89 lb.in (10 Nm)
- Install the 8 spark plugs.
Torque: 128 lb.in (14.5 Nm)
-

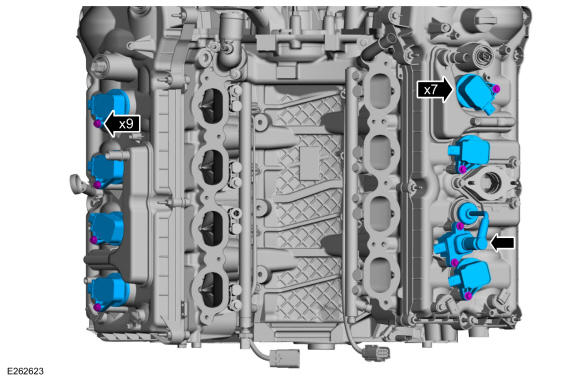

- Install the ignition coil-on-plugs
- Install and tighten the ignition coil-on-plug retaining bolts in the following 2 stages.
Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 45 deg.
- Install the KSs and the bolts.
Torque: 177 lb.in (20 Nm)
-
- Install the KS harness onto the engine.
- Attach the wiring harness retainers.
- Connect the KS electrical connectors.

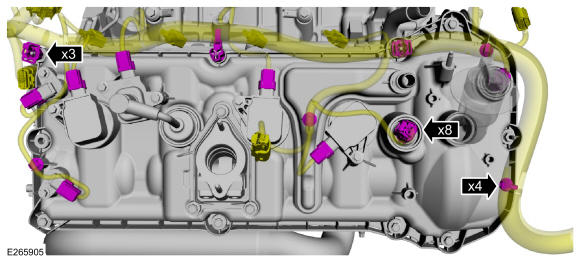

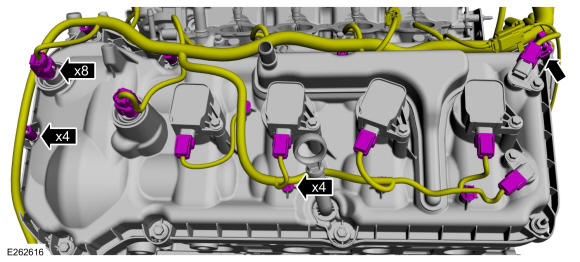

- Position the engine wiring harness onto the engine and connect the engine wiring harness connector.
-
- Connect the engine wiring harness electrical connectors.
- Attach the wiring harness retainers.
-
-
NOTE: GT engine.
Install the ground wire, the nut and attach the wiring harness retainer.
Torque: 89 lb.in (10 Nm)
-
NOTE: Mach 1 engine.
Install the ground wire, the nut and attach the wiring harness retainers.
Torque: 89 lb.in (10 Nm)
-
-
- Connect the fuel rail electrical connector.
- Connect the CHT sensor electrical connector.
-
- Connect the CKP sensor electrical connector.
- Slide the insulator over the electrical connector.
-
- Install the ground wire and the bolt.
Torque: 106 lb.in (12 Nm)
- Install the capacitor and the bolt.
Torque: 89 lb.in (10 Nm)
- Connect the fuel sensor electrical connector.
- Connect the fuel rail electrical connector.
- Install the ground wire and the bolt.
-
- Connect the engine wiring harness electrical connectors.
- Attach the wiring harness retainers.
-
- Connect the oil pressure sender and oil control solenoid (if equipped) electrical connector(s).
- Position the wiring harness insulators.
- Attach the engine wiring harness retainer.
- Attach the engine wiring harness retainer.
-
NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.
With the help of an assistant, using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

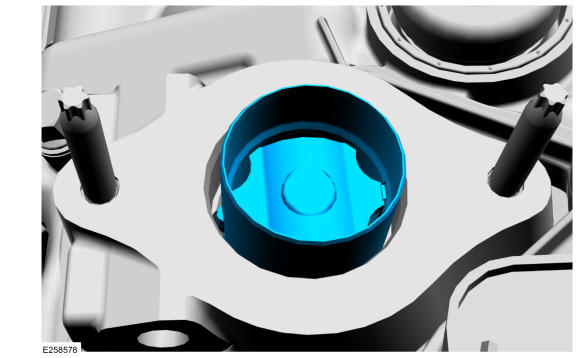

- Apply clean engine oil to the high-pressure fuel pump mounting pedestal bore, the drive lobe and the roller tappet.
- Install the high-pressure fuel pump roller tappet.
- Install a new high-pressure fuel pump O-ring seal. Lubricate with clean engine oil.

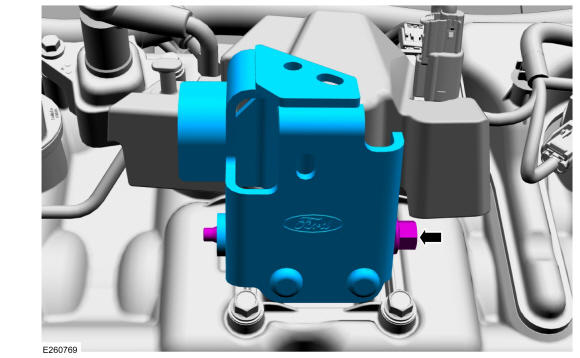

- Install the high-pressure fuel pump, then install the mounting nuts finger tight. Alternately tighten each high-pressure fuel pump nut one complete revolution until seated. Tighten the fuel high-pressure fuel pump nuts in the following 2 stages.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 30 deg.
-
NOTE: The fuel high-pressure fuel pump supply tube must be installed with the 90 degree spring lock end installed to the port fuel rail; if it is installed backwards a check valve will prevent the engine from running properly.
Install the high-pressure fuel tube and connect the quick release coupling. Refer to: Quick Release Coupling
-

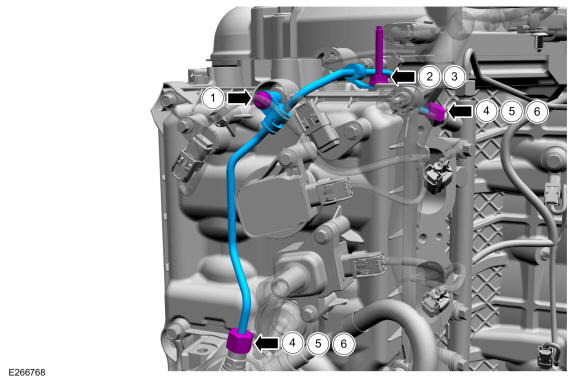

NOTE: In stage 6, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 37 lb.ft (50 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.
- Torque:
89 lb.in (10 Nm)
- Torque:
89 lb.in (10 Nm)
- Torque:
30 deg.
- Torque:
71 lb.in (8 Nm)
- Torque:
89 lb.in (10 Nm)
- Torque:
25 deg.
- Torque:
- Install the high-pressure fuel line shield, then install and tighten the high-pressure fuel line shield retainers.
Torque: 89 lb.in (10 Nm)
- Attach the wiring harness retainers to high-pressure fuel line shield.
-

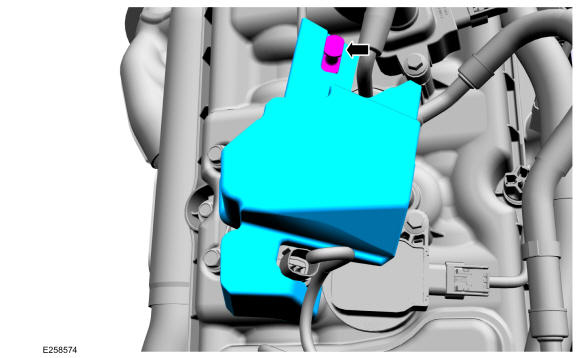

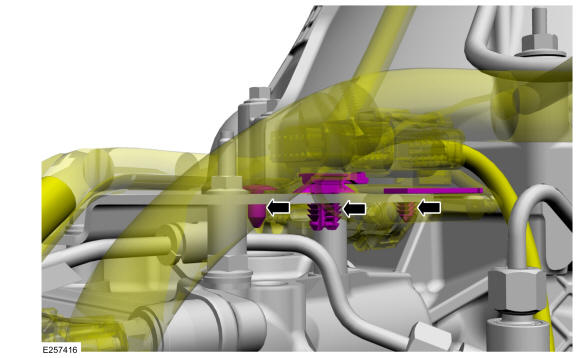

NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.
Install the fuel injection pump noise insulator, then engage the retainer.
- Connect the high-pressure fuel pump electrical connector.

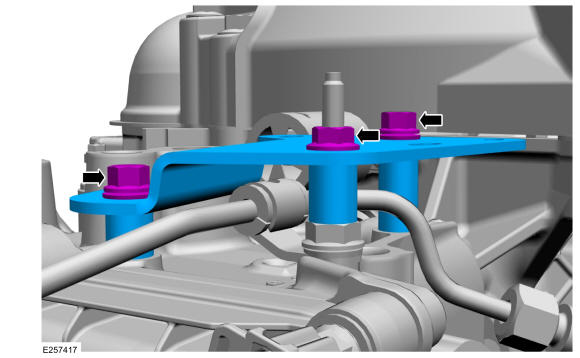

- Install the high-pressure fuel pump bracket and the bolt.
Torque: 22 lb.ft (30 Nm)

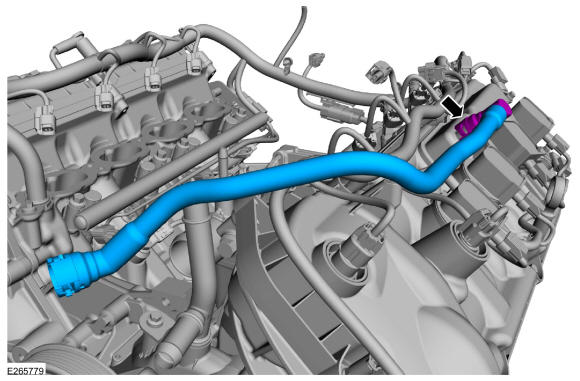

- Install the crankcase ventilation tube. Refer to: Quick Release Coupling
- Install the special tool and remove the engine from the engine stand using a floor crane. Install Special Service Tool: 303-F047 Lifting Bracket, Engine. Use the General Equipment: Floor Crane. Use the General Equipment: Mounting Stand

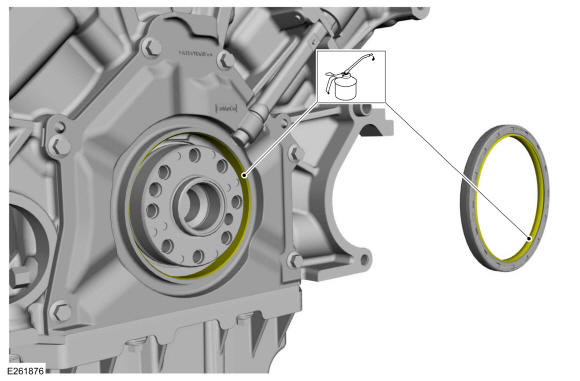

- Lubricate the seal bore and the seal lips with clean engine oil.
-
- Position the special tool onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.
- Slide the new crankshaft rear seal onto the tool.
- Using the special tools, install the crankshaft rear seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1250 Seal Installer, Rear Main.

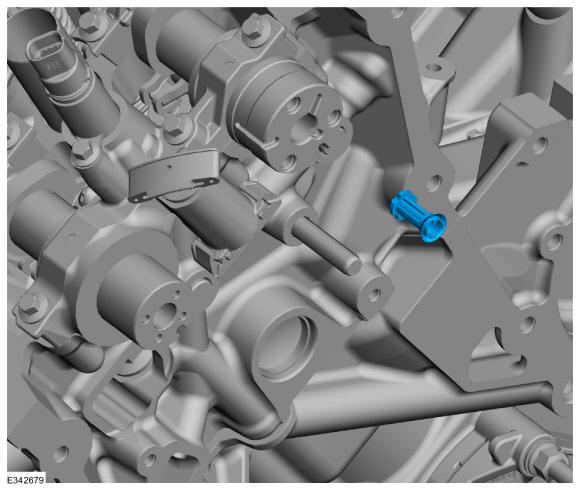

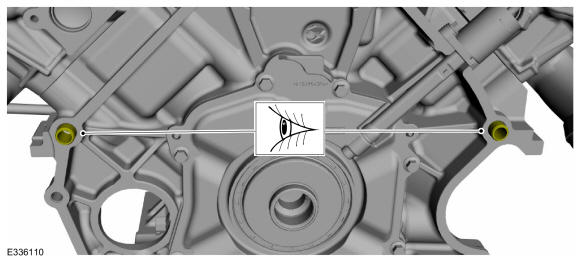

- Inspect the engine block dowels. If the dowels are damaged or missing, install new engine block dowels.
