Removal And Installation: Thermostat: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .
-
NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.
Completely cover the accessory drive belts with waterproof plastic.
-
NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the bolts.

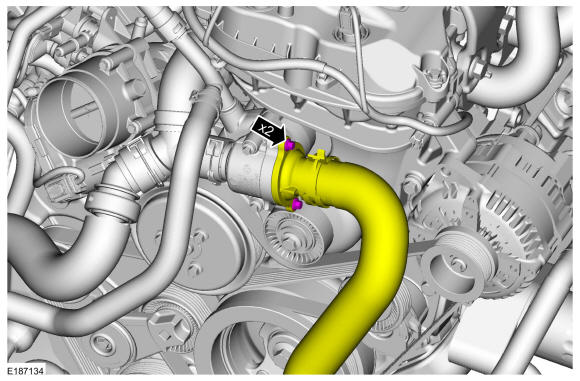

Remove the bolts and detach the coolant inlet connector.
Torque
: 89 lb.in (10 Nm)

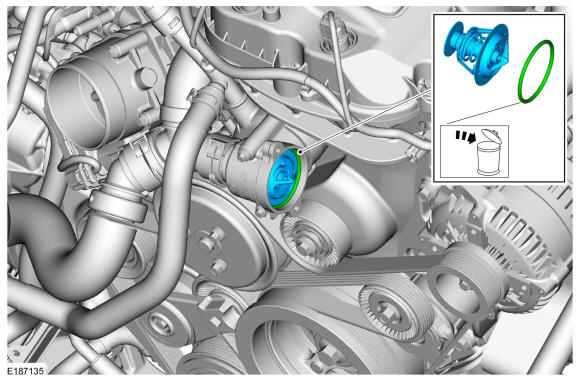

- Remove the thermostat and discard the O-ring seal.
