Thermostat Housing: Removal

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .
NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.

Completely cover the accessory drive belts with waterproof plastic.

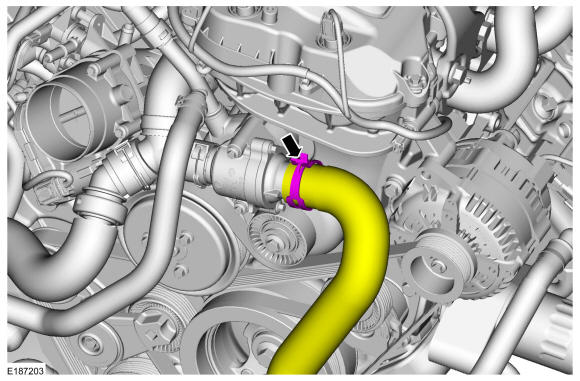

Release the clamp and disconnect the lower radiator hose from the coolant inlet connection. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

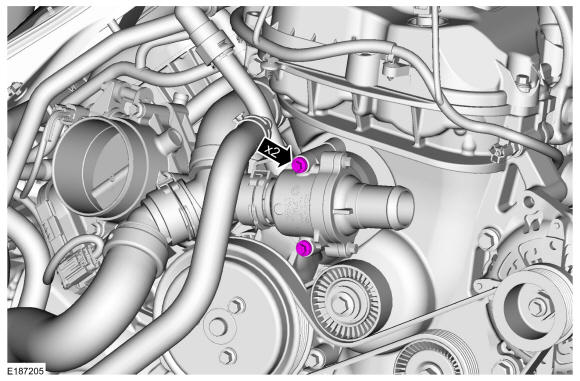

Remove the thermostat housing bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

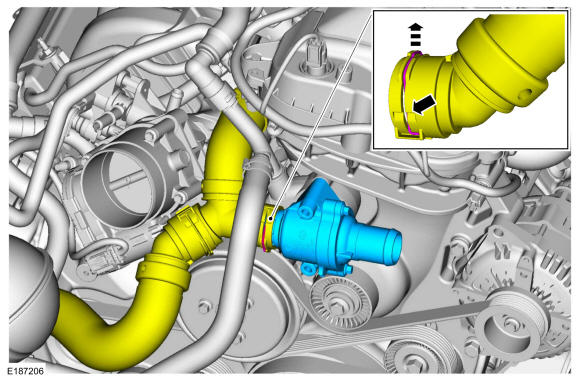

Pull the upper radiator hose T-connector spring clip up until the end of the clip is in the detent on the quick connect coupling and remove the thermostat housing from the upper radiator hose T-connector.

Courtesy of FORD MOTOR COMPANY
Remove and discard the thermostat housing gasket.

Courtesy of FORD MOTOR COMPANY
