Removal And Installation: Radiator: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding  .
  2. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

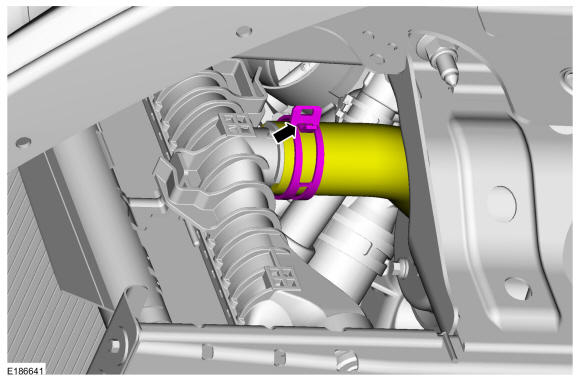

    GFD601814Courtesy of FORD MOTOR COMPANY
  3. Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud
  4. Remove the retainers and the radiator sight shield.

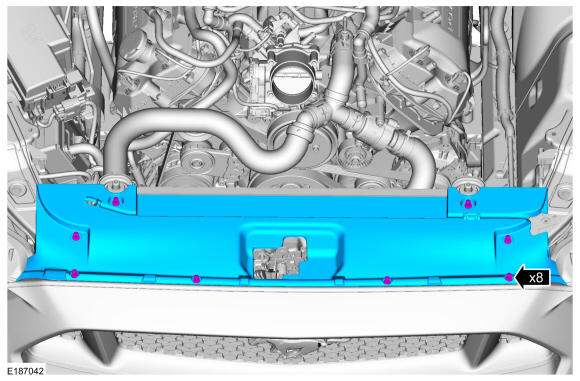

    GFD601815Courtesy of FORD MOTOR COMPANY
  5. Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

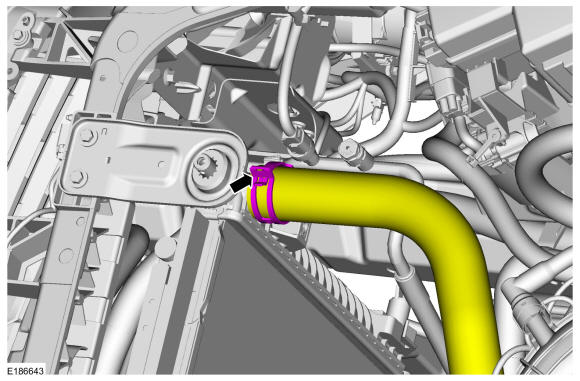

    GFD601816Courtesy of FORD MOTOR COMPANY
  6. Release the clamp and disconnect the upper coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

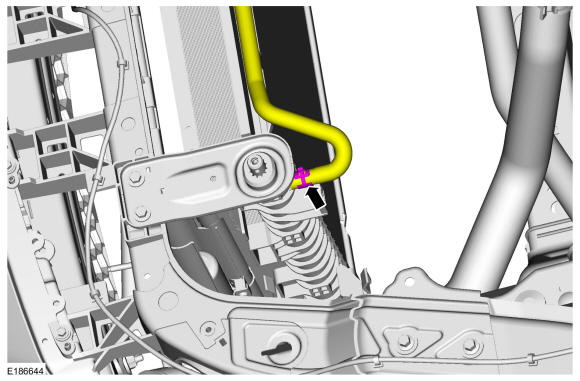

    GFD601817Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and the upper radiator support brackets.

    Torque

    : 97 lb.in (11 Nm)

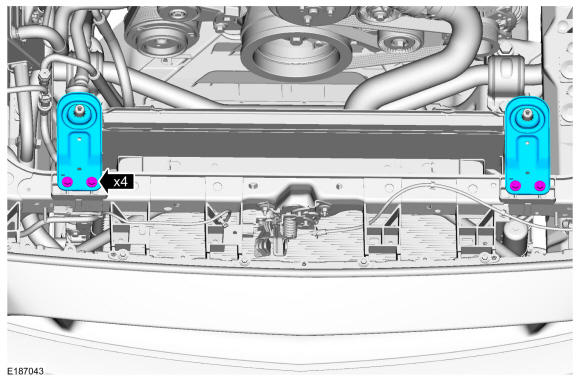

    GFD601818Courtesy of FORD MOTOR COMPANY
  8. NOTE: Front bumper removed for clarity.

    1. Position the radiator towards the engine.
    2. Release the upper tabs and position the A/C condenser aside.

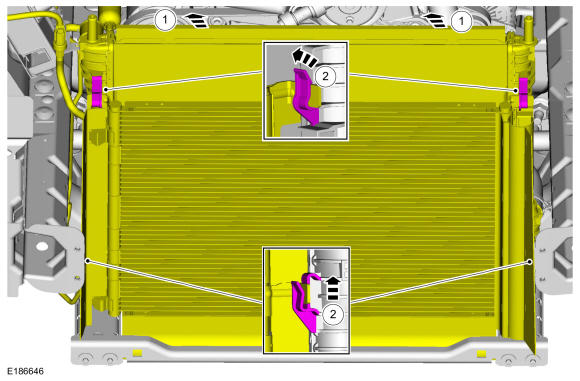

    GFD601819Courtesy of FORD MOTOR COMPANY
  9. NOTE: If equipped.
    NOTE: Front bumper removed for clarity.

    Remove the bolts and position aside the transmission fluid cooler.

    Torque

    : 53 lb.in (6 Nm)

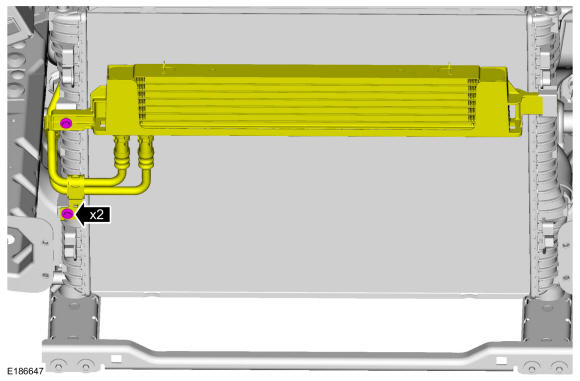

    GFD601820Courtesy of FORD MOTOR COMPANY
  10. NOTE: Front bumper removed for clarity.

    Remove the radiator.

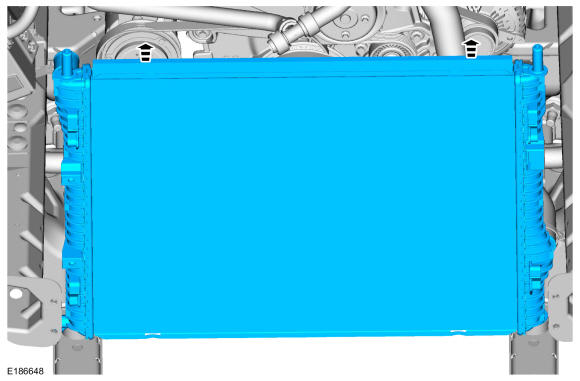

GFD601821Courtesy of FORD MOTOR COMPANY
