Coolant Pump: Removal

  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
  2. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe

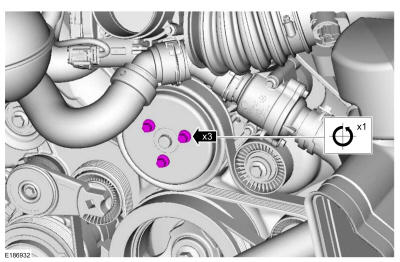

  3. Loosen the coolant pump pulley bolts.
    GFD601796Courtesy of FORD MOTOR COMPANY
  4. Remove the accessory drive belt. Refer to: Accessory Drive Belt
  5. NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.

    Completely cover the A/C compressor belt with waterproof plastic.

  6. Remove the thermostat housing. Refer to: Thermostat Housing
  7. Remove the bolts and the coolant pump pulley.
    GFD601797Courtesy of FORD MOTOR COMPANY
    • Disconnect the heater outlet hose from the heater outlet tube.

    • Release the clamp and disconnect the lower degas bottle hose from the heater outlet tube. Use the General Equipment: Hose Clamp Remover/Installer

    GFD601798Courtesy of FORD MOTOR COMPANY

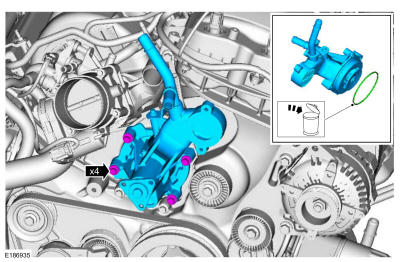

    • Remove the bolts and the coolant pump.

    • Remove and discard the O-ring seal.

    GFD601799Courtesy of FORD MOTOR COMPANY
  10. NOTE: This step is only necessary when installing a new component.

    • Remove the bolt and the heater outlet tube.

    • Remove and discard the O-ring seal.

GFD601800Courtesy of FORD MOTOR COMPANY
