Accessory Drive - Component Location

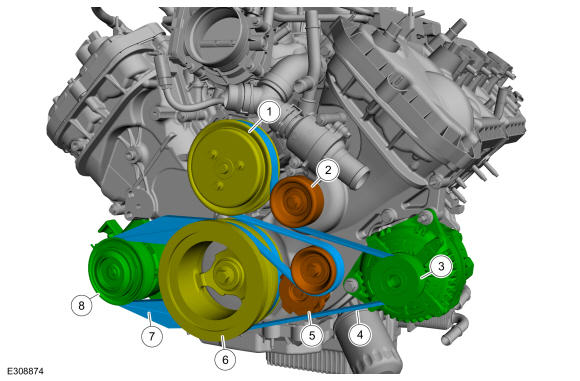

Fig 1: Drive Belt Routing 5.0L 32V Ti-VCT (359kW 486PS) (WU) 5.0L Ti-VCT V8 (343kW 466PS)

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Coolant pump pulley
2	Drive belt idler pulley
3	Generator pulley
4	Accessory drive belt
5	Accessory drive belt tensioner
6	Crankshaft belt pulley
7	A/C compressor belt
8	A/C compressor pulley
