Electronic Engine Controls - 5.0L

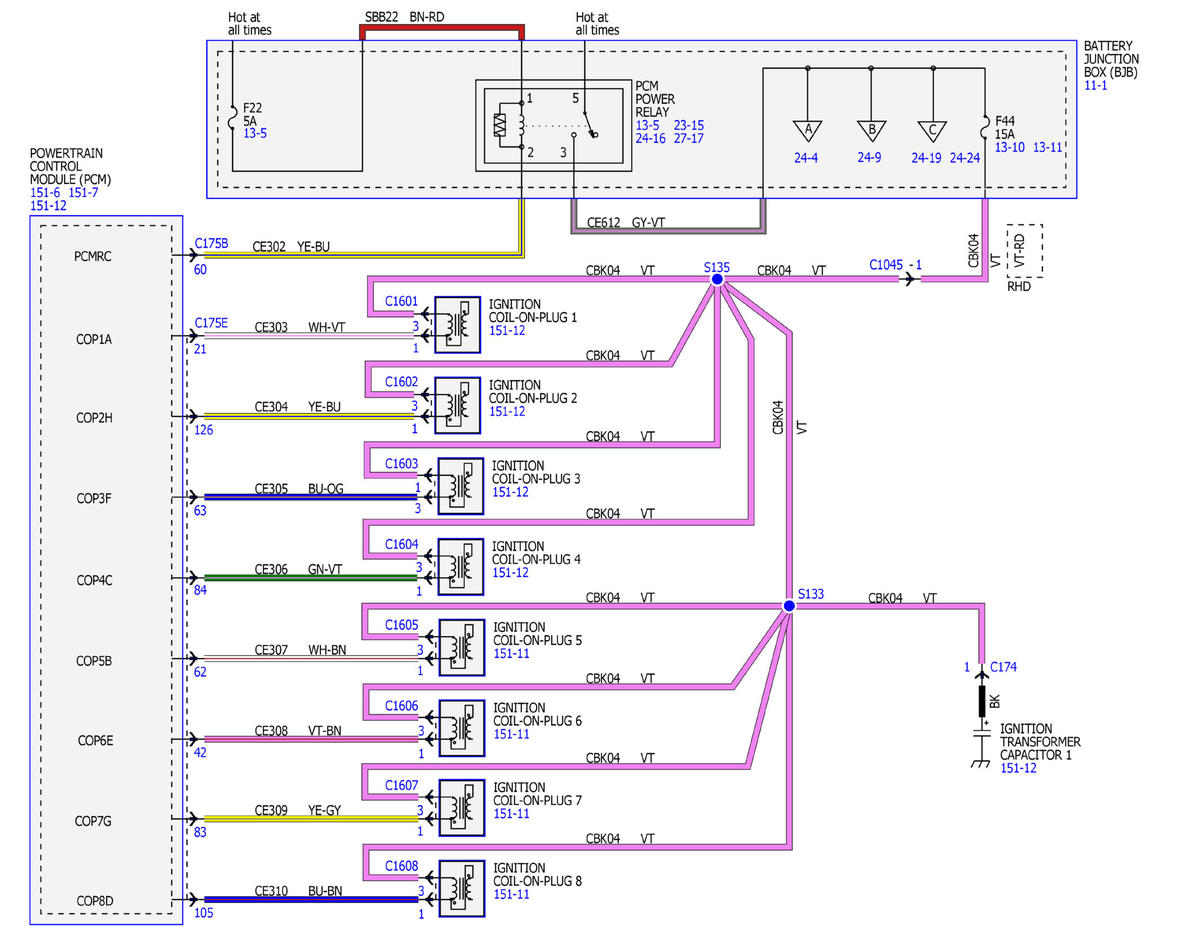

Fig 1: Electronic Engine Controls - 5.0L Wiring Diagrams (1 Of 25)

GFDWR141638

Courtesy of FORD MOTOR COMPANY

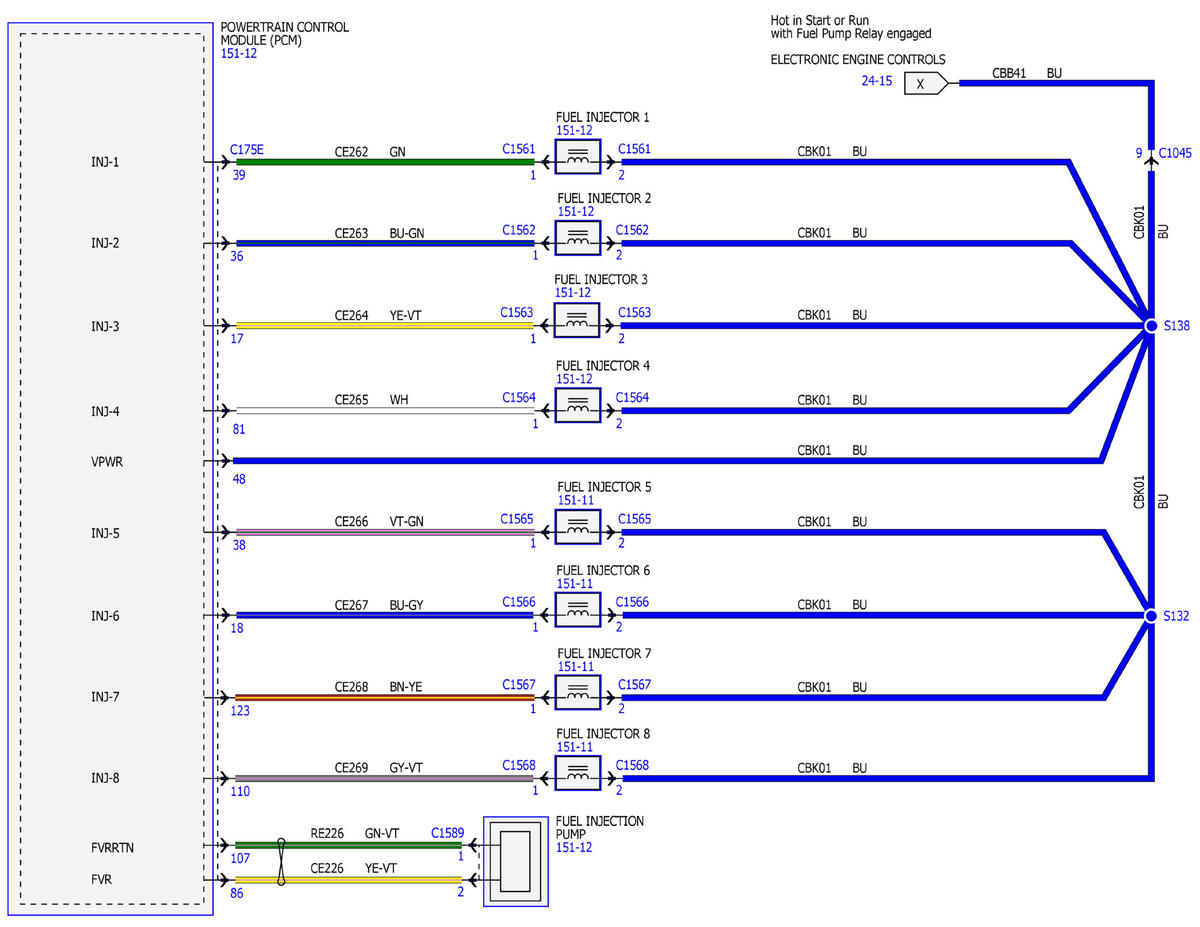

Fig 2: Electronic Engine Controls - 5.0L Wiring Diagrams (2 Of 25)

GFDWR141649

Courtesy of FORD MOTOR COMPANY

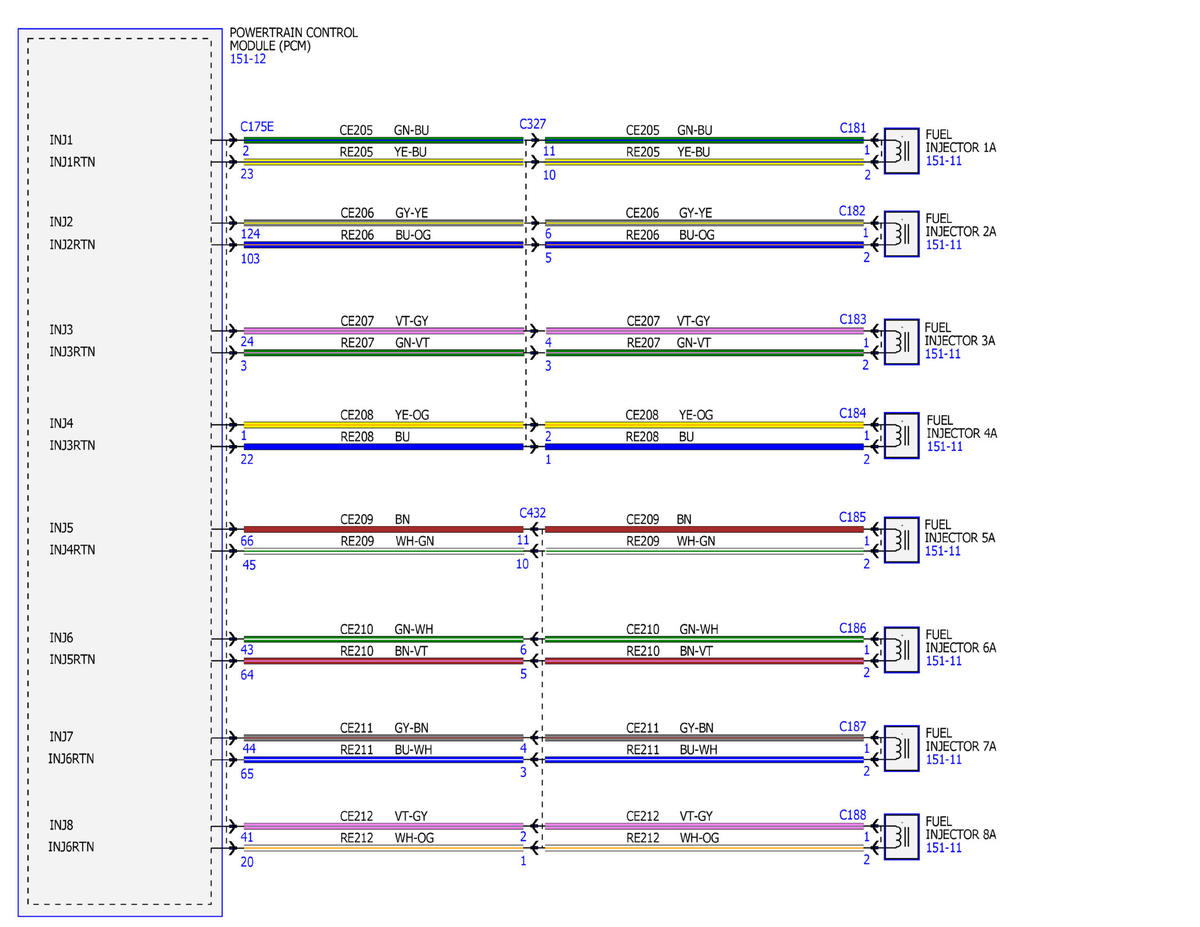

Fig 3: Electronic Engine Controls - 5.0L Wiring Diagrams (3 Of 25)

GFDWR141656

Courtesy of FORD MOTOR COMPANY

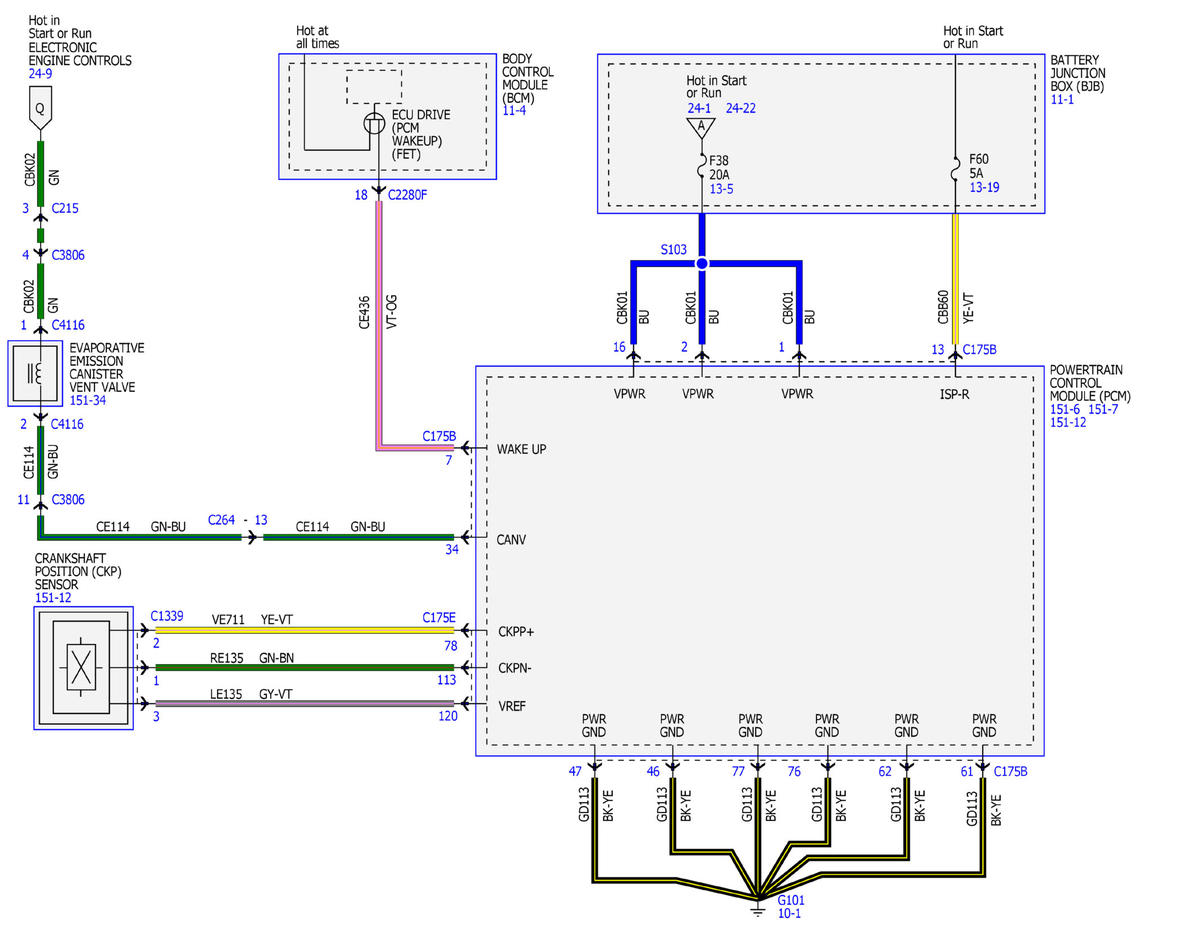

Fig 4: Electronic Engine Controls - 5.0L Wiring Diagrams (4 Of 25)

GFDWR141657

Courtesy of FORD MOTOR COMPANY

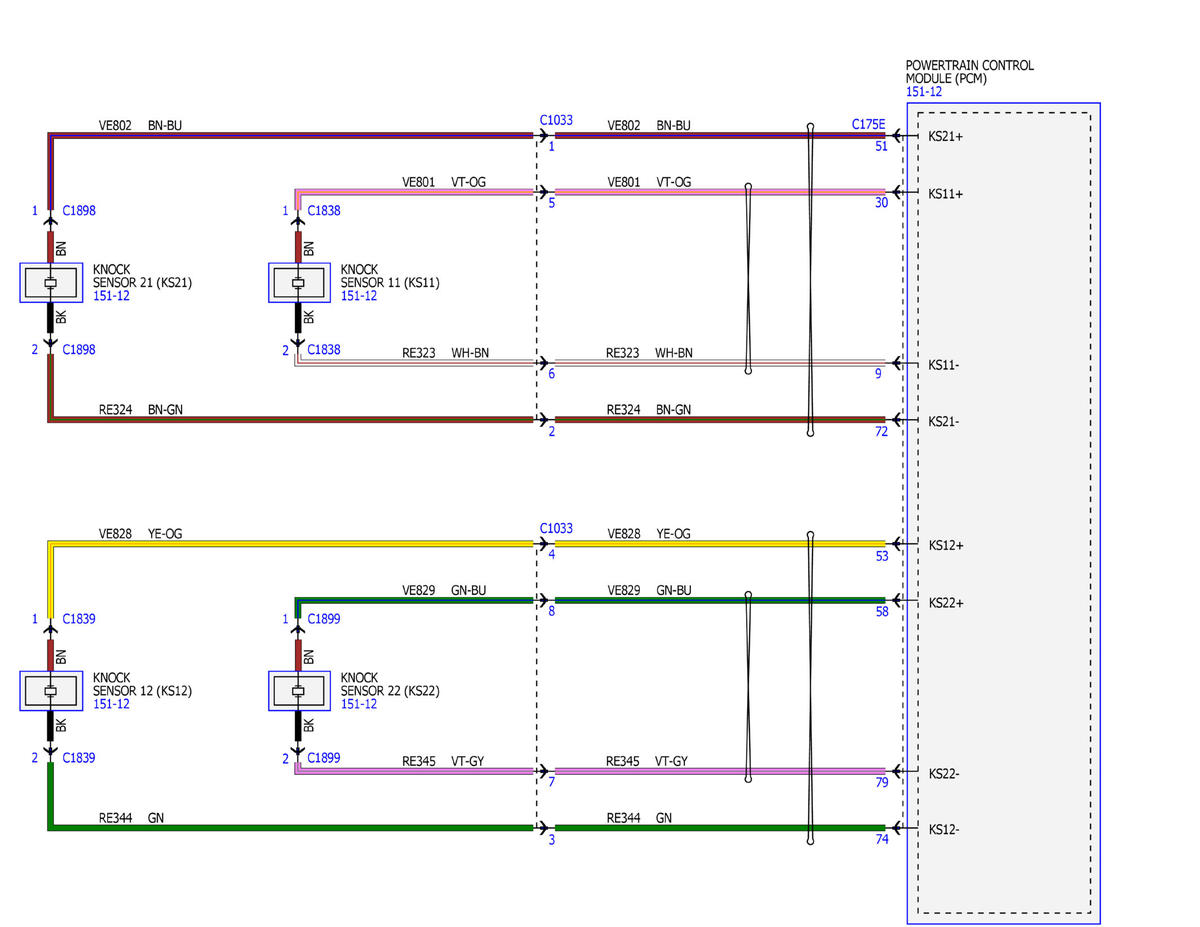

Fig 5: Electronic Engine Controls - 5.0L Wiring Diagrams (5 Of 25)

GFDWR141658

Courtesy of FORD MOTOR COMPANY

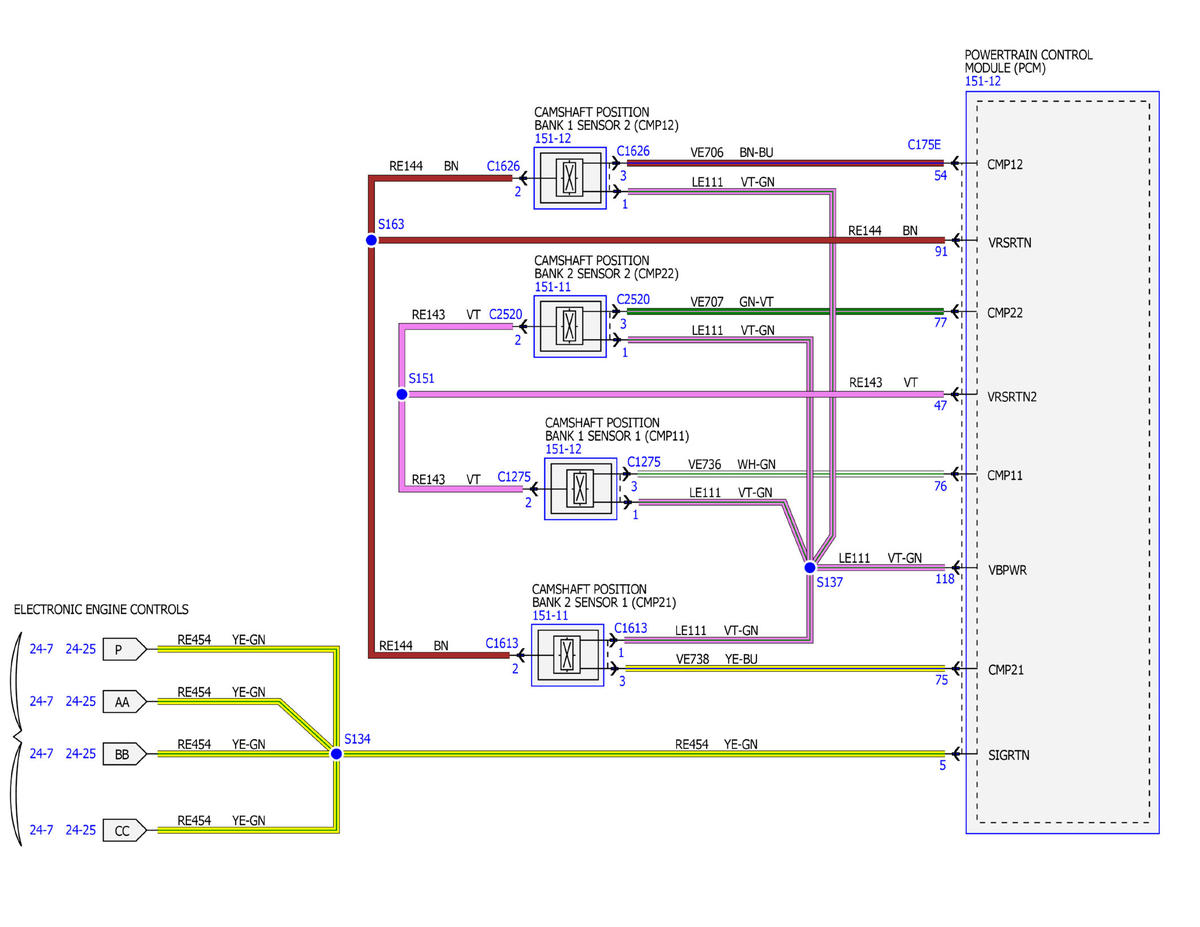

Fig 6: Electronic Engine Controls - 5.0L Wiring Diagrams (6 Of 25)

GFDWR141659

Courtesy of FORD MOTOR COMPANY

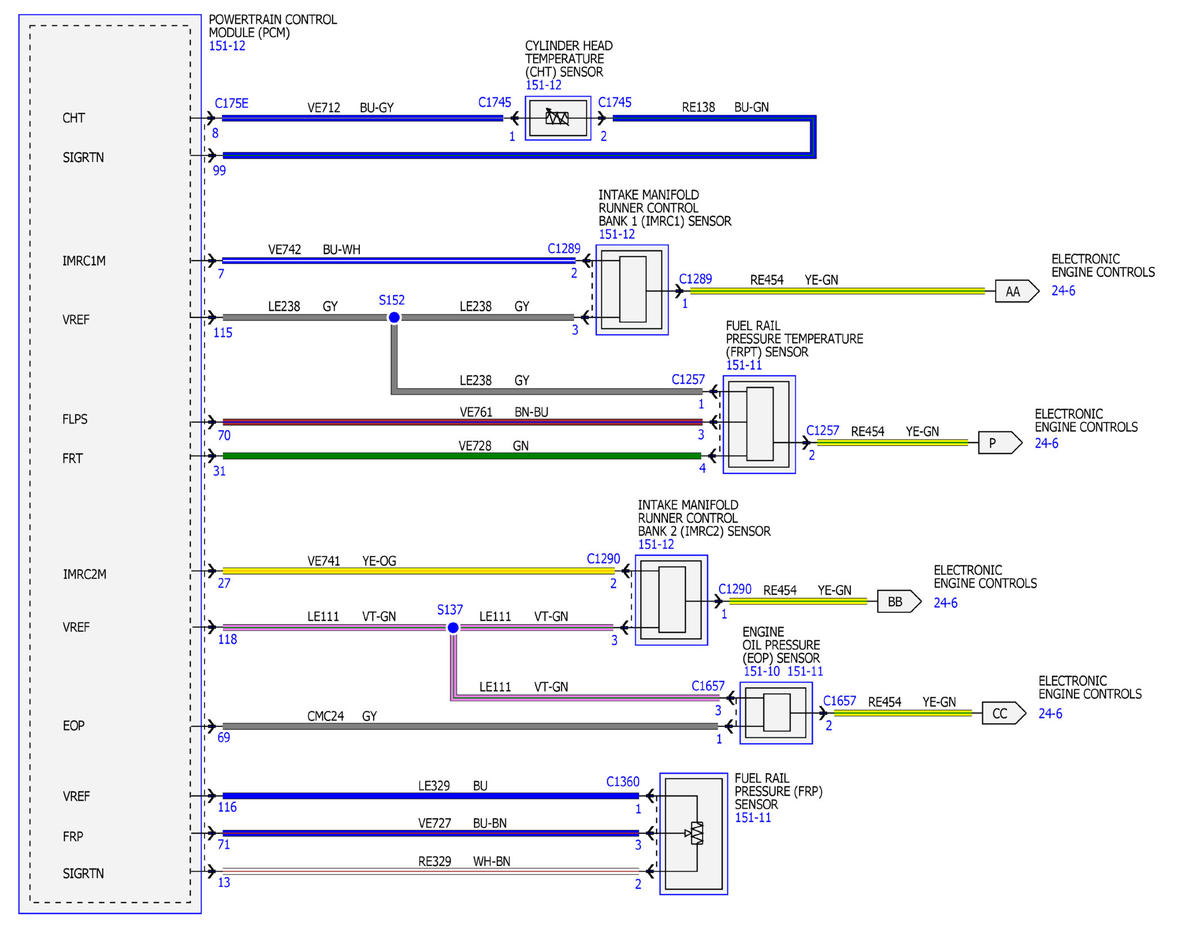

Fig 7: Electronic Engine Controls - 5.0L Wiring Diagrams (7 Of 25)

GFDWR141660

Courtesy of FORD MOTOR COMPANY

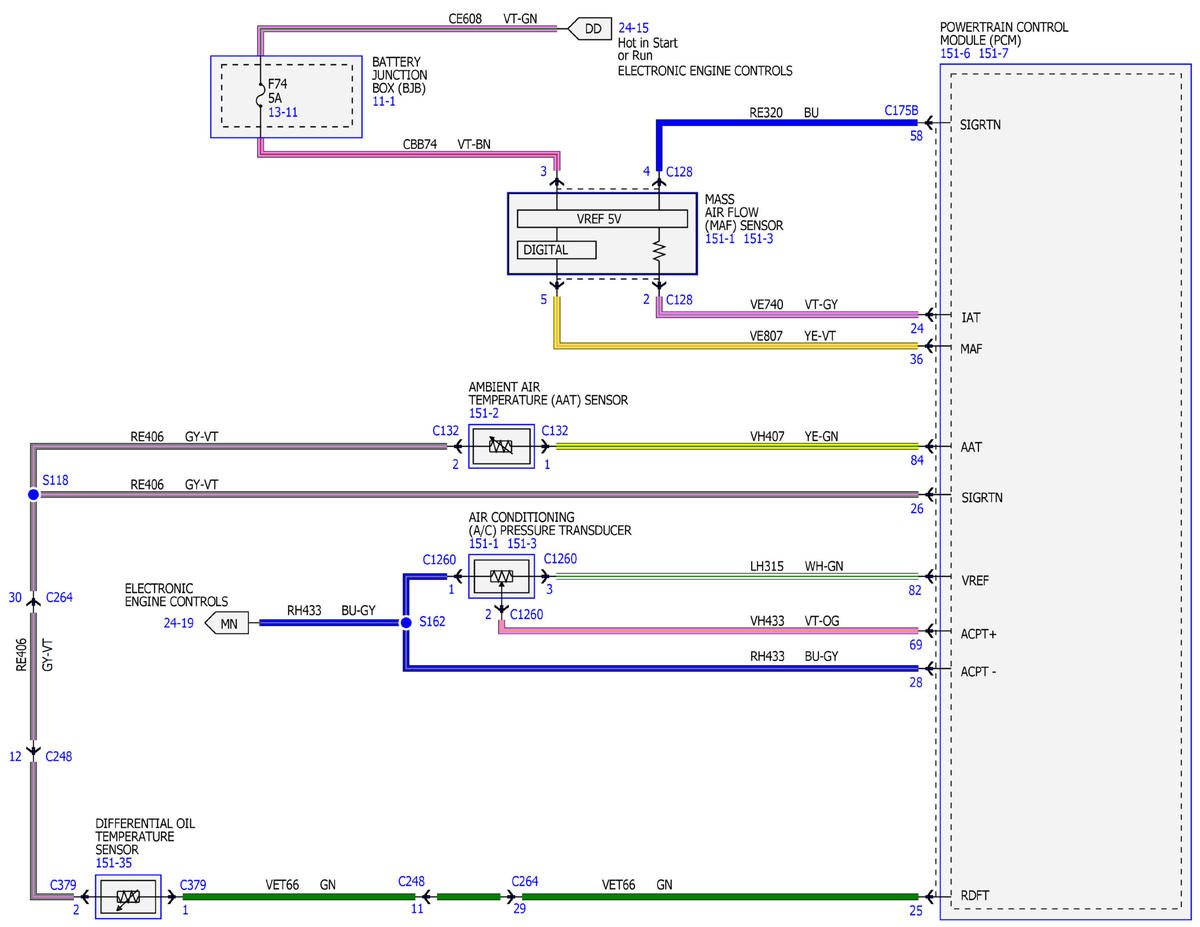

Fig 8: Electronic Engine Controls - 5.0L Wiring Diagrams (8 Of 25)

GFDWR141661

Courtesy of FORD MOTOR COMPANY

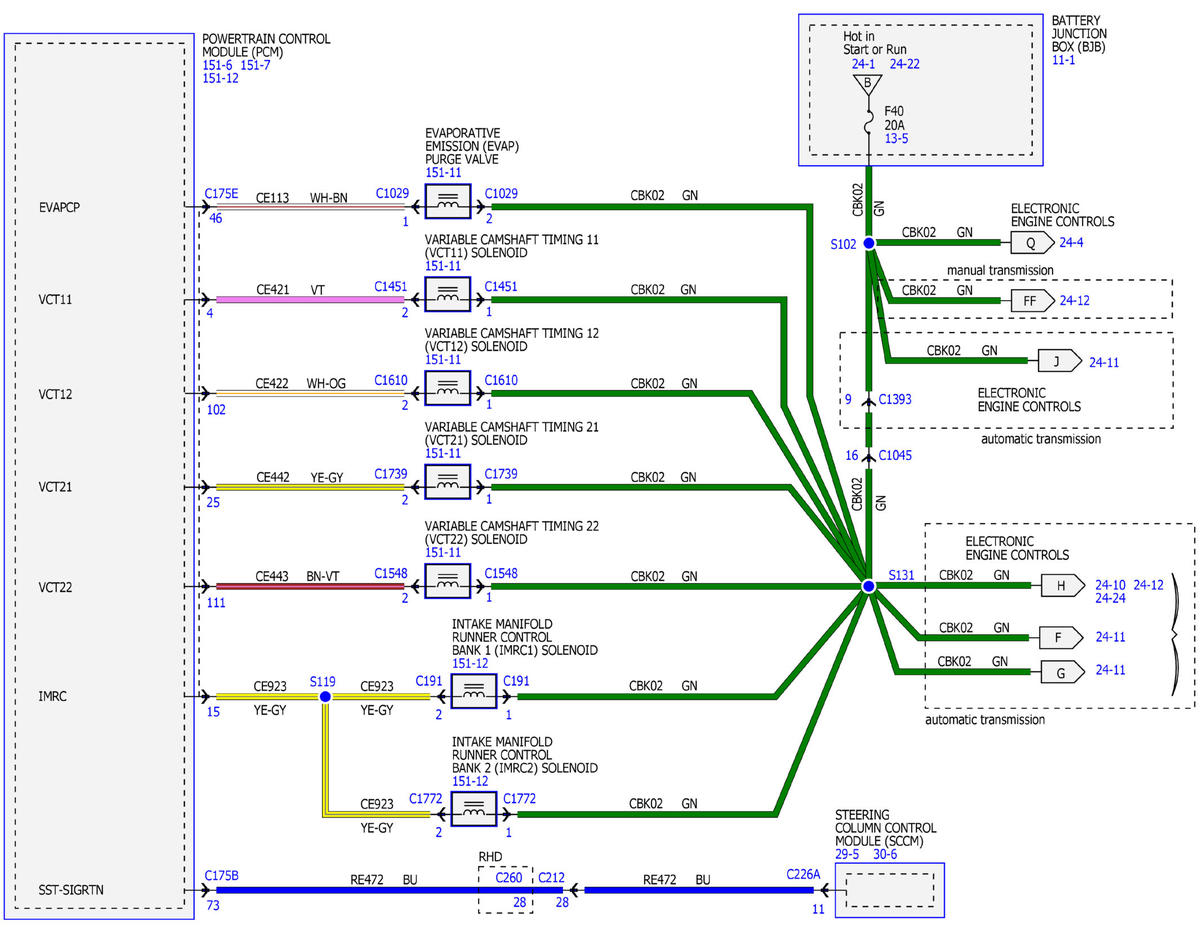

Fig 9: Electronic Engine Controls - 5.0L Wiring Diagrams (9 Of 25)

GFDWR141662

Courtesy of FORD MOTOR COMPANY

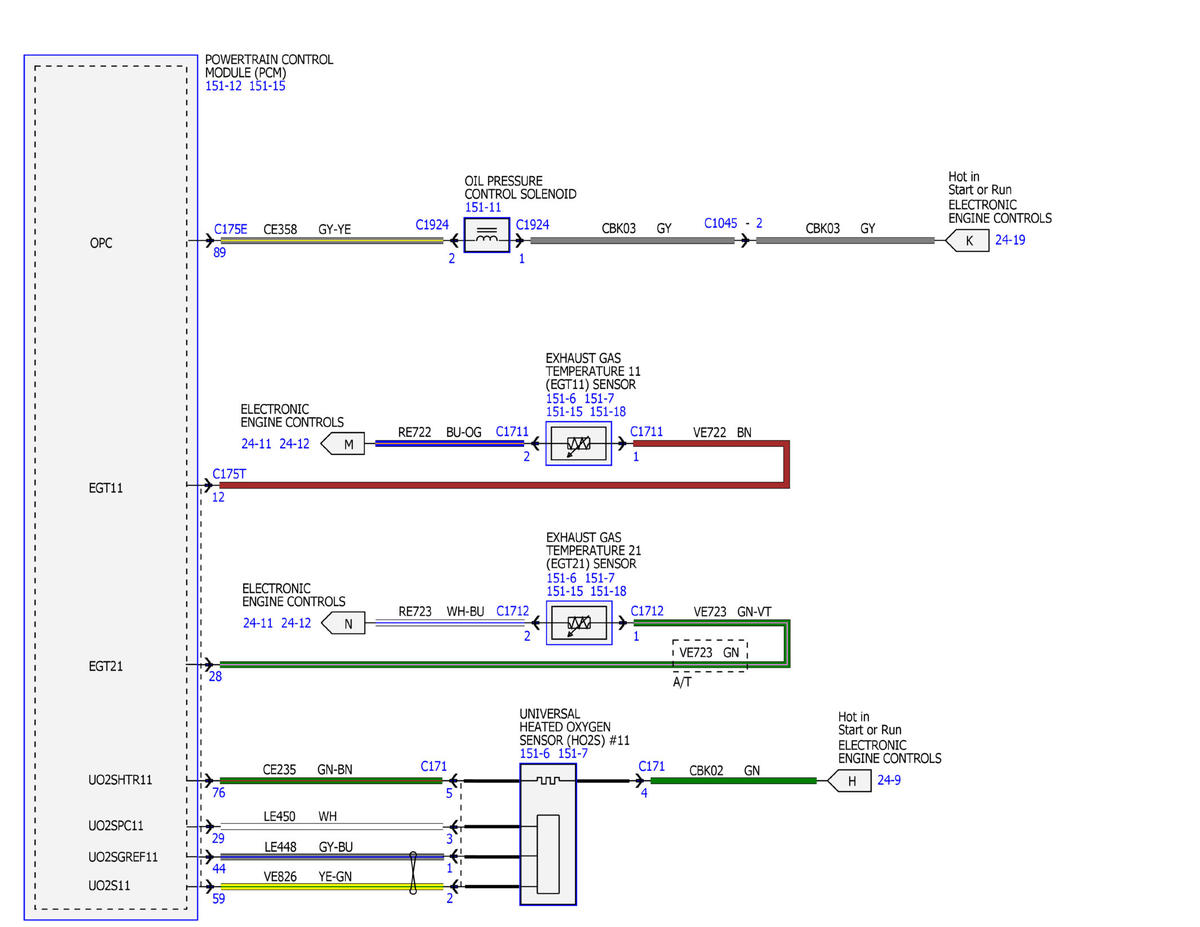

Fig 10: Electronic Engine Controls - 5.0L Wiring Diagrams (10 Of 25)

GFDWR141639

Courtesy of FORD MOTOR COMPANY

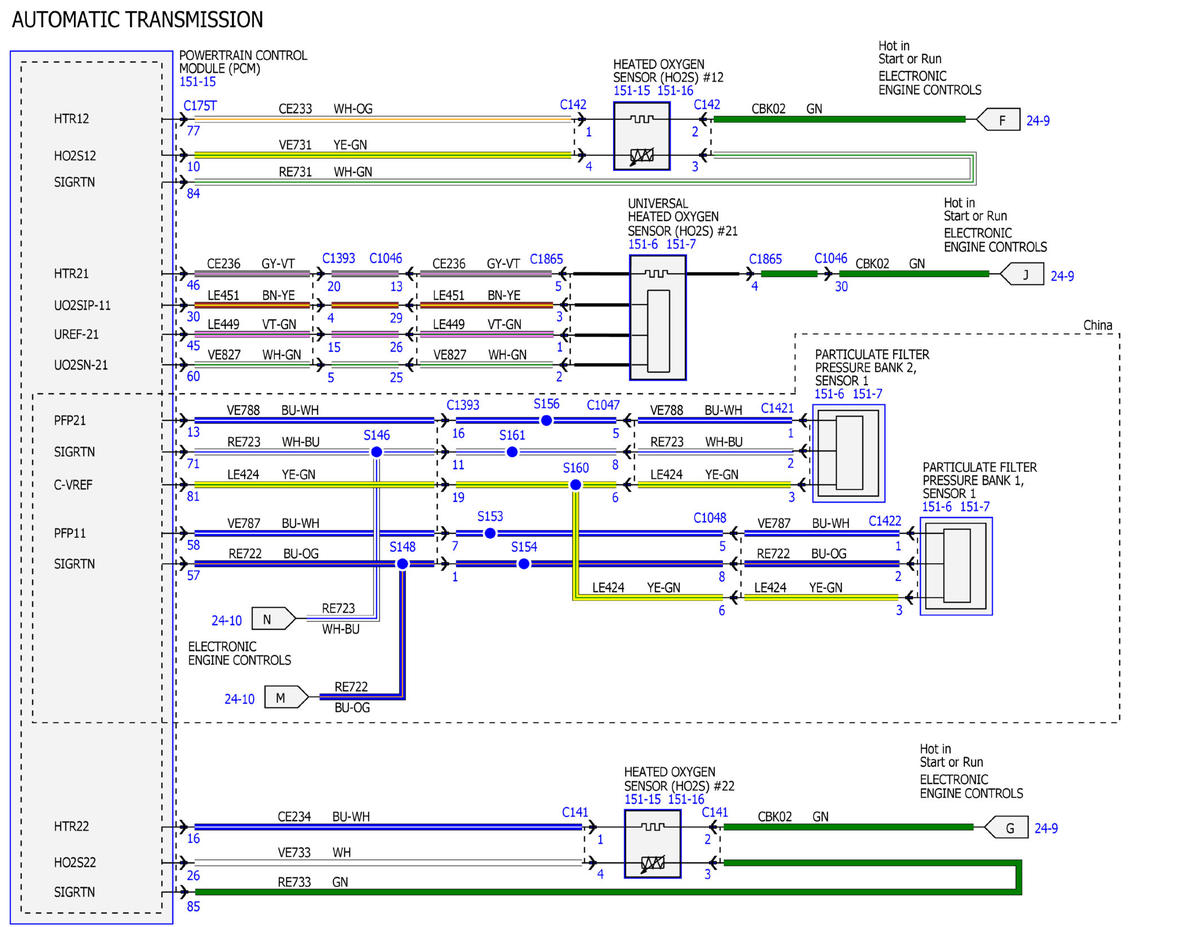

Fig 11: Electronic Engine Controls - 5.0L Wiring Diagrams (11 Of 25)

GFDWR141640

Courtesy of FORD MOTOR COMPANY

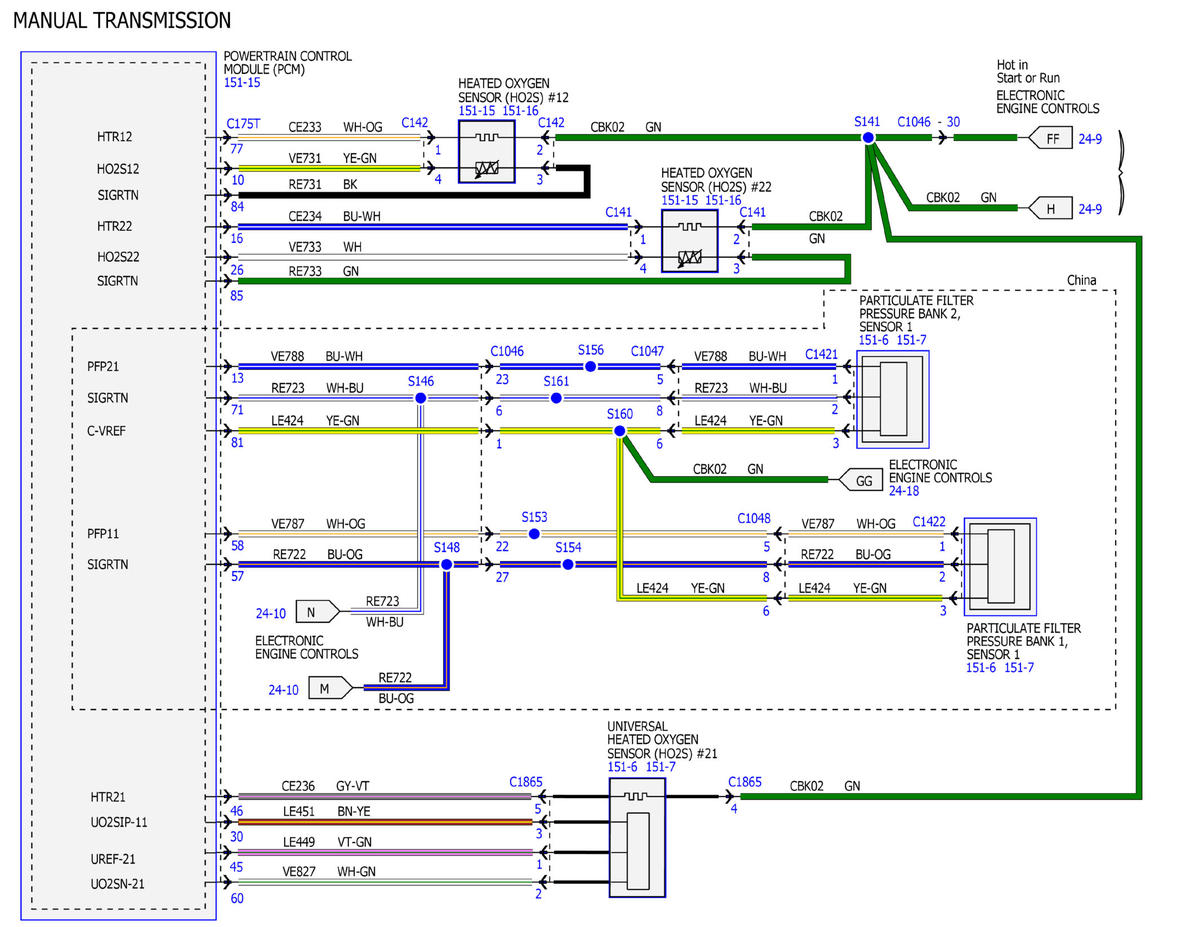

Fig 12: Electronic Engine Controls - 5.0L Wiring Diagrams (12 Of 25)

GFDWR141641

Courtesy of FORD MOTOR COMPANY

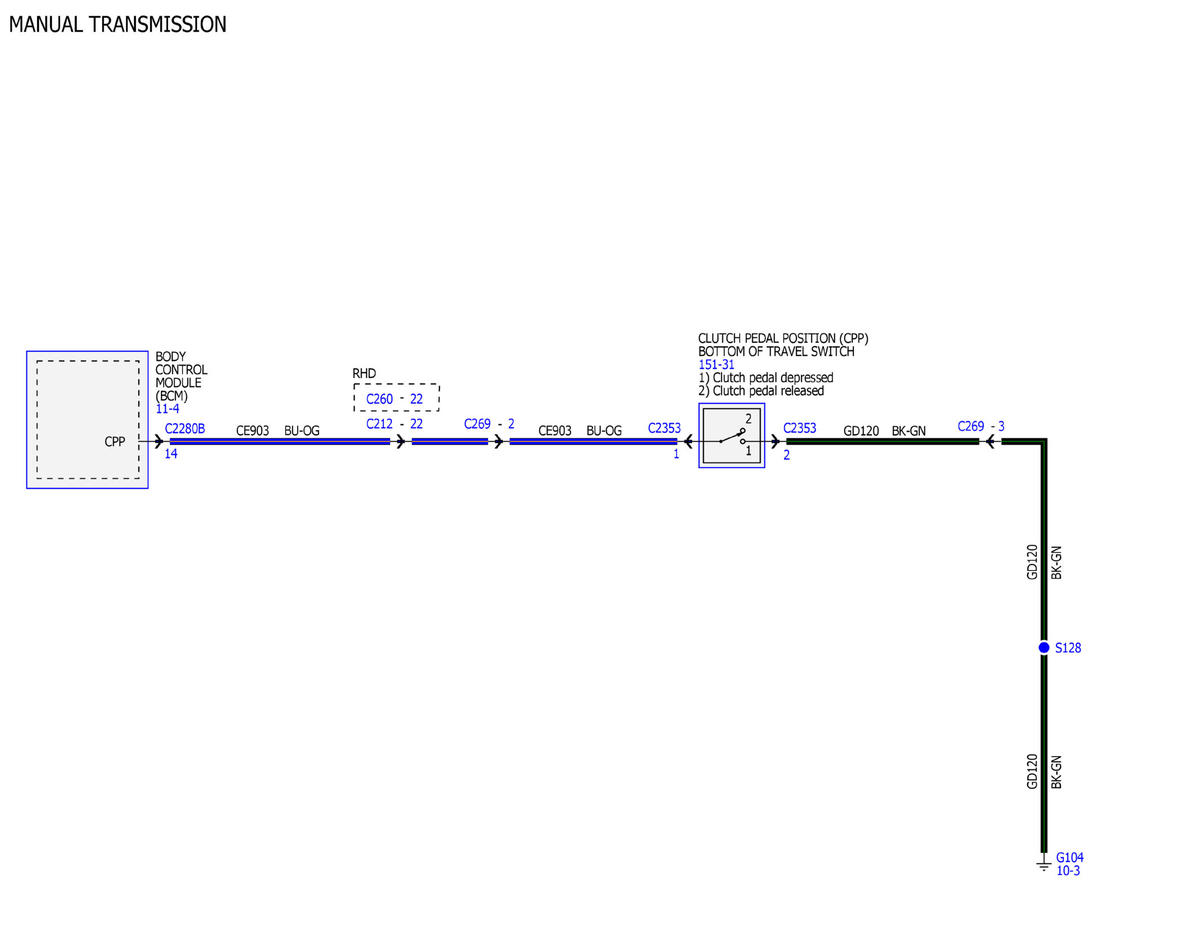

Fig 13: Electronic Engine Controls - 5.0L Wiring Diagrams (13 Of 25)

GFDWR141642

Courtesy of FORD MOTOR COMPANY

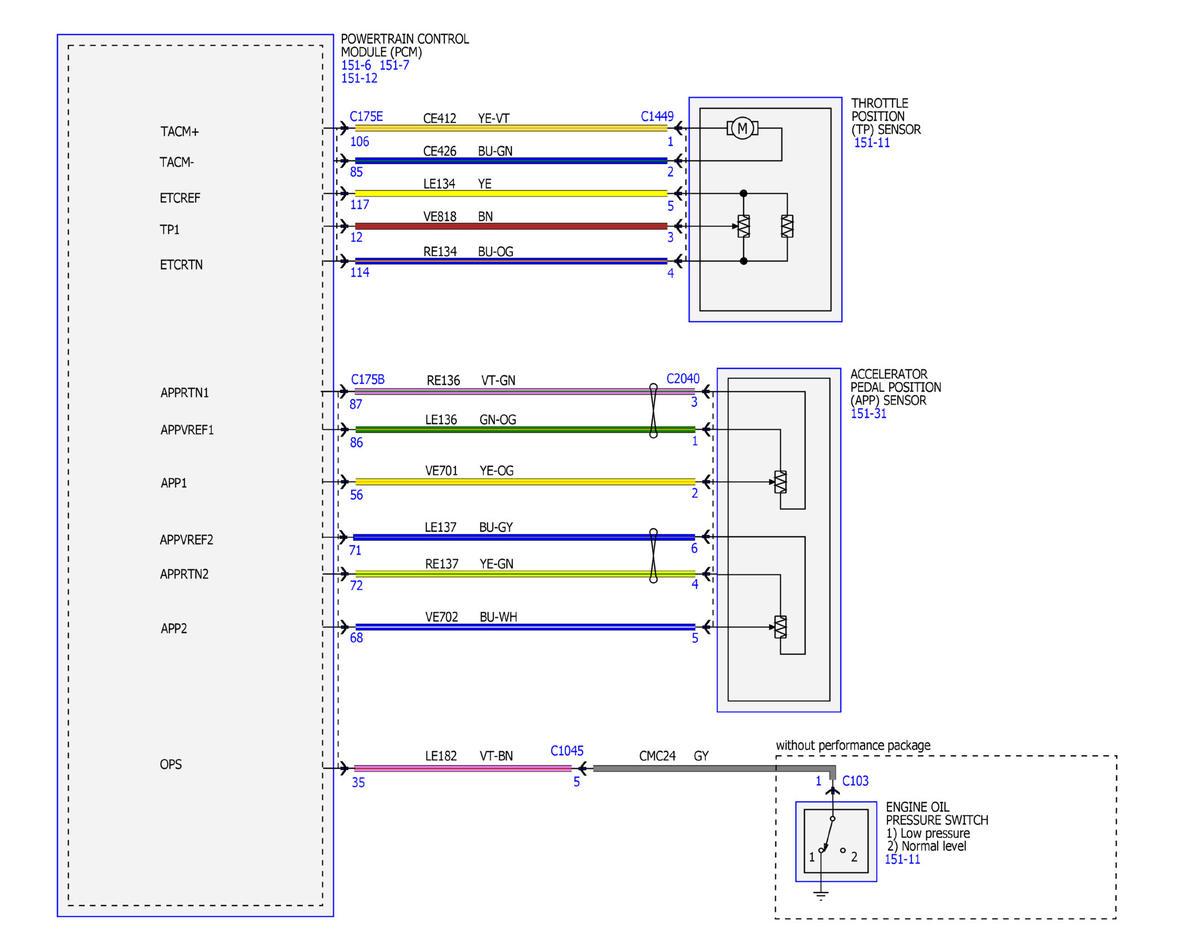

Fig 14: Electronic Engine Controls - 5.0L Wiring Diagrams (14 Of 25)

GFDWR141643

Courtesy of FORD MOTOR COMPANY

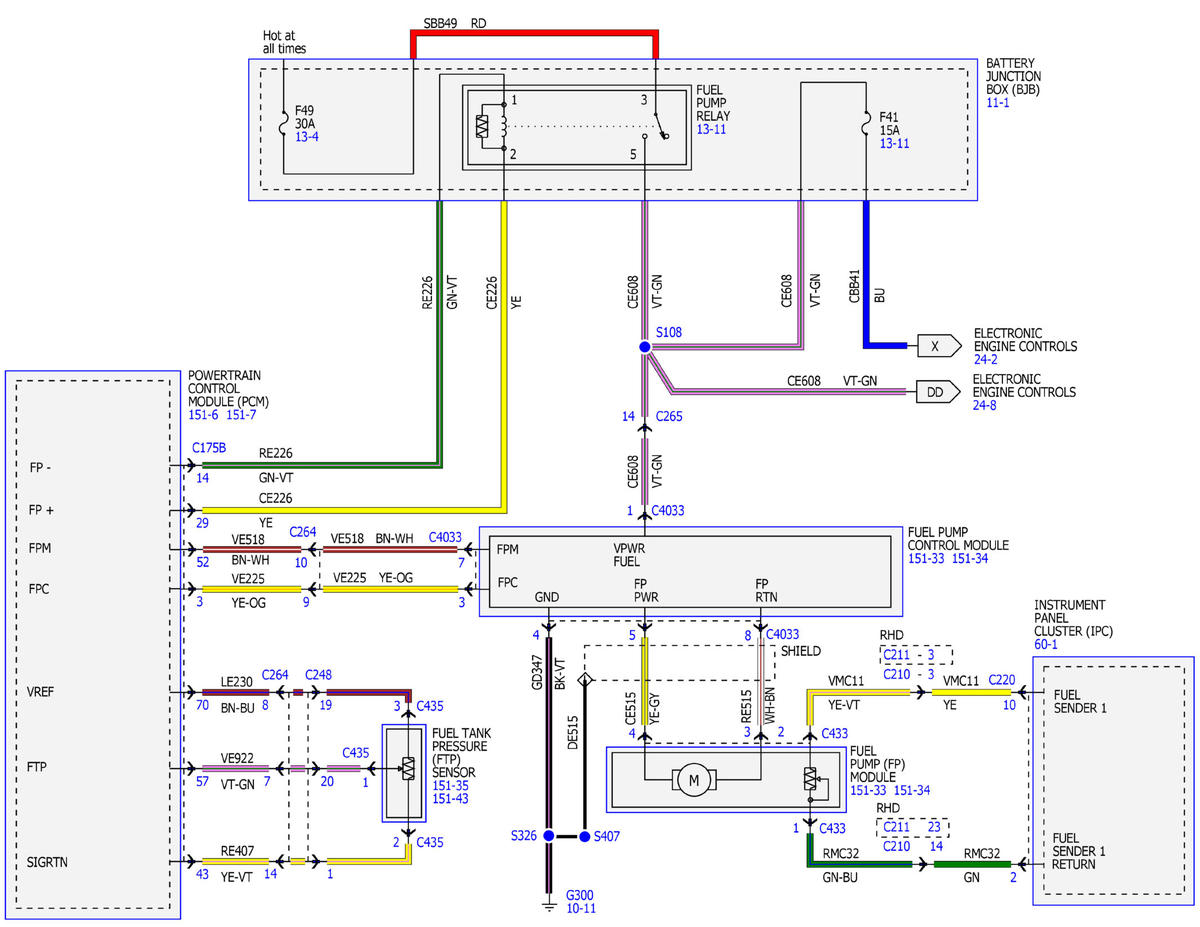

Fig 15: Electronic Engine Controls - 5.0L Wiring Diagrams (15 Of 25)

GFDWR141644

Courtesy of FORD MOTOR COMPANY

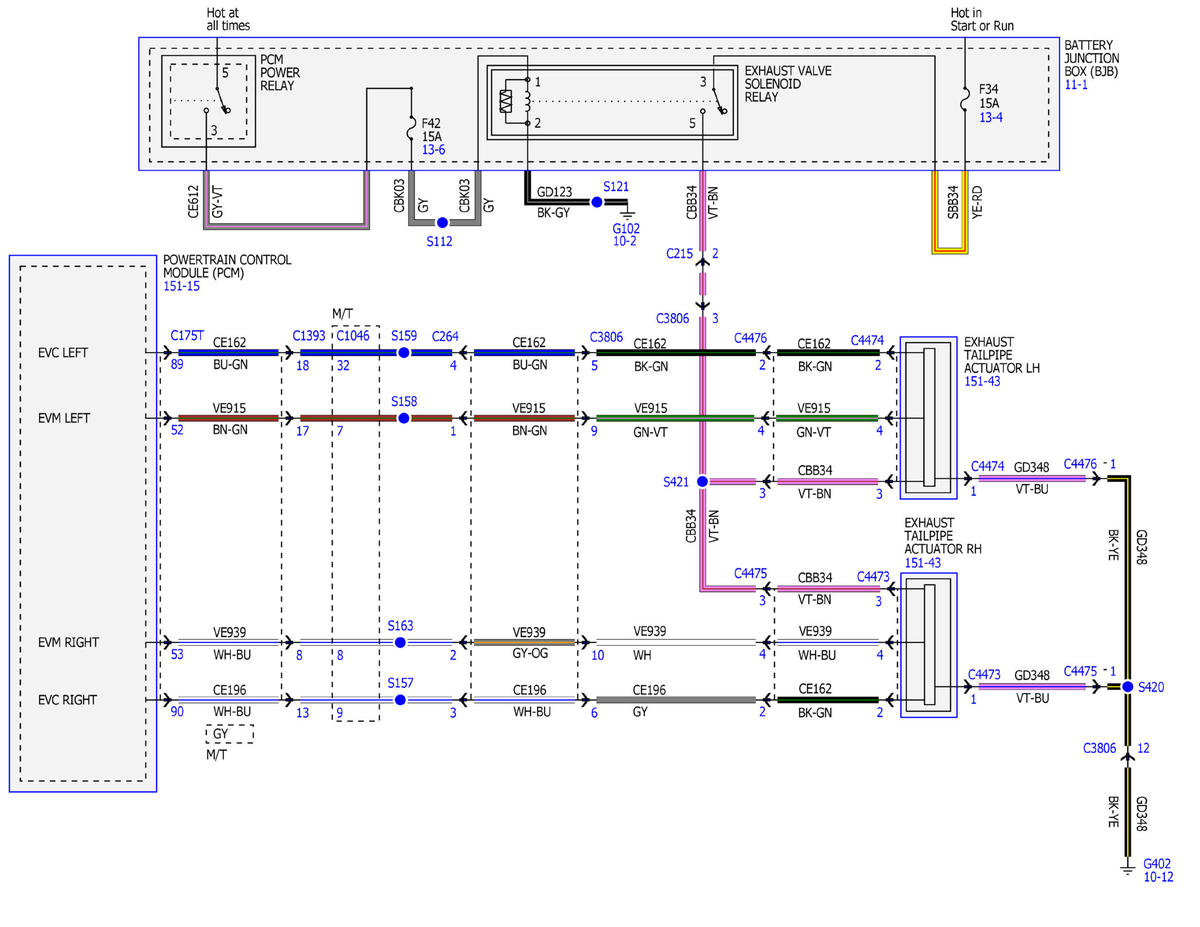

Fig 16: Electronic Engine Controls - 5.0L Wiring Diagrams (16 Of 25)

GFDWR141645

Courtesy of FORD MOTOR COMPANY

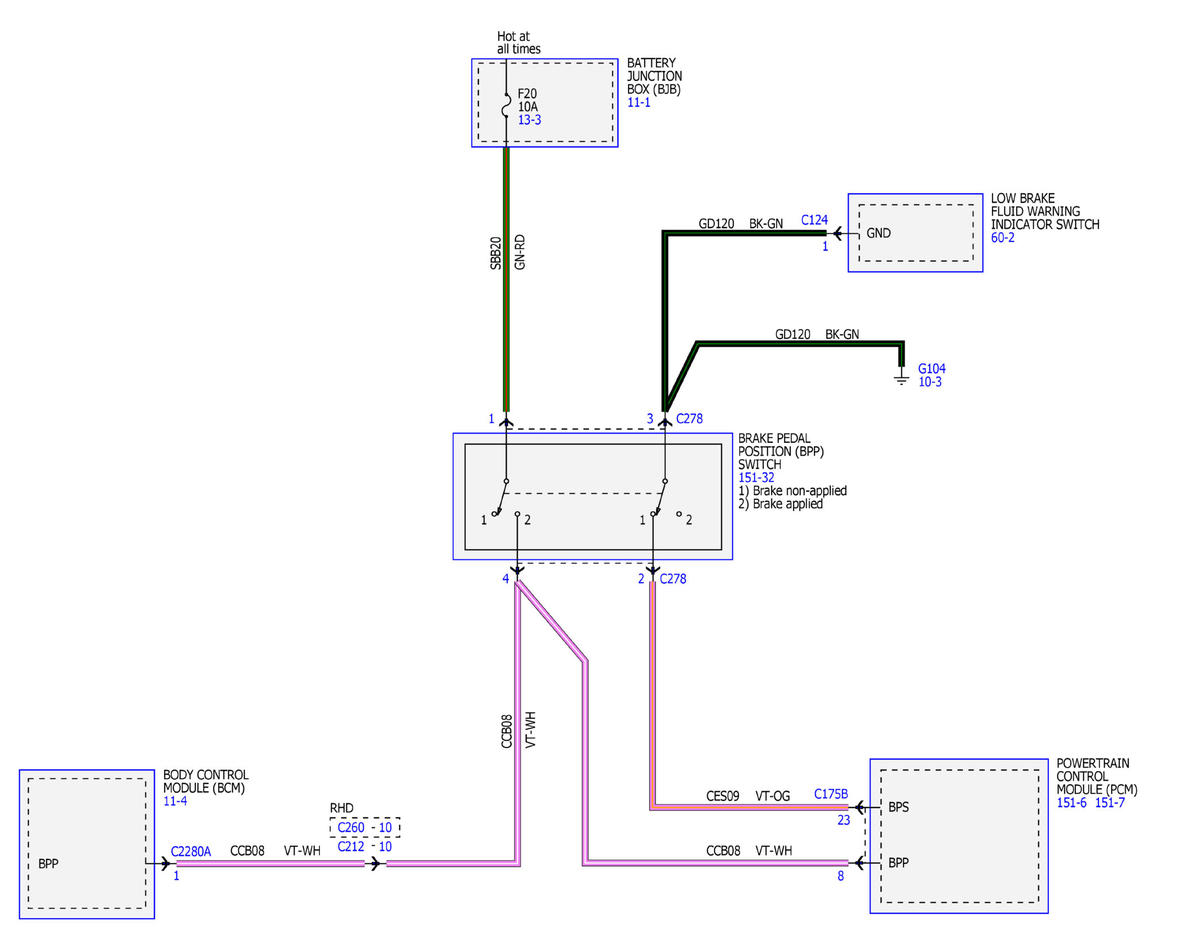

Fig 17: Electronic Engine Controls - 5.0L Wiring Diagrams (17 Of 25)

GFDWR141646

Courtesy of FORD MOTOR COMPANY

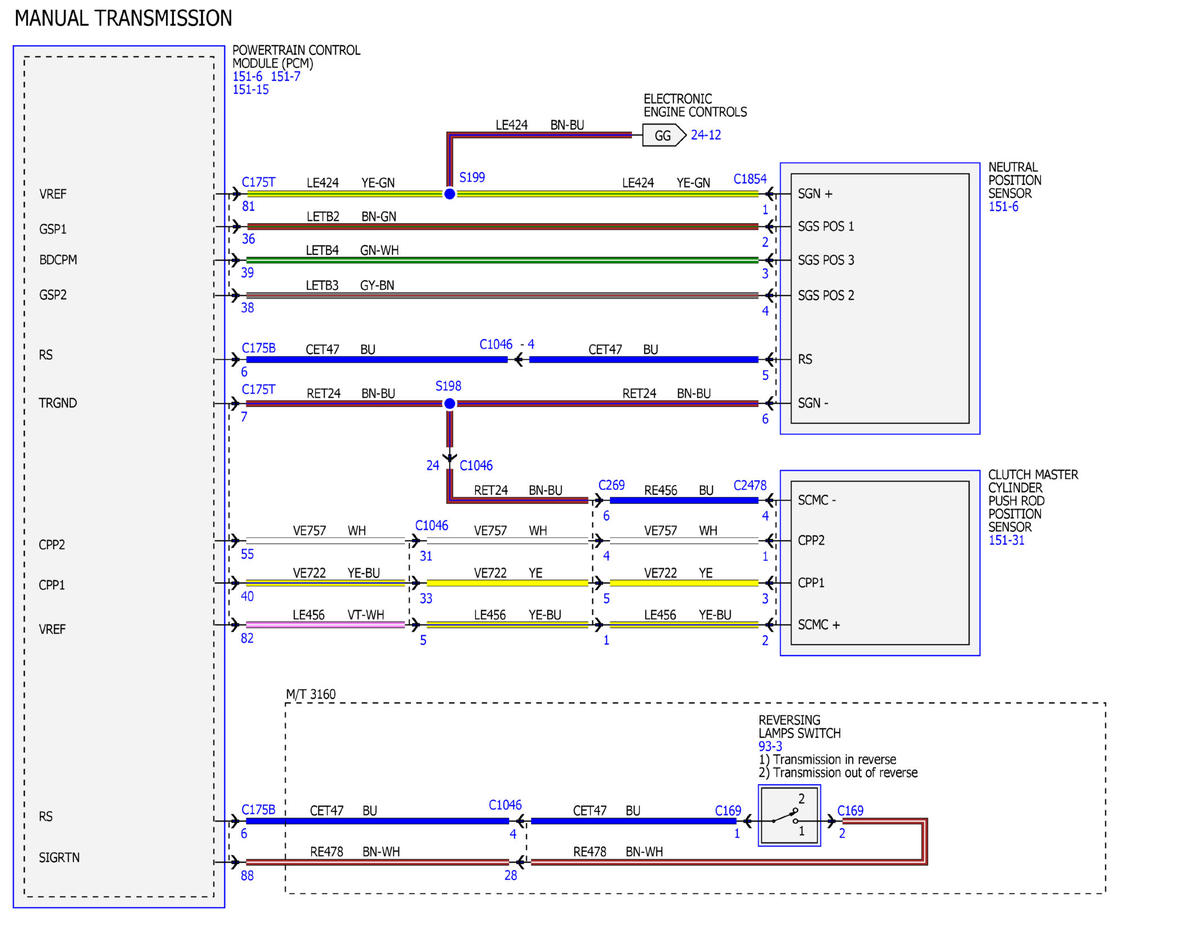

Fig 18: Electronic Engine Controls - 5.0L Wiring Diagrams (18 Of 25)

GFDWR141647

Courtesy of FORD MOTOR COMPANY

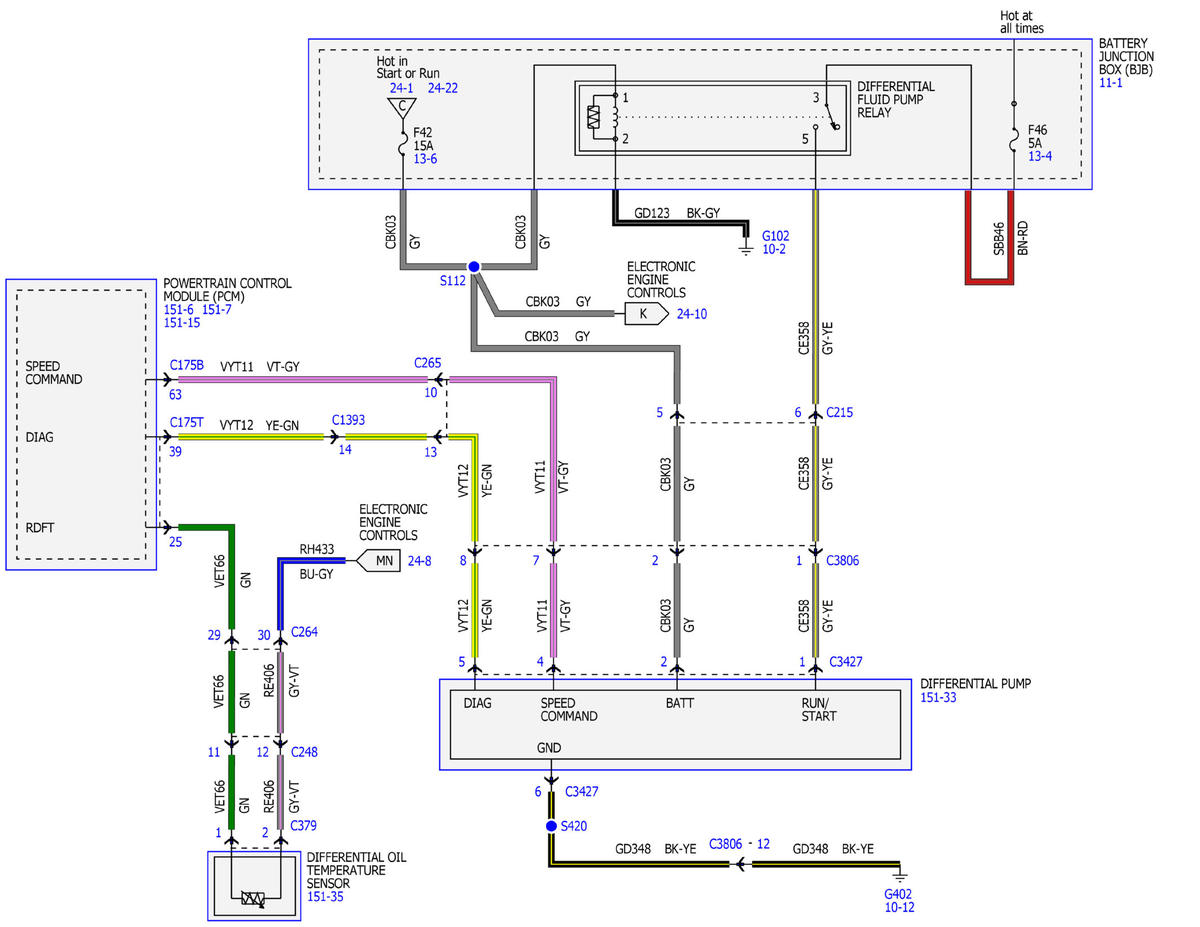

Fig 19: Electronic Engine Controls - 5.0L Wiring Diagrams (19 Of 25)

GFDWR141648

Courtesy of FORD MOTOR COMPANY

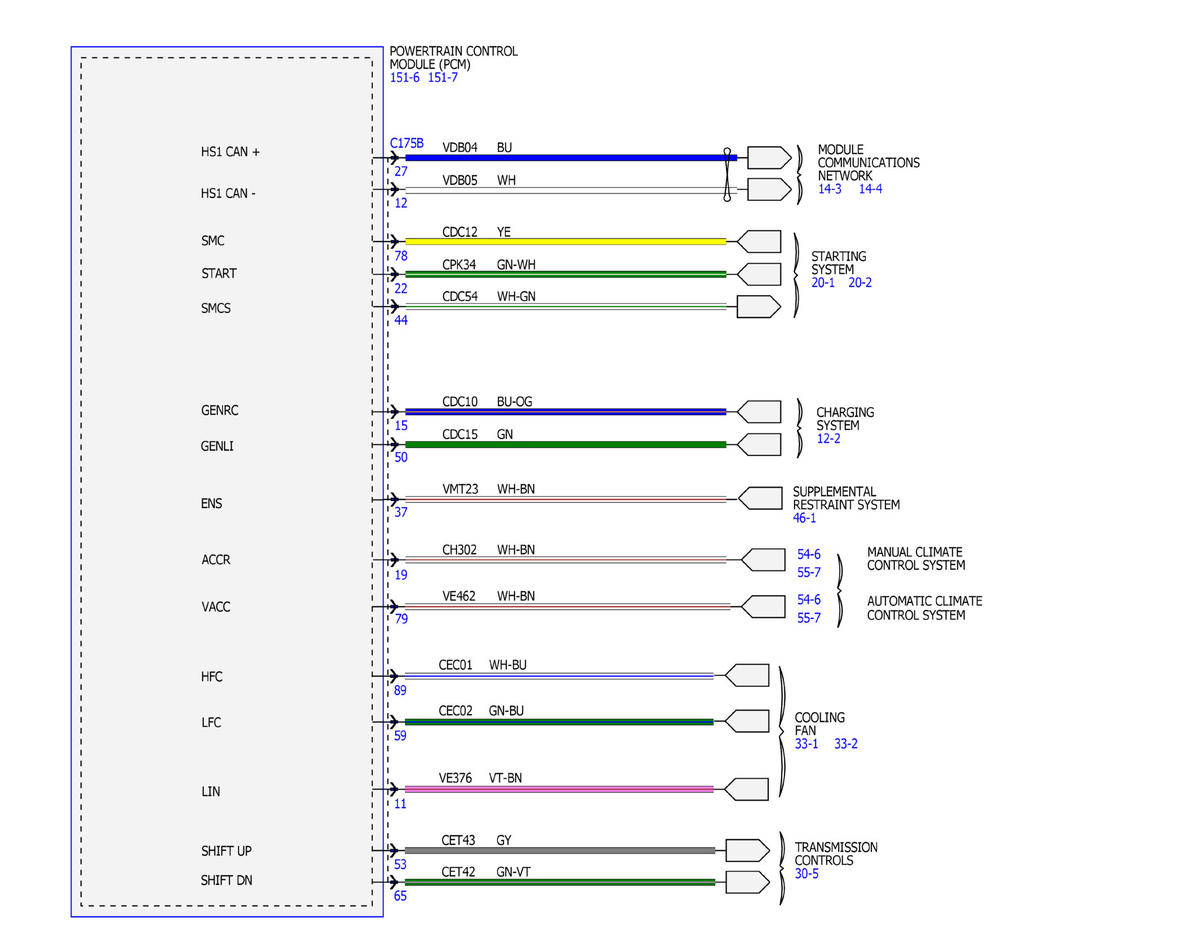

Fig 20: Electronic Engine Controls - 5.0L Wiring Diagrams (20 Of 25)

GFDWR141650

Courtesy of FORD MOTOR COMPANY

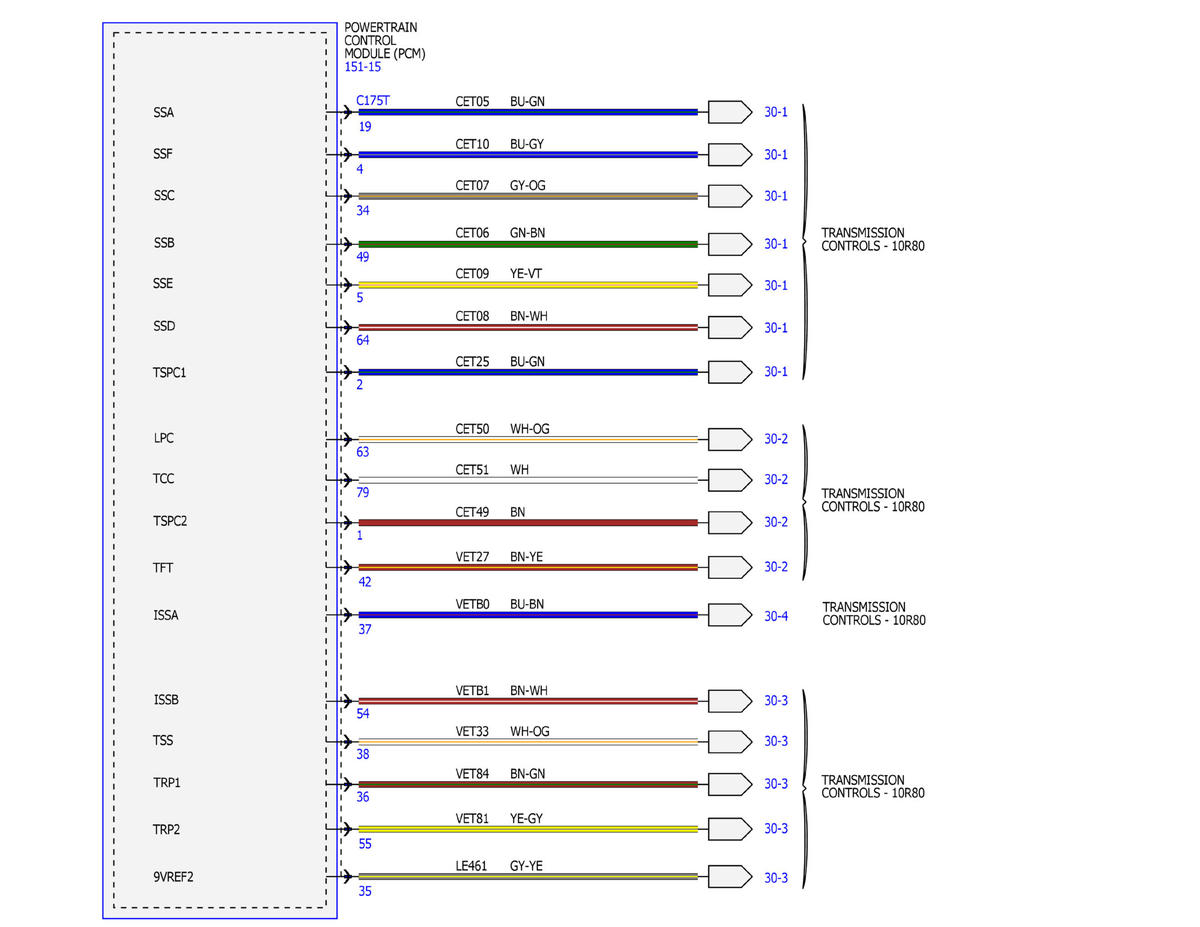

Fig 21: Electronic Engine Controls - 5.0L Wiring Diagrams (21 Of 25)

GFDWR141651

Courtesy of FORD MOTOR COMPANY

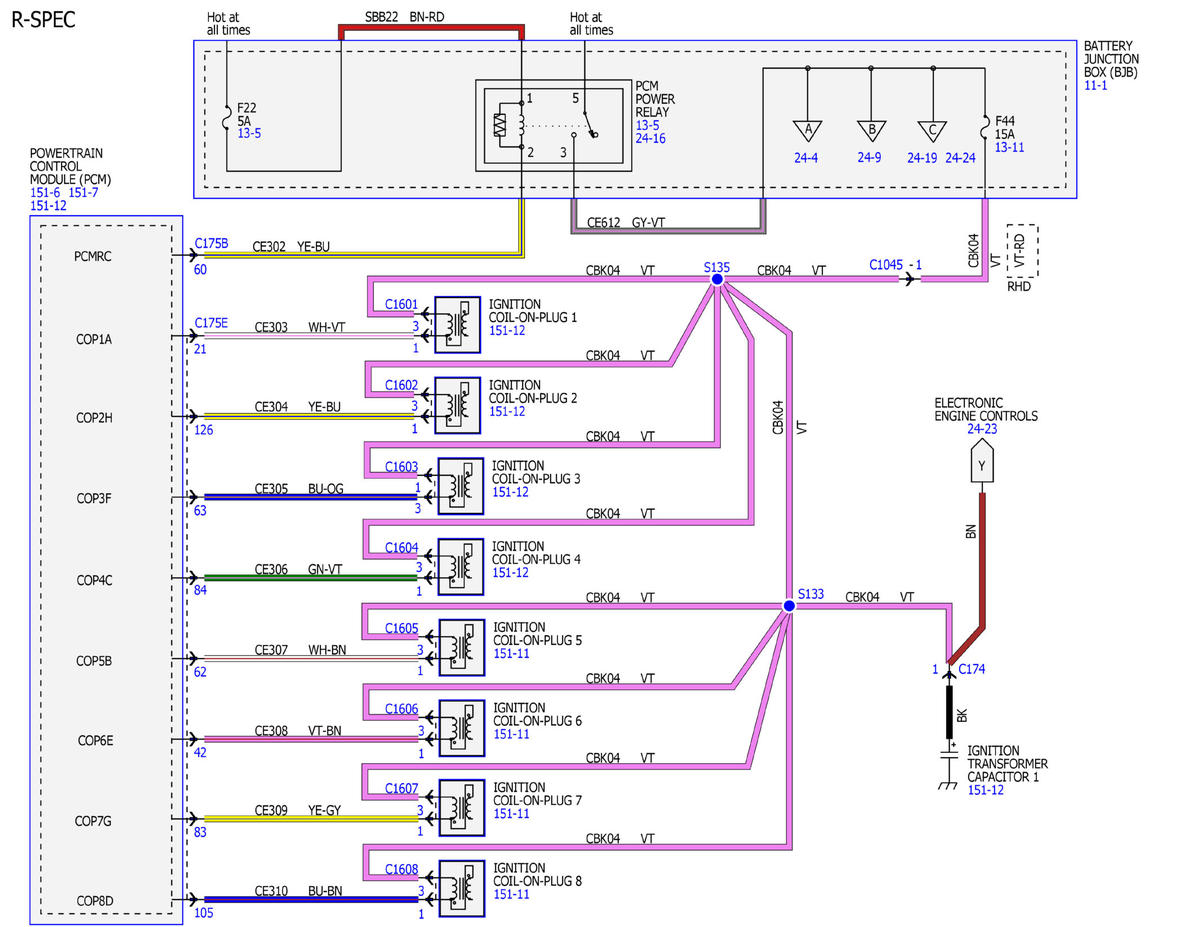

Fig 22: Electronic Engine Controls - 5.0L Wiring Diagrams (22 Of 25)

GFDWR141652

Courtesy of FORD MOTOR COMPANY

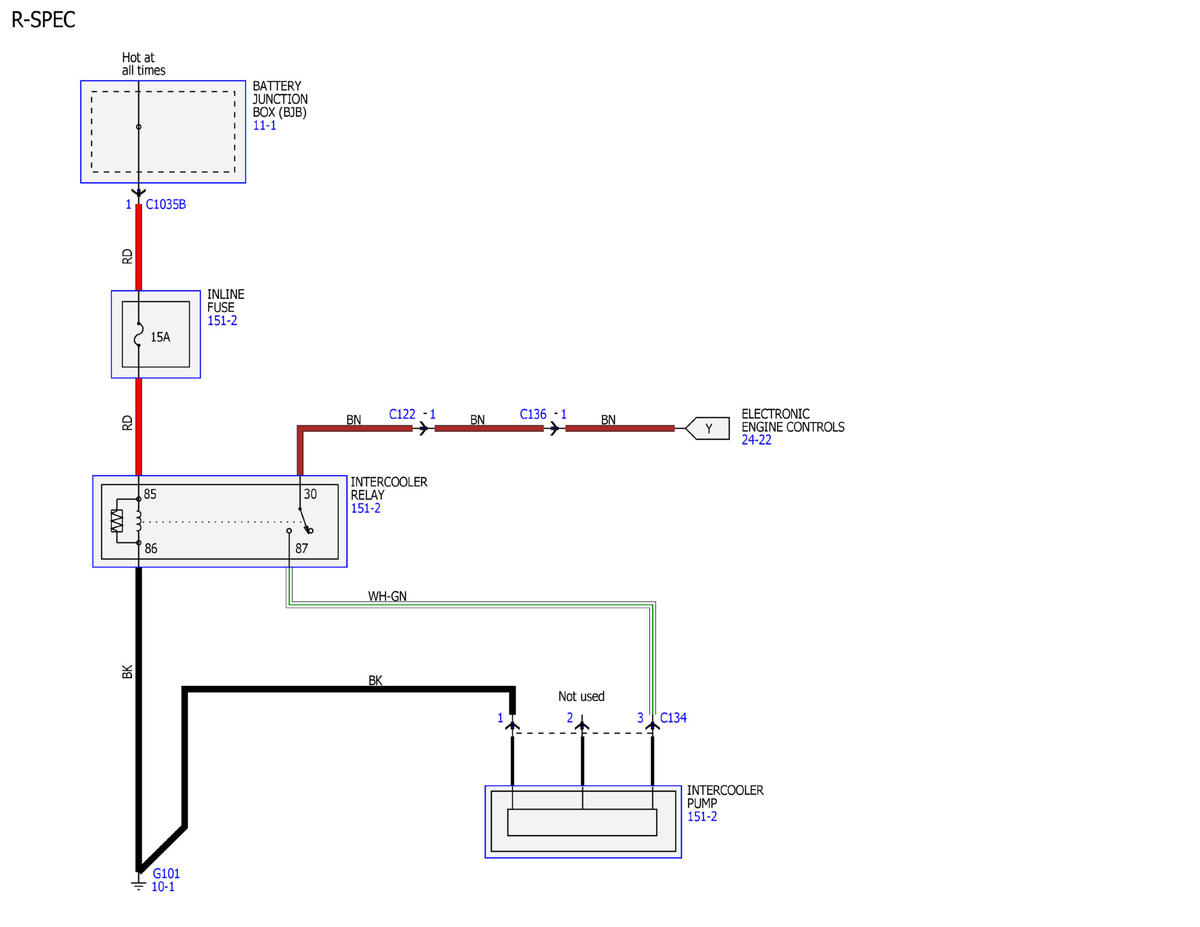

Fig 23: Electronic Engine Controls - 5.0L Wiring Diagrams (23 Of 25)

GFDWR141653

Courtesy of FORD MOTOR COMPANY

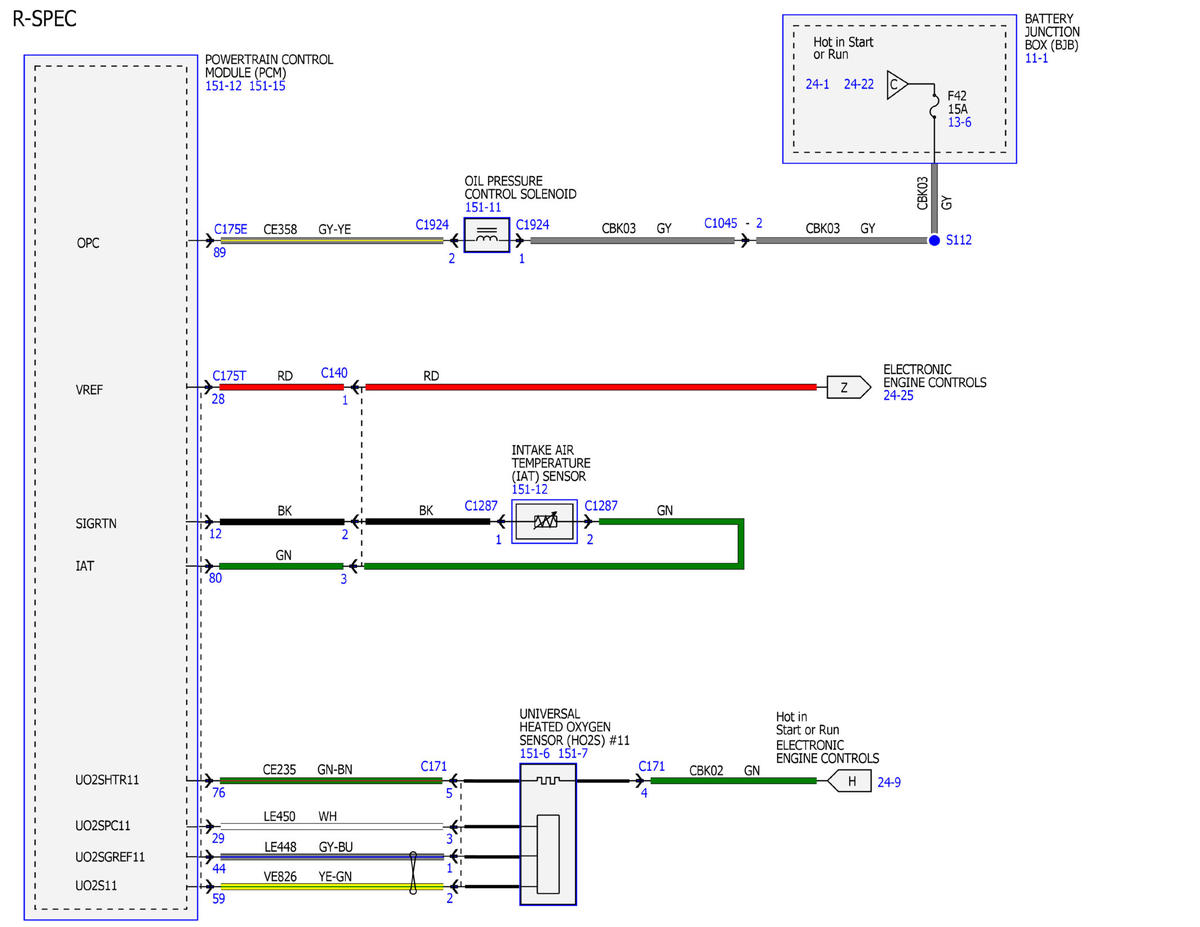

Fig 24: Electronic Engine Controls - 5.0L Wiring Diagrams (24 Of 25)

GFDWR141654

Courtesy of FORD MOTOR COMPANY

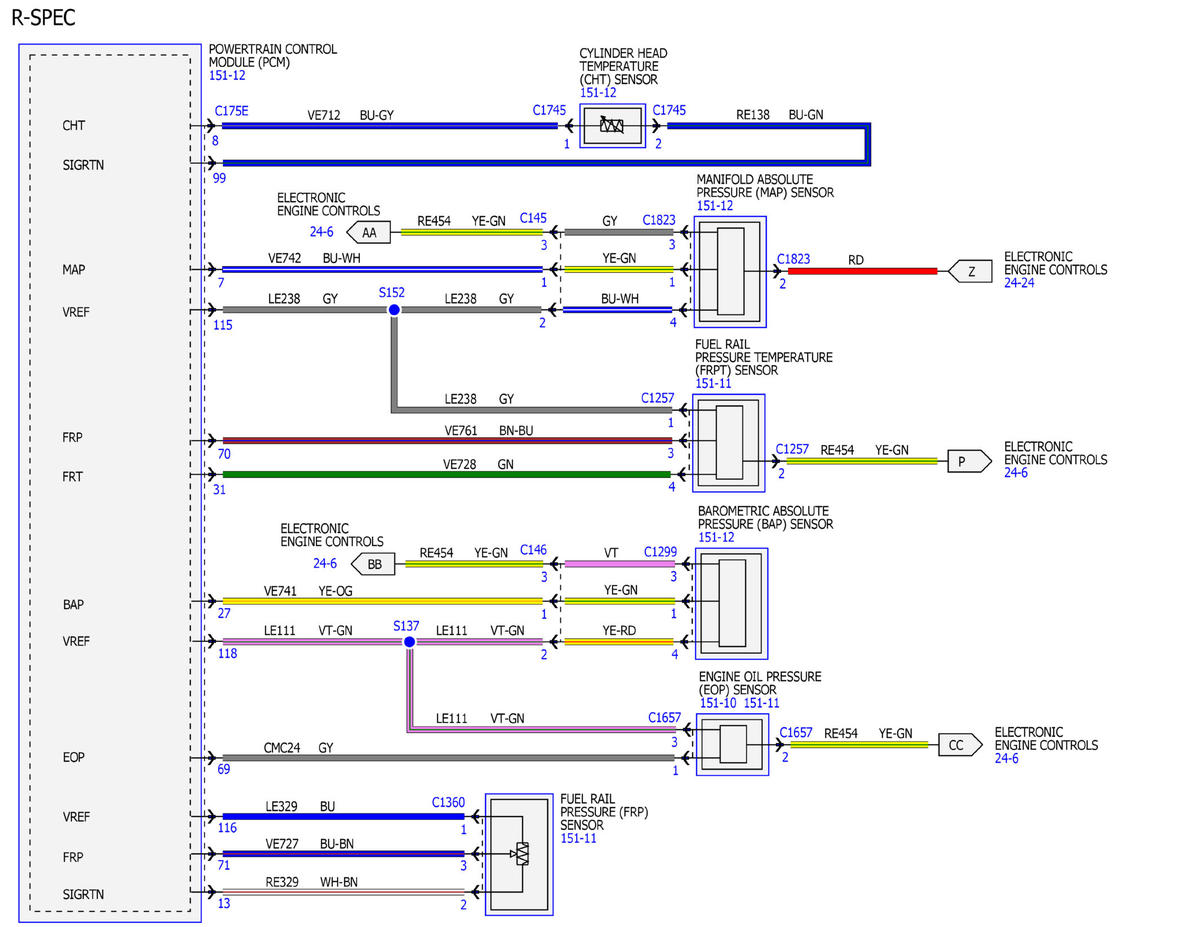

Fig 25: Electronic Engine Controls - 5.0L Wiring Diagrams (25 Of 25)

GFDWR141655

Courtesy of FORD MOTOR COMPANY
