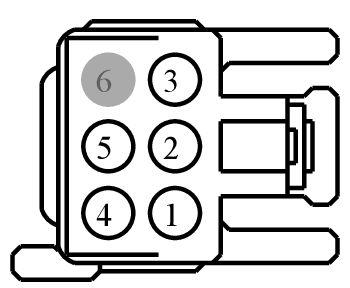

Connector End View (C3245) - SELECTOR LEVER ASSEMBLY

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3245	SELECTOR LEVER ASSEMBLY	14401			part# N/A	See Below

Pin: 2 - GD216(BK-VT)-GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT, Gauge 18

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14474-CA	DU2Z-14474-DA	1.50
AU5T-14474-DA	DU2Z-14474-DA	1.50
DU5T-14474-DA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CET52 (GN)	26	SWITCH - TRANSMISSION PARK DETECT	DU5T-14474-DA
2	GD216 (BK-VT)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	AU5T-14474-CA
3	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	DU5T-14474-DA
4	CET53 (BU-OG)	22	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK	AU5T-14474-DA
5	GD216 (BK-VT)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	AU5T-14474-CA
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
