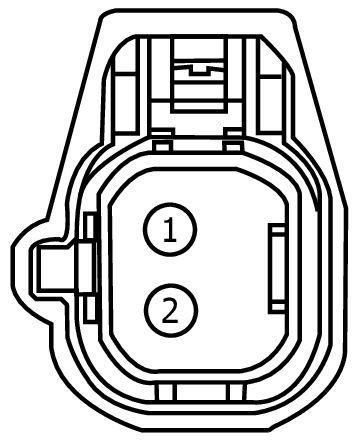

Connector End View (C138) - LOW WASHER FLUID WARNING INDICATOR SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C138 | LOW WASHER FLUID WARNING INDICATOR SWITCH | GY | 14290 | part# N/A | See Below |
Pin: 1 - CMC20(GY)-SWITCH - LOW LEVEL WASHER FLUID, Gauge 18
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | LU2Z-14474-CA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC20 (GY) | 18 | SWITCH - LOW LEVEL WASHER FLUID | 97BG-14474-AEA | ||||
| 2 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | 97BG-14474-AEA | ||||

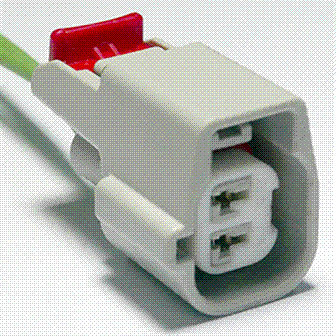

Available Pigtail Kits
Pigtail Kit Part Number WPT-1422
Service Part Number:
FU2Z-14S411-MA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Washer Fluid level
