Parking Brake Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the floor console. Refer to: FLOOR CONSOLE .

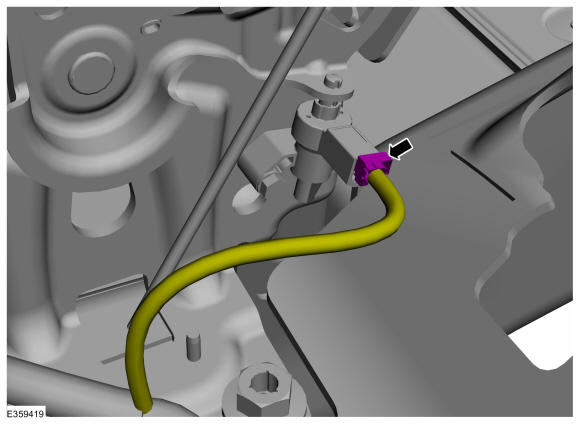

  2. Disconnect the parking brake switch electrical connector.
    GFD599553Courtesy of FORD MOTOR COMPANY

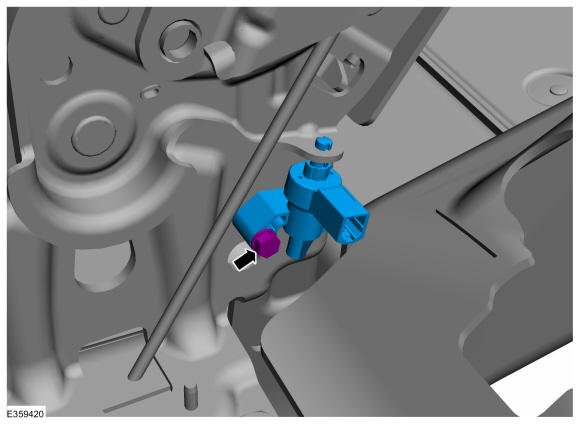

  3. Remove the bolt and the parking brake switch.

    Torque

    : 22 lb.in (2.5 Nm)

GFD599554Courtesy of FORD MOTOR COMPANY
