Parking Brake Shoes - Vehicles With: SVT Performance Package: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake disc. Refer to: Brake Disc

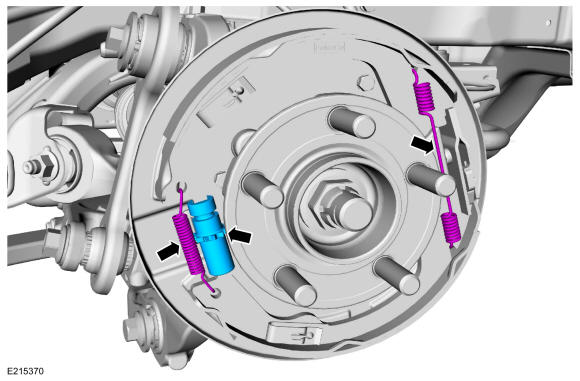

  2. Remove the return springs and the adjuster.
    GFD599550Courtesy of FORD MOTOR COMPANY

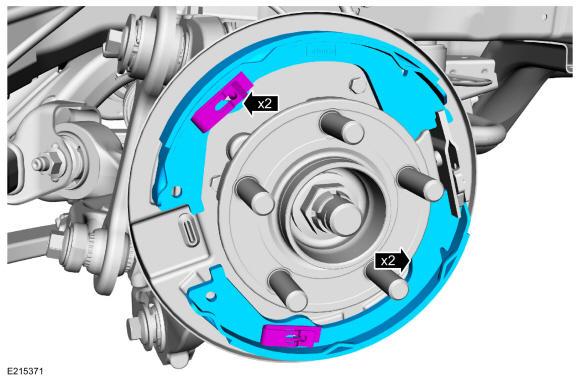

  3. Remove the hold down springs, pins and the parking brake shoes.
GFD599551Courtesy of FORD MOTOR COMPANY
