Parking Brake Shoes - Vehicles With: SVT Performance Package: Installation

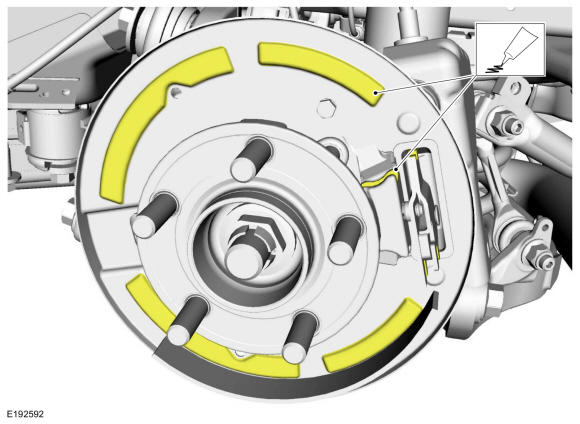

  1. Using specified grease, lubricate the parking brake shoe contact points.

    Material

    : Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    GFD599552Courtesy of FORD MOTOR COMPANY
  2. Adjust the parking brake shoes. Refer to: Parking Brake Shoe Adjustment - Vehicles With: SVT Performance Package
