Parking Brake Cable Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Adjustment

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

   Courtesy of FORD MOTOR COMPANY

2. Tighten the parking brake cable adjustment nut until one or both caliper levers are 2.0 mm off of their stops.

   Use the General Equipment: Feeler Gauge

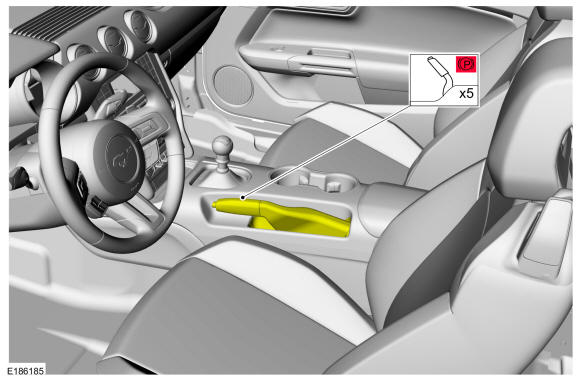

3. Fully apply and release the parking brake 5 times

   Courtesy of FORD MOTOR COMPANY

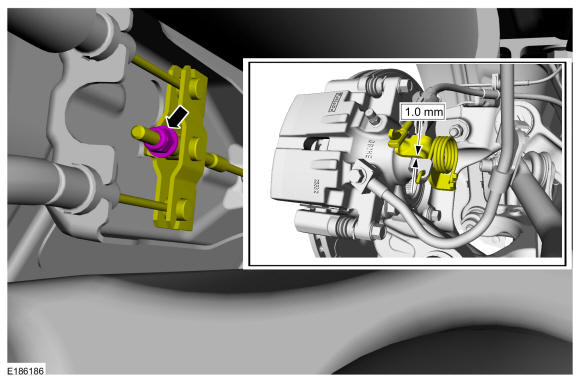

4. Tighten the parking brake cable adjustment nut until one or both caliper levers are 1.0 mm off of their stops.

   Use the General Equipment: Feeler Gauge

Courtesy of FORD MOTOR COMPANY
