Instrument Panel Cluster (IPC) - Overview: Overview
The IPC uses the following methods and functionality to alert the driver of vehicle conditions:
- gauges
- informational and warning indicators
- informational RTT and warning RTT indicators
- informational and instructional messages
- warning messages
- warning chimes
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
The RTT indicators illuminate in message center pop-up displays and dedicated and rotating RTT display locations, using the same iconic representation as typical LED indicators. Rotating RTT indicators display in the order the request was received by the IPC.
Analog IPC
The analog IPC utilizes the following analog gauges:
- Speedometer
- Tachometer
- Fuel
- Engine temperature
The analog IPC also provides a single display screen that contains the message center, RTT indication and virtual gauge displays.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace the typical informational or warning indicator, using the same iconic representation. The message center uses a rotating RTT display area that can display multiple indicators, if needed, while using fixed locations for other indicators and displays.
Depending on option level, the IPC provides the following virtual gauge displays:
- Air fuel ratio
- Axle temperature
- Battery voltage
- Cylinder head temperature
- Engine oil temperature
- Inlet air temperature
- Transmission fluid temperature
- Vacuum gauge
- Vacuum/boost gauge

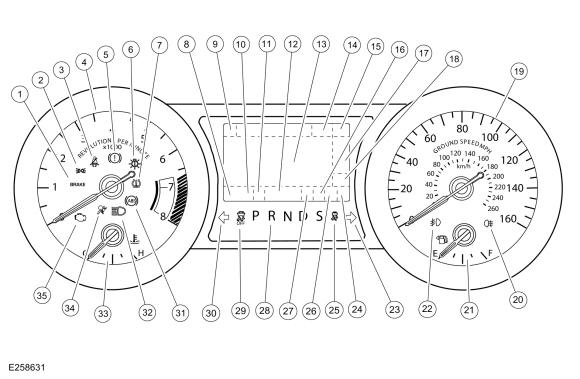

Analog IPC
| Item | Description |
|---|---|
| 1 | Brake warning indicator (United States) |
| 2 | Lights on indicator |
| 3 | Seatbelt warning indicator |
| 4 | Tachometer |
| 5 | Brake warning indicator (except United States) |
| 6 | LED low beam malfunction indicator |
| 7 | TPMS indicator |
| 8 | Odometer display |
| 9 | Menu navigation indicator |
| 10 | Upshift RTT (if equipped) |
| 11 | SelectShift® display |
| 12 | Rotating RTT display area BLIS off Charging system Door ajar Engine over-temperature Hood ajar Low fuel Low oil pressure Low washer fluid Luggage compartment lid ajar Overspeed RTT warning indicator (Gulf Coast Countries [GCC] only) Powertrain malfunction (wrench) |
| 13 | Main message center display area |
| 14 | Overspeed warning RTT |
| 15 | Compass |
| 16 | Drive mode RTT display Drag strip Normal (Sport if in "S" shifter position) Snow-wet Sport plus Track |
| 17 | ACC display (if equipped) Forward collision/pre-collision assist display Lane keeping system display (if equipped) |
| 18 | Digital speed display |
| 19 | Speedometer |
| 20 | Rear fog lamp indicator (if equipped) |
| 21 | Fuel gauge |
| 22 | Front fog lamp indicator |
| 23 | RH turn indicator |
| 24 | Cruise control RTT |
| 25 | Stability-traction control indicator (sliding car icon) |
| 26 | Auto high beam RTT indicator |
| 27 | Launch control RTT display (if equipped) |
| 28 | PRNDL display |
| 29 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 30 | LH turn indicator |
| 31 | ABS indicator |
| 32 | High beam indicator |
| 33 | Temperature gauge |
| 34 | Airbag warning indicator |
| 35 | MIL-- |
Digital IPC
The digital IPC utilizes a color Thin Film Transistor (TFT) display for all cluster information. This is a complete virtual IPC without any analog gauges or LED-type indicators. All indicators and gauges appear similar to standard analog gauges and LED indicators found in other analog Instrument Panel Clusters (IPCs).
In some instances a display replaces the current display. In other instances, newly selected displays (such as the message center and settings menus, TPMS or trip computer displays) overlay a currently displayed item, replacing the current display. Due to the nature of the virtual cluster, the cluster displays and the level of detail may change based on driver selections. For additional information related to the IPC displays, setup and message center menu selections, refer to the Owner Literature.
The digital IPC provides the following display modes:
- Normal
- MyMode
- Sport
- Track
- Drag
Depending on option level, the IPC provides the following virtual gauge displays:
- Air fuel ratio
- Axle temperature
- Battery voltage (LHD 5.0L and 2.3L performance only)
- Cylinder head temperature
- Engine oil pressure (LHD 5.0L and 2.3L performance only)
- Inlet air temperature
- Transmission fluid temperature
- Vacuum gauge
- Vacuum/boost gauge

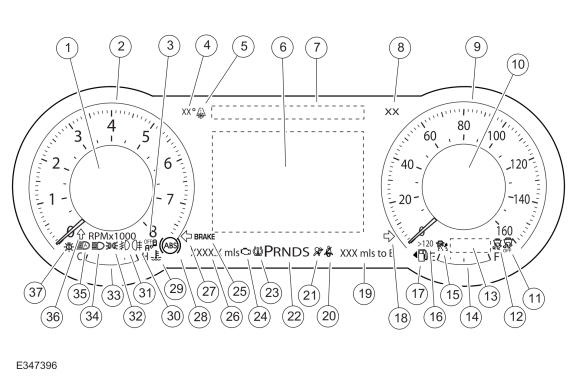

Digital IPC
| Item | Description |
|---|---|
| 1 | Digital tachometer display (manual transmission) Digital gear selection display (automatic transmission) |
| 2 | Tachometer |
| 3 | BLIS off RTT indicator |
| 4 | Outside air temperature dispaly |
| 5 | Frost RTT warning (if equipped) |
| 6 | Main message center and information display area Trip computer Navigation menu Audio menu Pony menu |
| 7 | Audio information display area |
| 8 | Compass |
| 9 | Speedometer |
| 10 | Digital speedometer display Active driver assist system (when active) Lane keeping system ACC Follow distance |
| 11 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 12 | Stability-traction control indicator (sliding car icon) |
| 13 | Rotating RTT display area Charging system Door ajar ET (Engineering Test) Hood ajar Luggage compartment lid Frost Low oil pressure Low washer fluid level Powertrain malfunction (wrench) Upshift |
| 14 | Fuel gauge |
| 15 | Cruise control RTT |
| 16 | Overspeed RTT warning indicator (Gulf Coast Countries [GCC] only) |
| 17 | Low fuel RTT indicator |
| 18 | RH turn indicator |
| 19 | DTE display |
| 20 | Seatbelt warning indicator |
| 21 | Airbag warning indicator |
| 22 | PRNDL display |
| 23 | TPMS indicator |
| 24 | MIL |
| 25 | Brake warning indicator (United States indicator shown) |
| 26 | Odometer display |
| 27 | LH turn indicator |
| 28 | ABS indicator |
| 29 | Engine over-temperature RTT warning indicator |
| 30 | Rear fog lamp RTT indicator |
| 31 | Front fog lamp RTT indicator |
| 32 | Lights on indicator |
| 33 | Temperature gauge |
| 34 | High beam RTT indicator |
| 35 | Auto high beam RTT indicator (if equipped) |
| 36 | Upshift RTT indicator (Europe only)) |
| 37 | LED low beam malfunction RTT indicator |
ICM
In addition to the IPC gauges, the ICM (mounted in the instrument panel) provides additional gauges. The gauges in the ICM vary based on option content as follows:
- Engine oil pressure
- Engine oil temperature (GT500 only)
- Vacuum-boost or vacuum (except GT500)
