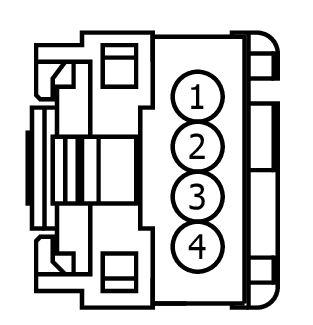

Connector End View (C4339) - LUGGAGE COMPARTMENT LID LATCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4339	LUGGAGE COMPARTMENT LID LATCH	14A005			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-YB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL58 (GY)	26	SWITCH - LIFTGATE/DECKLID # GLASS AJAR	9U5T-14474-YB|9U5T-14474-EB
1	CPL58 (BK)	18	SWITCH - LIFTGATE/DECKLID # GLASS AJAR	9U5T-14474-YB|9U5T-14474-EB
2	CLN13 (WH-BU)	22	SWITCH - TRUNK/CARGO LAMP	9U5T-14474-DB|9U5T-14474-EB
2	CLN13 (BK)	18	SWITCH - TRUNK/CARGO LAMP	9U5T-14474-DB|9U5T-14474-EB
3	CPL59 (BN-BU)	20	RELAY - DOOR LOCK # LIFTGATE GLASS RELEASE	9U5T-14474-DB|9U5T-14474-EB
3	CPL59 (BK)	18	RELAY - DOOR LOCK # LIFTGATE GLASS RELEASE	9U5T-14474-DB|9U5T-14474-EB
4	GD348 (BK-YE)	18	GROUND - PILLAR C OR QUARTER PANEL RIGHT	9U5T-14474-EB
4	GD348 (BK)	18	GROUND - PILLAR C OR QUARTER PANEL RIGHT	9U5T-14474-EB
