Brake Pedal and Bracket - 7-Speed Automatic Transmission - TR9070/10-Speed Automatic Transmission - 10R80: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. The switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stoplamp switch. Refer to: Stoplamp Switch

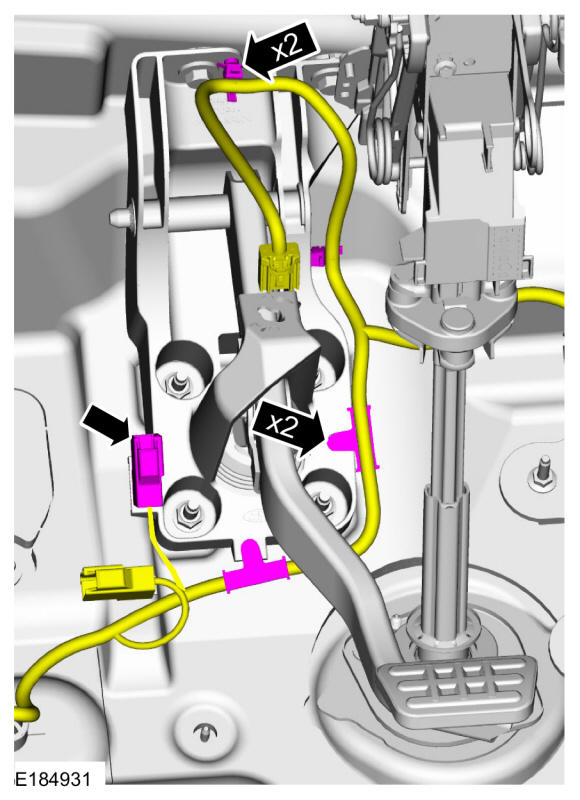

Detach the 5 wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: The booster push rod clevis-locking pin is a one-time use only part. Any time the booster push rod clevis-locking pin is removed, a new booster push rod clevis-locking pin should be used.

NOTE: Be sure that the push rod is aligned with the clevis during installation.

Remove and discard the booster push rod clevis-locking pin and position aside the booster push rod.

Courtesy of FORD MOTOR COMPANY

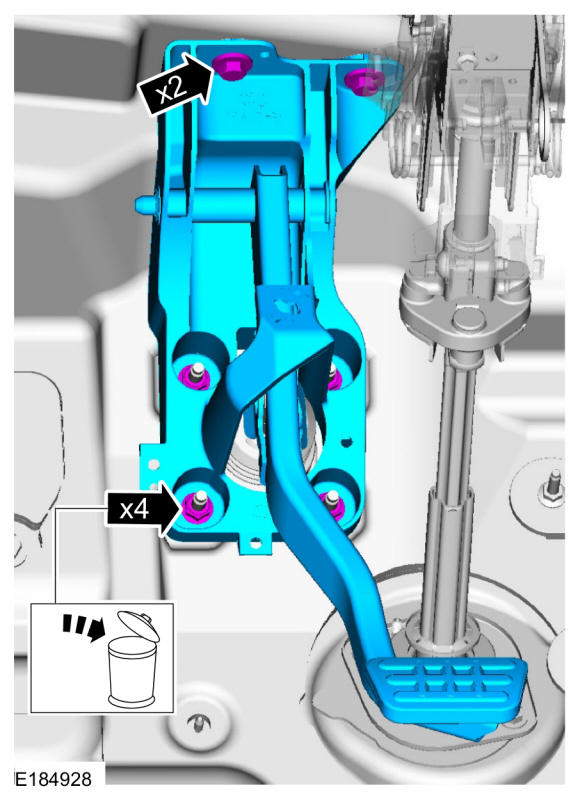

Remove the 2 bolts, discard the 4 nuts and remove the brake pedal and bracket.

Courtesy of FORD MOTOR COMPANY
