Muffler Inlet Pipe: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
Loosen the clamps and separate the muffler and tailpipe from the RH catalytic converter and LH muffler inlet pipe.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

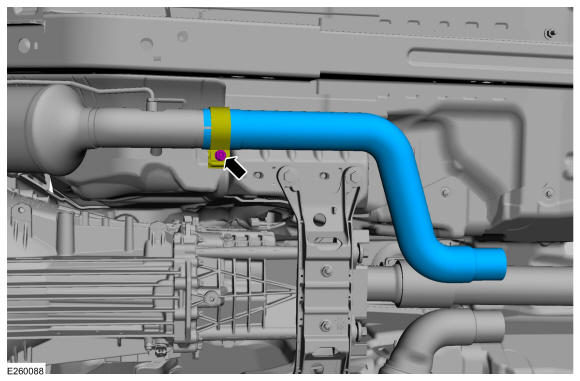

Loosen the ball clamp, release the bracket tab and remove the muffler inlet pipe.
Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
