Catalytic Converter RH: Removal

NOTE: If the catalytic converter is not being replaced, the HO2S and the catalyst monitor sensor do not need to be removed from the catalytic converter. Disconnecting the electrical connectors is still necessary.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
Loosen the clamps, release the tabs and slide the clamps back on the muffler. Separate the muffler and tailpipe from the RH catalytic converter and LH muffler inlet pipe.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

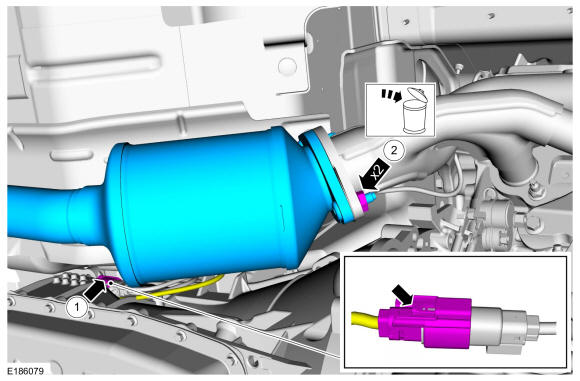

1. Disconnect the catalyst monitor sensor electrical connector.
2. Remove and discard the nuts and remove the catalytic convertor.
  Torque

  : 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

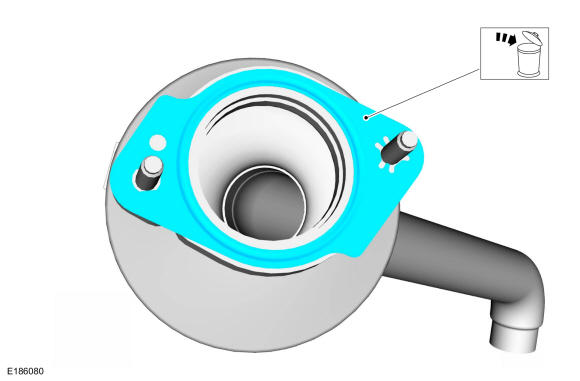

Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
