Power Distribution

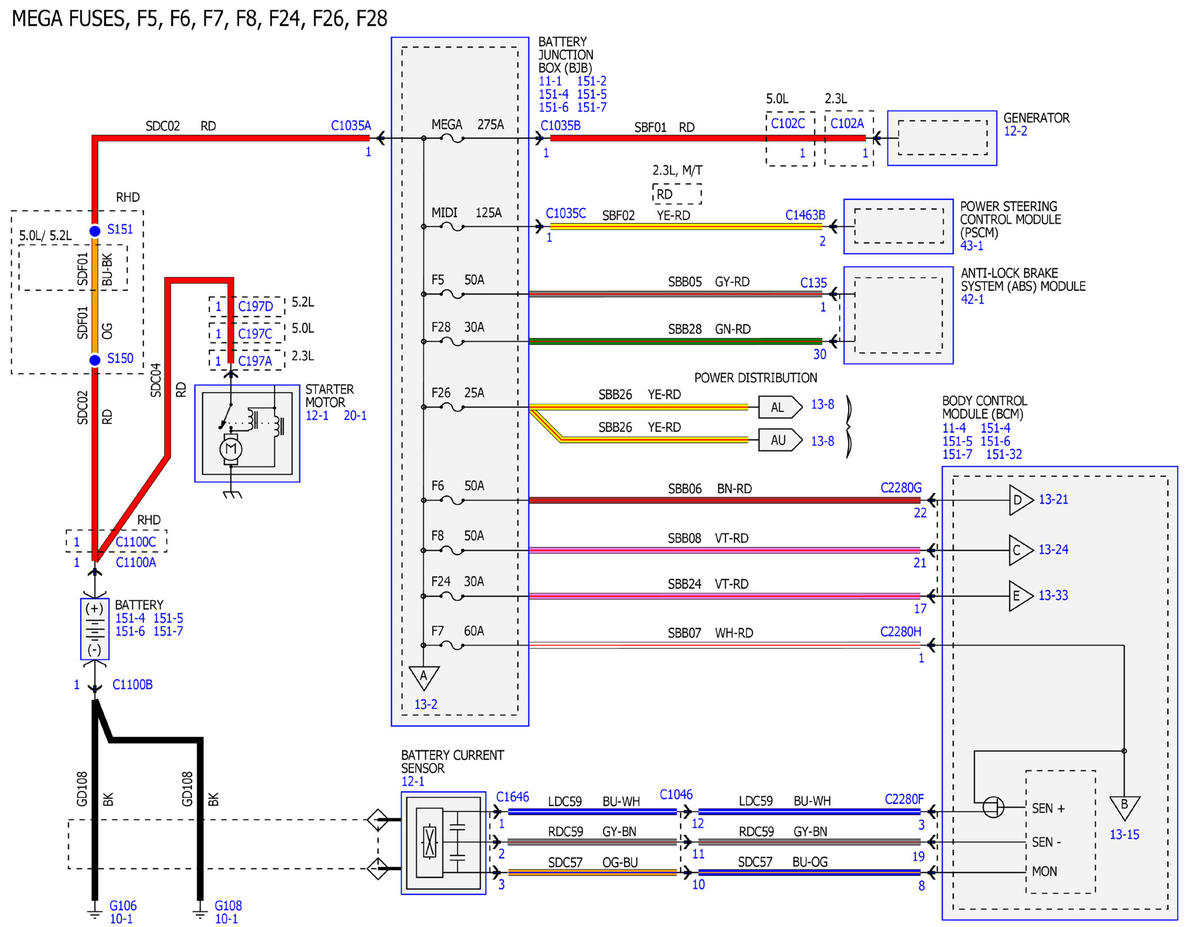

Fig 1: Power Distribution Wiring Diagrams (1 Of 39)

GFDWR141754

Courtesy of FORD MOTOR COMPANY

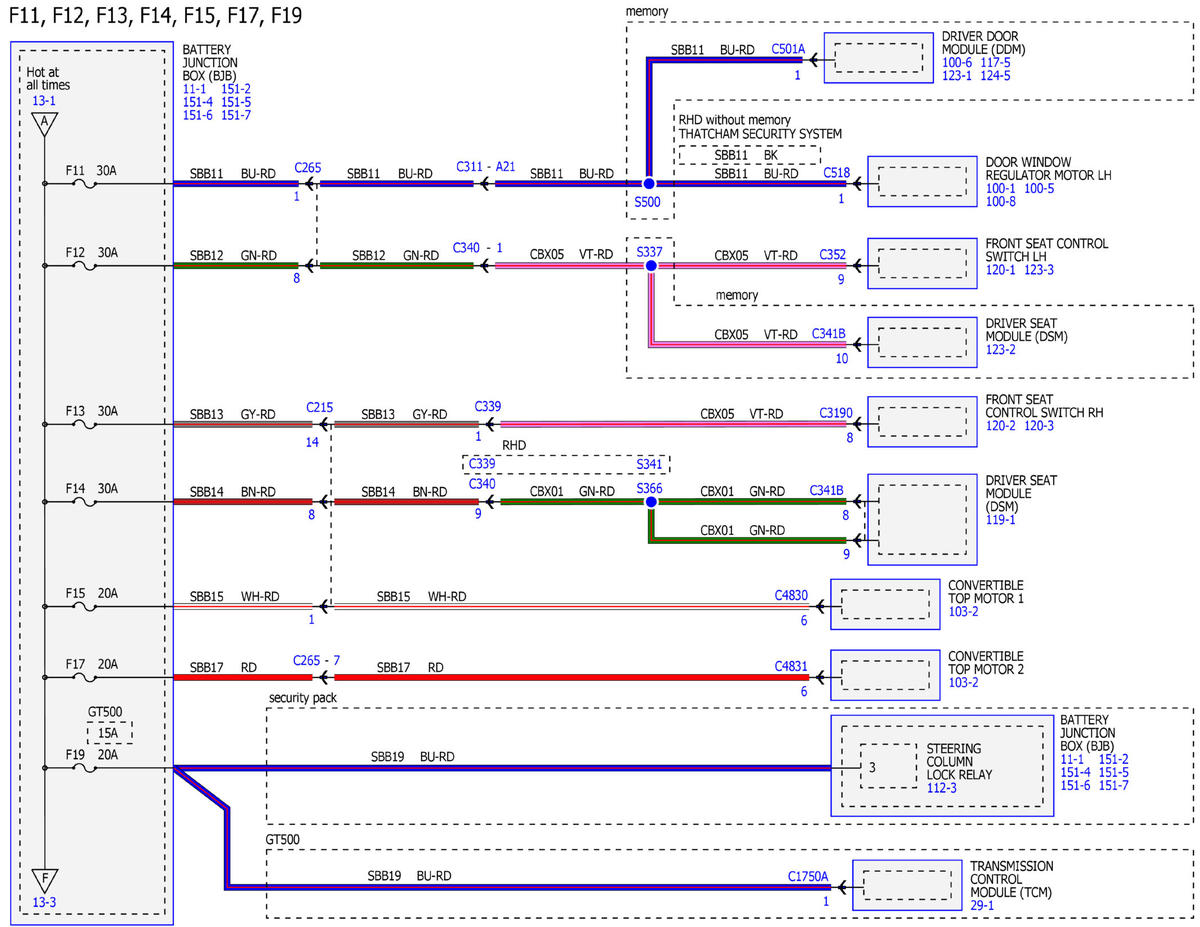

Fig 2: Power Distribution Wiring Diagrams (2 Of 39)

GFDWR141765

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Distribution Wiring Diagrams (3 Of 39)

GFDWR141776

Courtesy of FORD MOTOR COMPANY

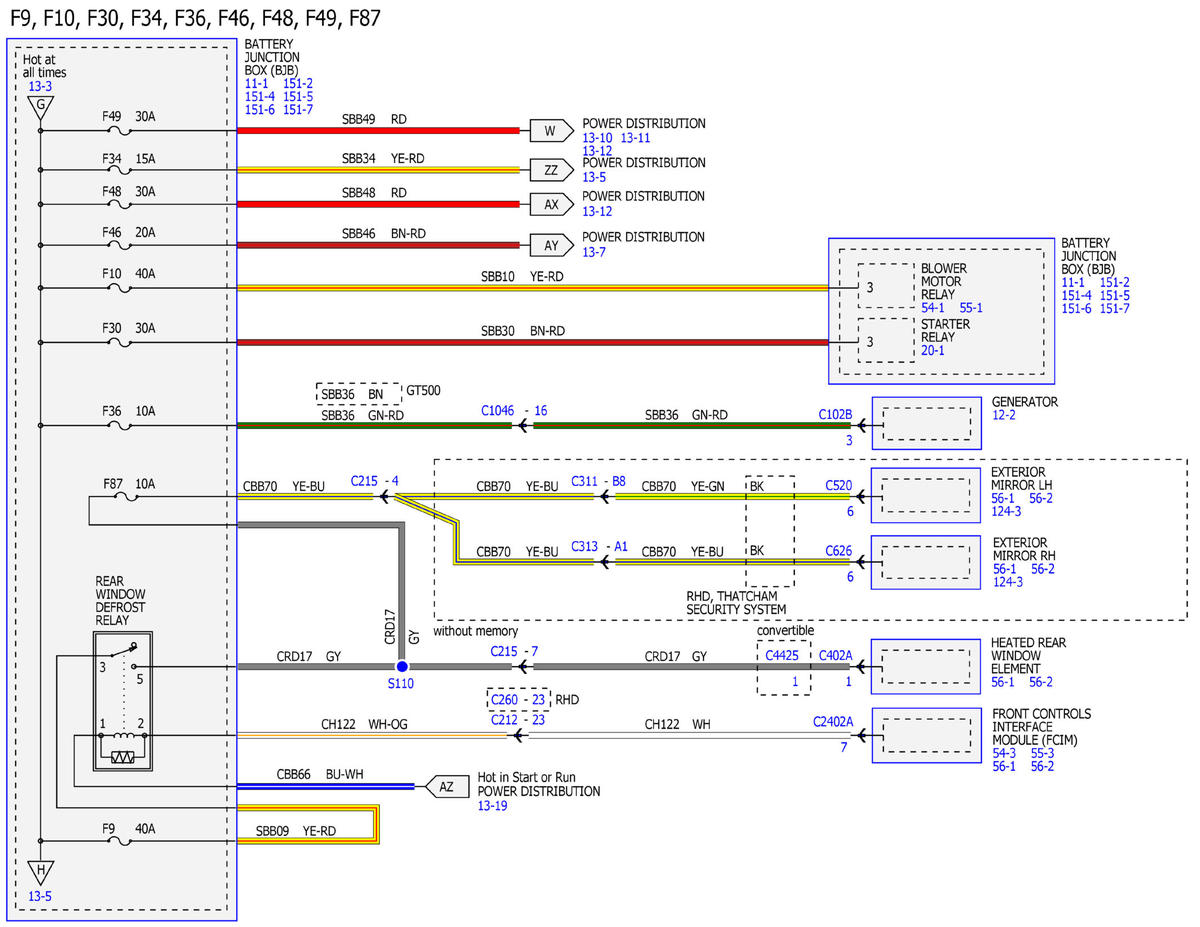

Fig 4: Power Distribution Wiring Diagrams (4 Of 39)

GFDWR141787

Courtesy of FORD MOTOR COMPANY

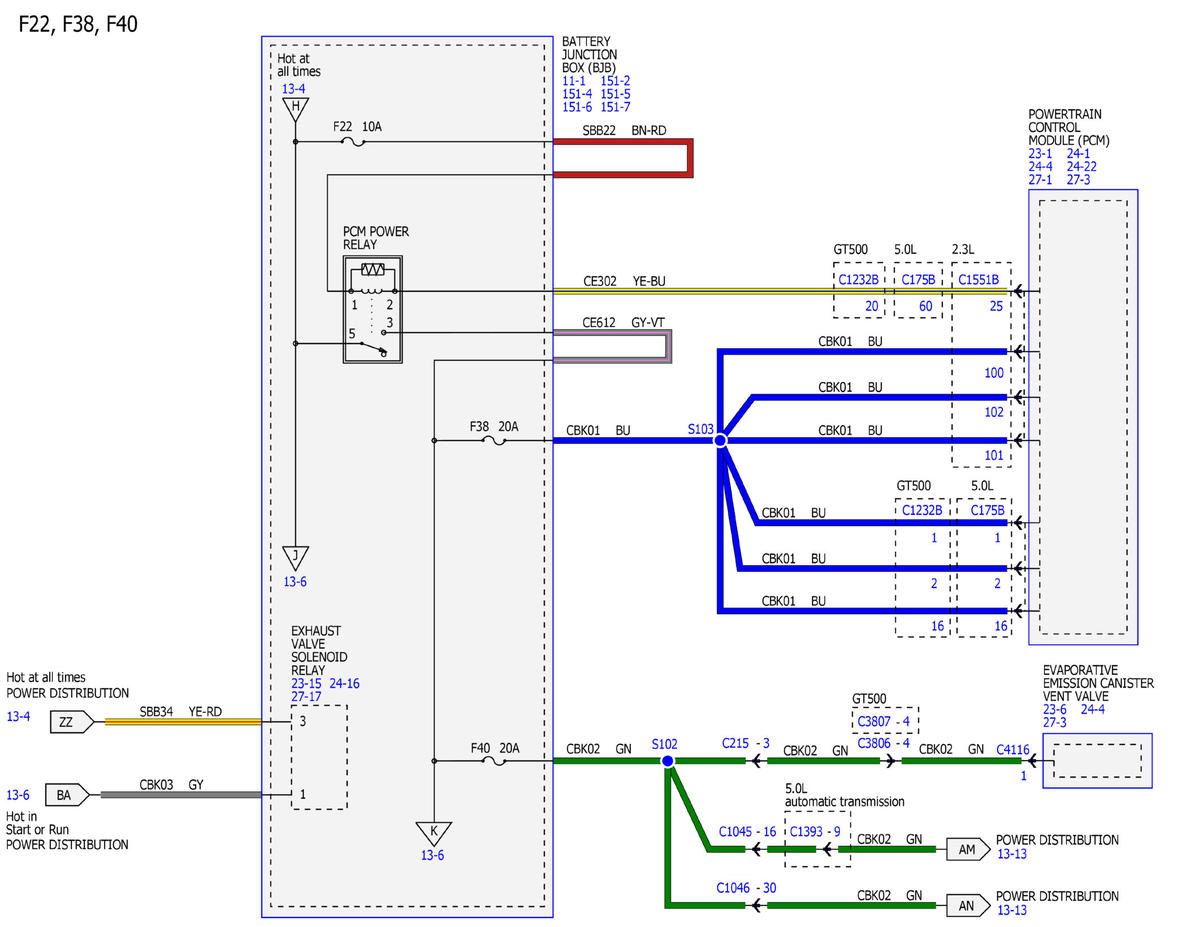

Fig 5: Power Distribution Wiring Diagrams (5 Of 39)

GFDWR141788

Courtesy of FORD MOTOR COMPANY

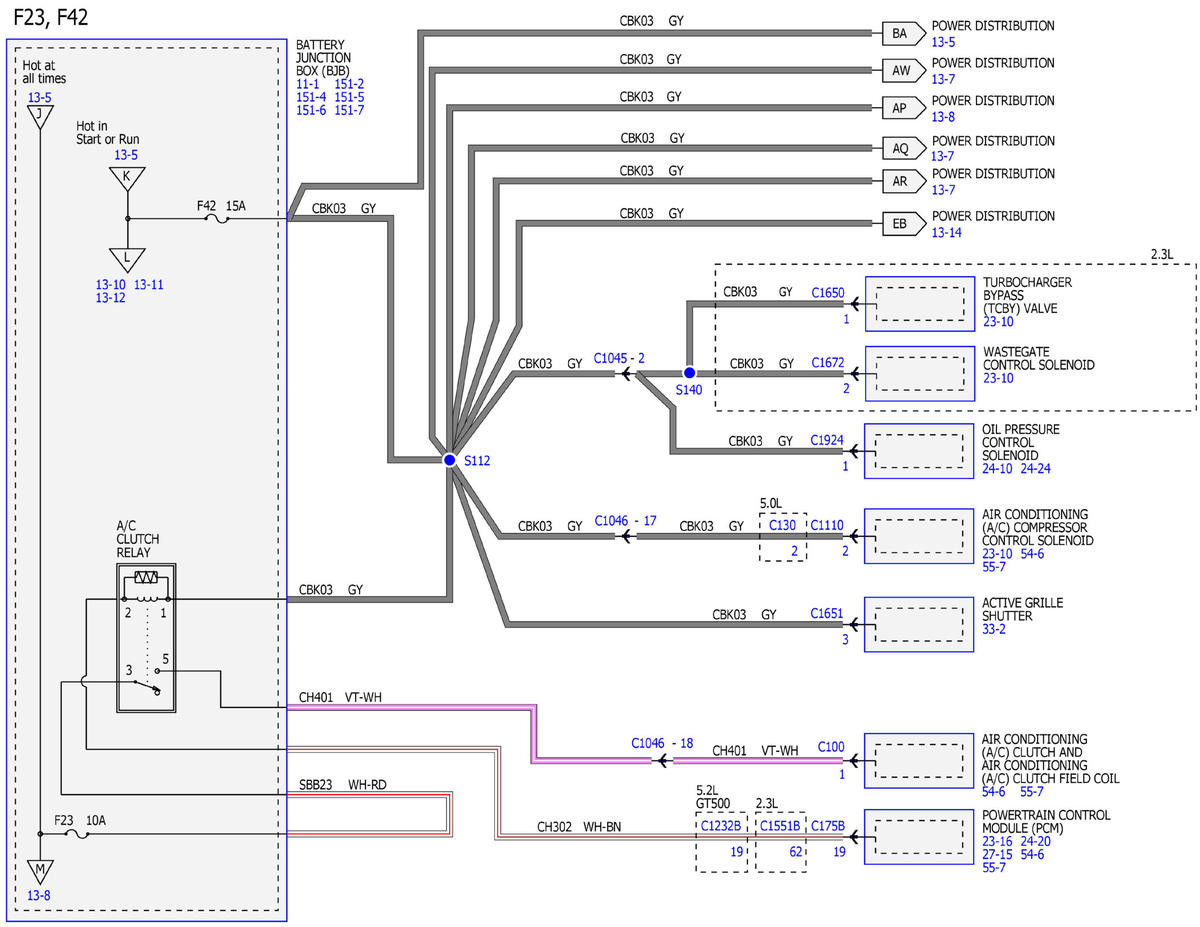

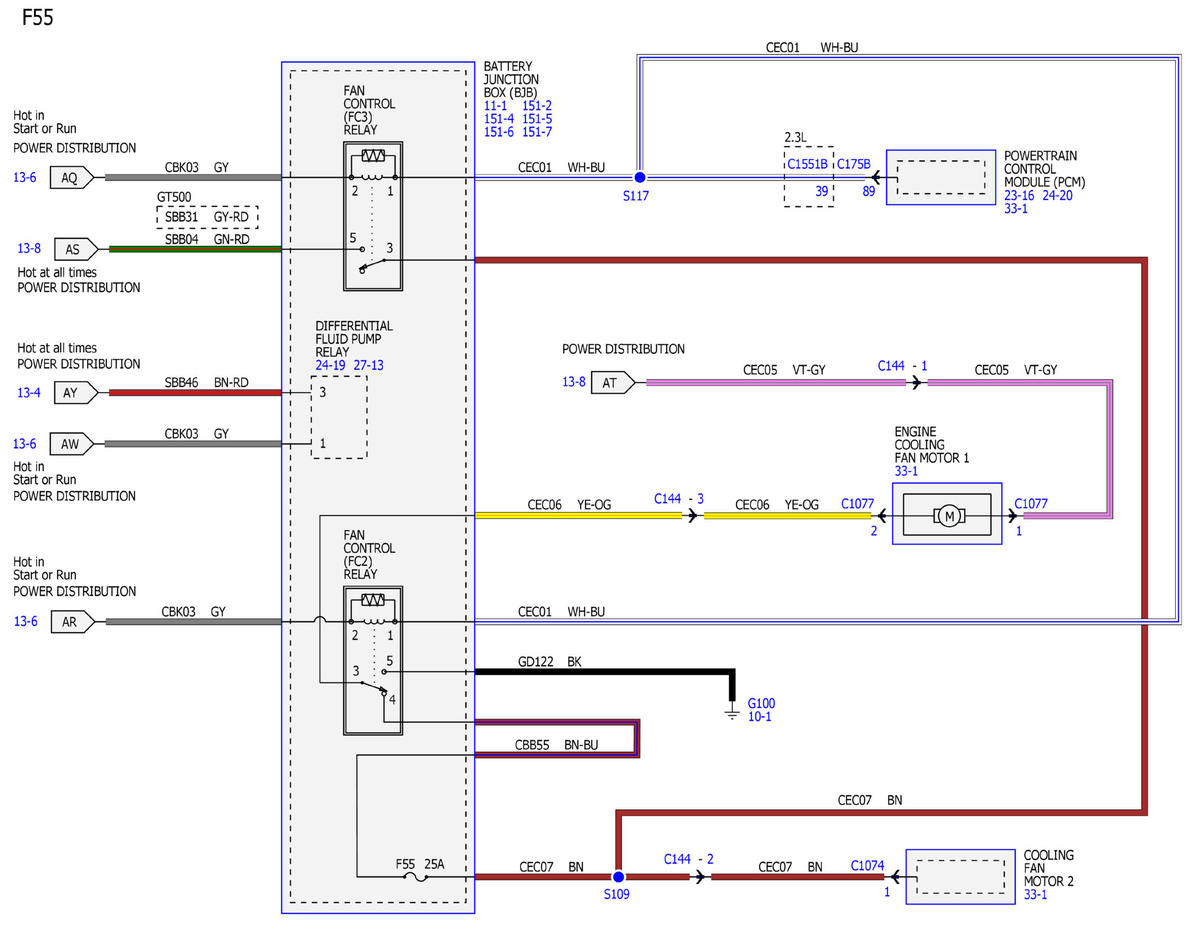

Fig 6: Power Distribution Wiring Diagrams (6 Of 39)

GFDWR141789

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Distribution Wiring Diagrams (7 Of 39)

GFDWR141790

Courtesy of FORD MOTOR COMPANY

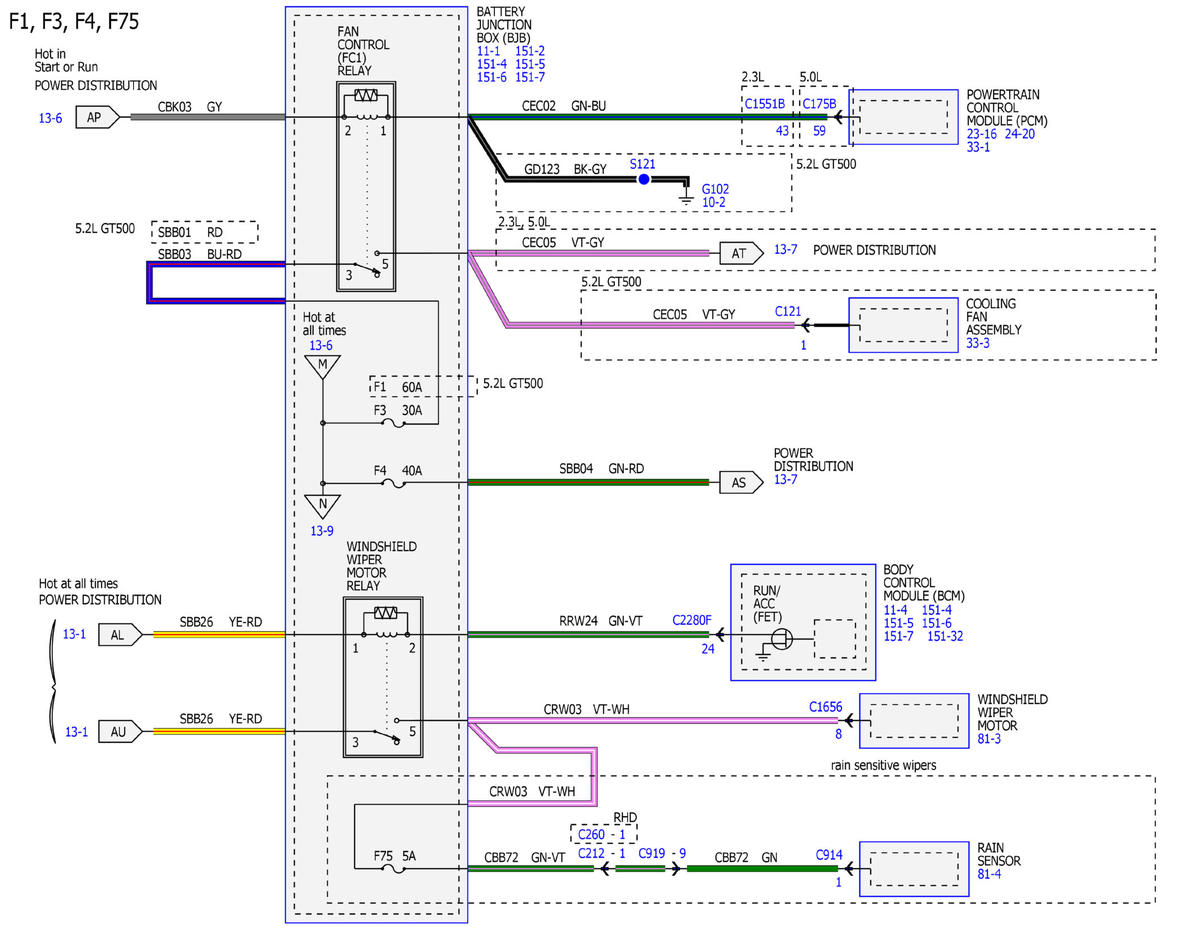

Fig 8: Power Distribution Wiring Diagrams (8 Of 39)

GFDWR141791

Courtesy of FORD MOTOR COMPANY

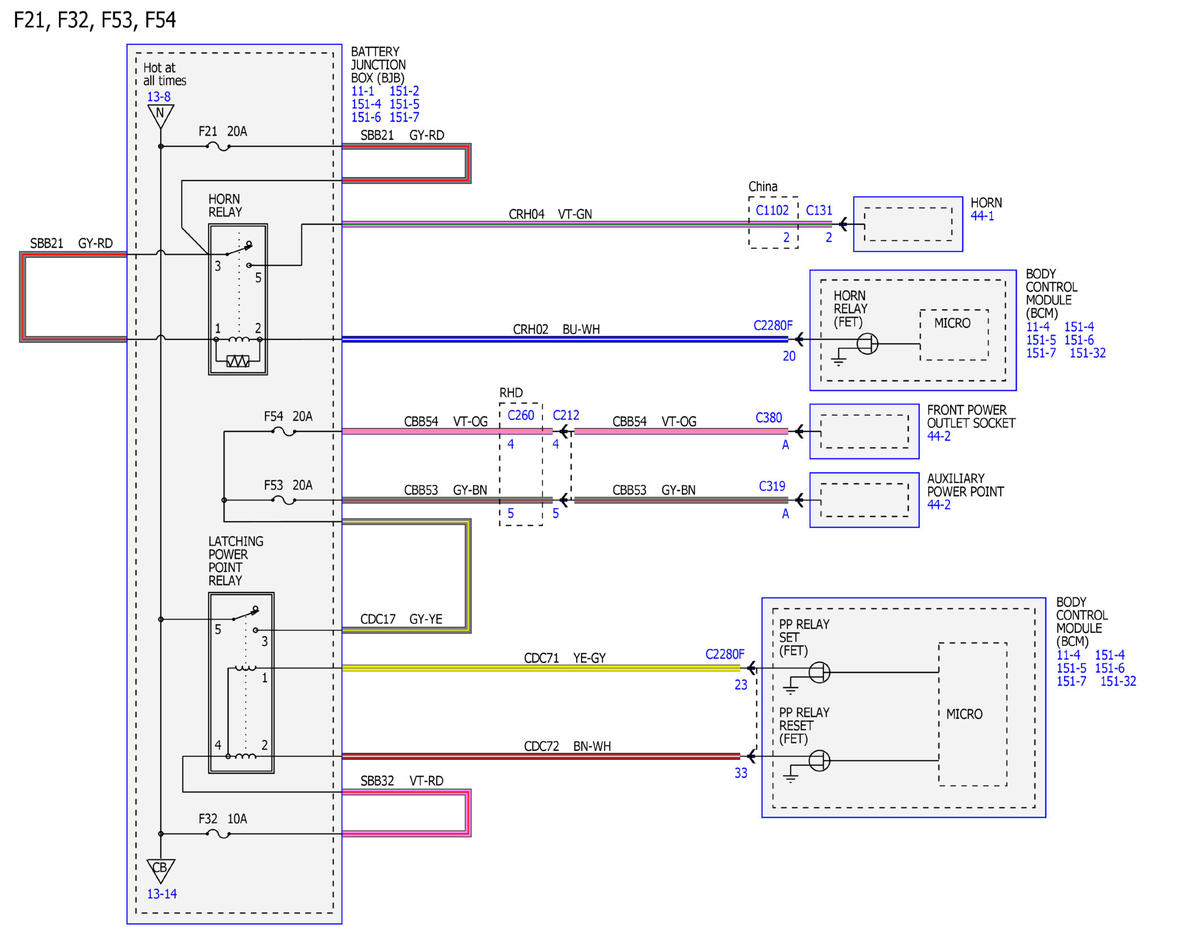

Fig 9: Power Distribution Wiring Diagrams (9 Of 39)

GFDWR141792

Courtesy of FORD MOTOR COMPANY

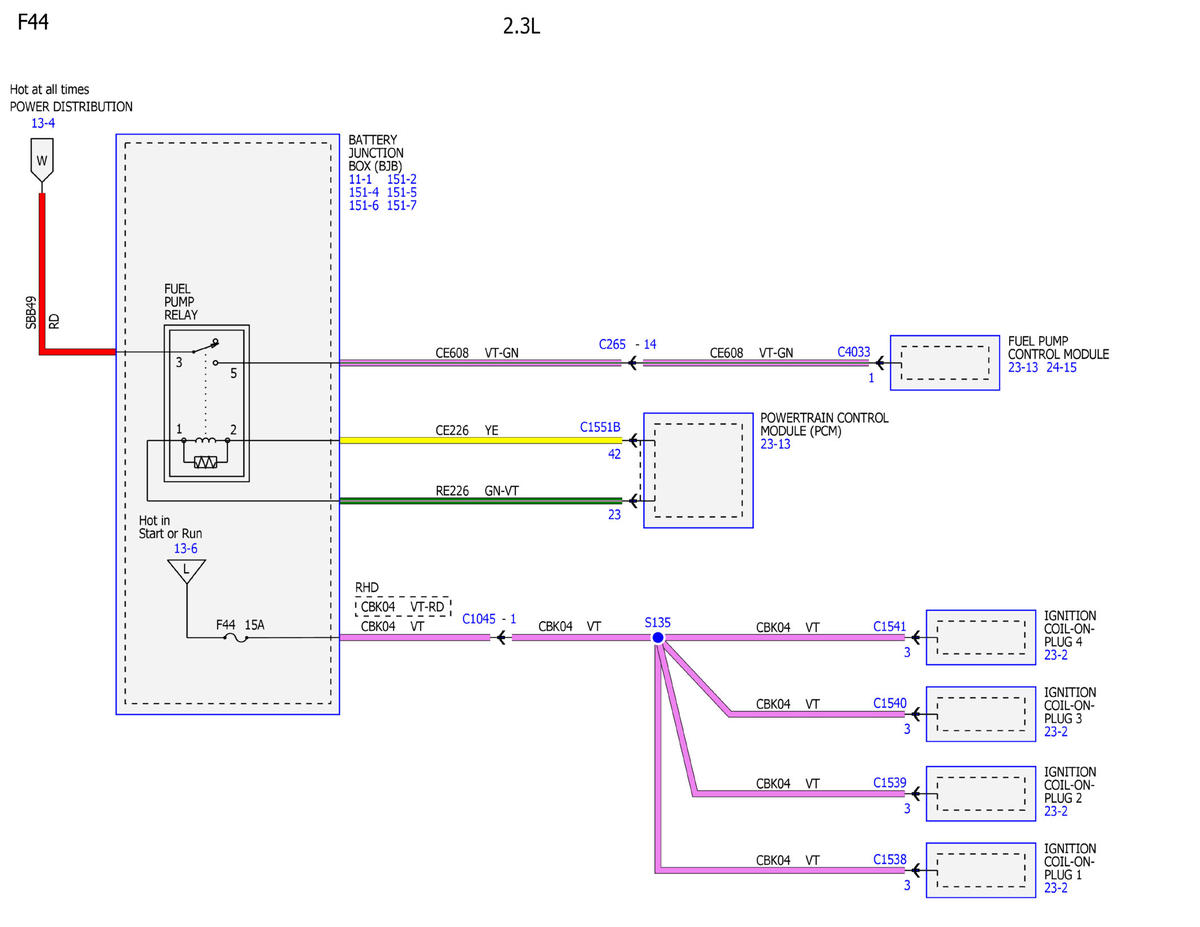

Fig 10: Power Distribution Wiring Diagrams (10 Of 39)

GFDWR141755

Courtesy of FORD MOTOR COMPANY

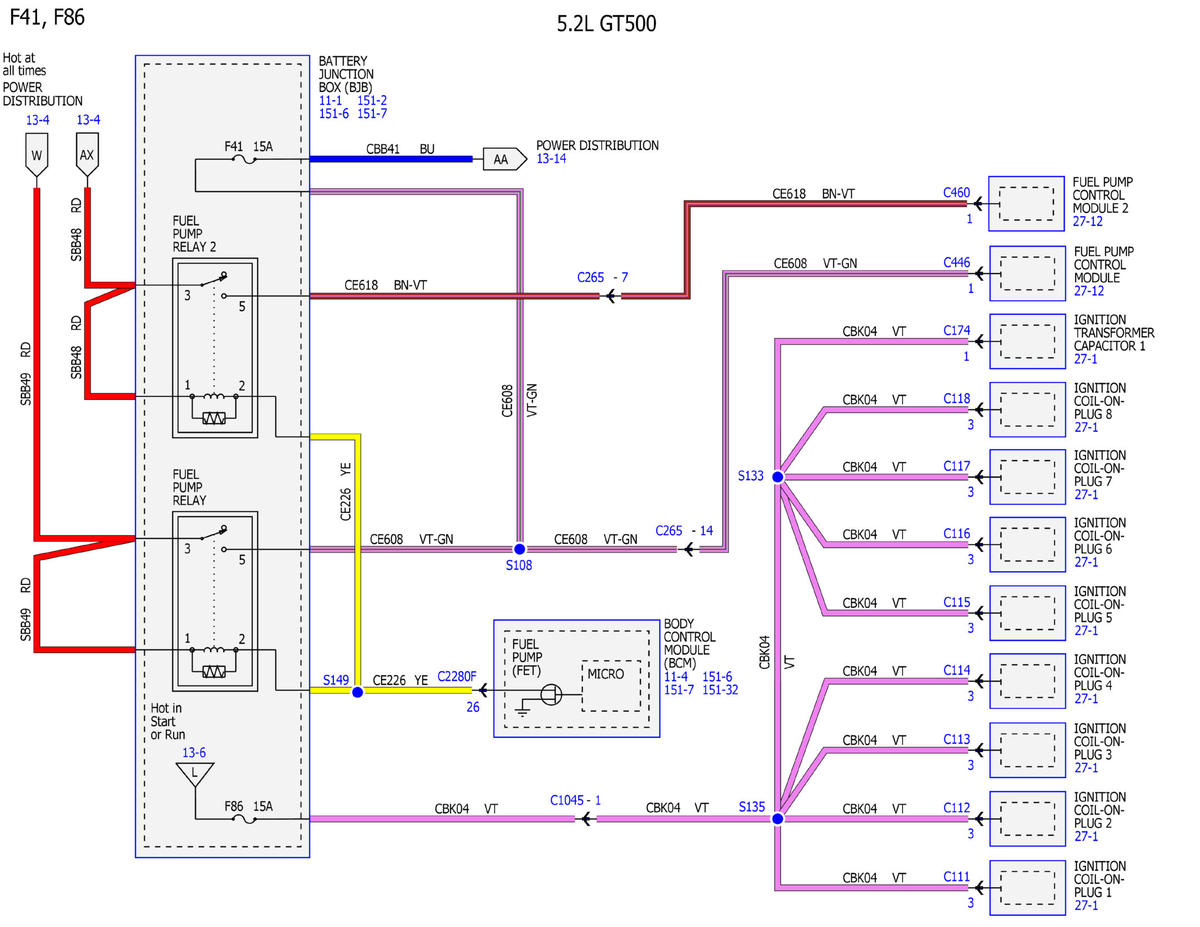

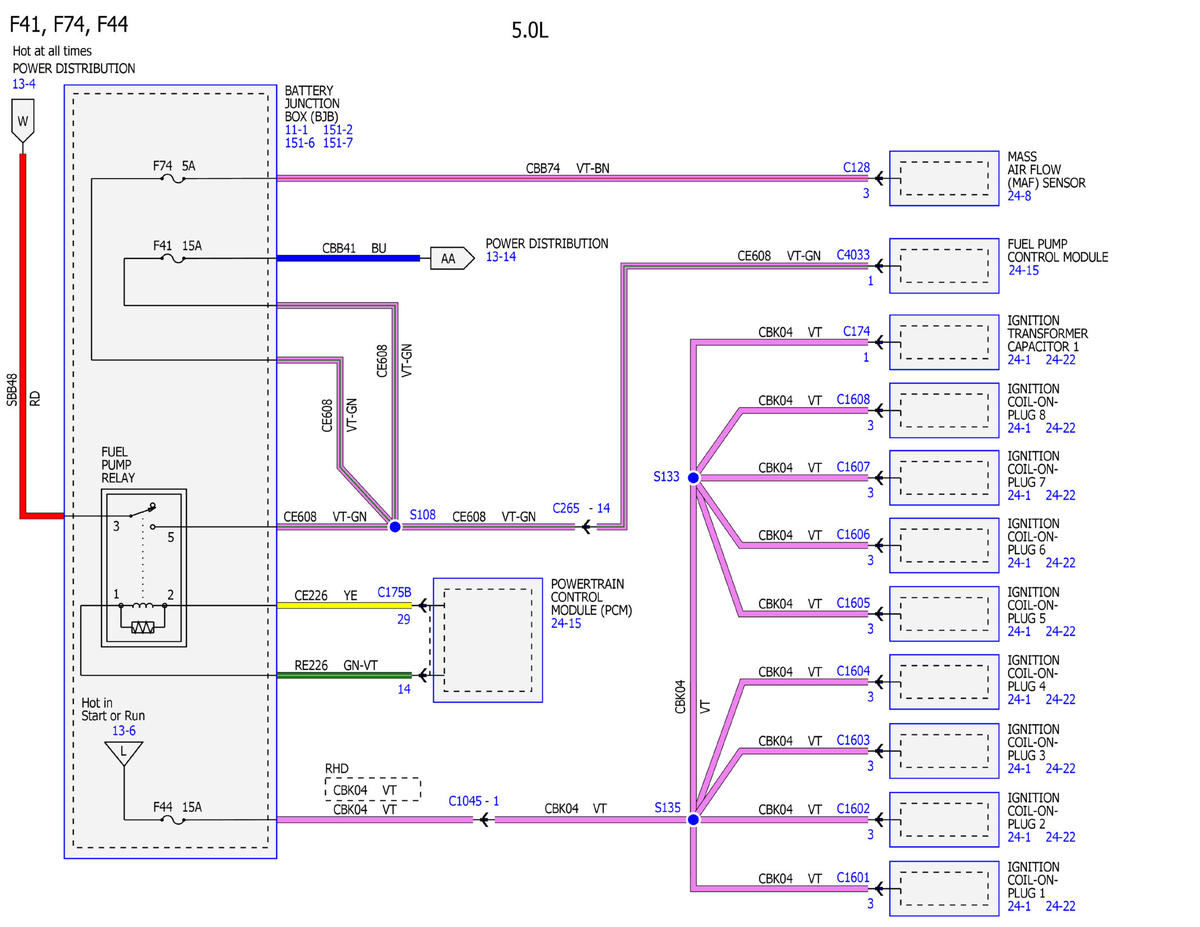

Fig 11: Power Distribution Wiring Diagrams (11 Of 39)

GFDWR141756

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Distribution Wiring Diagrams (12 Of 39)

GFDWR141757

Courtesy of FORD MOTOR COMPANY

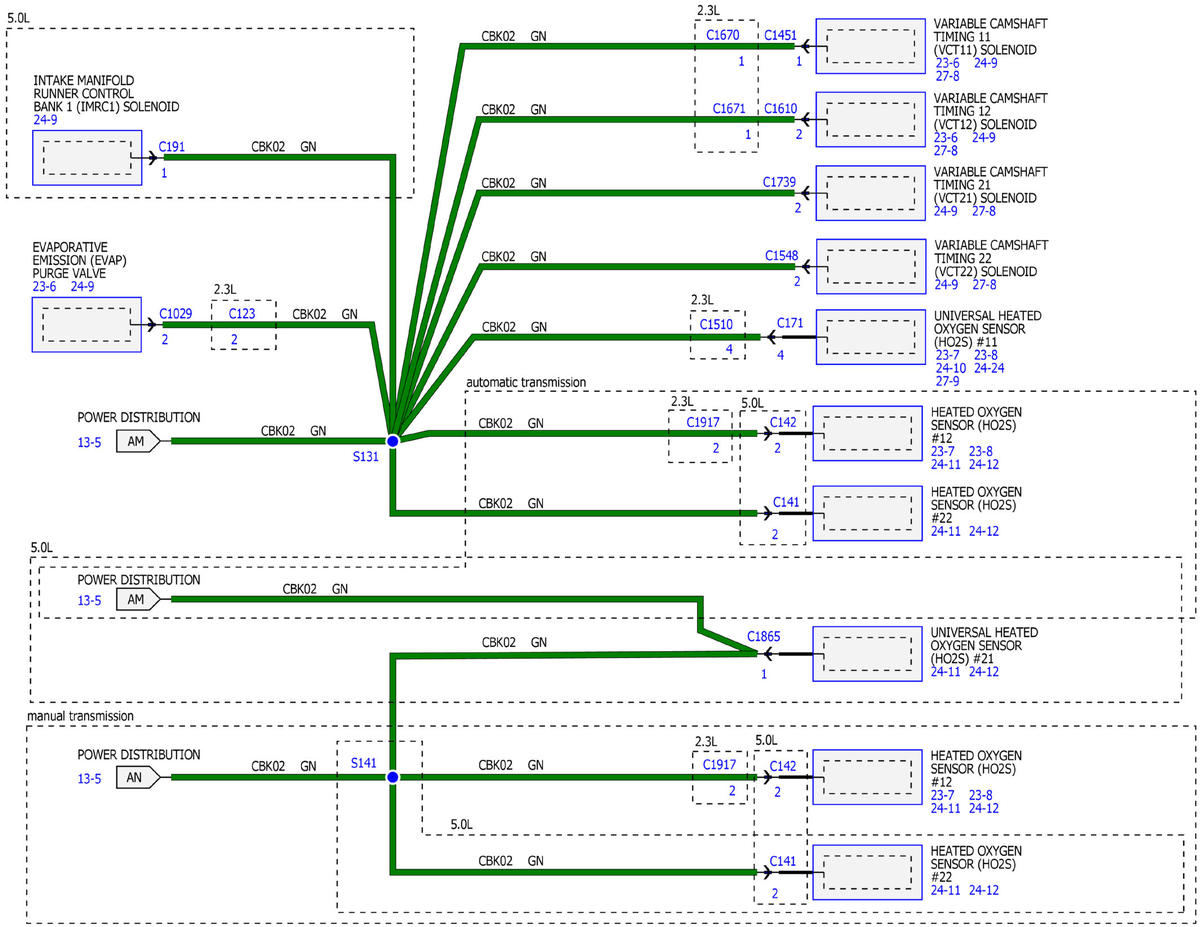

Fig 13: Power Distribution Wiring Diagrams (13 Of 39)

GFDWR141758

Courtesy of FORD MOTOR COMPANY

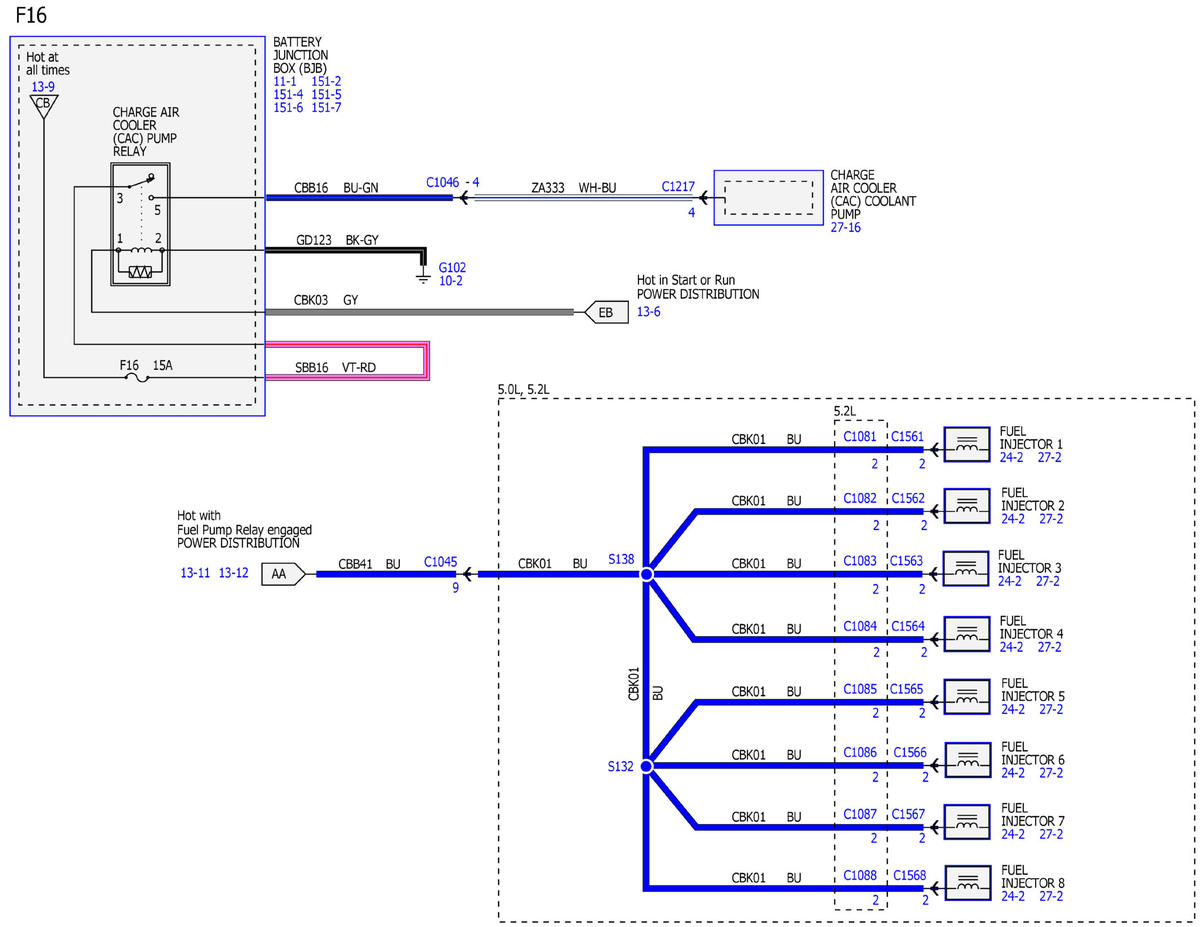

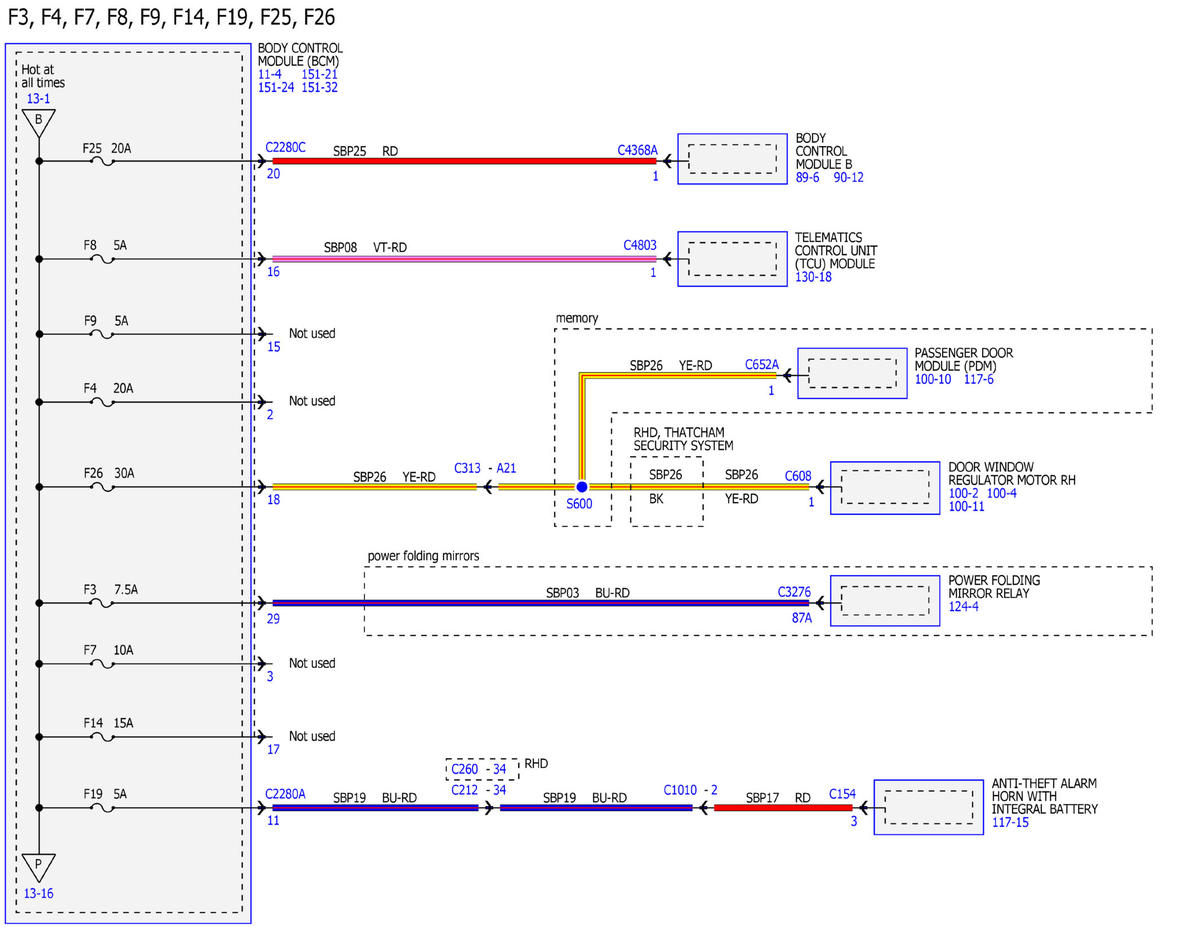

Fig 14: Power Distribution Wiring Diagrams (14 Of 39)

GFDWR141759

Courtesy of FORD MOTOR COMPANY

Fig 15: Power Distribution Wiring Diagrams (15 Of 39)

GFDWR141760

Courtesy of FORD MOTOR COMPANY

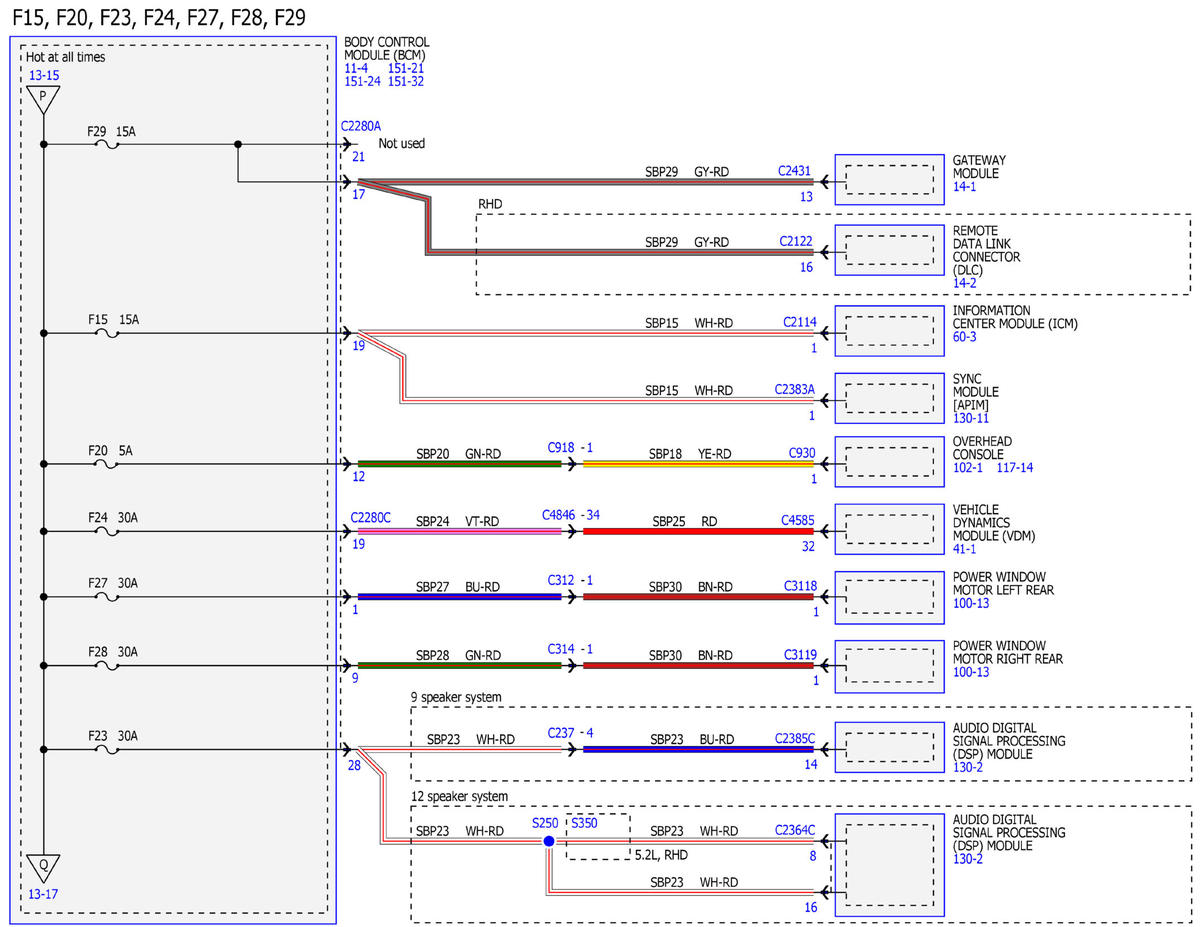

Fig 16: Power Distribution Wiring Diagrams (16 Of 39)

GFDWR141761

Courtesy of FORD MOTOR COMPANY

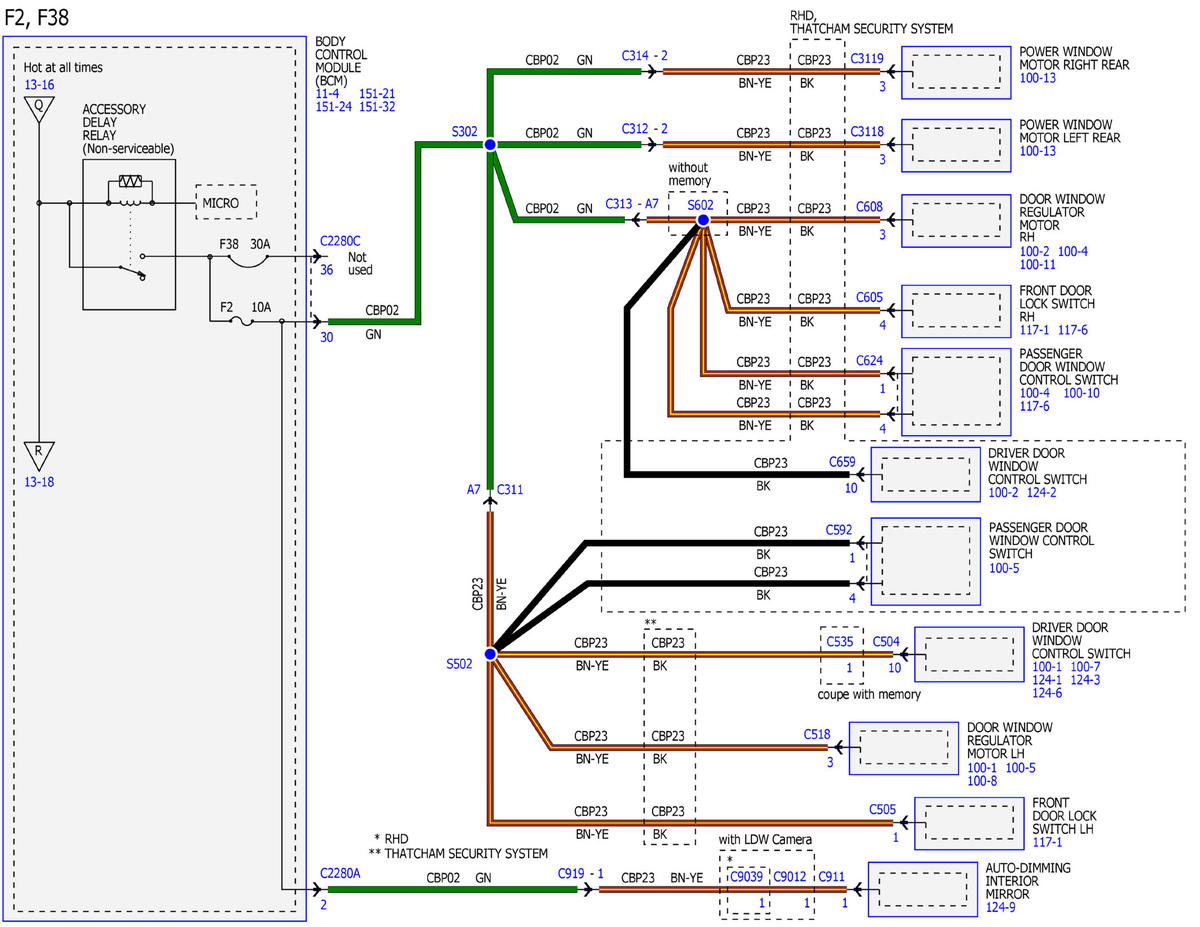

Fig 17: Power Distribution Wiring Diagrams (17 Of 39)

GFDWR141762

Courtesy of FORD MOTOR COMPANY

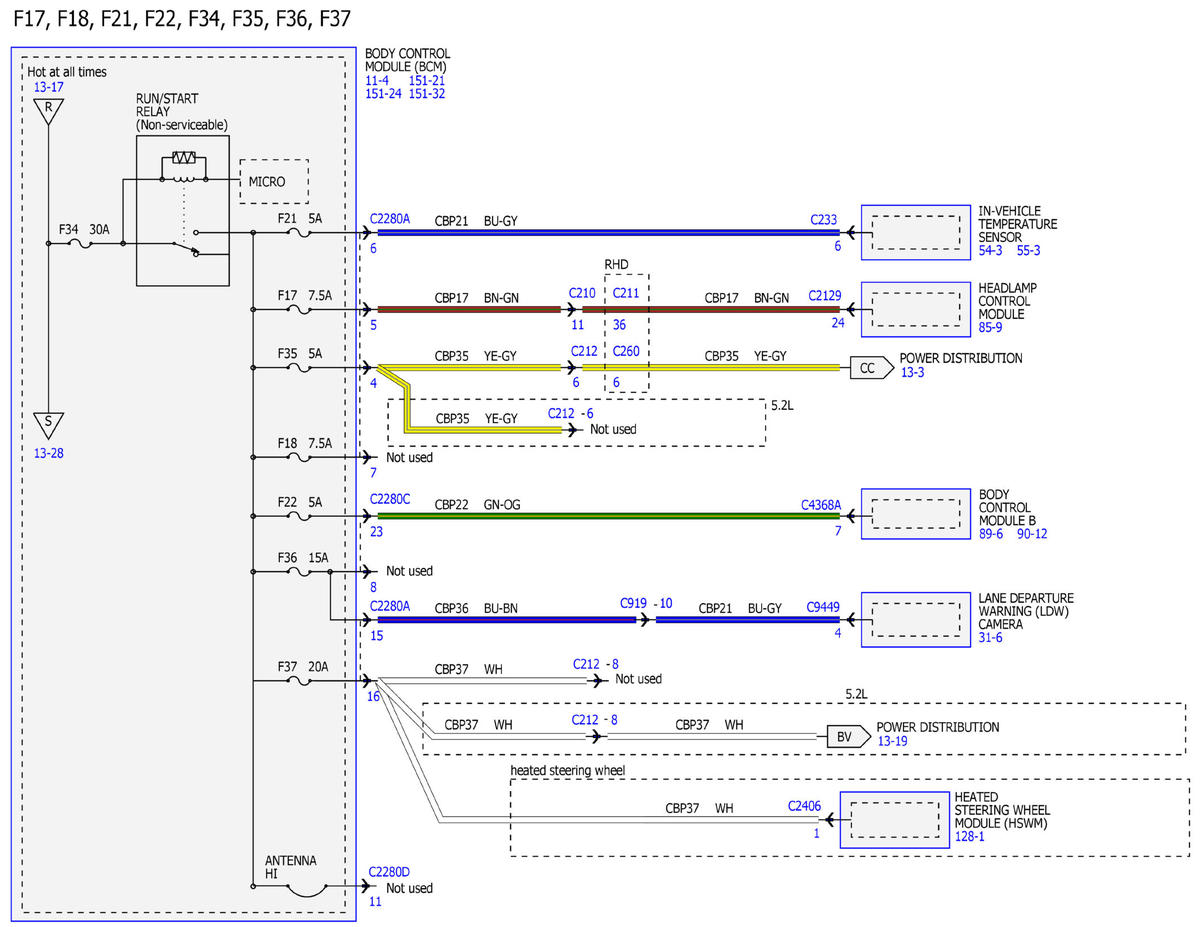

Fig 18: Power Distribution Wiring Diagrams (18 Of 39)

GFDWR141763

Courtesy of FORD MOTOR COMPANY

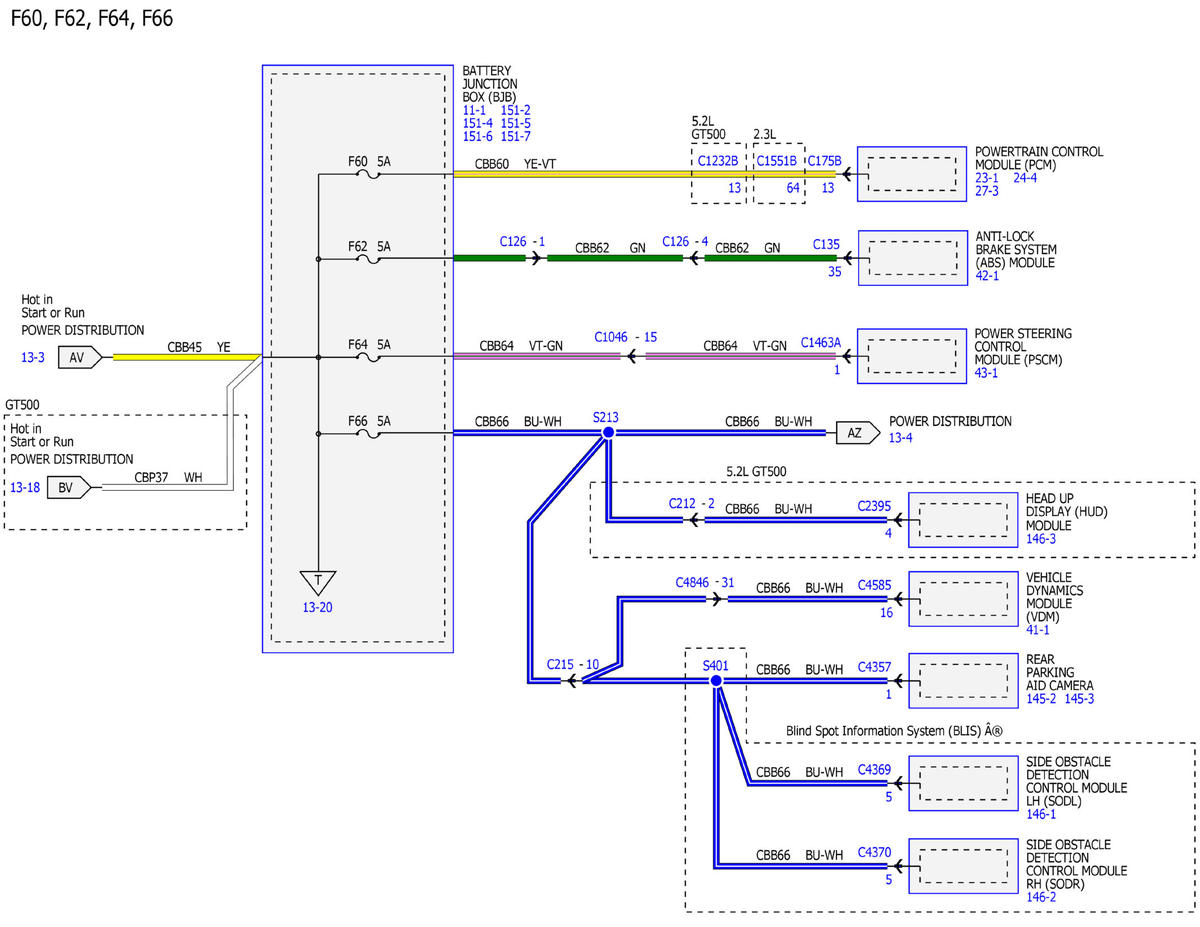

Fig 19: Power Distribution Wiring Diagrams (19 Of 39)

GFDWR141764

Courtesy of FORD MOTOR COMPANY

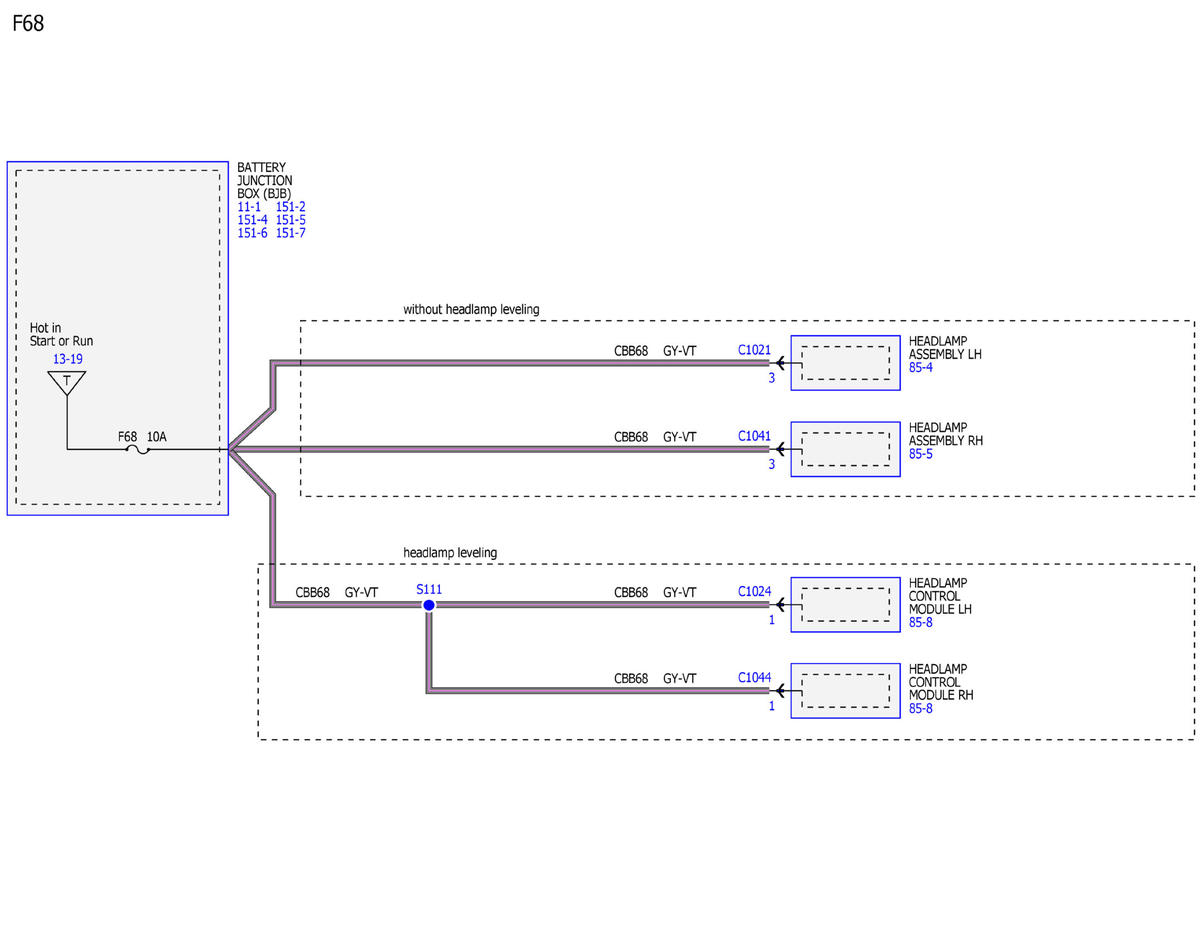

Fig 20: Power Distribution Wiring Diagrams (20 Of 39)

GFDWR141766

Courtesy of FORD MOTOR COMPANY

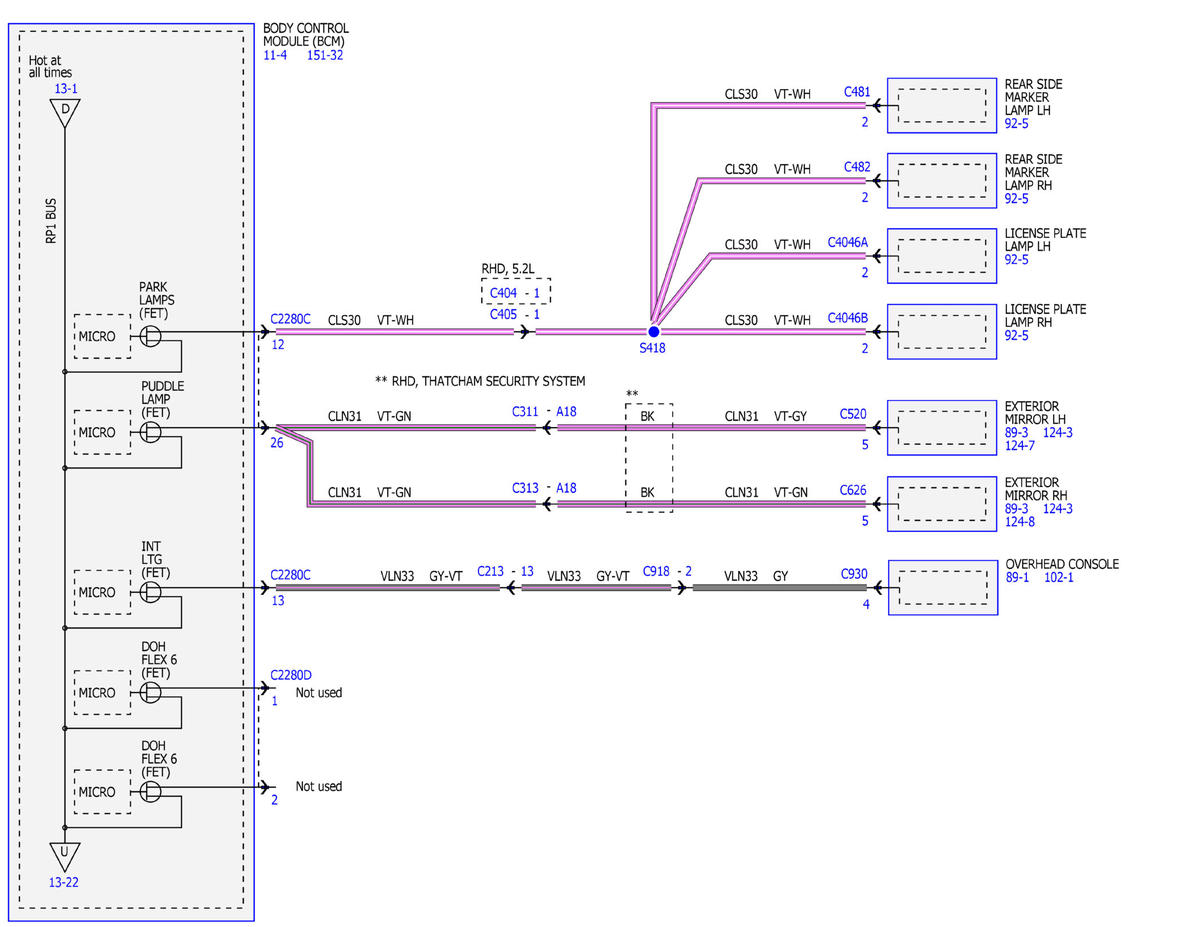

Fig 21: Power Distribution Wiring Diagrams (21 Of 39)

GFDWR141767

Courtesy of FORD MOTOR COMPANY

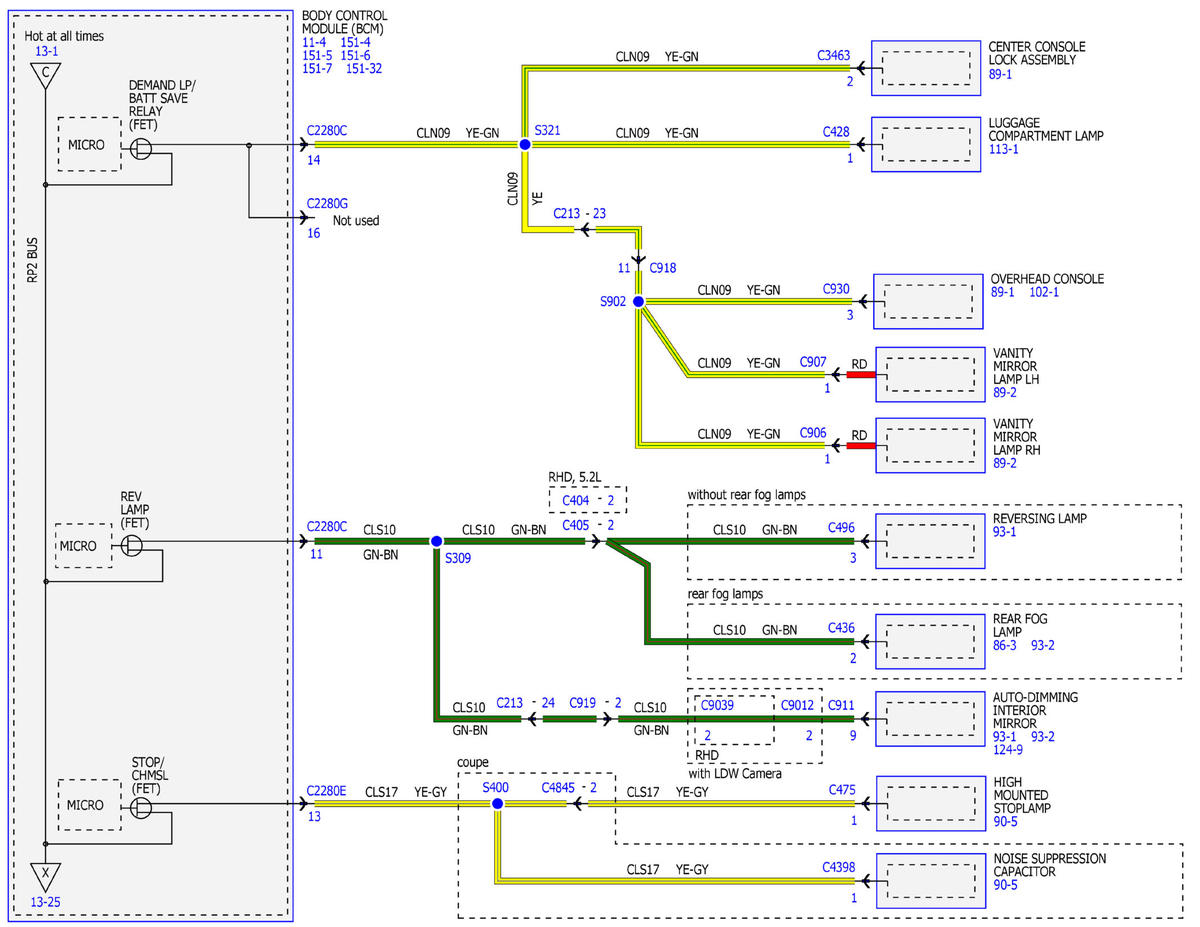

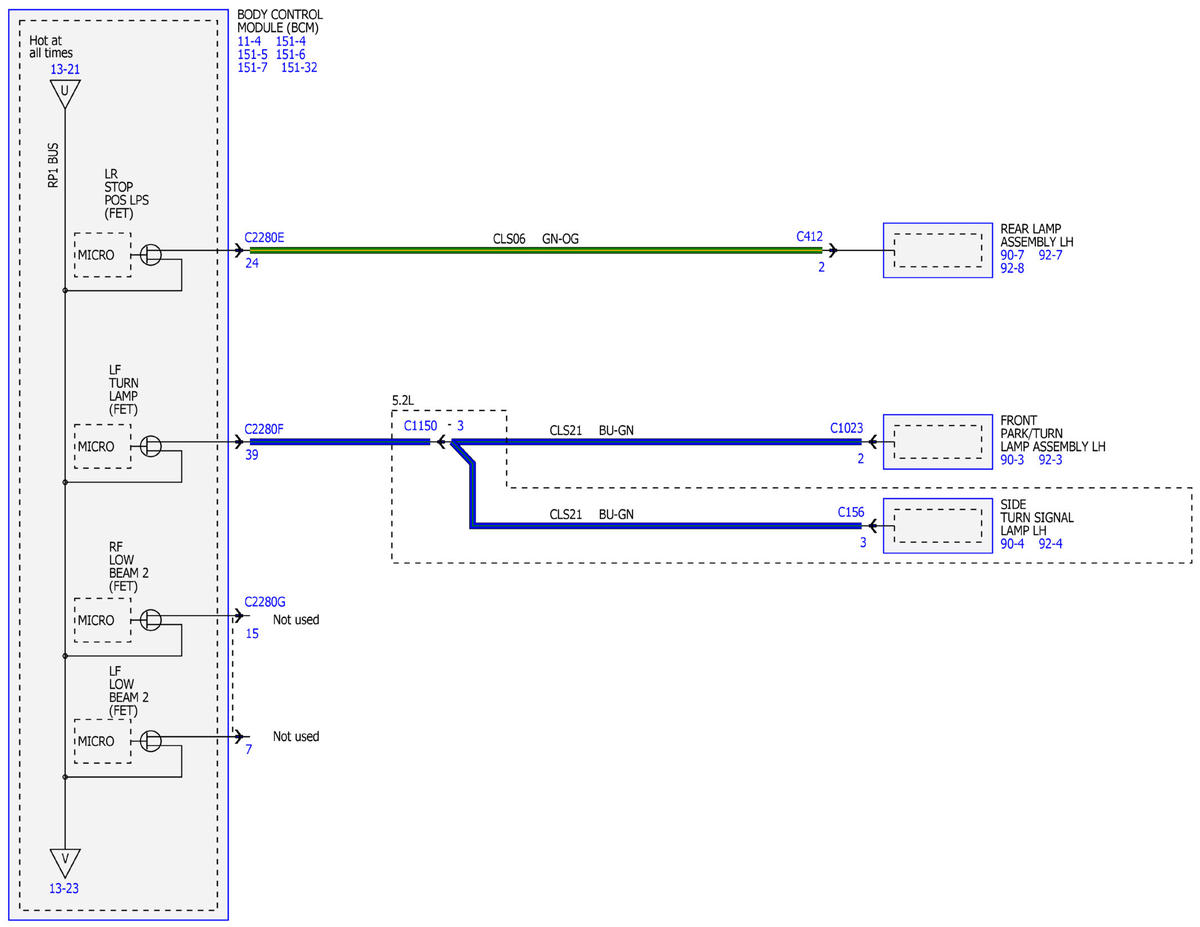

Fig 22: Power Distribution Wiring Diagrams (22 Of 39)

GFDWR141768

Courtesy of FORD MOTOR COMPANY

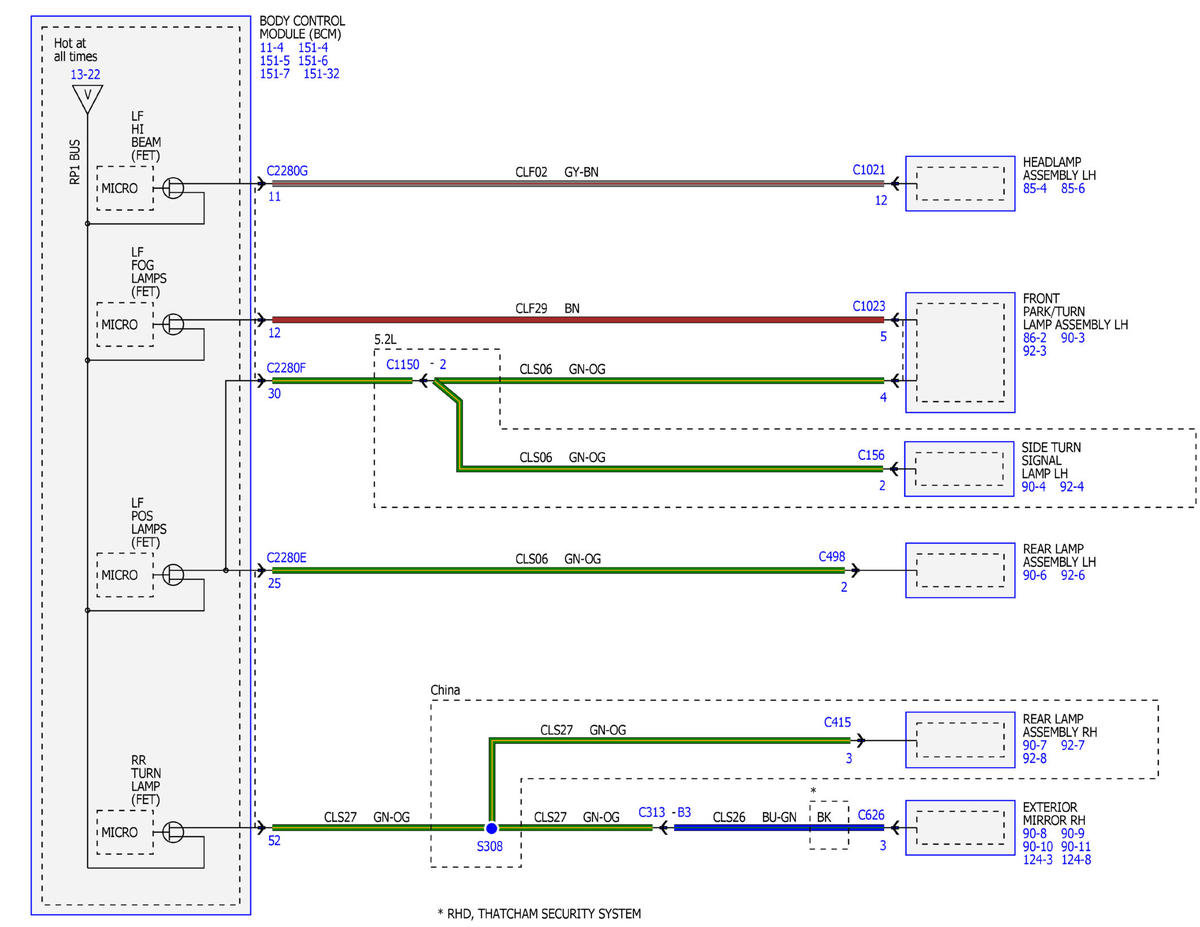

Fig 23: Power Distribution Wiring Diagrams (23 Of 39)

GFDWR141769

Courtesy of FORD MOTOR COMPANY

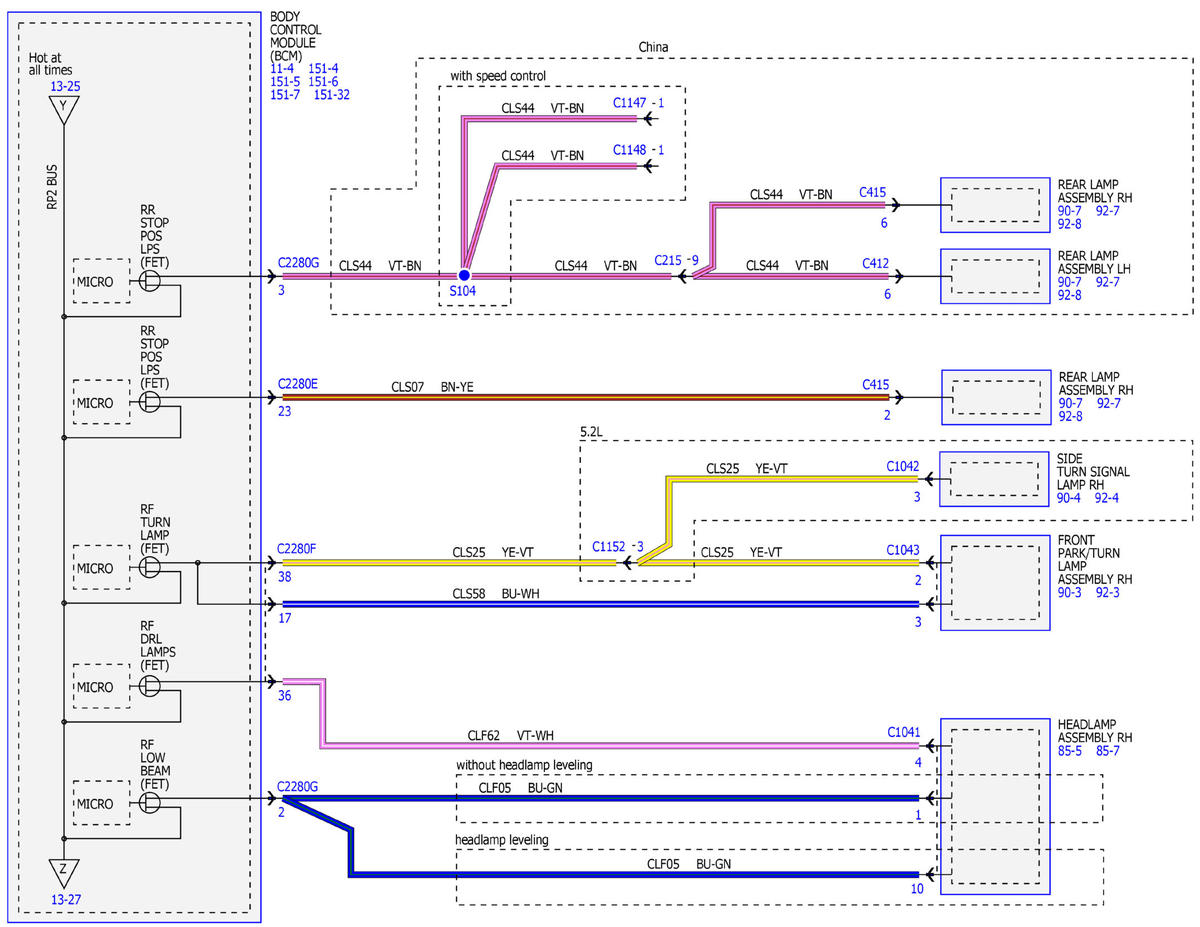

Fig 24: Power Distribution Wiring Diagrams (24 Of 39)

GFDWR141770

Courtesy of FORD MOTOR COMPANY

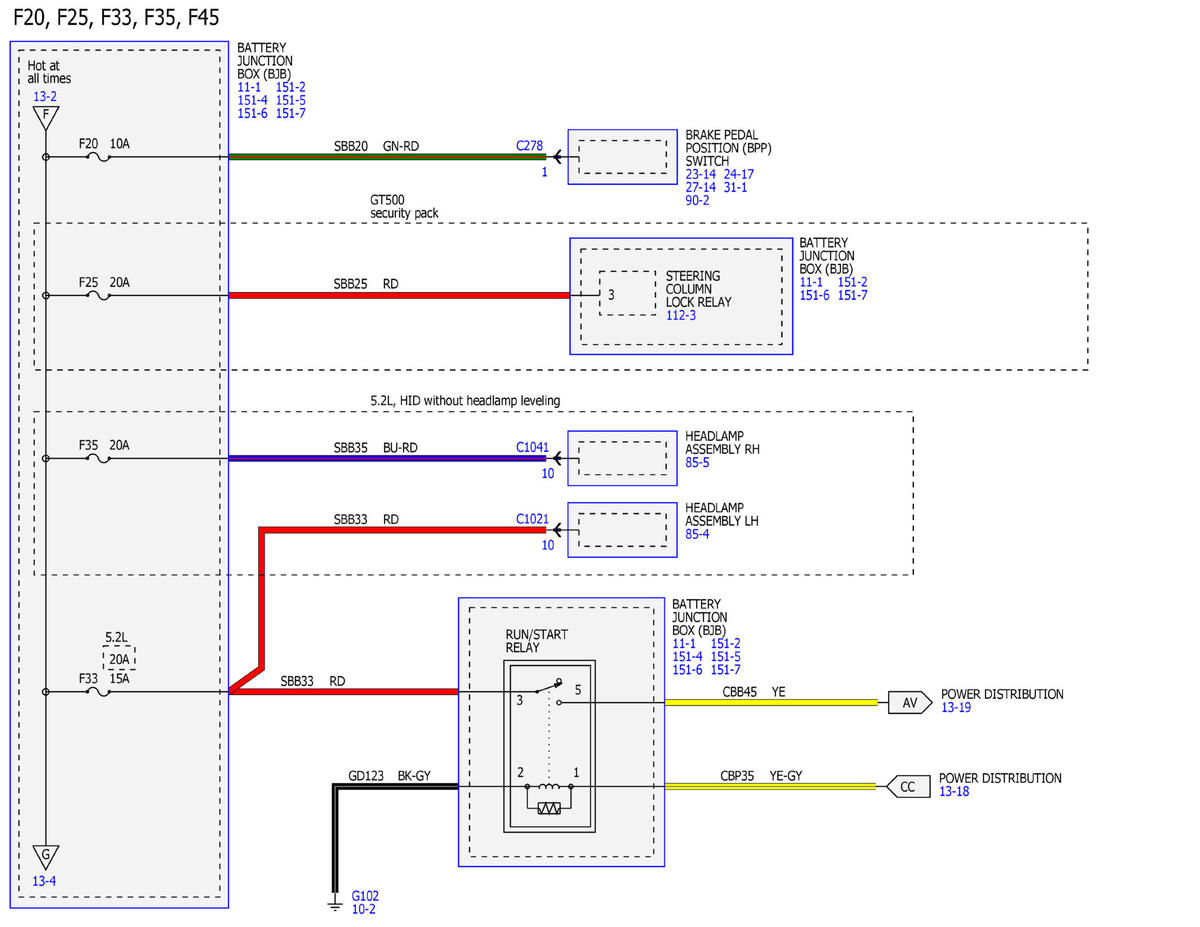

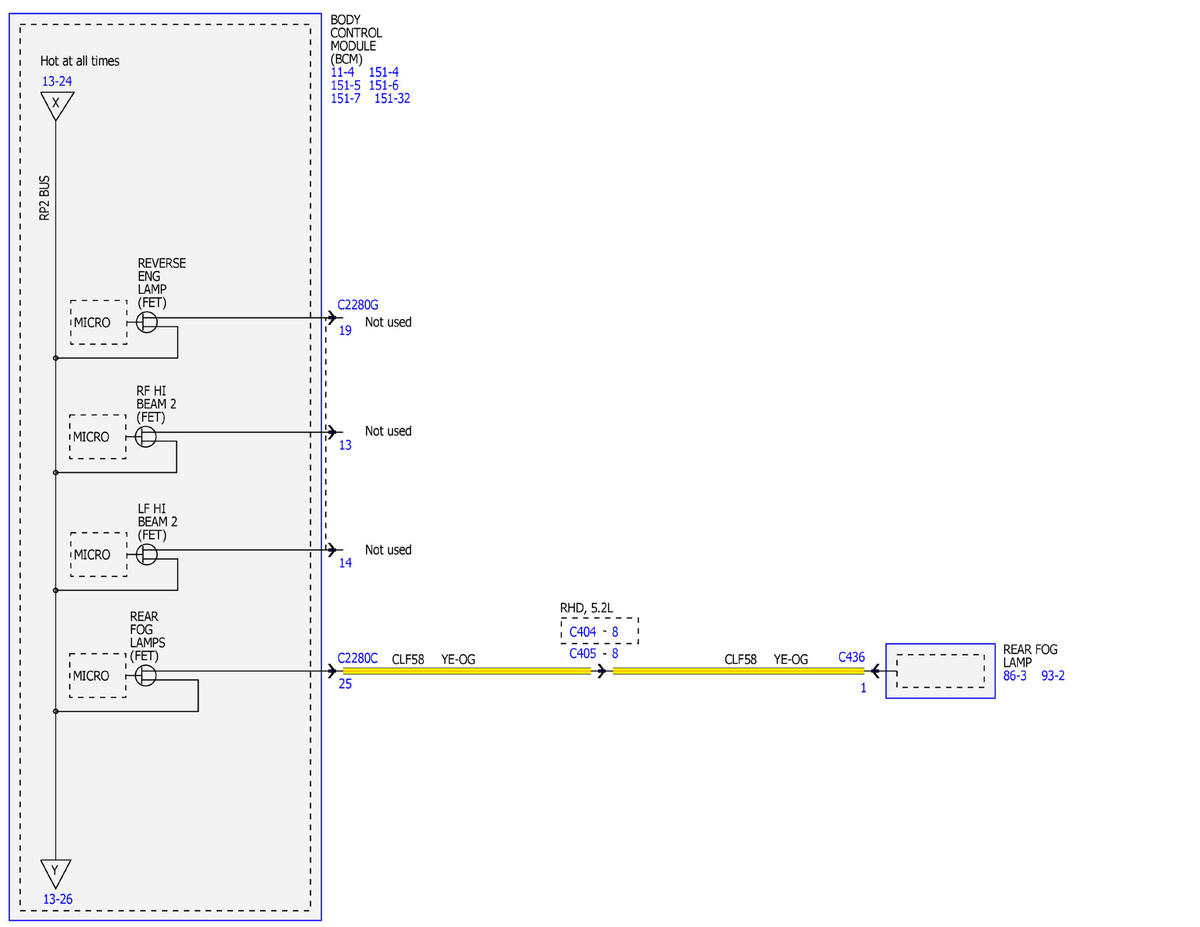

Fig 25: Power Distribution Wiring Diagrams (25 Of 39)

GFDWR141771

Courtesy of FORD MOTOR COMPANY

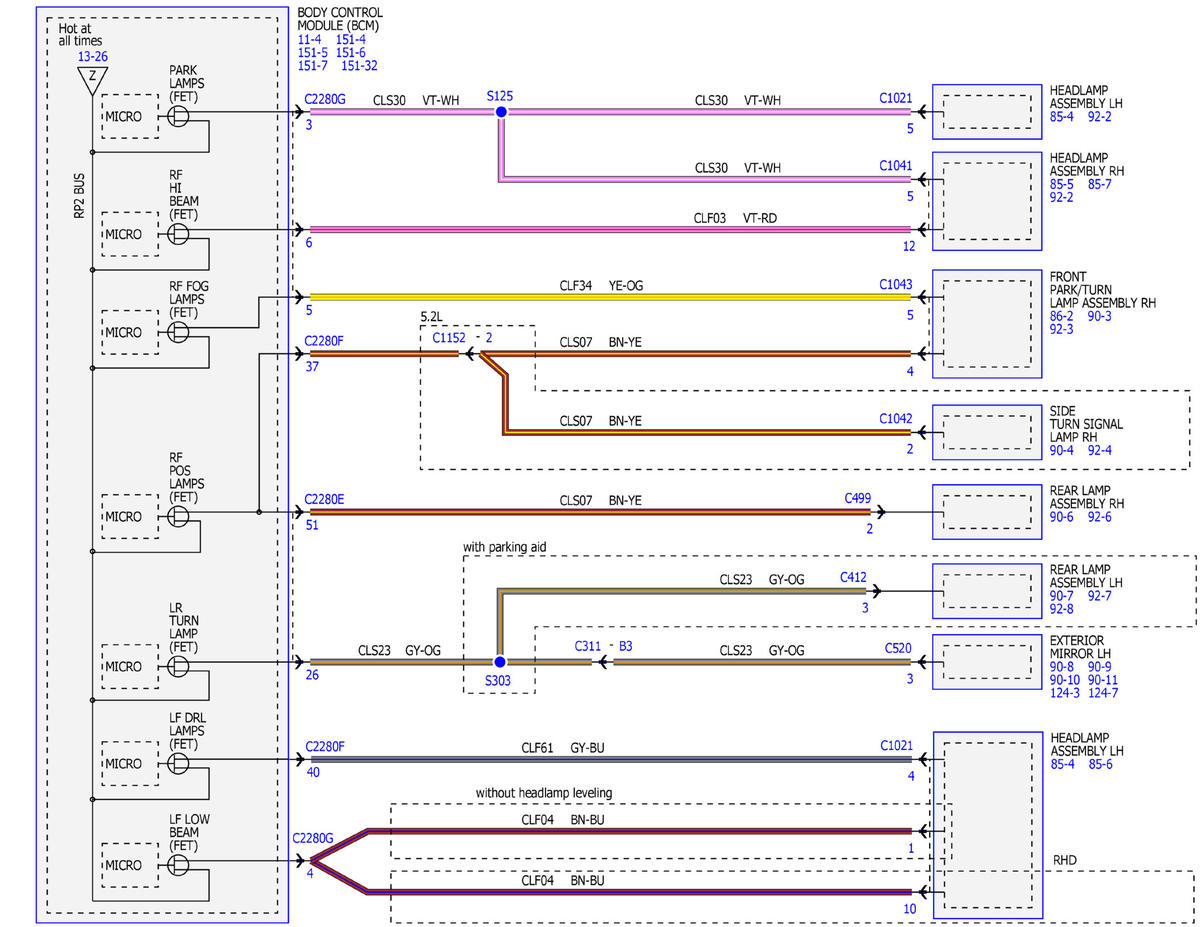

Fig 26: Power Distribution Wiring Diagrams (26 Of 39)

GFDWR141772

Courtesy of FORD MOTOR COMPANY

Fig 27: Power Distribution Wiring Diagrams (27 Of 39)

GFDWR141773

Courtesy of FORD MOTOR COMPANY

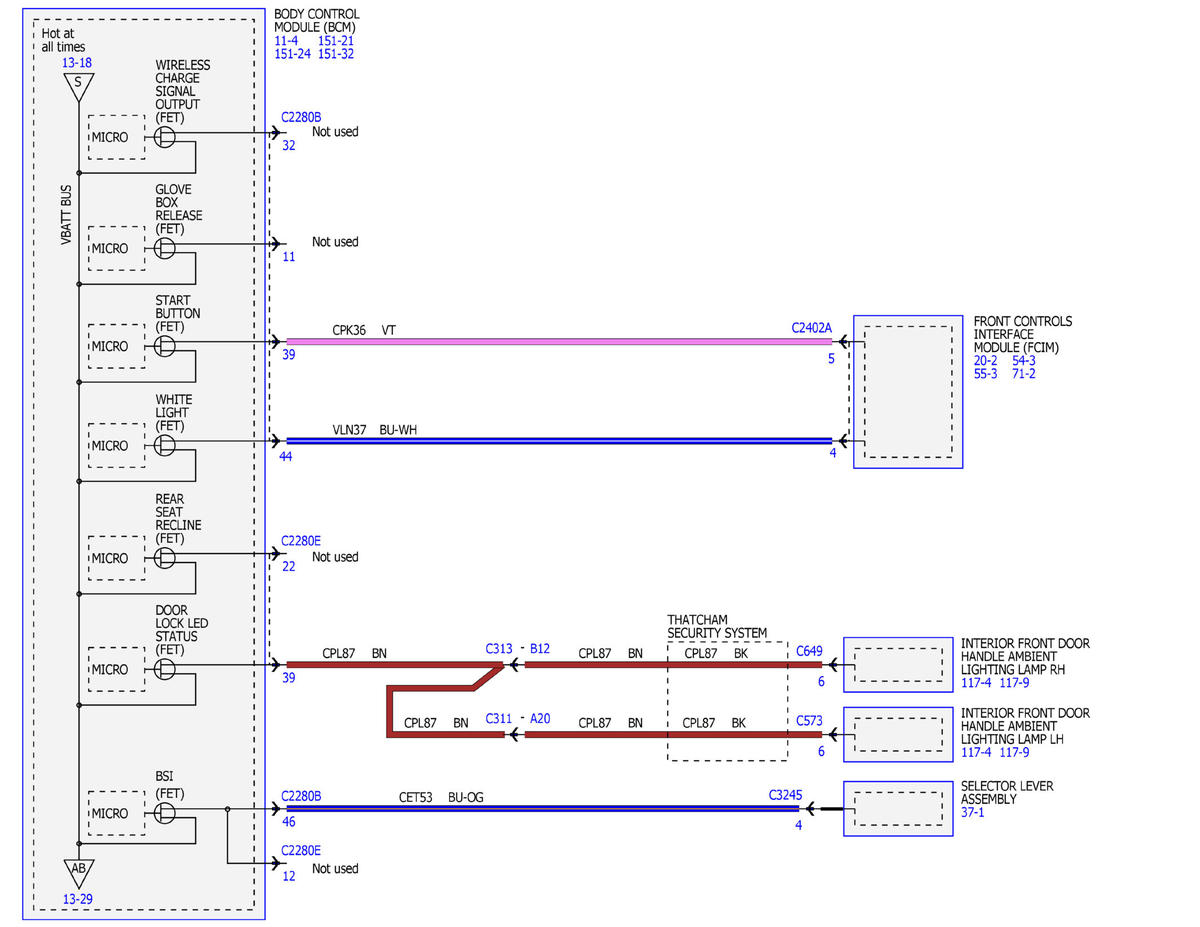

Fig 28: Power Distribution Wiring Diagrams (28 Of 39)

GFDWR141774

Courtesy of FORD MOTOR COMPANY

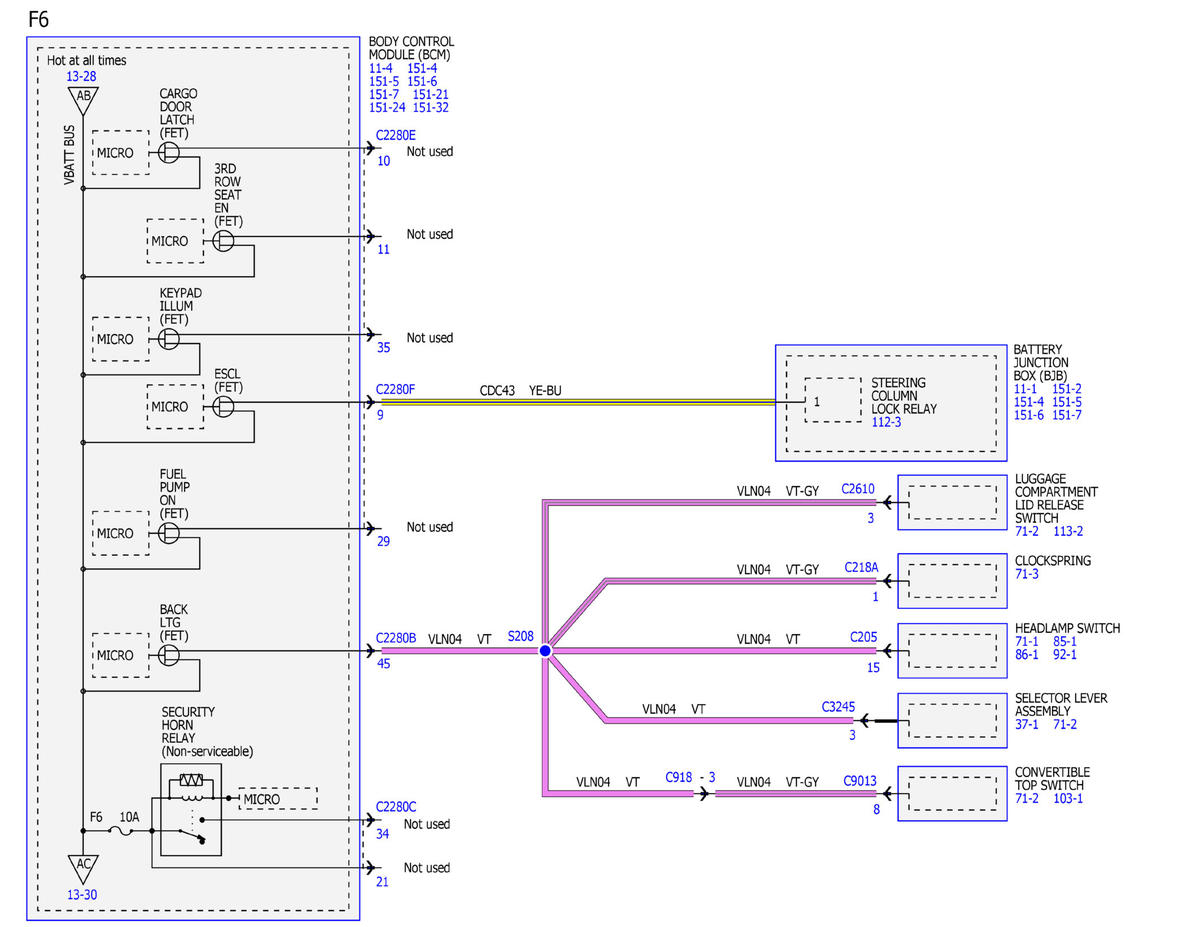

Fig 29: Power Distribution Wiring Diagrams (29 Of 39)

GFDWR141775

Courtesy of FORD MOTOR COMPANY

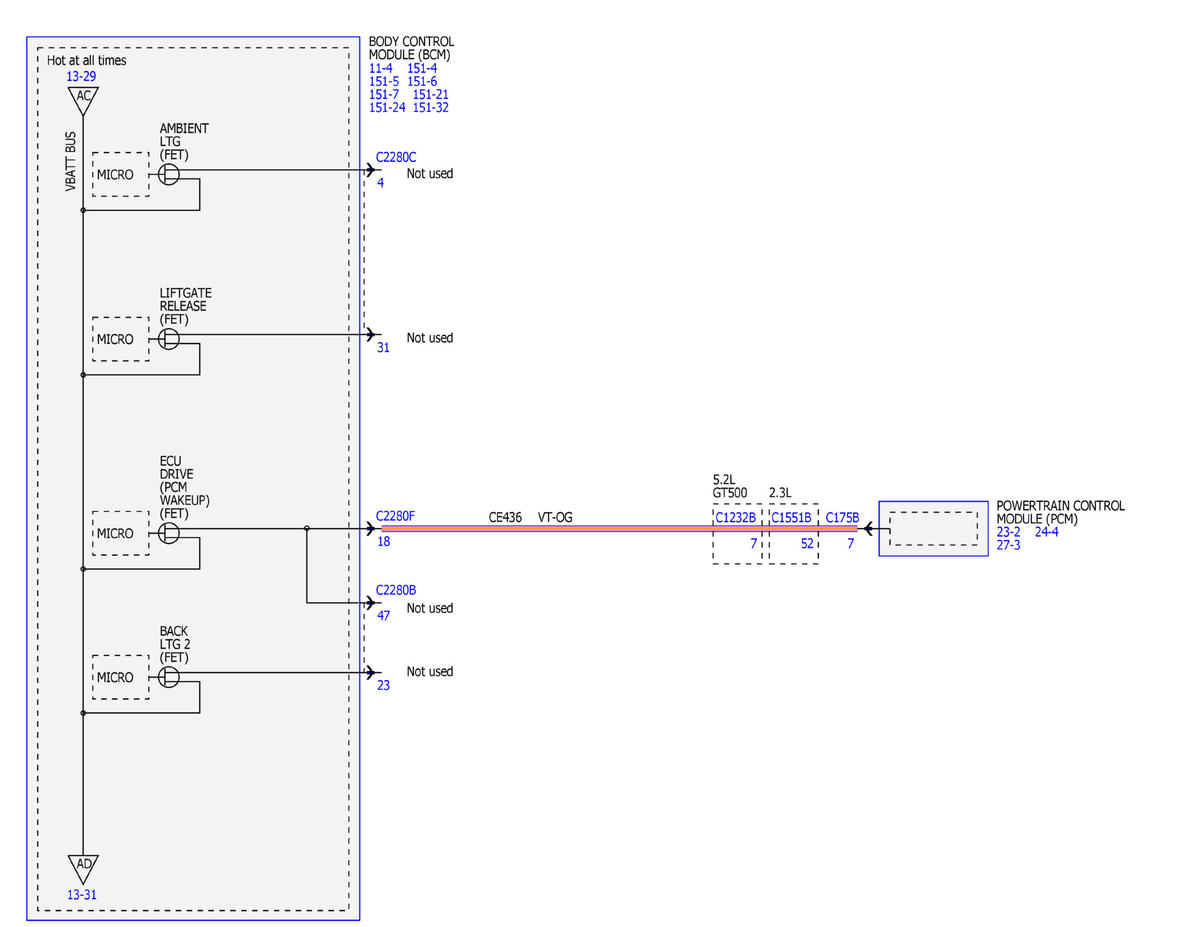

Fig 30: Power Distribution Wiring Diagrams (30 Of 39)

GFDWR141777

Courtesy of FORD MOTOR COMPANY

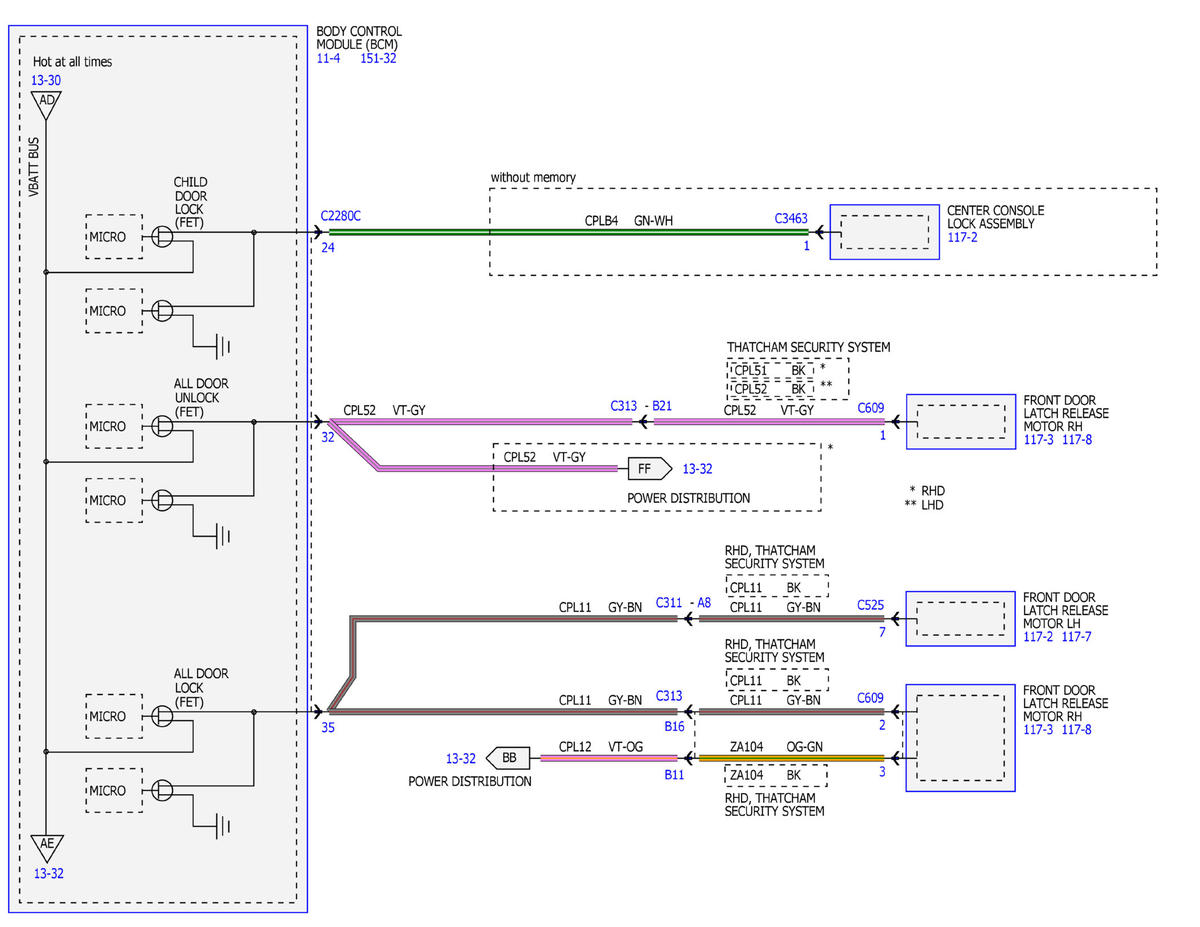

Fig 31: Power Distribution Wiring Diagrams (31 Of 39)

GFDWR141778

Courtesy of FORD MOTOR COMPANY

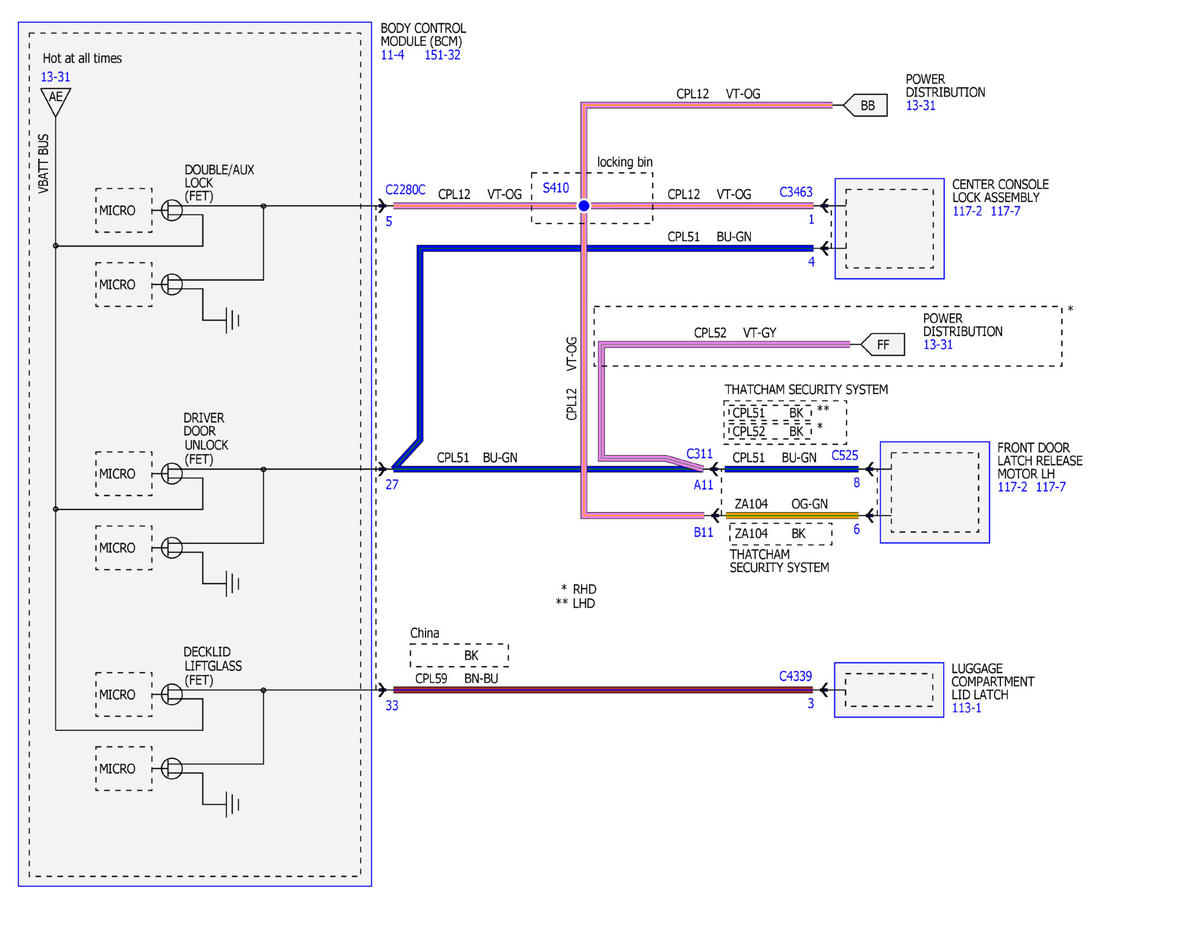

Fig 32: Power Distribution Wiring Diagrams (32 Of 39)

GFDWR141779

Courtesy of FORD MOTOR COMPANY

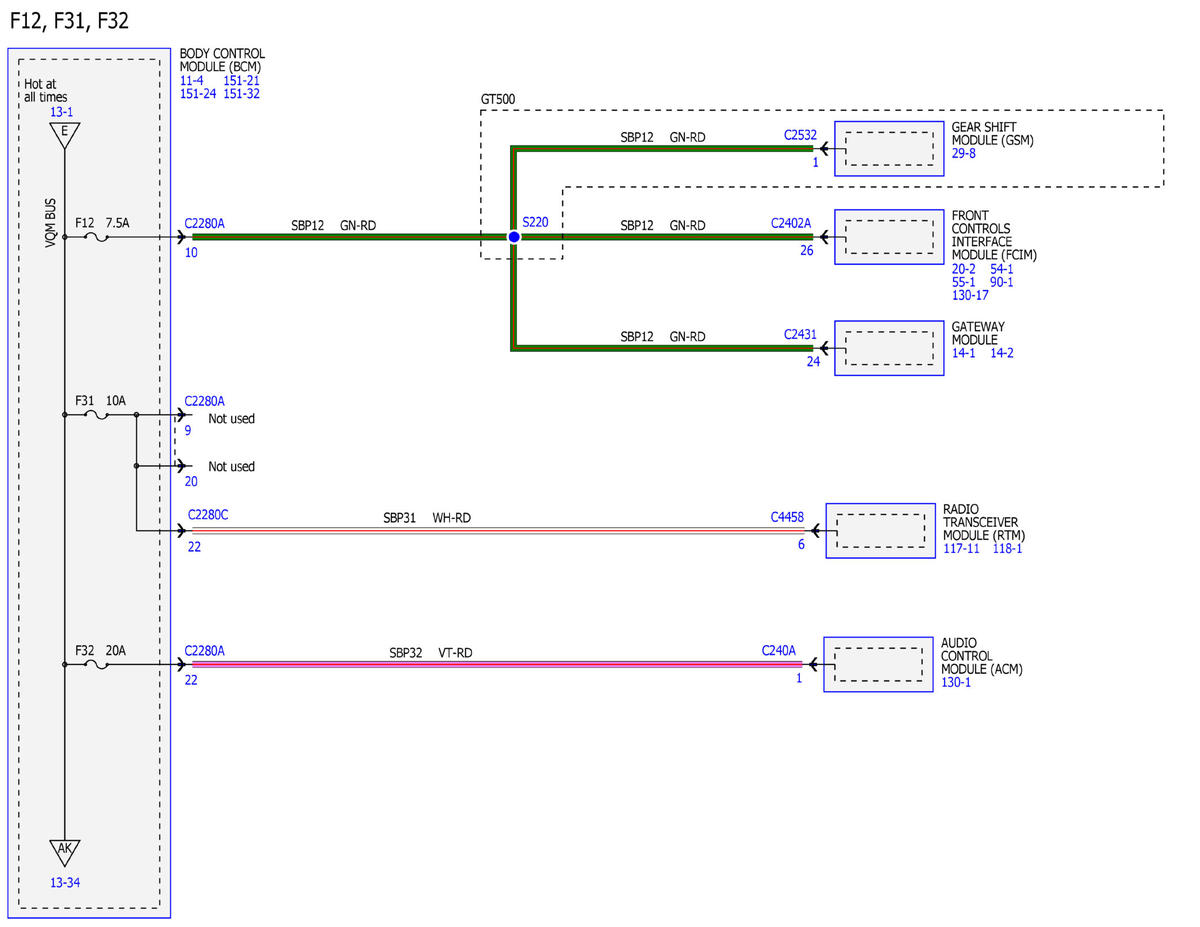

Fig 33: Power Distribution Wiring Diagrams (33 Of 39)

GFDWR141780

Courtesy of FORD MOTOR COMPANY

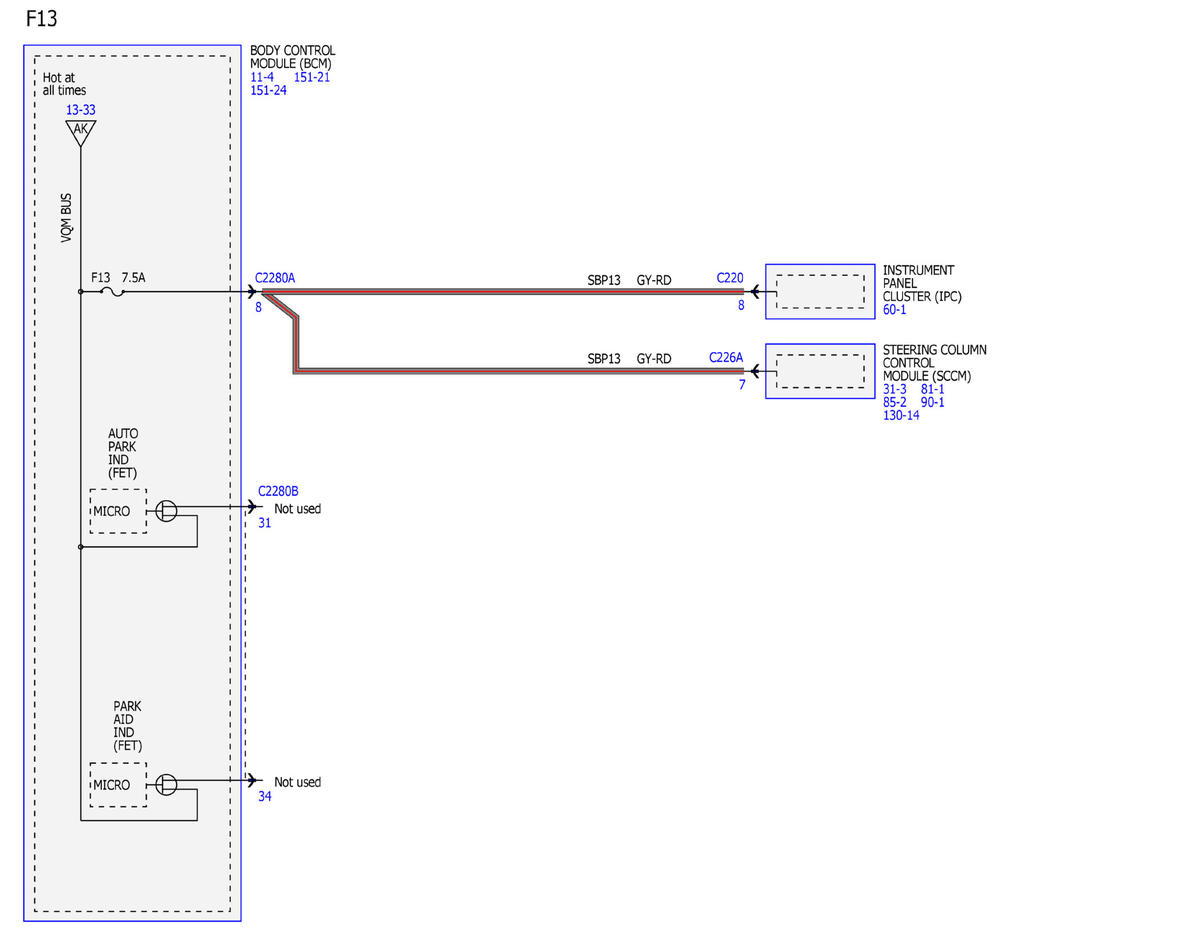

Fig 34: Power Distribution Wiring Diagrams (34 Of 39)

GFDWR141781

Courtesy of FORD MOTOR COMPANY

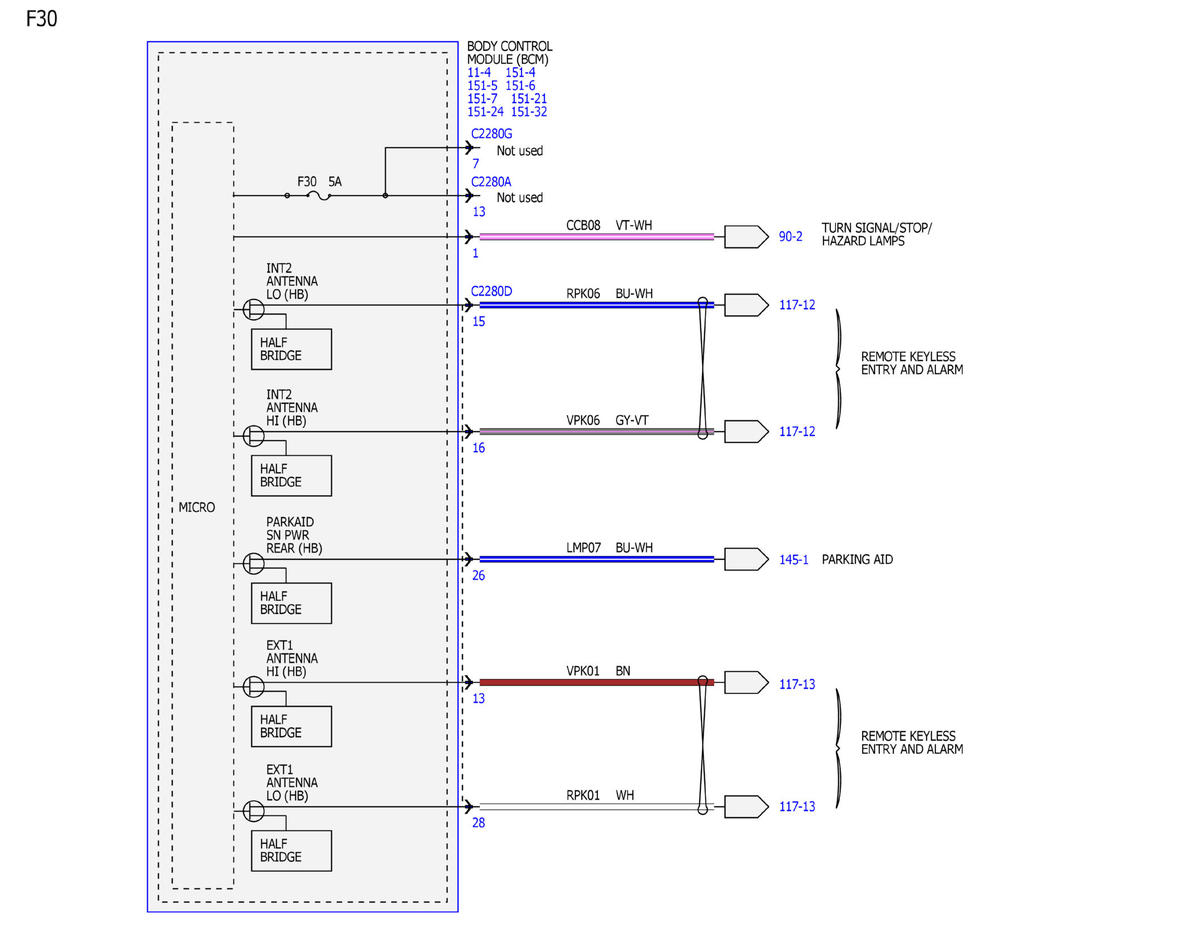

Fig 35: Power Distribution Wiring Diagrams (35 Of 39)

GFDWR141782

Courtesy of FORD MOTOR COMPANY

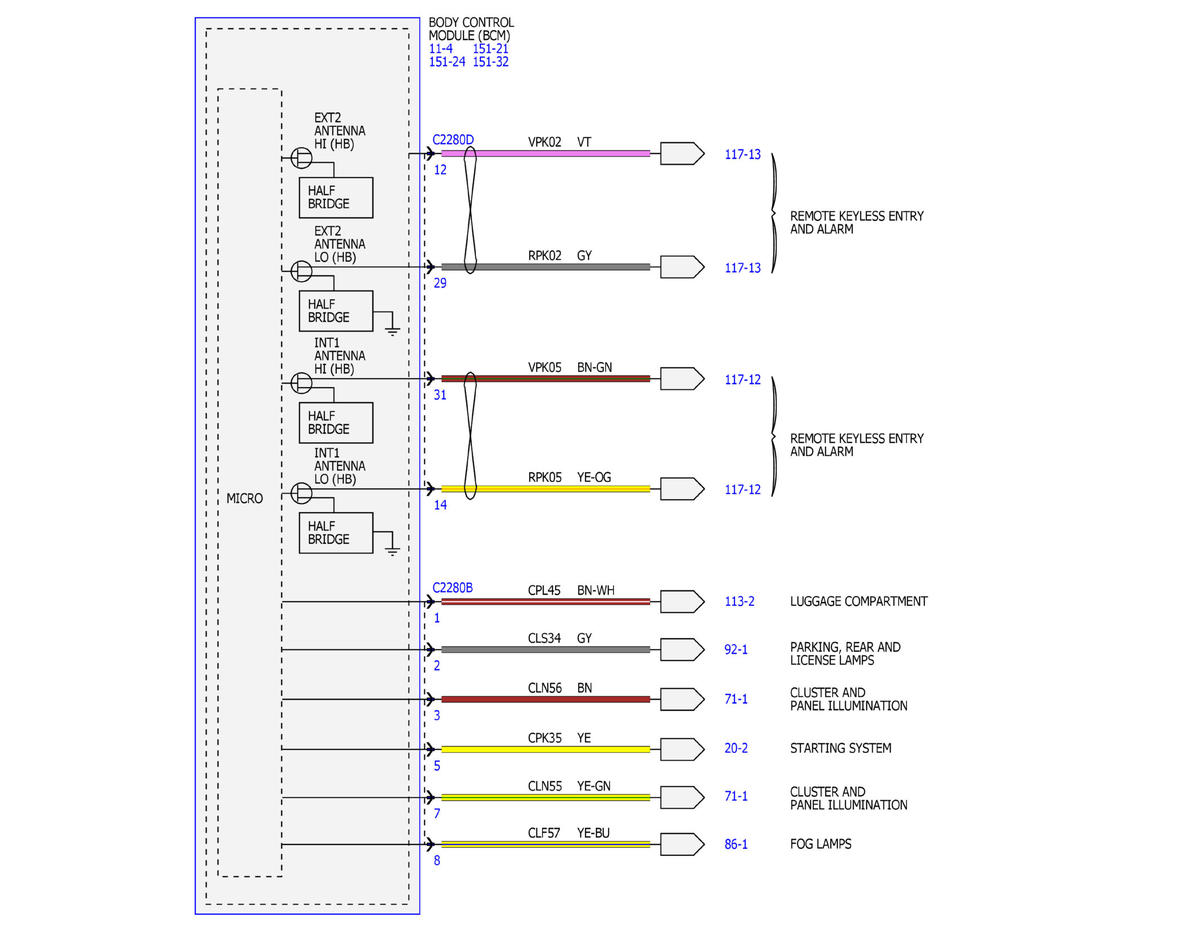

Fig 36: Power Distribution Wiring Diagrams (36 Of 39)

GFDWR141783

Courtesy of FORD MOTOR COMPANY

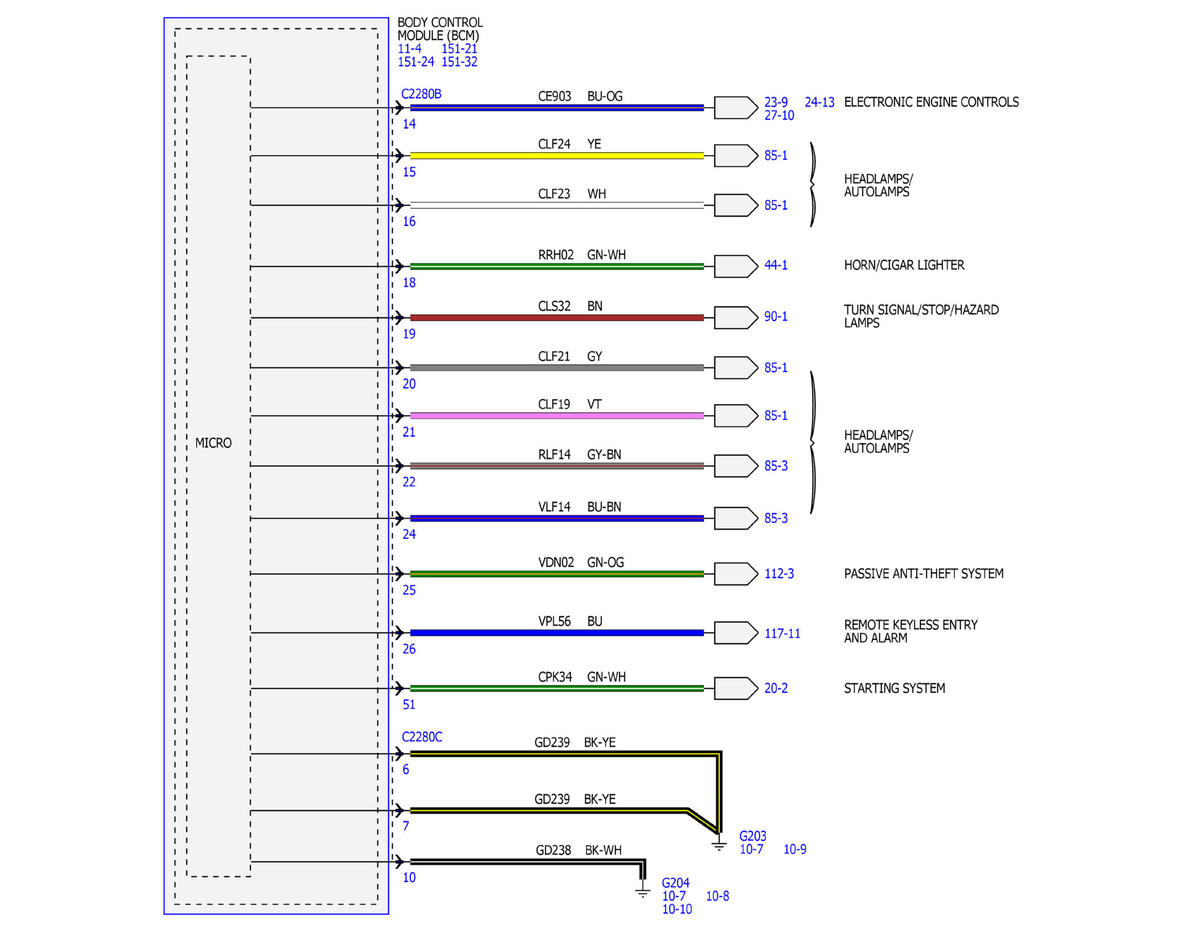

Fig 37: Power Distribution Wiring Diagrams (37 Of 39)

GFDWR141784

Courtesy of FORD MOTOR COMPANY

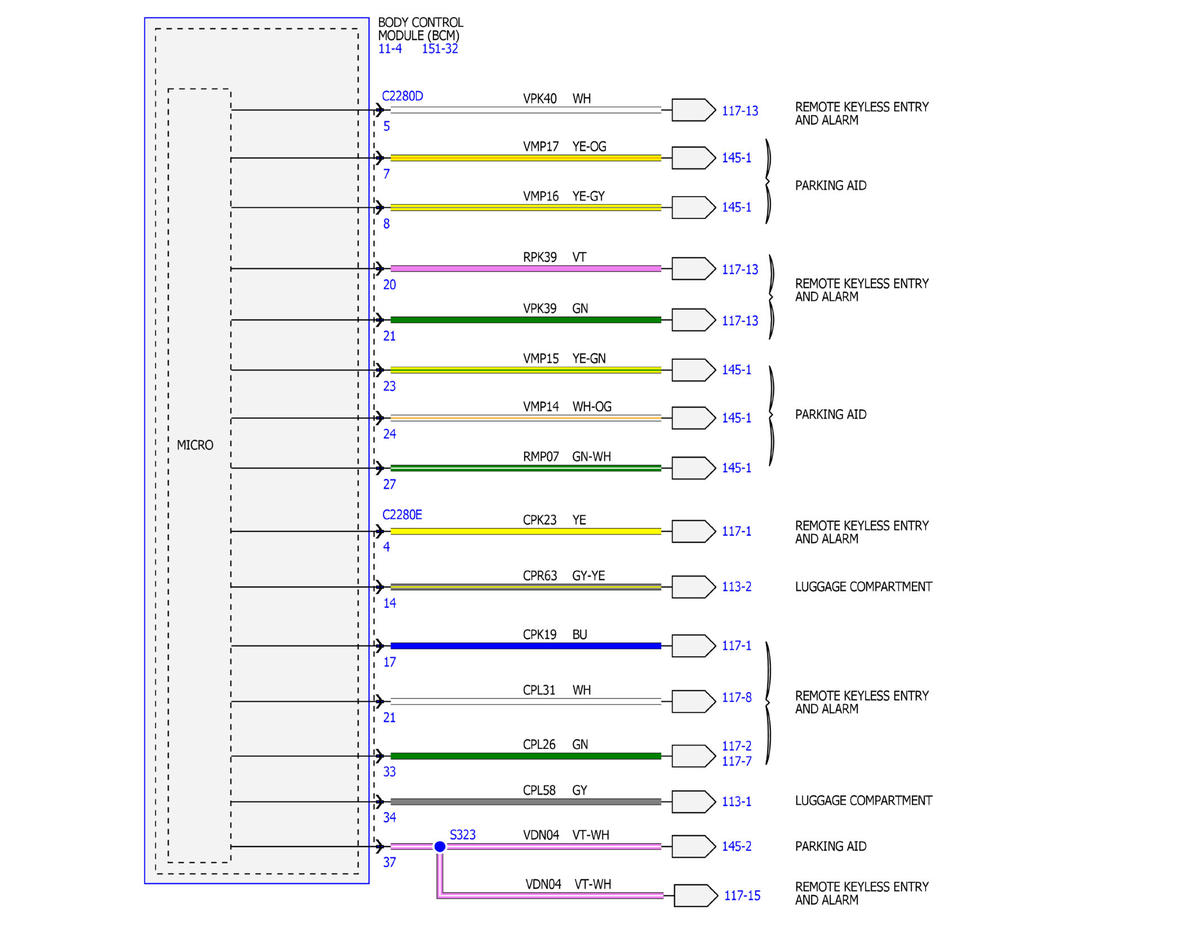

Fig 38: Power Distribution Wiring Diagrams (38 Of 39)

GFDWR141785

Courtesy of FORD MOTOR COMPANY

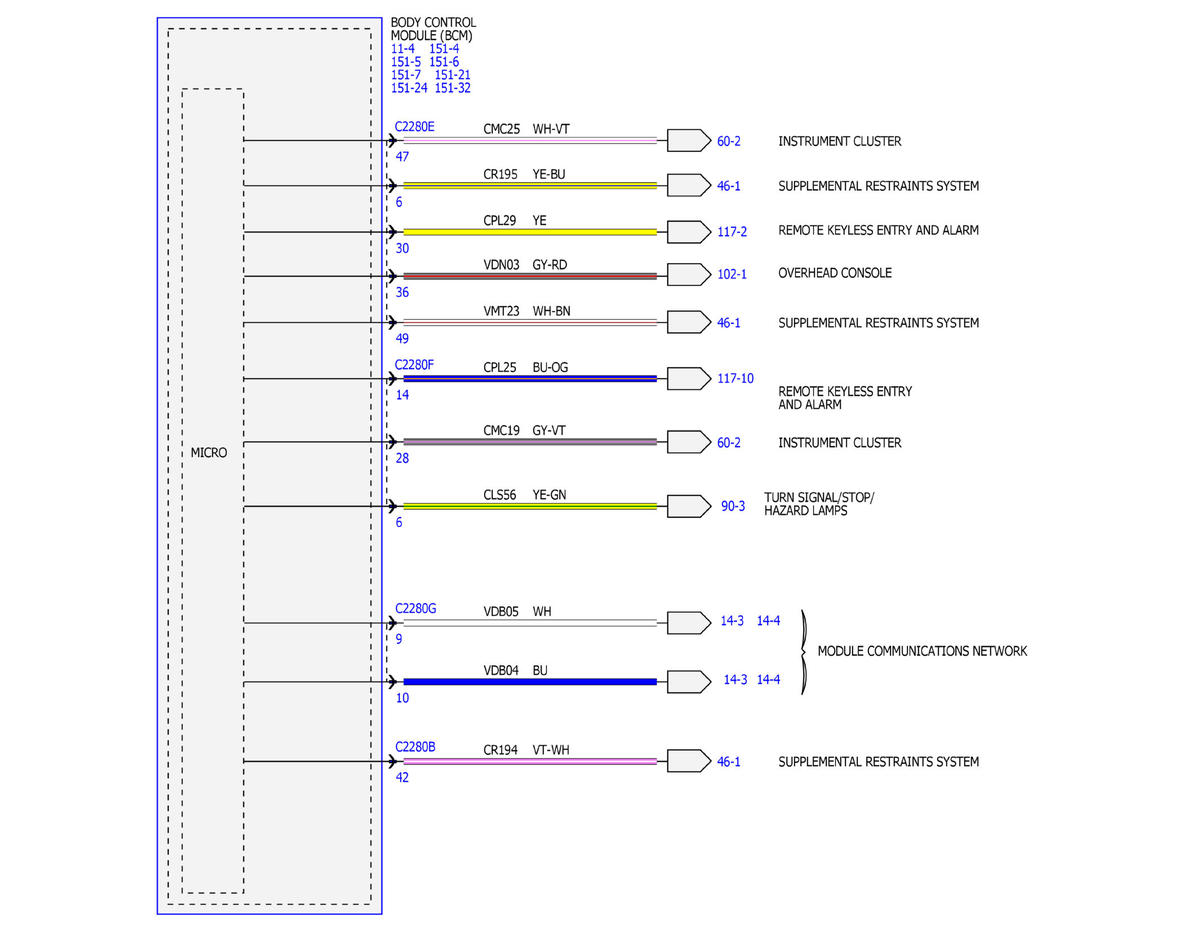

Fig 39: Power Distribution Wiring Diagrams (39 Of 39)

GFDWR141786

Courtesy of FORD MOTOR COMPANY
