Ignition Coil-On-Plug: Installation

  1. Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.
    GFD602247Courtesy of FORD MOTOR COMPANY
  2. NOTE: The bolts are to be reused.

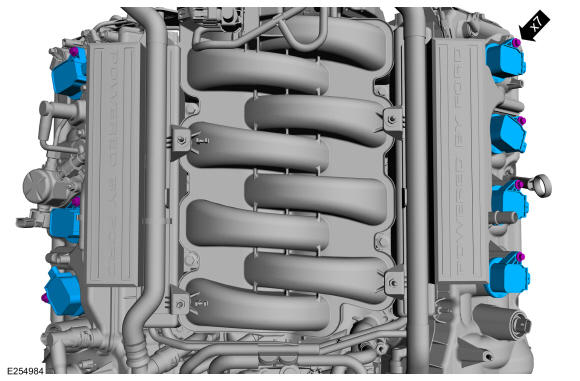

    1. Install the ignition coil-on-plugs
    2. Install and tighten the ignition coil-on-plug retaining bolts in the following 2 stages.

      Torque: Stage 1: 62 lb.in (7 Nm) / Stage 2: 45 deg.

    GFD602246Courtesy of FORD MOTOR COMPANY

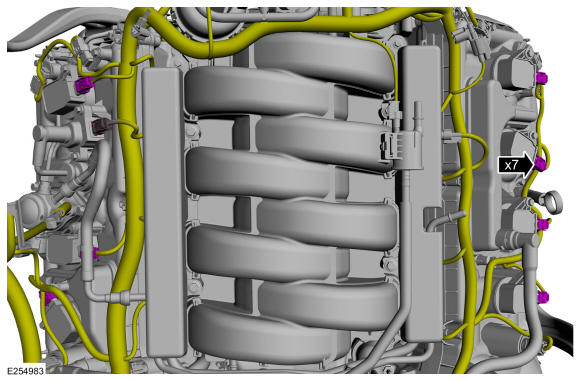

  3. Connect the ignition coil-on-plug electrical connectors.
    GFD602245Courtesy of FORD MOTOR COMPANY

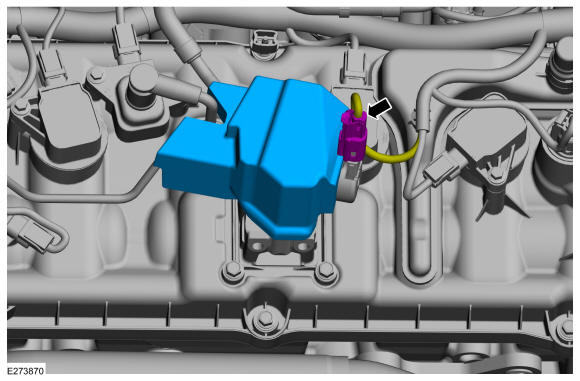

    • Install the fuel injection pump noise insulator.

    • Connect the electrical connector.

    GFD602244Courtesy of FORD MOTOR COMPANY

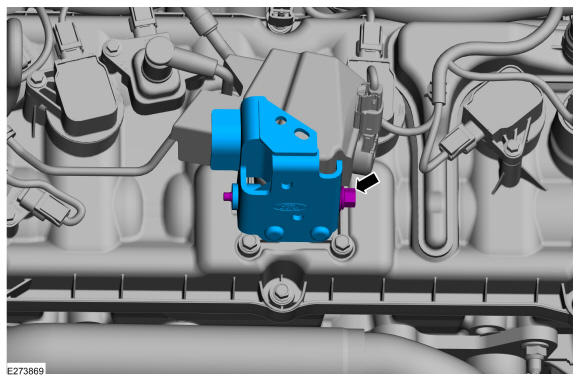

  5. Install the high-pressure fuel pump bracket and bolt.

    Torque: 22 lb.ft (30 Nm)

    GFD602248Courtesy of FORD MOTOR COMPANY

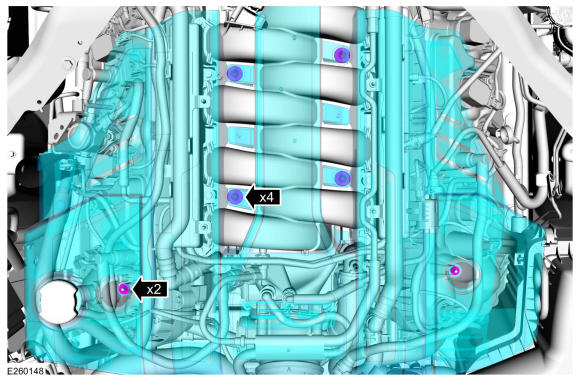

  6. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

    Install the engine appearance cover and the nuts.

    Torque: 35 lb.in (4 Nm)

    GFD602237Courtesy of FORD MOTOR COMPANY

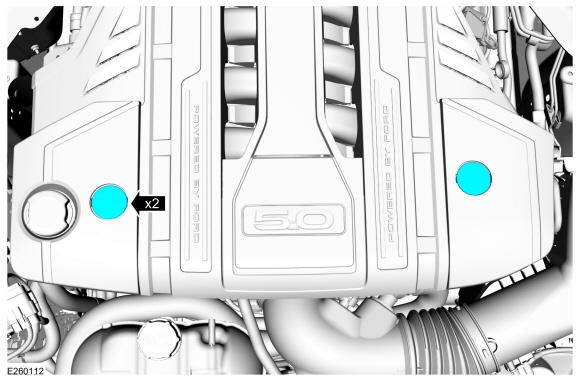

  7. Install the engine appearance cover caps.
    GFD602236Courtesy of FORD MOTOR COMPANY

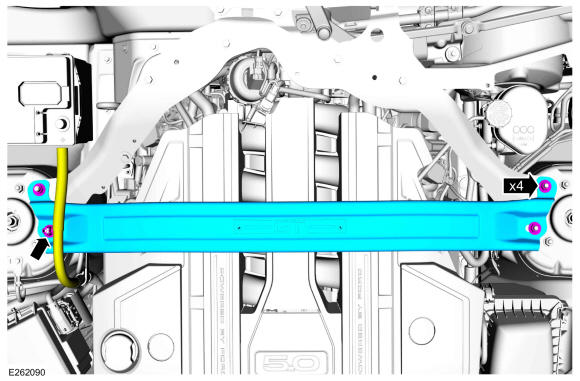

    • Install the strut tower cross brace with new nuts.

      Torque: 41 lb.ft (55 Nm)

    • Attach the wiring harness retainer.

GFD602249Courtesy of FORD MOTOR COMPANY
