Engine Ignition - 5.0L 32V Ti-VCT (359KW/486PS) (WU)/5.0L Ti-VCT V8 (343KW/466PS) (MF)
>>
Description And Operation
>>

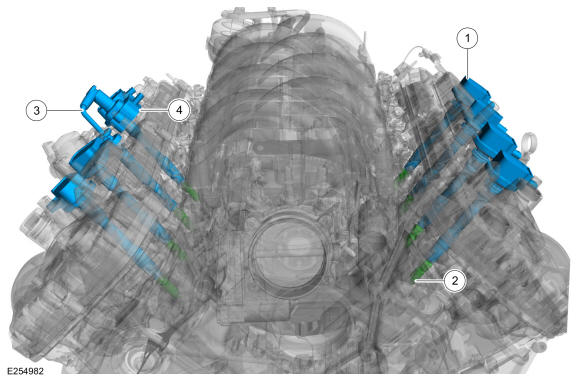

Engine Ignition - Component Location
Engine Ignition - Component Location
5.0L 32V Ti-VCT
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Ignition coil-on-plug(s)
2
Spark plug(s)
3
Spark plug wire
4
Ignition coil-near-plug
Courtesy of FORD MOTOR COMPANY
