Fuel Tank Draining

For information on Ford Color Coded Illustrations refer to: OEM COLOR CODING

Special Tool(s) / General Equipment

Draining

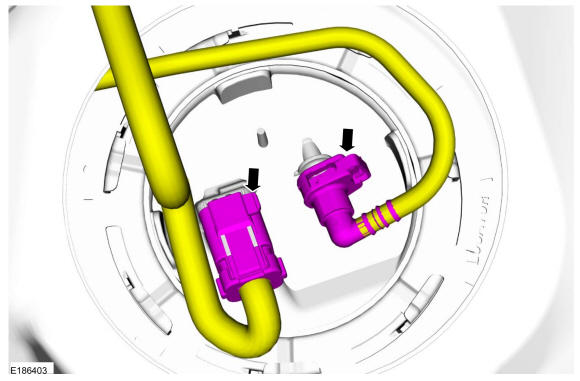

1. Refer to: Fuel System Pressure Release
2. Refer to: Battery Disconnect and Connect
3. Use the General Equipment: Fluid Container

   Courtesy of FORD MOTOR COMPANY

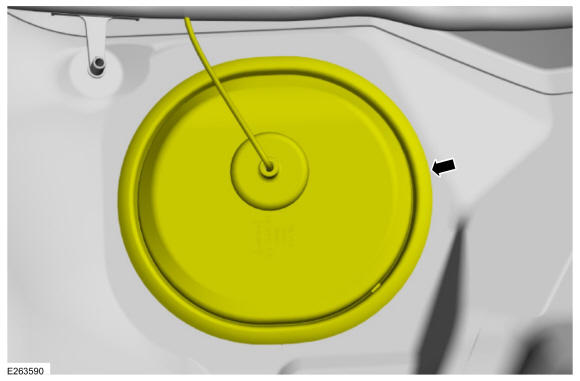

4. Courtesy of FORD MOTOR COMPANY

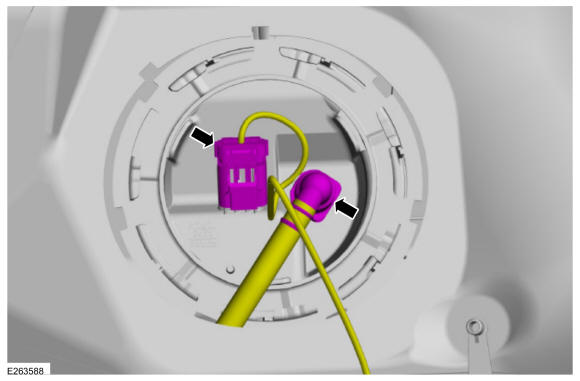

5. Refer to: Quick Release Coupling

   Courtesy of FORD MOTOR COMPANY

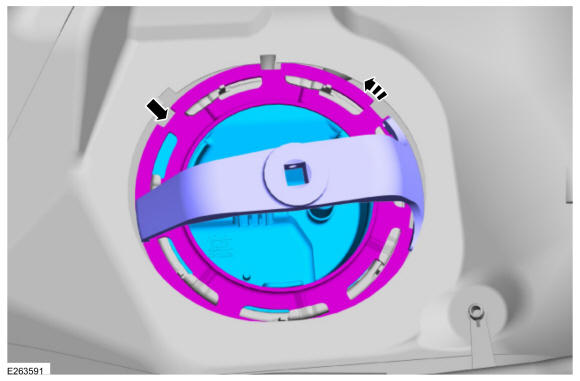

6. NOTE: Make sure that a new O-ring is installed.
   NOTE: Make sure that the installation marks are aligned.

   Use the General Equipment: Fuel Pump and Sender Unit Locking Ring Wrench

   Courtesy of FORD MOTOR COMPANY

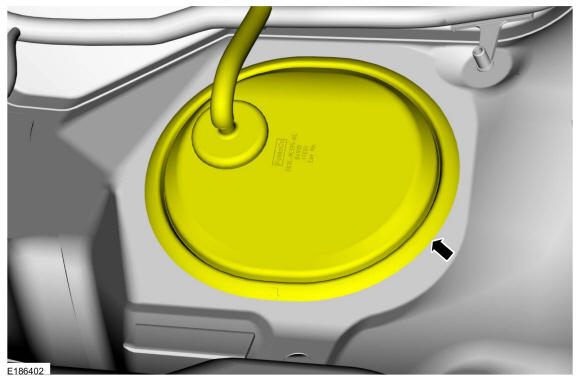

7. Courtesy of FORD MOTOR COMPANY

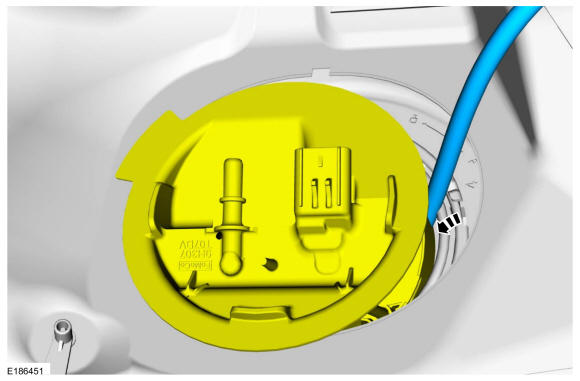

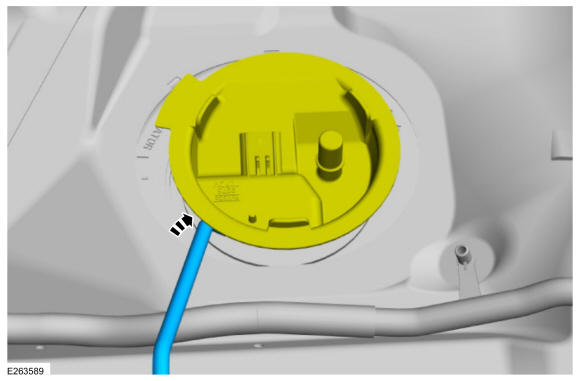

8. Courtesy of FORD MOTOR COMPANY

9. NOTE: Make sure that the component is clean, free of foreign material and lubricant.

   Refer to: Quick Release Coupling

   Courtesy of FORD MOTOR COMPANY

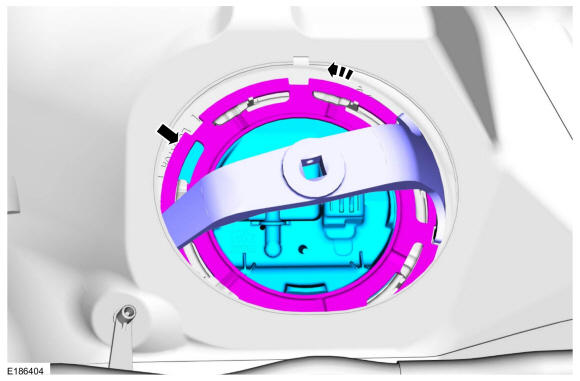

10. NOTE: Make sure that a new O-ring is installed.
    NOTE: Make sure that the installation marks are aligned.

    Use the General Equipment: Fuel Pump and Sender Unit Locking Ring Wrench

    Courtesy of FORD MOTOR COMPANY

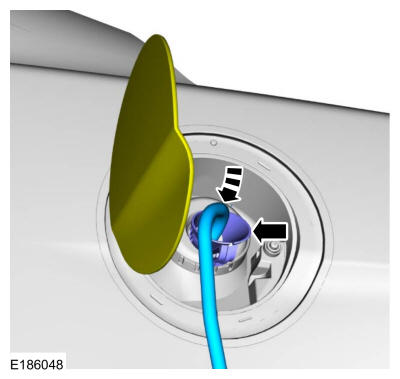

11. Courtesy of FORD MOTOR COMPANY
