Positive Crankcase Ventilation (PCV) Valve: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the negative and positive battery cable. Refer to: Battery Disconnect and Connect
2. If equipped Remove and discard the nuts and remove the strut tower cross brace.

   Torque: 41 lb.ft (55 Nm)

   Courtesy of FORD MOTOR COMPANY

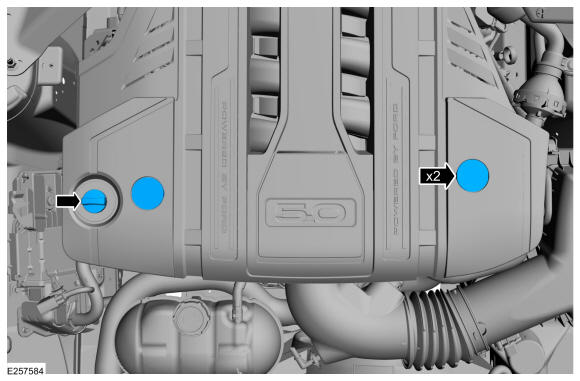

3. Remove the oil filling cap.

   Courtesy of FORD MOTOR COMPANY

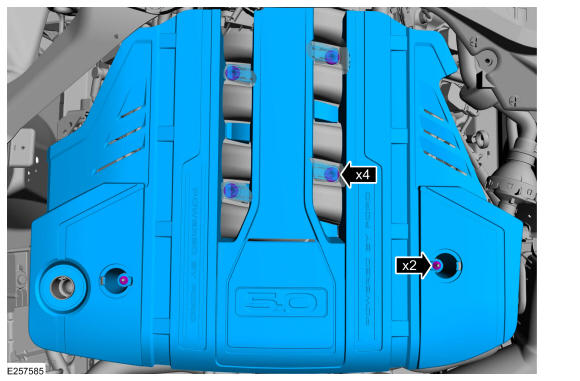

4. Remove the engine appearance cover.

   Courtesy of FORD MOTOR COMPANY

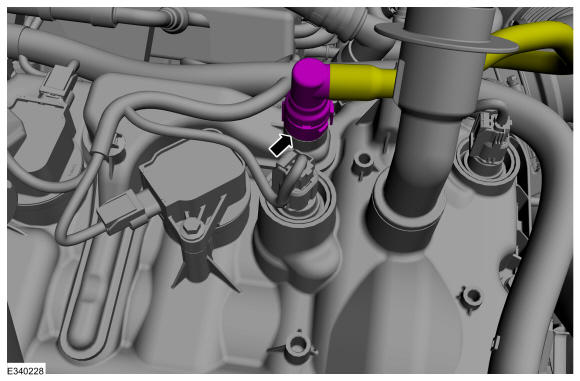

5. Disconnect the crankcase ventilation tube-to PCV-valve quick connect coupling. Refer to: Quick Release Coupling

   Courtesy of FORD MOTOR COMPANY

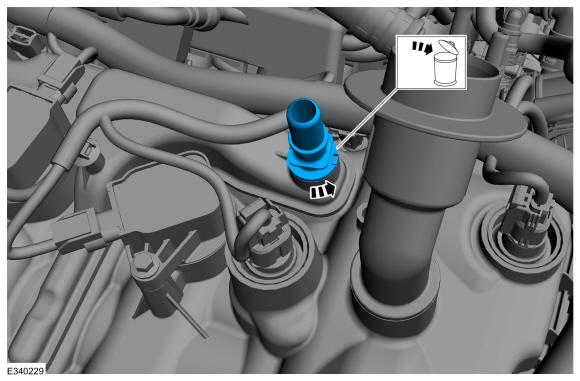

6. Rotate the PCV valve counterclockwise and remove the PCV valve. Discard the PCV valve.

Courtesy of FORD MOTOR COMPANY
