Mustang GT, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Remove, Overhaul & Install
>>
Fuel Charging And Controls - 5.0L 32V Ti-VCT (359KW/486PS) (WU)/5.0L Ti-VCT V8 (343KW/466PS) (MF)
>>
Description And Operation
>>

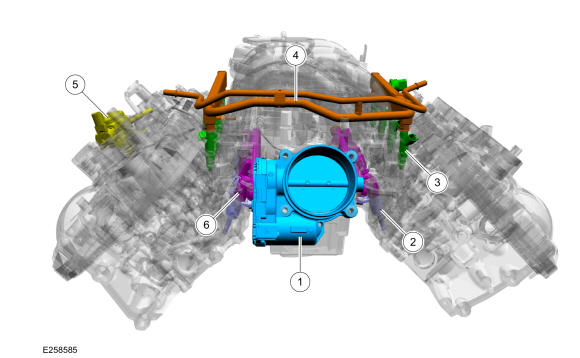

Fuel Charging and Controls - Component Location
Fuel Charging and Controls - Component Location
5.0L 32V Ti-VCT
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle body
2
Direct injection fuel injector
3
Port injection fuel injector
4
Port injection fuel rail
5
High-pressure fuel pump
6
Direct injection fuel rail

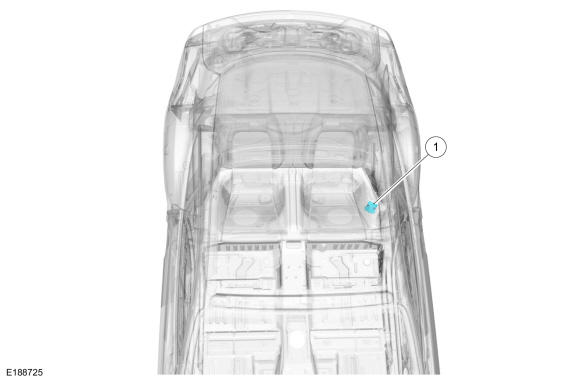

Fuel Pump Driver Module
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Fuel pump driver module.
