Parking Aid

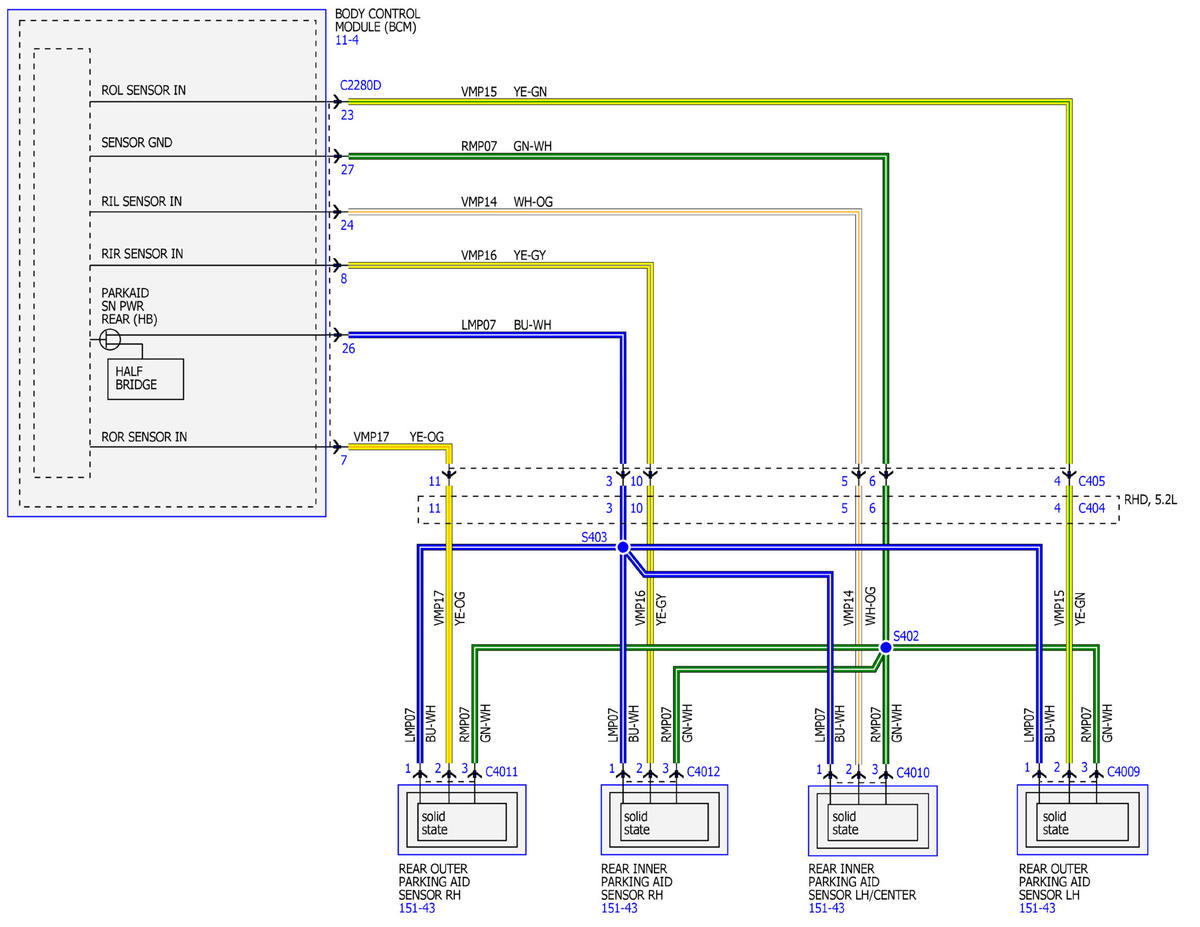

Fig 1: Parking Aid Wiring Diagrams (1 Of 3)
GFDWR141740Courtesy of FORD MOTOR COMPANY

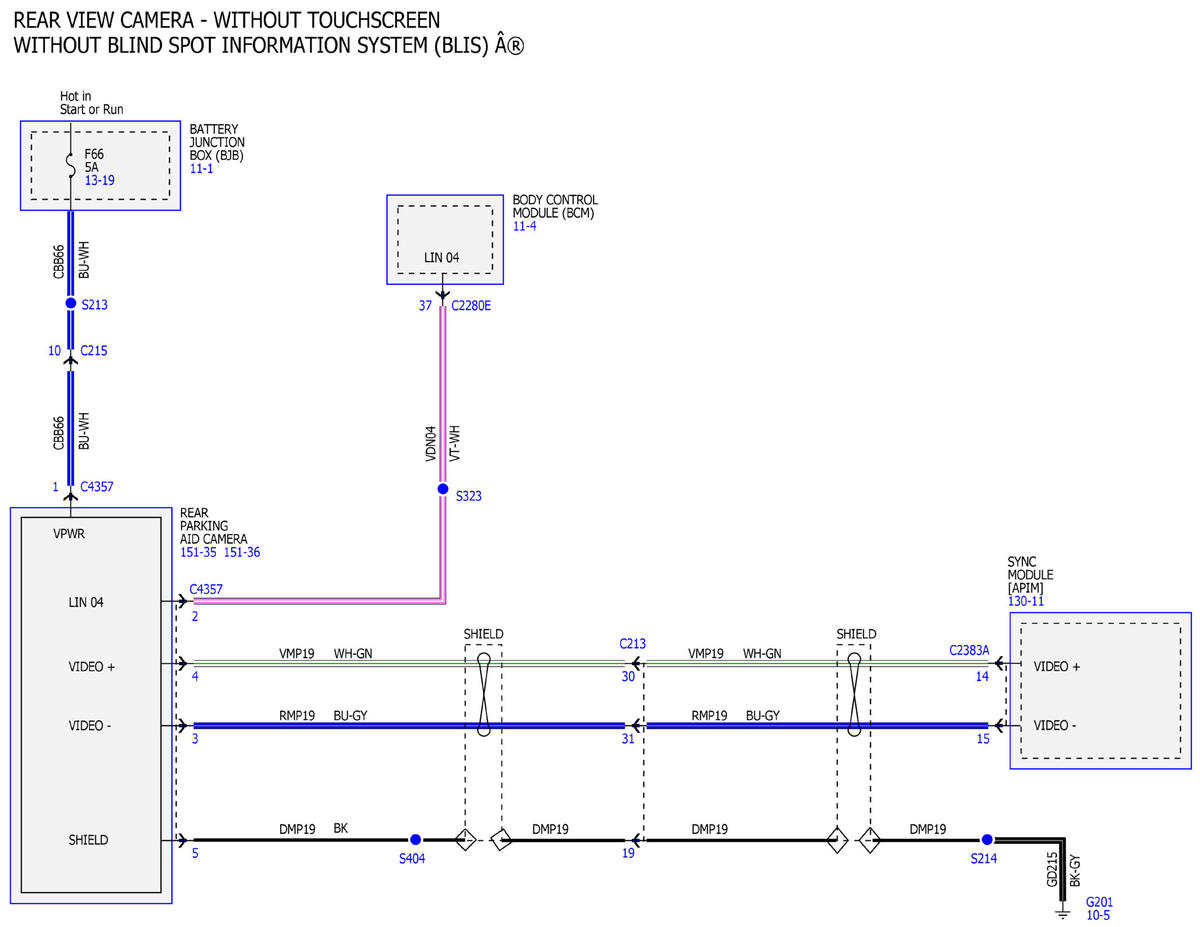

Fig 2: Parking Aid Wiring Diagrams (2 Of 3)
GFDWR141741Courtesy of FORD MOTOR COMPANY

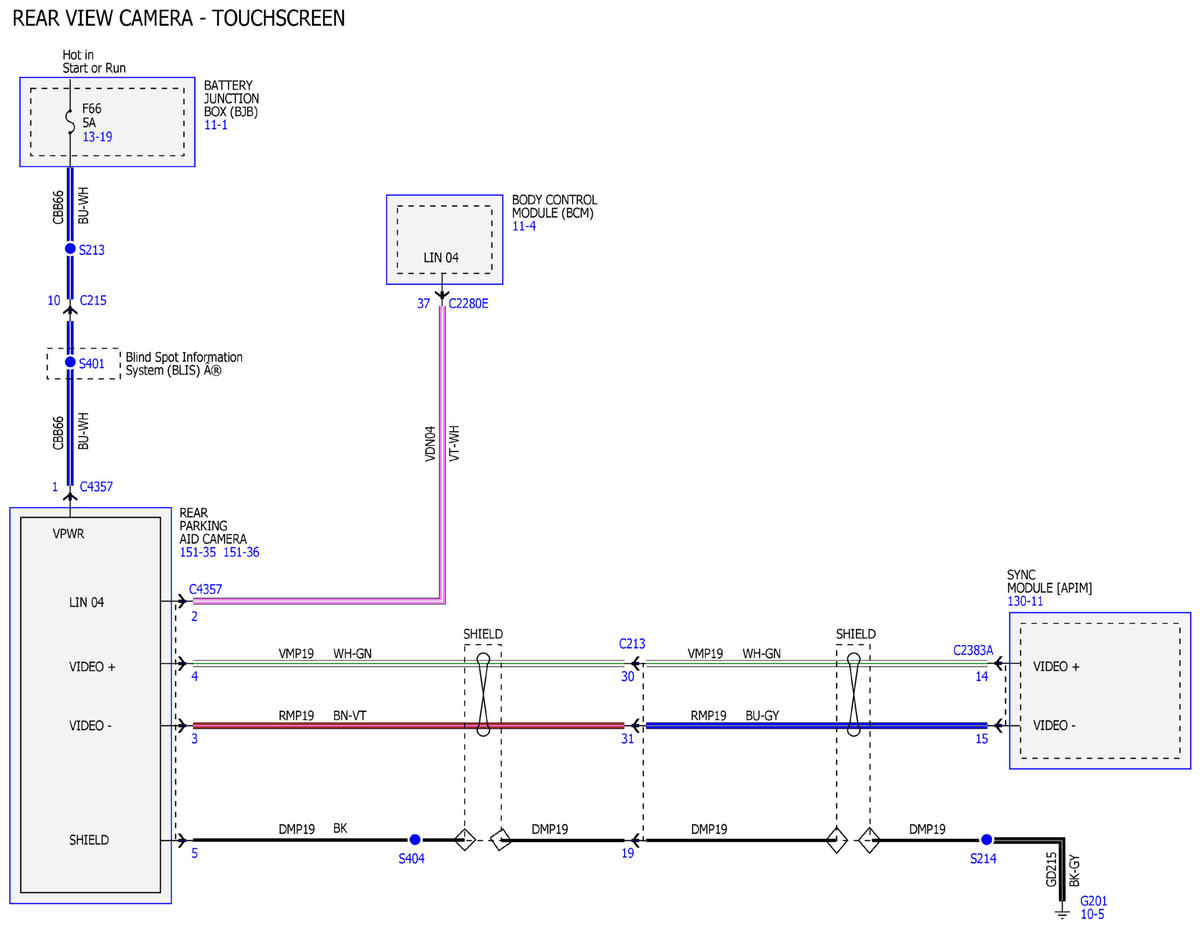

Fig 3: Parking Aid Wiring Diagrams (3 Of 3)
GFDWR141742Courtesy of FORD MOTOR COMPANY
