Instrument Cluster

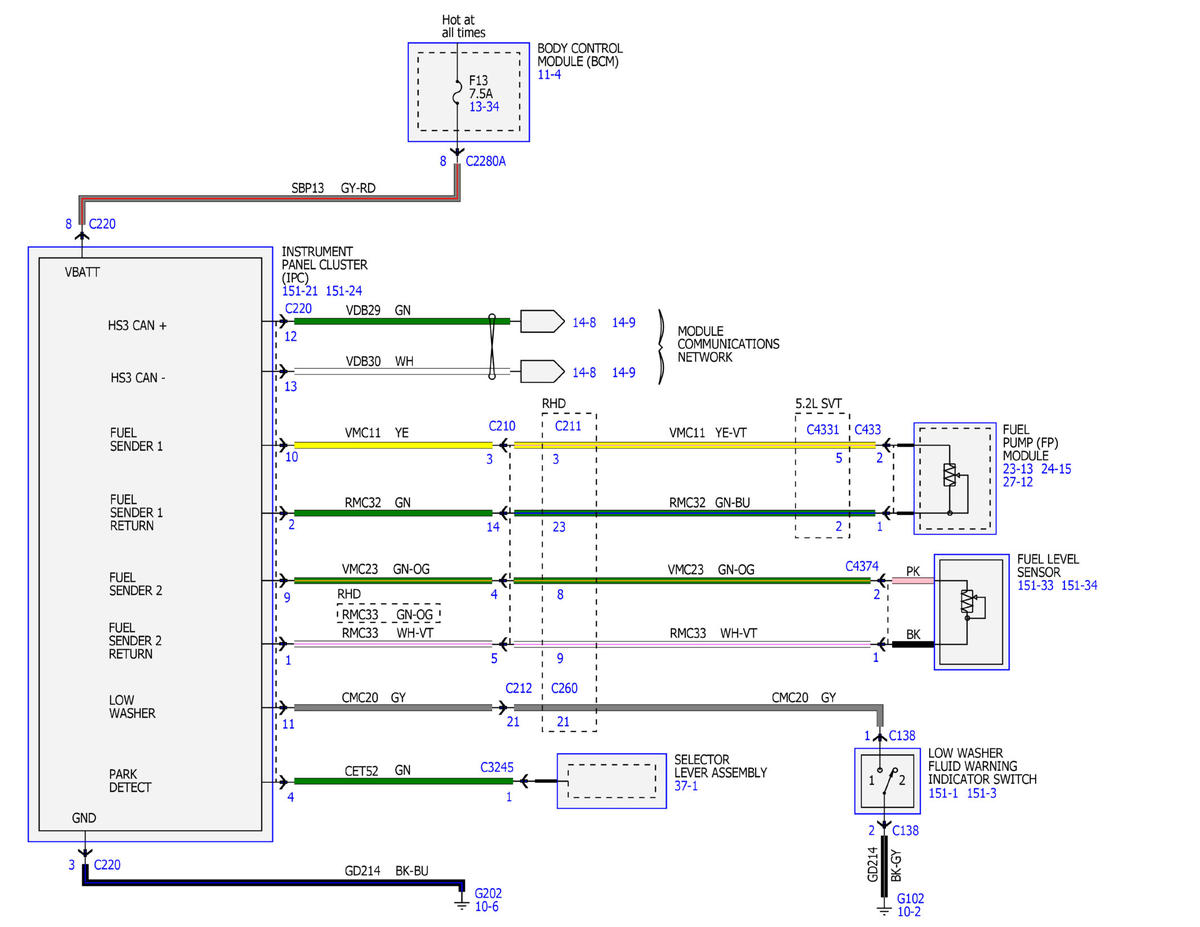

Fig 1: Instrument Cluster Wiring Diagrams (1 Of 4)
GFDWR141695Courtesy of FORD MOTOR COMPANY

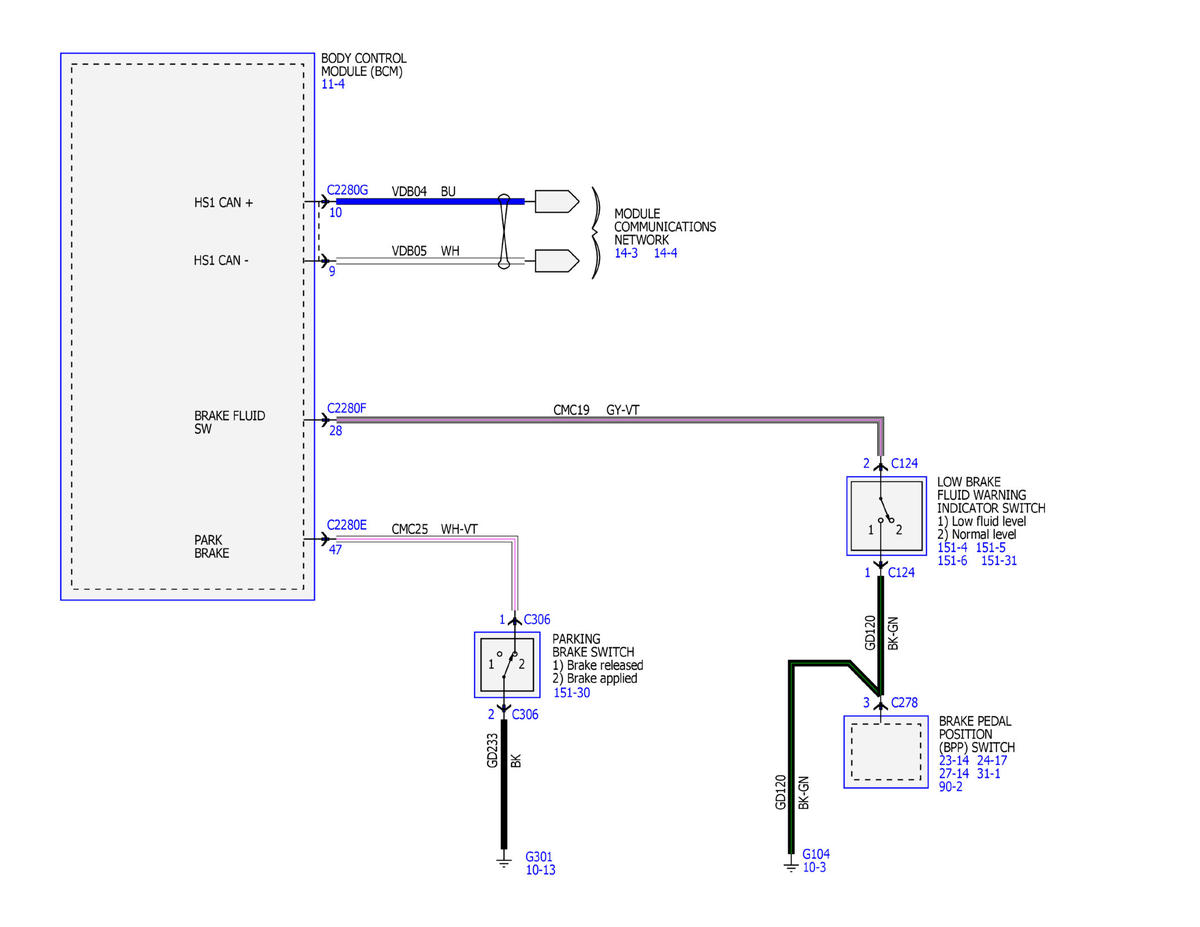

Fig 2: Instrument Cluster Wiring Diagrams (2 Of 4)
GFDWR141696Courtesy of FORD MOTOR COMPANY

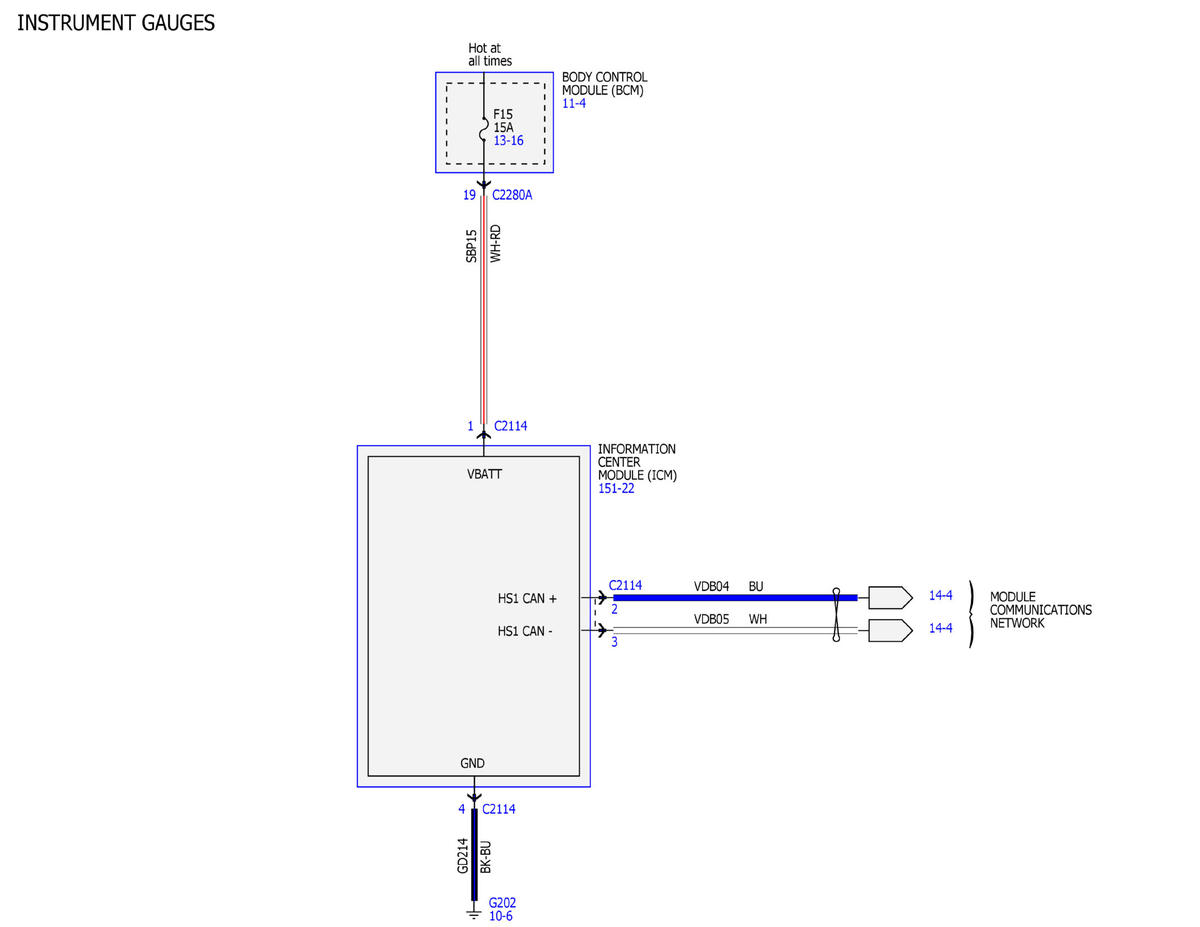

Fig 3: Instrument Cluster Wiring Diagrams (3 Of 4)
GFDWR141697Courtesy of FORD MOTOR COMPANY

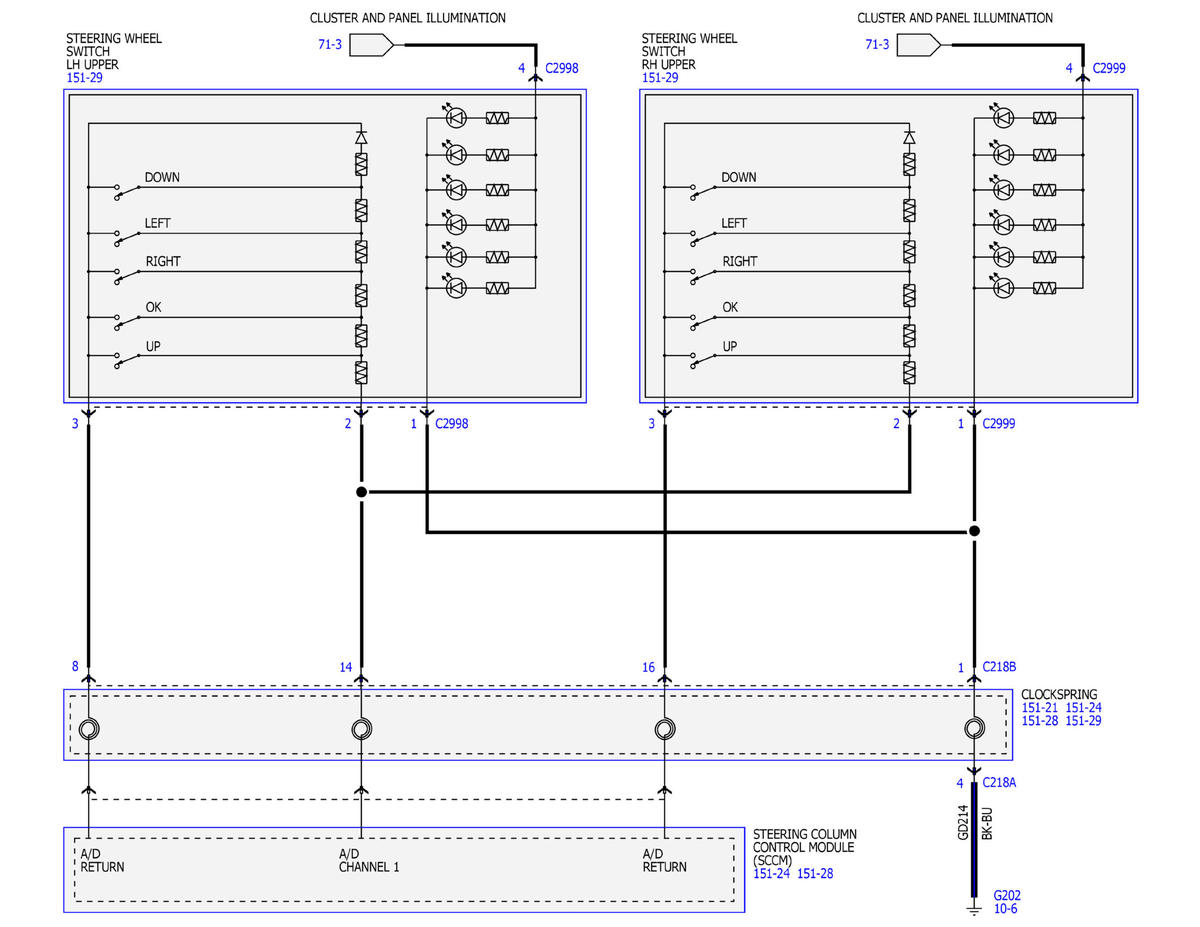

Fig 4: Instrument Cluster Wiring Diagrams (4 Of 4)
GFDWR141698Courtesy of FORD MOTOR COMPANY
