Mustang GT, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Fuse And Relay Location
>>
Fuse And Relay Information
Fuse And Relay Information

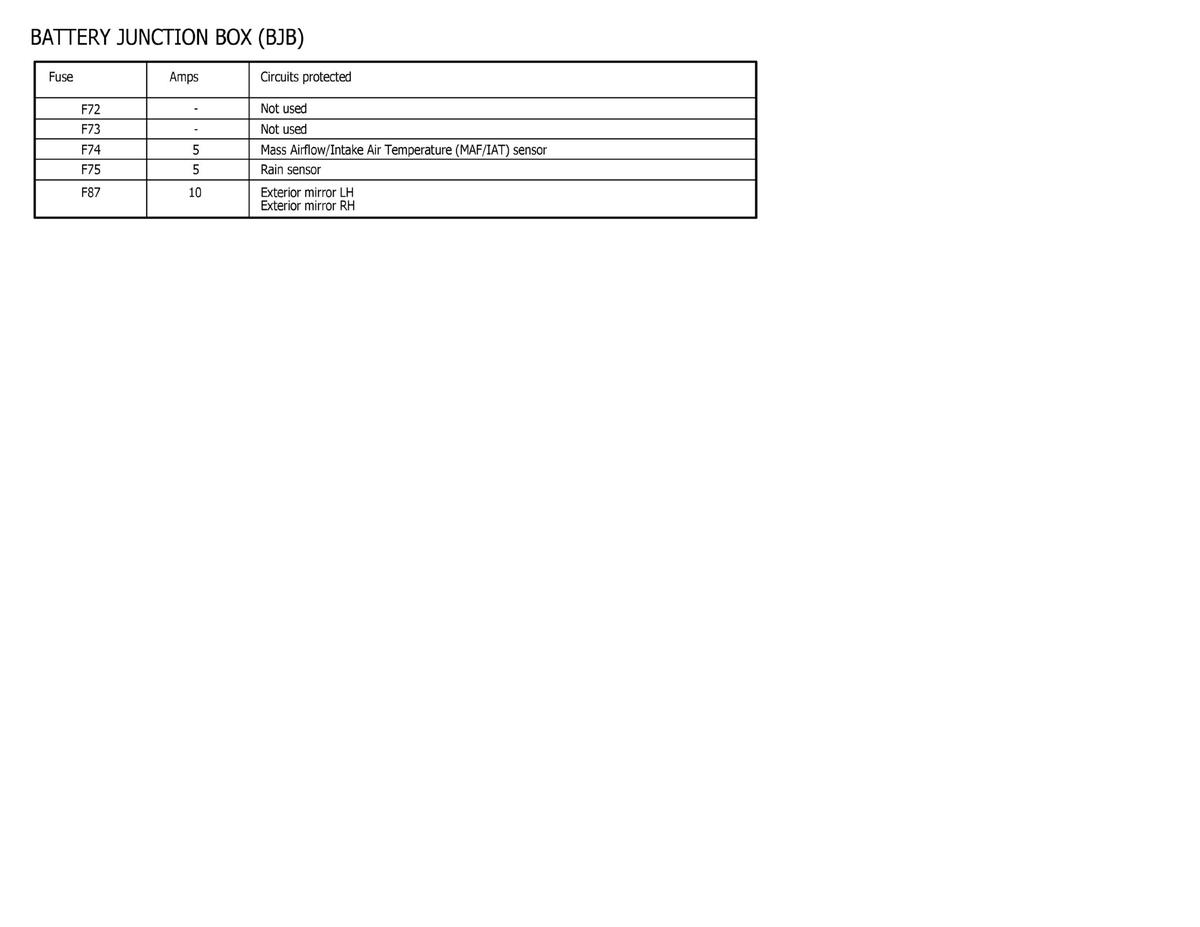

Fig 1: Battery Junction Box (BJB)
Courtesy of FORD MOTOR COMPANY

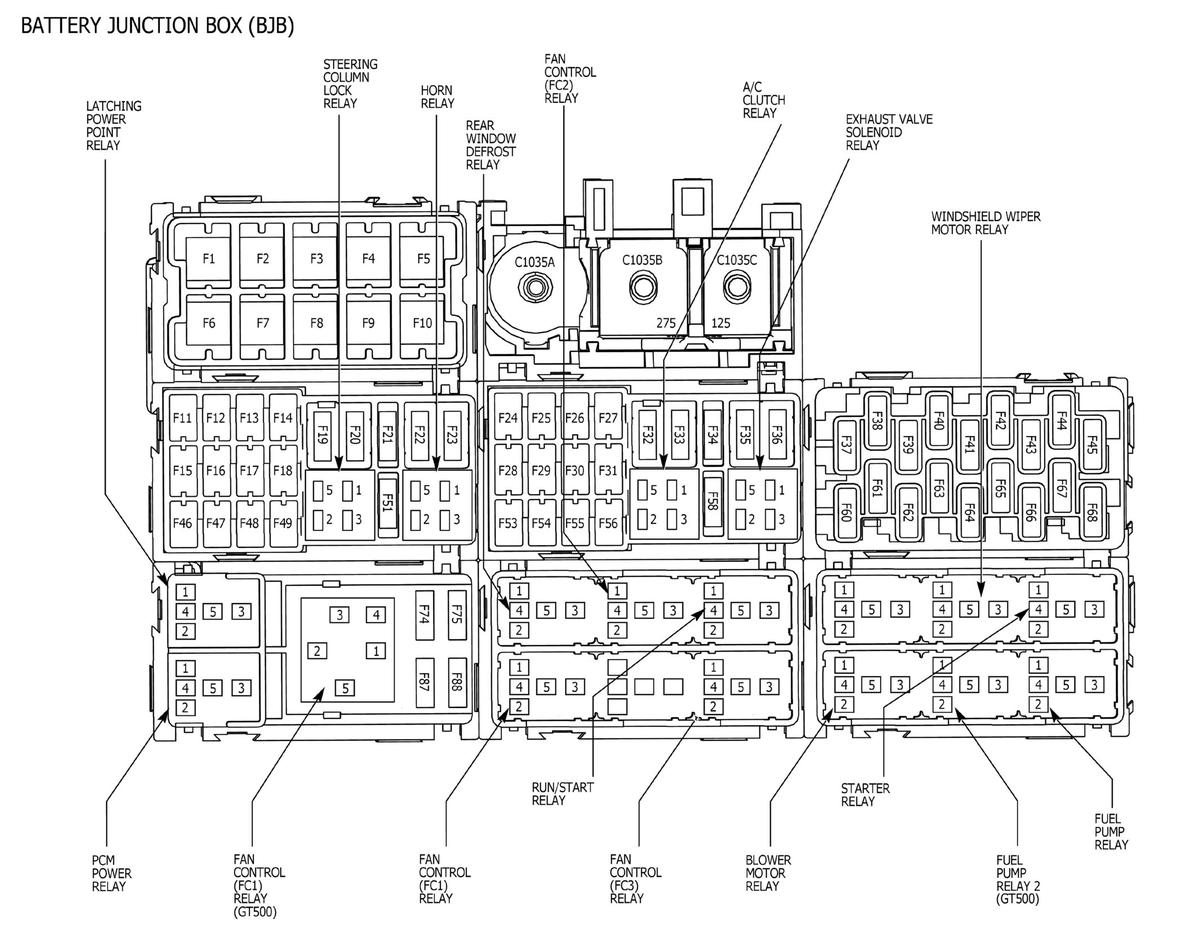

Fig 2: Battery Junction Box (BJB)
Courtesy of FORD MOTOR COMPANY

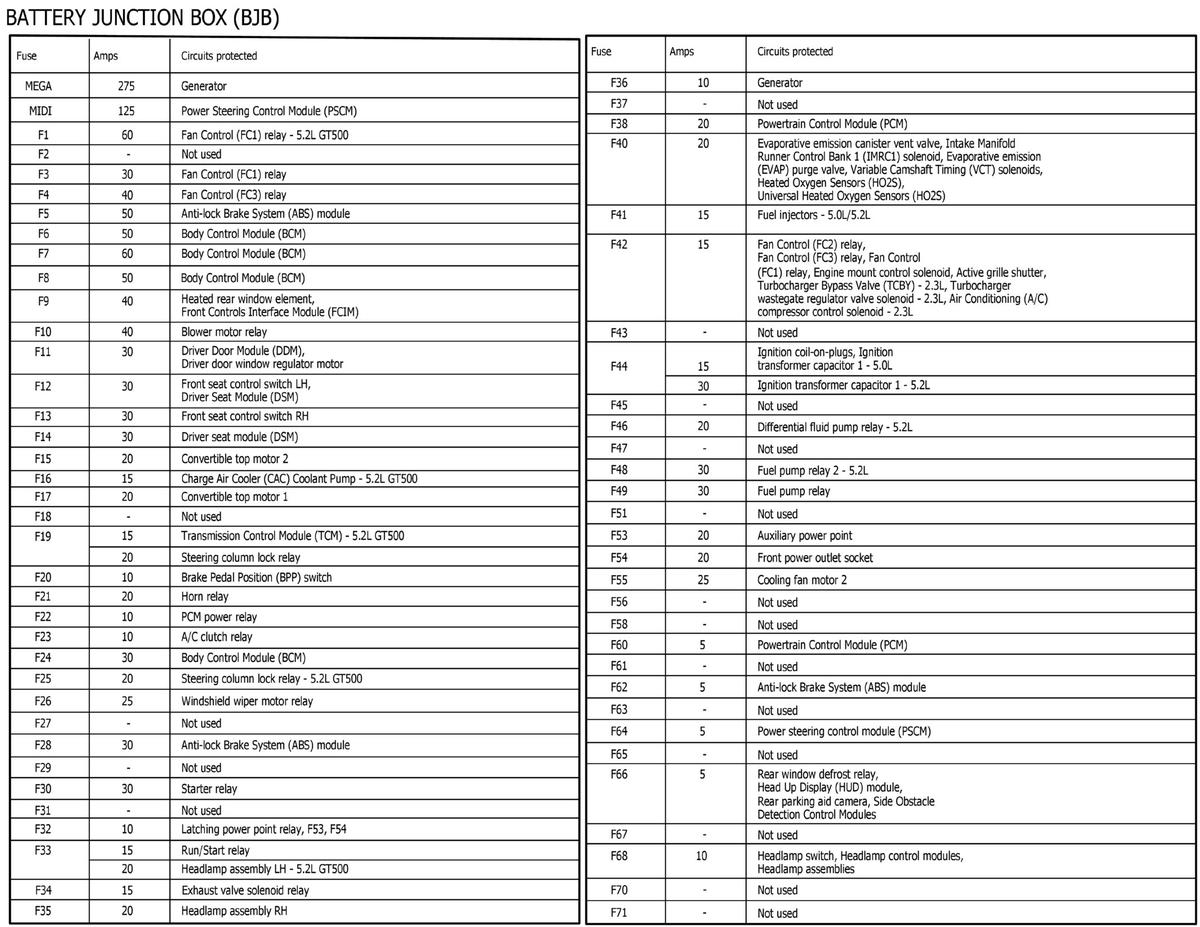

Fig 3: Battery Junction Box (BJB)
Courtesy of FORD MOTOR COMPANY

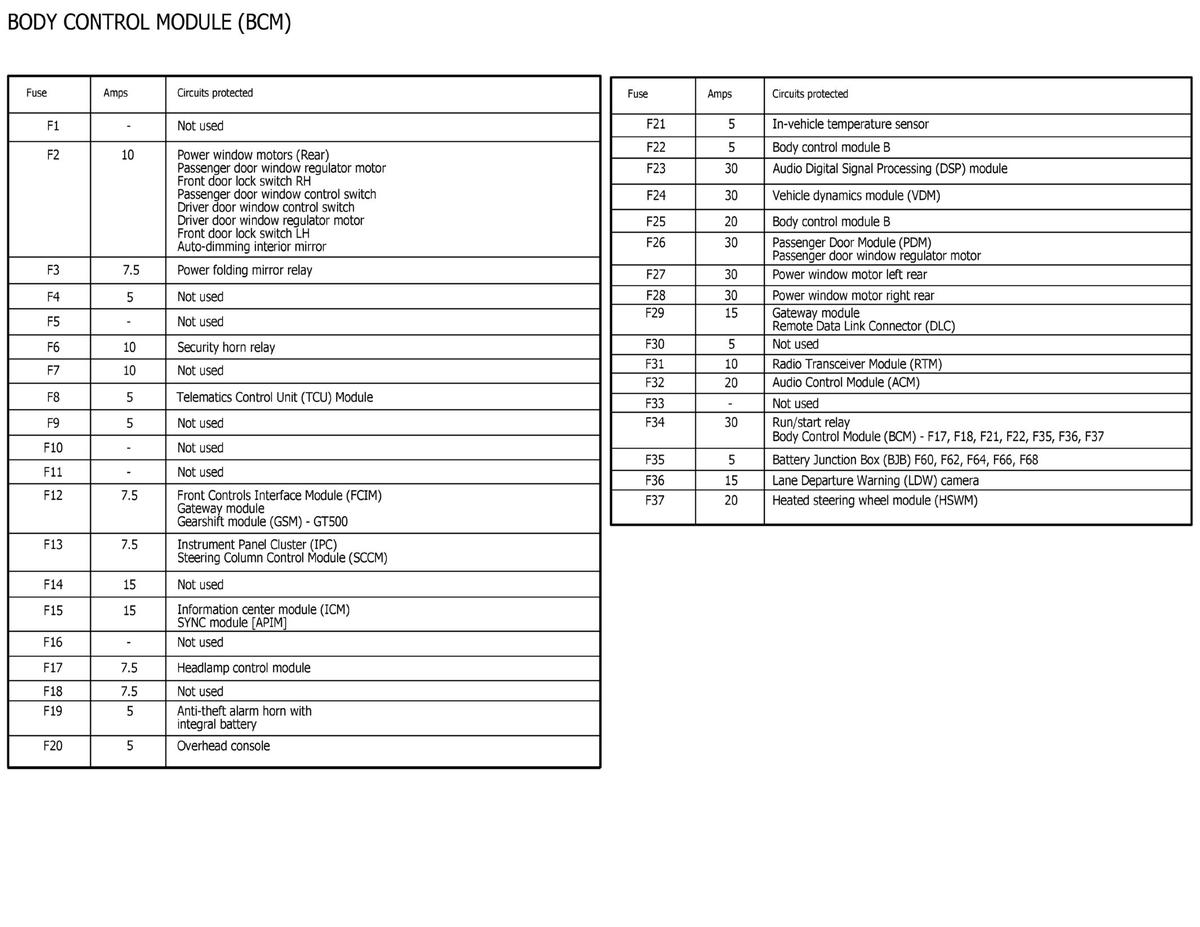

Fig 4: Body Control Module (BCM)
Courtesy of FORD MOTOR COMPANY

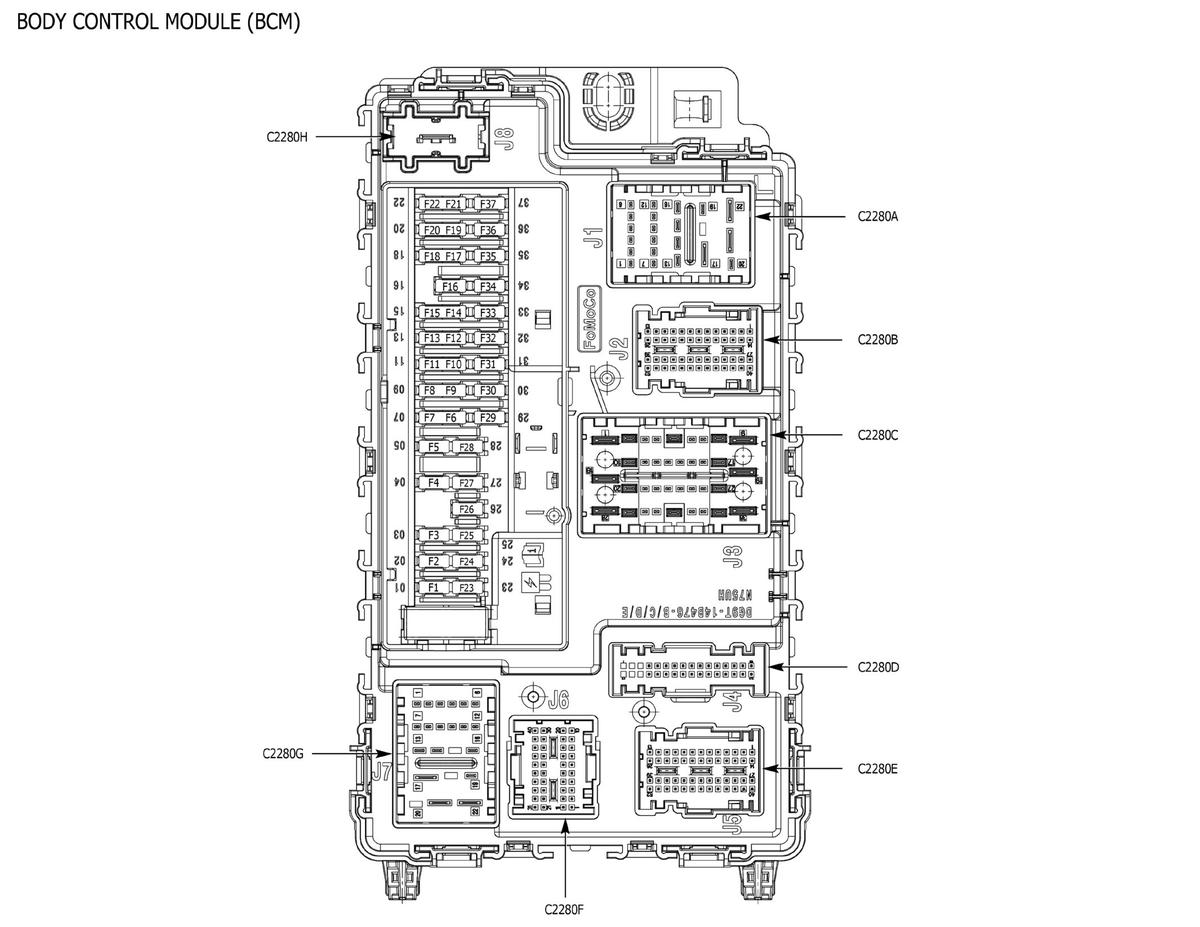

Fig 5: Body Control Module (BCM)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
