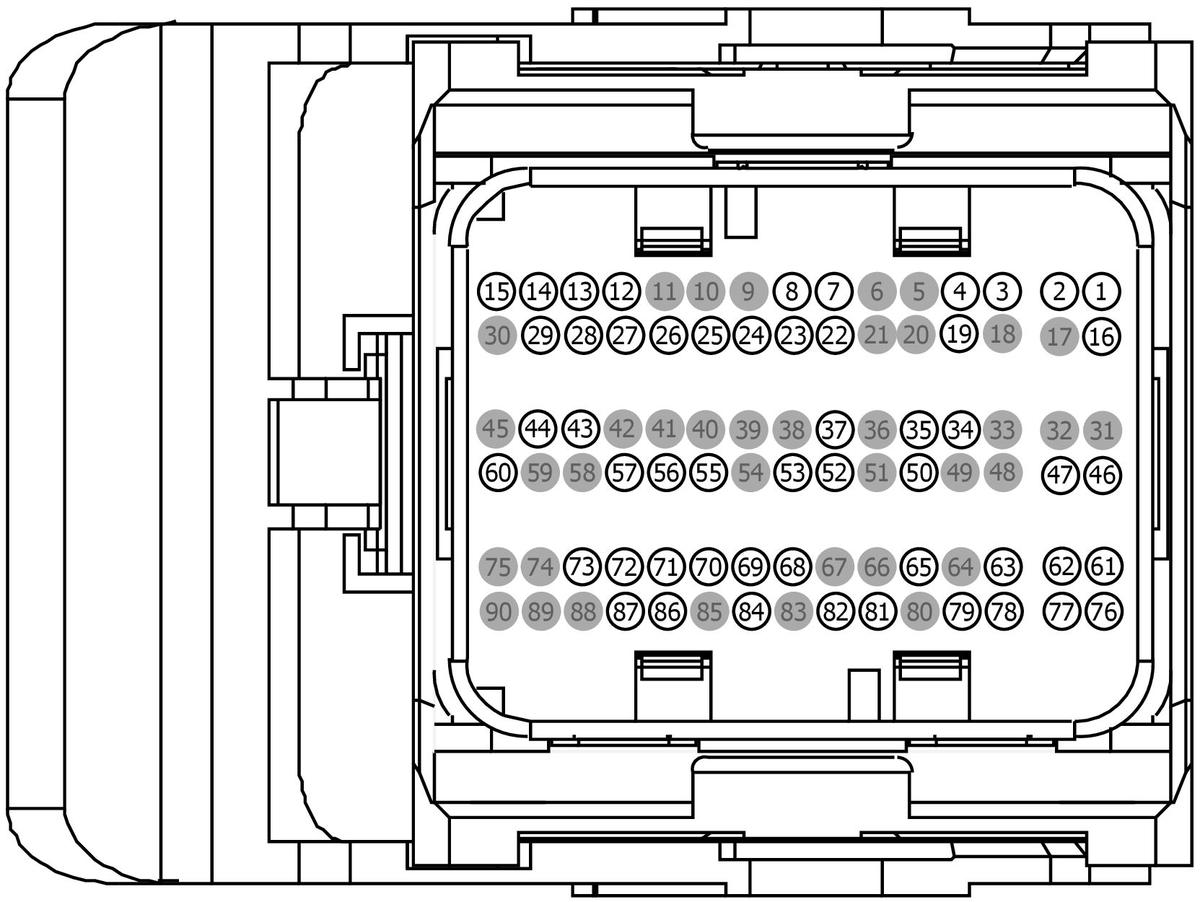

Connector End View (C1232B) - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1232B	POWERTRAIN CONTROL MODULE (PCM)	BK	14290	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK01 (BU)	16	FUSE - 1 OR CIRCUIT BREAKER (VPWR F)	N/A
2	CBK01 (BU)	16	FUSE - 1 OR CIRCUIT BREAKER (VPWR F)	N/A
3	VE225 (YE-OG)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)	N/A
4	CEC02 (GN-BU)	18	CTRL MOD. - COOLING FAN CONTROL (FC1)	N/A
5	- ()	*	Not Used	N/A
6	- ()	*	Not Used	N/A
7	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM	N/A
8	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	N/A
9	- ()	*	Not Used	N/A
10	- ()	*	Not Used	N/A
11	- ()	*	Not Used	N/A
12	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
13	CBB60 (YE-VT)	18	FUSE - 60 OR CIRCUIT BREAKER	N/A
14	RE226 (GN-VT)	18	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	N/A
15	CDC10 (VU-OG)	20	CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC)	N/A
16	CBK01 (BU)	16	FUSE - 1 OR CIRCUIT BREAKER (VPWR F)	N/A
17	- ()	*	Not Used	N/A
18	- ()	*	Not Used	N/A
19	CH302 (WH-BN)	20	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)	N/A
20	- ()	*	Not Used	N/A
21	- ()	*	Not Used	N/A
22	CPK34 (GN-WH)	20	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +	N/A
23	CES09 (VT-OG)	22	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +	N/A
24	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	N/A
25	VET66 (GN)	22	SENSOR - REAR DIFFERENTIAL OIL TEMPERATURE POS	N/A
26	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	N/A
27	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
28	RH433 (BU-GY)	22	TRANSDUCER - A/C PRESSURE (ACPT) -	N/A
29	CE226 (YE)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	N/A
30	- ()	*	Not Used	N/A
31	- ()	*	Not Used	N/A
32	- ()	*	Not Used	N/A
33	- ()	*	Not Used	N/A
34	CE114 (GN-BU)	18	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)	N/A
35	VYT12 (YE-GN)	22	PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI)	N/A
36	- ()	*	Not Used	N/A
37	VMT23 (WH-BN)	22	CTRL MOD. - TELEMATICS EMERGENCY NOTIFICATION SIGNAL (ENS)	N/A
38	- ()	*	Not Used	N/A
39	- ()	*	Not Used	N/A
40	- ()	*	Not Used	N/A
41	- ()	*	Not Used	N/A
42	- ()	*	Not Used	N/A
43	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
44	CDC54 (WH-GN)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)	N/A
45	- ()	*	Not Used	N/A
46	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT	N/A
47	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT	N/A
48	- ()	*	Not Used	N/A
49	- ()	*	Not Used	N/A
50	CDC15 (GN)	20	GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI)	N/A
51	- ()	*	Not Used	N/A
52	VE518 (BN-WH)	22	MONITOR - FUEL PUMP (FPM)	N/A
53	CE908 (VU-BN)	20	SWITCH - ENGINE OIL LEVEL (EOL)	N/A
54	- ()	*	Not Used	N/A
55	VDC61 (VT-GN)	20	SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR	N/A
56	VE701 (YE-OG)	22	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)	N/A
57	VE922 (VT-GN)	22	TRANSDUCER - FUEL TANK PRESSURE (FTPT)	N/A
58	- ()	*	Not Used	N/A
59	- ()	*	Not Used	N/A
60	CE302 (YE-BU)	20	CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC)	N/A
61	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT	N/A
62	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT	N/A
63	VYT11 (VT-GY)	22	CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT)	N/A
64	- ()	*	Not Used	N/A
65	CET40 (GN-OG)	20	SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN)	N/A
66	- ()	*	Not Used	N/A
67	- ()	*	Not Used	N/A
68	VE702 (BU-WH)	22	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)	N/A
69	VH433 (VT-OG)	22	TRANSDUCER - A/C PRESSURE (ACPT) +	N/A
70	LE230 (BN-BU)	22	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)	N/A
71	LE137 (BU-GY)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)	N/A
72	RE137 (YE-GY)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)	N/A
73	RE908 (BN-BU)	20	SWITCH - ENGINE OIL LEVEL -	N/A
74	- ()	*	Not Used	N/A
75	- ()	*	Not Used	N/A
76	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT	N/A
77	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT	N/A
78	CDC12 (YE-OG)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)	N/A
79	VE462 (WH-BN)	20	CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE	N/A
80	- ()	*	Not Used	N/A
81	LE423 (GN-VT)	22	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	N/A
82	LH315 (WH-GN)	22	CTRL MOD. - A/C PRESSURE TRANSDUCER	N/A
83	- ()	*	Not Used	N/A
84	VH407 (YE-GN)	20	SENSOR - AMBIENT TEMP.	N/A
85	- ()	*	Not Used	N/A
86	LE136 (GN-OG)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)	N/A
87	RE136 (VT-GN)	22	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)	N/A
88	- ()	*	Not Used	N/A
89	- ()	*	Not Used	N/A
90	- ()	*	Not Used	N/A
